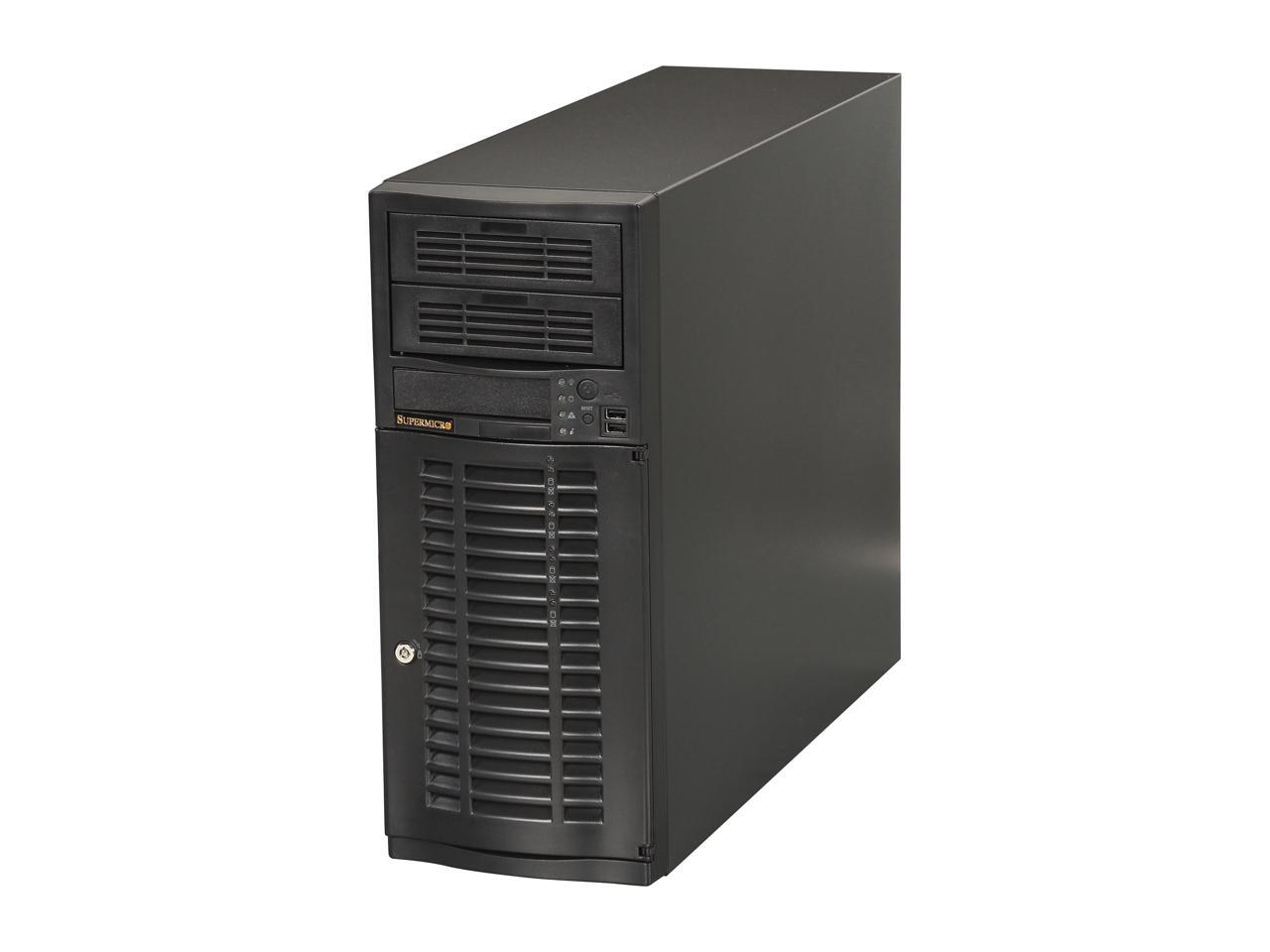

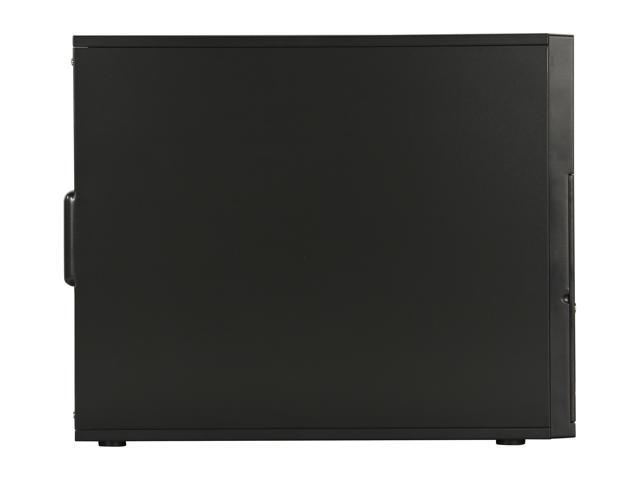

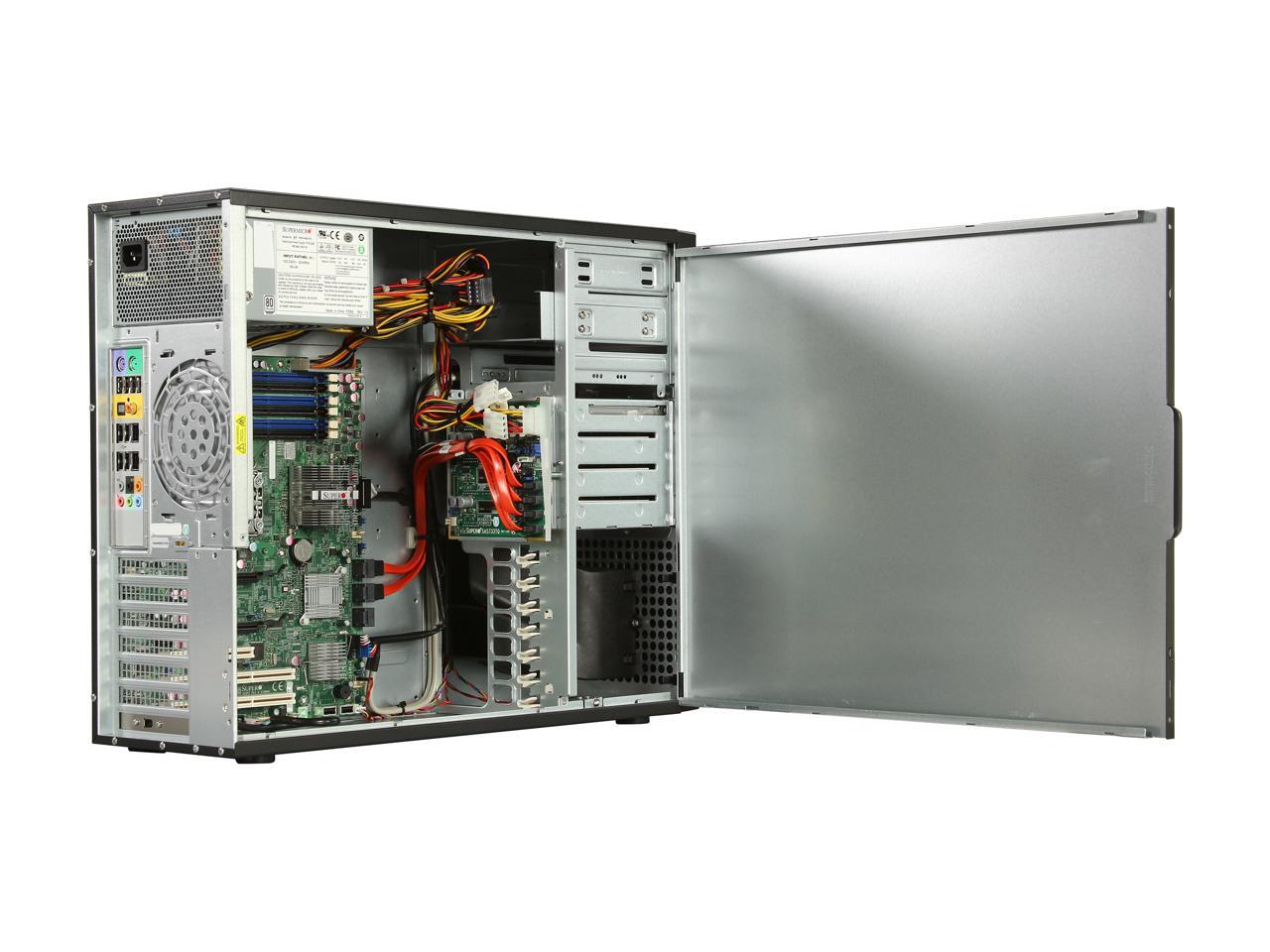

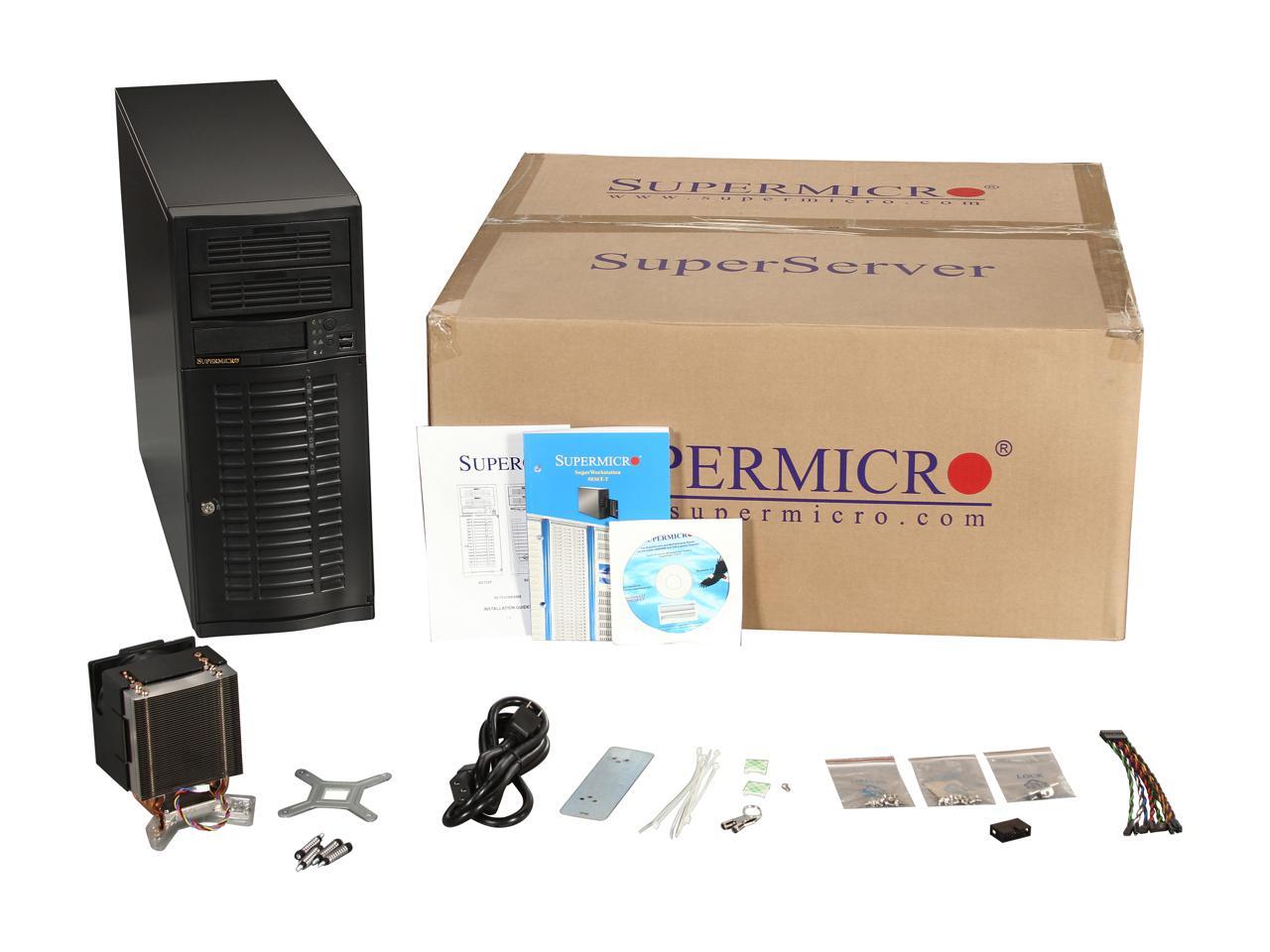

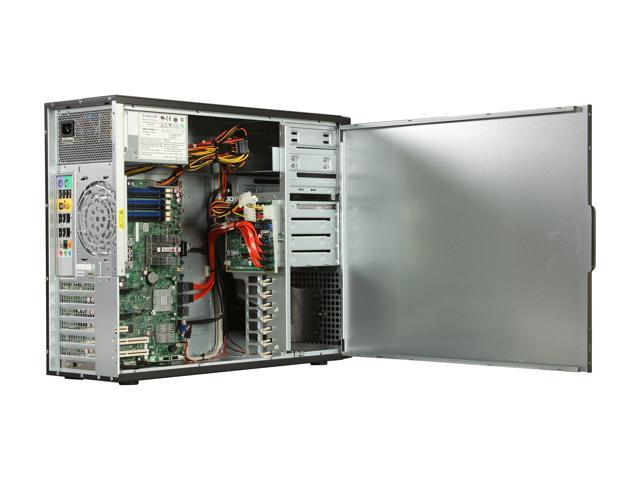

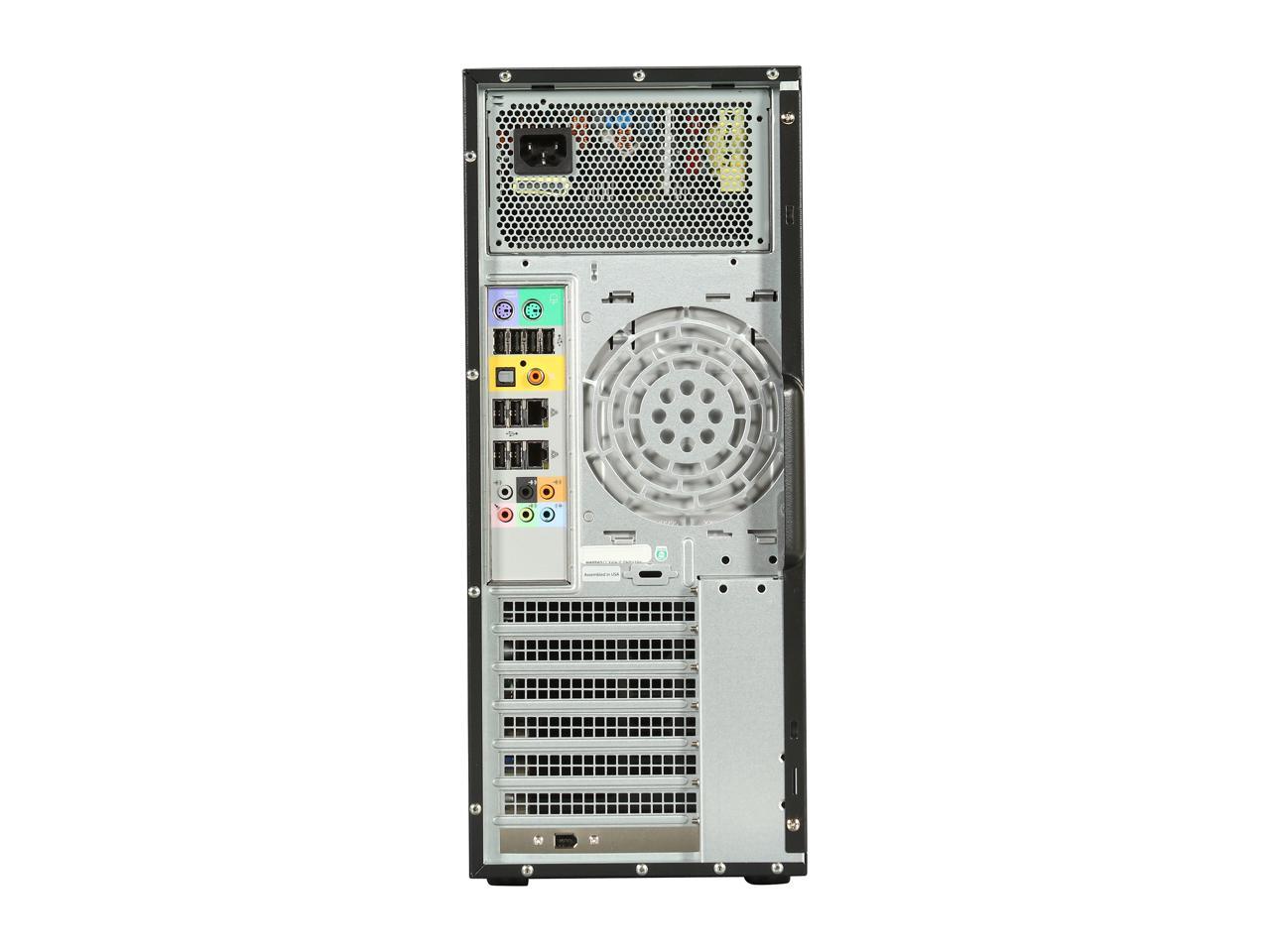

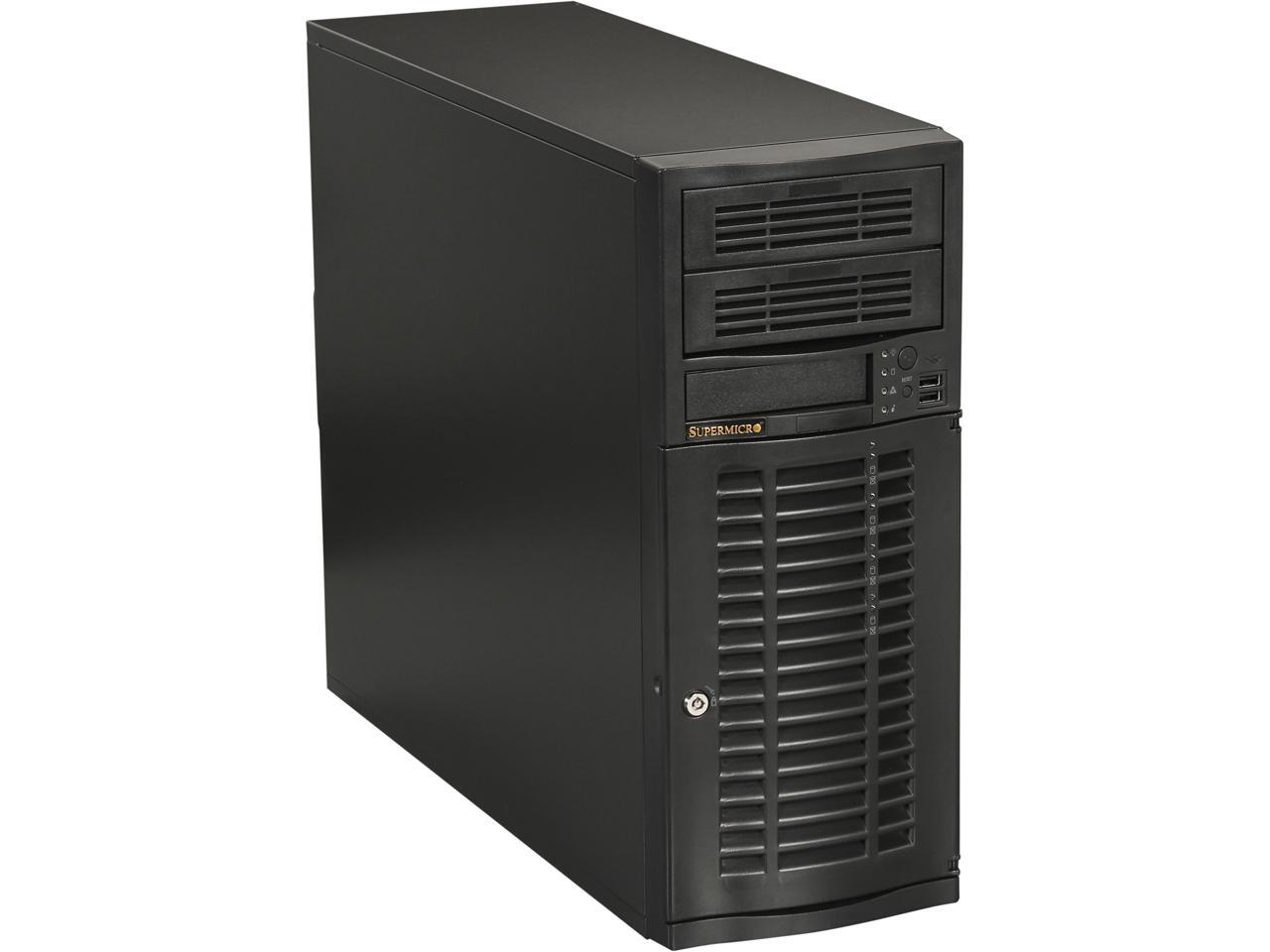

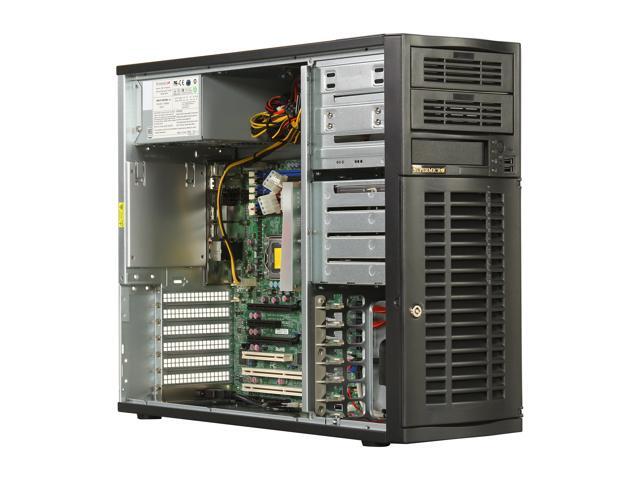

SUPERMICRO Super WorkStation SYS-5036T-TB Intel Core i7 / Xeon Mid-Tower Server Barebone, Win 7 Supported (BIOS Ver. R1.1a)
- 1 x LGA 1366 Support Intel Core i7 / Xeon
- 6 x 240Pin Memory Slots (Max 24GB)
- Support 6 x SATA 300
- 465W AC power supp
Specs
Reviews (9)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-5036T-TB
| Brand | SUPERMICRO |
|---|---|
| Series | SuperWorkstation |
| Model | SYS-5036T-TB |
| Form Factor | Mid-Tower |
| CPU Type | Intel Core i7 990X, i7-980X, i7-975 and i7-965 Extreme Edition Intel Core i7 series Intel Xeon 5600/5500 series Intel Xeon 3600/3500 series |
|---|---|
| CPU Socket | LGA 1366 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| North Bridge | Intel X58 |
|---|---|
| South Bridge | ICH10R + PXH/V |
| Memory Slots | 6 x 240Pin |
|---|---|
| Max Memory Supported | 24GB |
| Memory Type Supported | DDR3 1333/1066/800 |
| Channel Supported | Triple Channel |
| ECC Supported | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| Serial ATA | 6 x SATA 300 |
| SATA RAID | RAID 0/1/5/10 |
| PCI Express | 2 (x16) PCI-e 2.0 slots 1 (x4) PCI-e slot (using x8 slot) |
|---|---|
| PCI | 1 |
| PCI-X | 2 x 64-bit 133/100MHz PCI-X (3.3V) slots |
| Onboard Audio | Realtek ALC883 7.1 HD audio |
| First LAN | Intel 82574L |
|---|---|
| Second LAN | Intel 82574L |
| Max. LAN Speed | Dual 1 Gigabit |
| 3.5" Bays | 1 x 3.5" bay for floppy drive |
|---|---|
| 5.25" Bays | 2 |

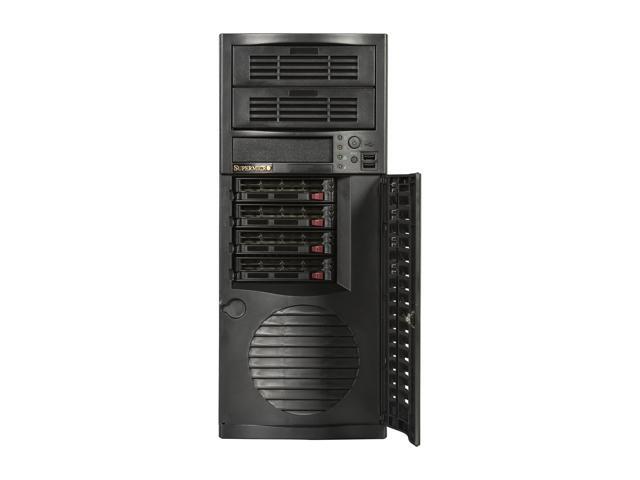

| Hot-Swap Bays | 4 x 3.5" SATA |
| Front USB | 2 |
|---|---|
| PS/2 | 2 |
| Rear USB | 8 |
| RJ45 | 2 |
| Rear Audio Ports | Realtek ALC883 7.1 HD audio 1x S/PDIF digital output |
| Max. Power | 465W AC power supply, 80 PLUS Certified |
|---|
| Features | CPU: Intel Core i7 990X, i7-980X, i7-975 and i7-965 Extreme Edition Intel Core i7 series Intel Xeon 5600/5500 series Intel Xeon 3600/3500 series Color: Black System Bus: QPI (up to 6.4 GT/s) Super I/O: Winbond 83627DHG chip 4 x 3.5" SATA Backplane Buttons: Power On/Off button System Reset button LEDs: Power LED Hard drive activity LED Network activity LED System Overheat LED 4 x 3.5" SATA Backplane Fans: 1 x 9.2cm Front Thermal Fan |
|---|
| Dimensions | 20.9" x 16.8" x 7" |
|---|---|
| Weight | 39 lbs. |
| First Listed on Newegg | January 09, 2009 |
|---|
