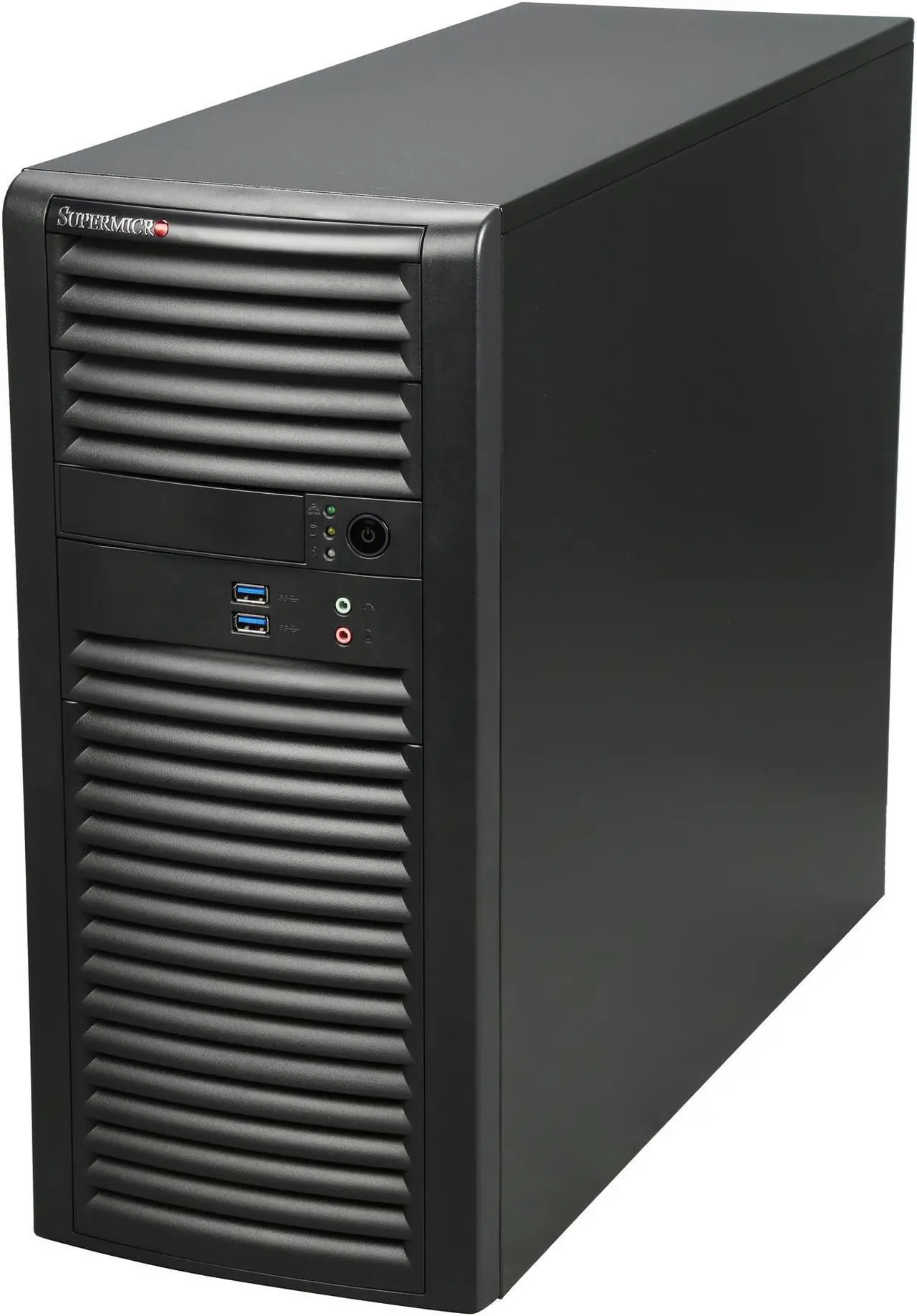

    SUPERMICRO SYS-5038A-I Mid-Tower Server Barebone LGA 2011 Intel C612 2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs

    (1) Write a Review
    • LGA 2011
    • Intel Xeon processor E5-2600/1600 v3 family or Intel 4th gen. Core i7 series (up to 160W TDP )
    • 8 x 288Pin Memory Slots
    • 900W AC multi output power supply
    +
    +
    Overview
    Specs
    Reviews (1)

    Specifications

    • Mfr Part Number: SYS-5038A-I

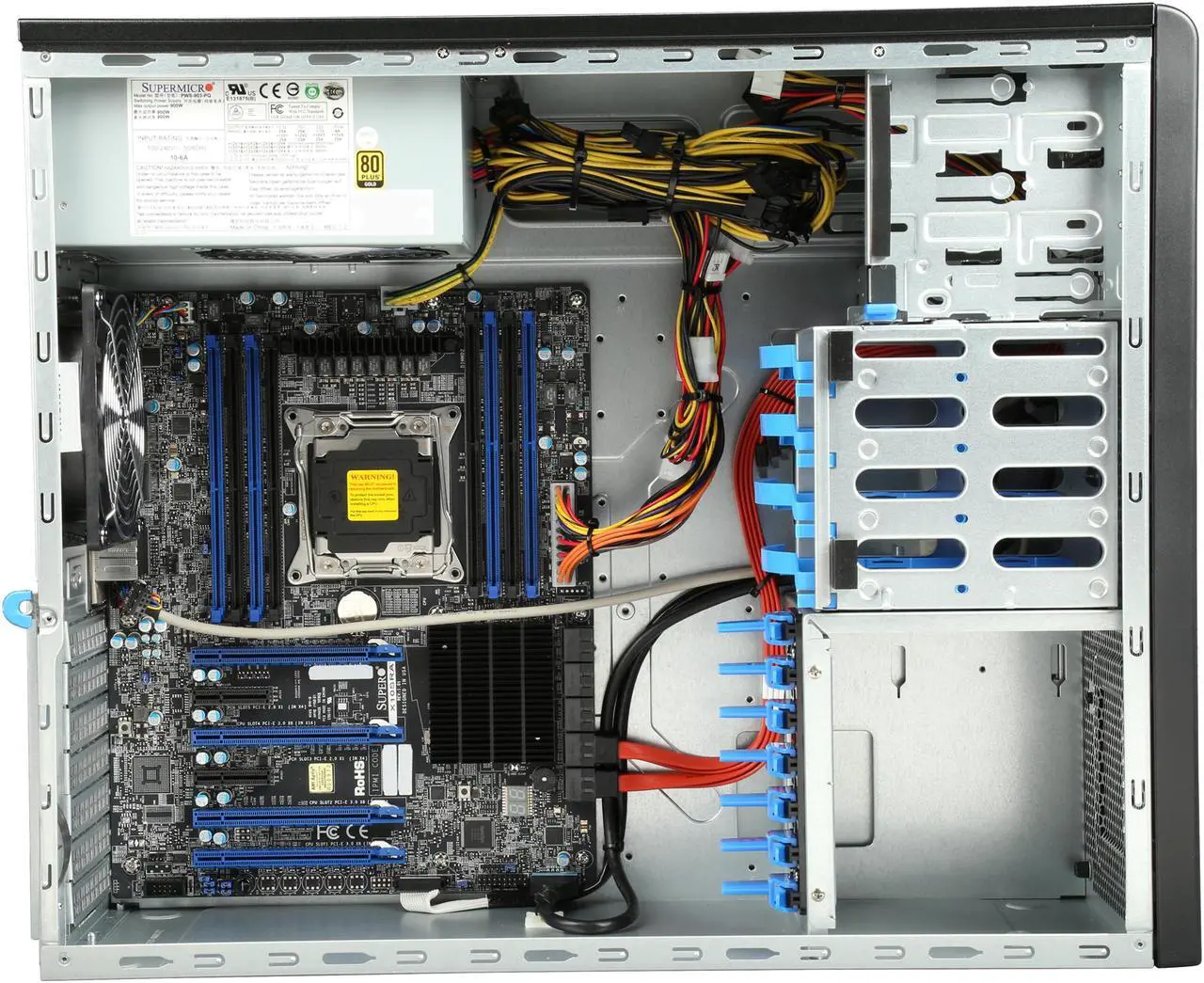

    • Motherboard: Super X10SRA
    • Processor: LGA2011
      • Supports Intel Xeon E5-2600/1600 v3 Series Processors
      • Supports 4th Generation Core i7 Processors
      • Support up to 18 Cores
      • Cache up to 45MB
      • Supports up to 160W TDP
    • Chipset: Intel C612 Express
    • Memory: 8x 288pin DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Supports up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory or up to 64GB ECC/non-ECC Unbuffered Memory (available with Core i7 only)
    • Slots: 4x PCI-Express 3.0 x16 Slots (runs at 16/16/NA/8 or 16/8/8/8), 2x PCI-Express 2.0 x4 Slots (runs at x1)
    • SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
    • Audio: RealTek ALC1150 7.1 Channel High Definition Audio CODEC
    • LAN: Intel i210-AT Dual Port Gigabit Ethernet Controllers
    • Drive Bays: 4x 3.5" Fixed Drive Bays; 2x 5.25" Peripheral Drive Bays; 1x Card Reader Module

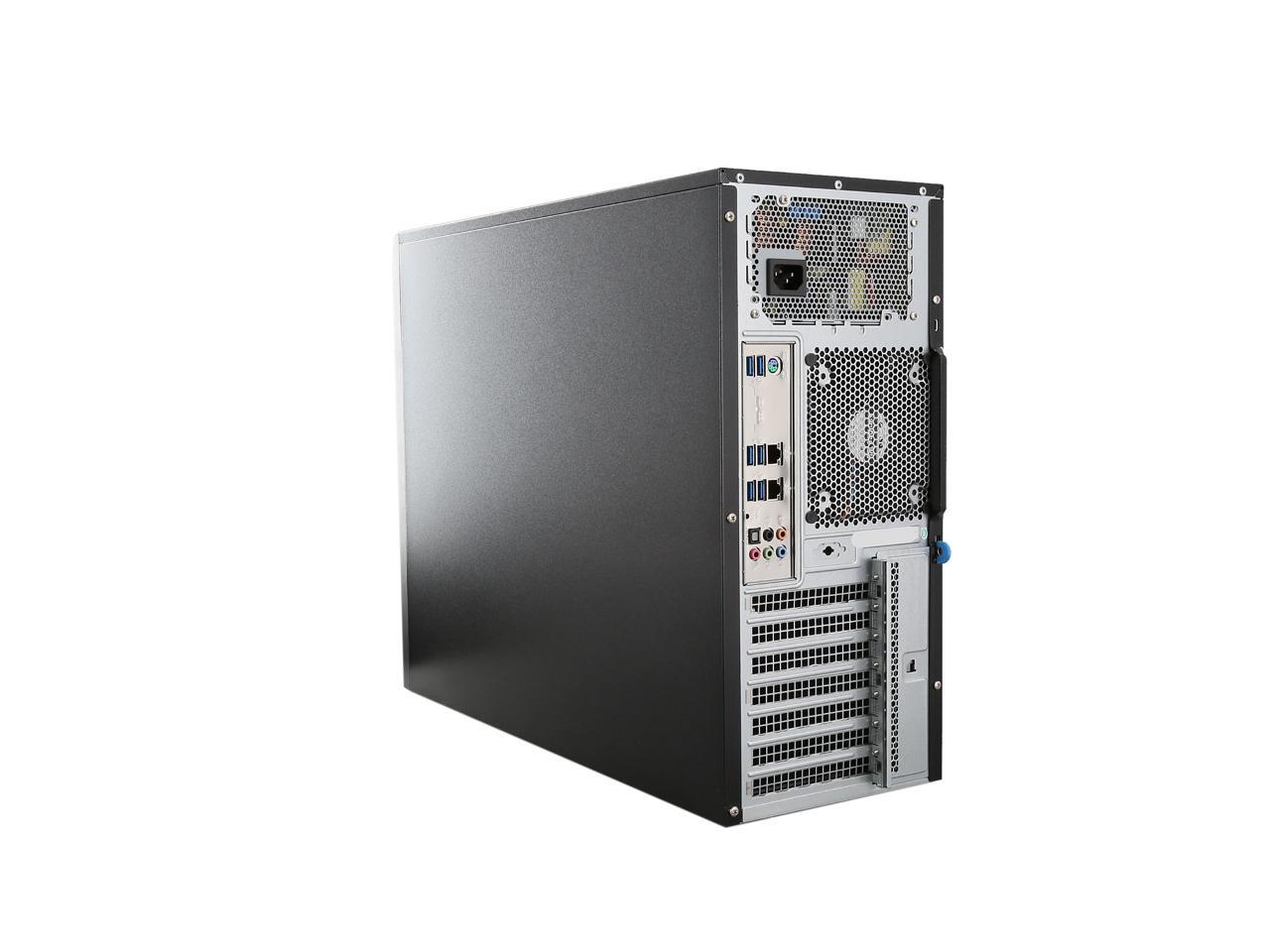

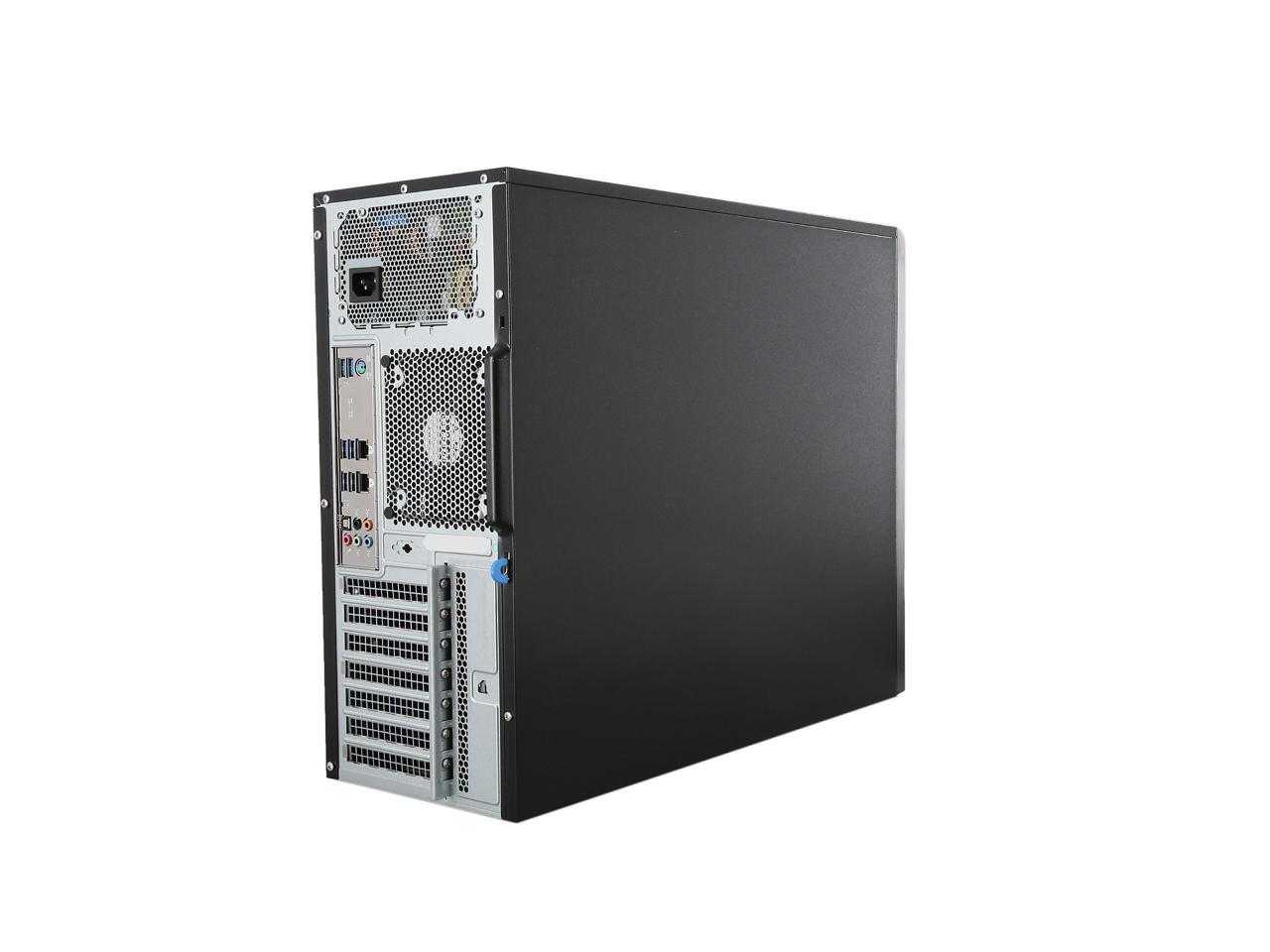

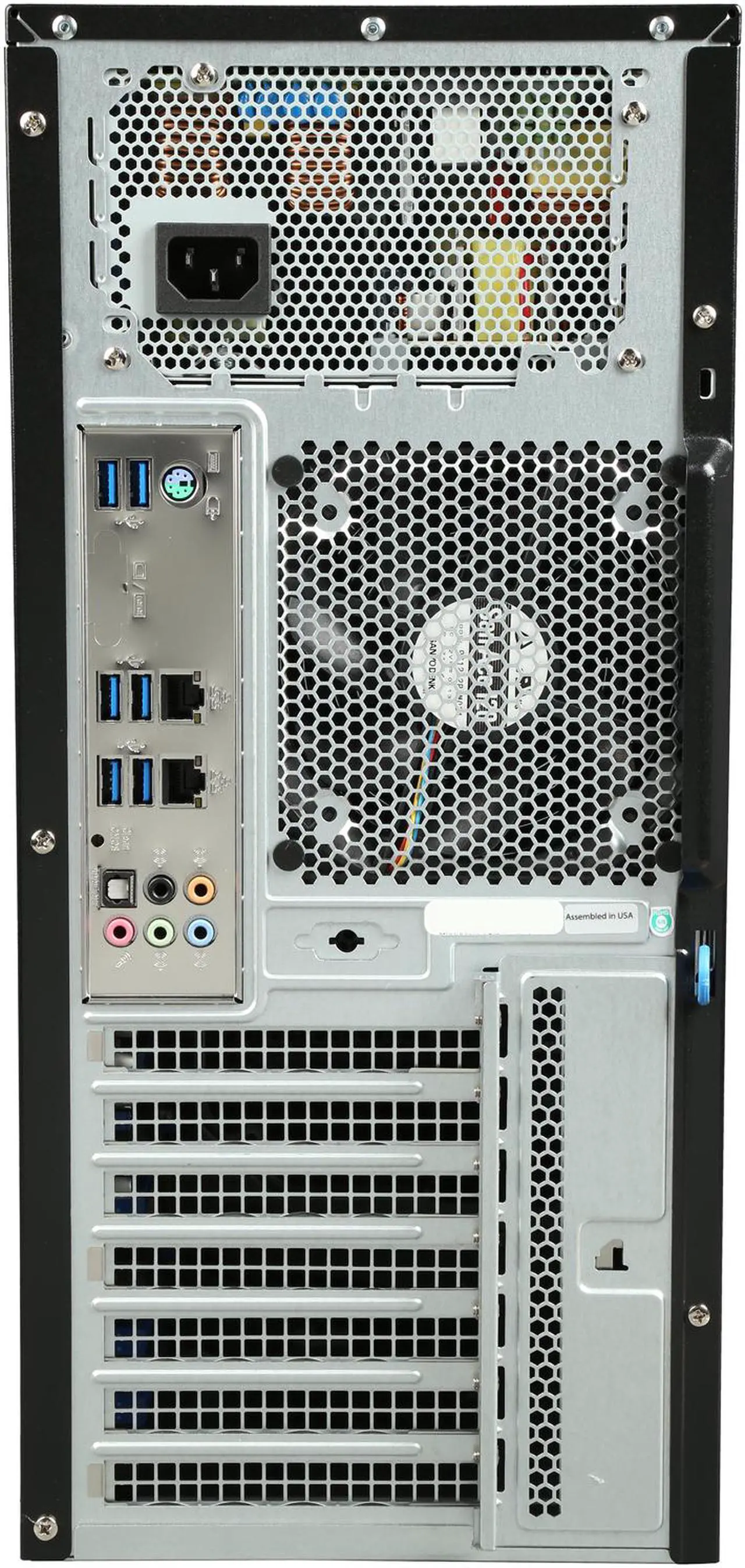

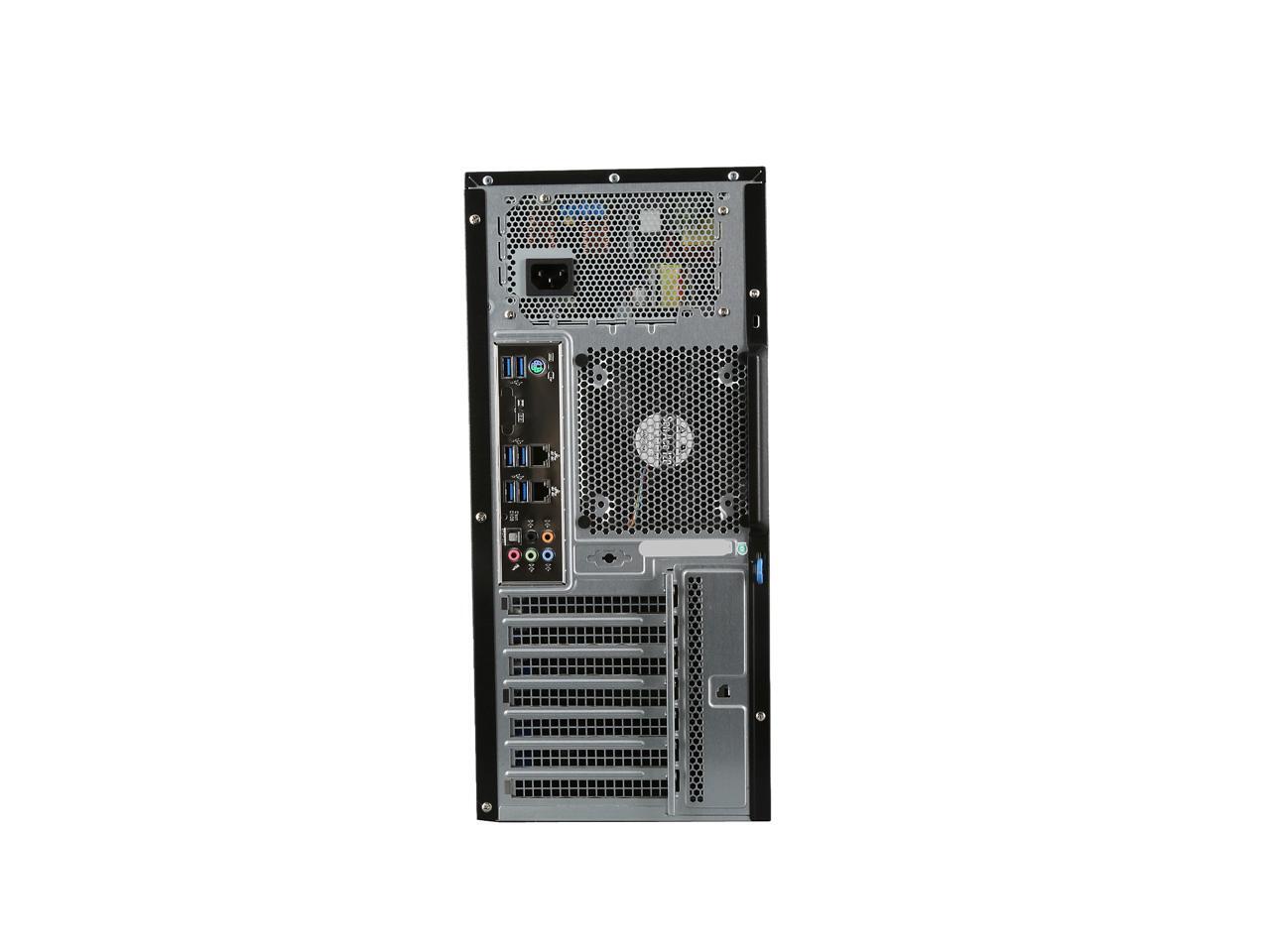

    • Ports: 8x USB 3.0 Ports (6 rear, 2 via header), 1x PS/2 Keyboard/Mouse Port, 2x RJ45 LAN Ports
    • Form Factor: Mid-Tower
    • Power Supply: 900W 80 PLUS Gold Certified AC Multi Output Power Supply
    • System Cooling: 1x 12cm Front Cooling Fan

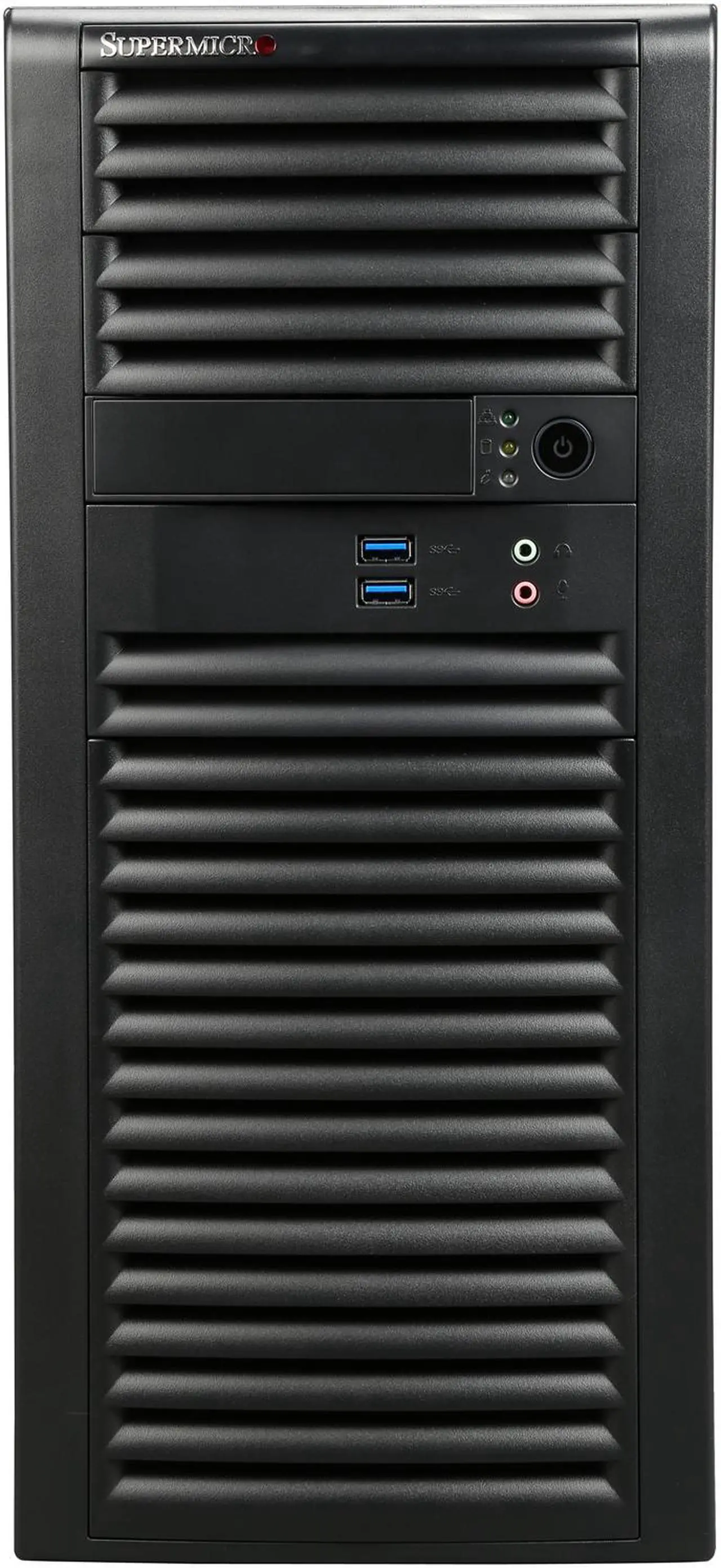

    • Front Panel:
      • Buttons: Power On/Off
      • LEDs: Power, Hard Drive Activity, Network Activity, System Overheat
      • Port: 2x Front USB 3.0 Ports, 2x Front HD/AC97 Audio Ports
    • Color: Black
    • Dimensions (WxDxH): 7.60 x 20.68 x 16.7 inch / 193.0 x 525.3 x 424.0 mm
    • Weight: 29.5 lbs / 13.4 kg
    • RoHS Compliant
    SYS-5038A-I

    SUPERMICRO SYS-5038A-I Mid-Tower Server Barebone

    Features

    SYS-5038A-I
    • High Performance, Versatile Features & I/O Access
    • Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3, E5-1600 v3, and 4th gen. Core i7
    • Intel® C612 chipset
    • Up to 512GB ECC DDR4 2133MHz LRDIMM or 64GB ECC/non-ECC UDIMM (available with Core i7 only); 8x DIMM slots
    • 4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8), 2x PCI-E 2.0 x1 (in x4) slots
    • I/O Ports: 2 GbE, ALC 1150 HD Audio, 6 USB 3.0 + 2 USB 3.0 (front), 1 COM, 1 TPM, 1 PS/2 Keyboard/Mouse port
    • 4x 3.5" internal drive bays
    • 900W Multi-Output Power Supply

    Specifications

    Product SKUs
    SuperWorkstation SYS-5038A-I (Black)
    Motherboard
    Motherboard Super X10SRA
    Processor
    CPU
    • Intel® Xeon® processor E5-2600/1600 v3 family or Intel® 4th gen. Core™ i7 series (up to 160W TDP **)
    • Single Socket R3 (LGA 2011)
    Core / Cache Up to 18 Cores / Up to 45MB Cache
    Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support
    System Memory
    Memory Capacity
    • 8x 288-pin DDR4 DIMM slots
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • Up to 64GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only)
    Memory Type 2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs
    DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB
    Memory Voltage 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset Intel® C612 chipset
    SATA
    • SATA3 (6Gbps) via C612 controller
    • RAID 0, 1, 5, 10 support
    Network Controllers
    • Intel® i210-AT Dual Port Gigabit Ethernet
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Audio RealTek ALC1150 High Definition Audio
    Input / Output
    SATA 10x SATA3 (6Gbps) ports via PCH
    LAN 2x RJ45 Gigabit Ethernet LAN ports
    USB 8x USB 3.0 ports (2 front + 6 rear)
    Audio 7.1 HD Jacks
    Keyboard/Mouse 1x PS/2 Keyboard/Mouse port
    Serial Port / Header 1x header
    TPM 1x TPM 1.2 20-pin Header
    Expansion Slots
    PCI-Express
    • 4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8)
    • 2x PCI-E 2.0 x1 (in x4) slots
    • PCI-E slot #1 supports (x4) and slot #4 (x16) is disabled when an Intel Core i7-5820K is installed
    System BIOS
    BIOS Type 128Mb SPI Flash EEPROM with AMI® BIOS
    BIOS Features
    • Plug and Play (PnP)
    • APM 1.2
    • DMI 2.3
    • PCI 2.3
    • ACPI 1.0 / 2.0 / 3.0 / 4.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 2.7.1
    • UEFI 2.3.1
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • SuperDoctor® 5
    • SuperDoctor® III
    • Watch Dog
    Power Configurations
    • ACPI Power Management
    • Keyboard Wakeup from Soft-Off
    • CPU Fan auto-off in sleep mode
    • Power-on mode for AC power recovery

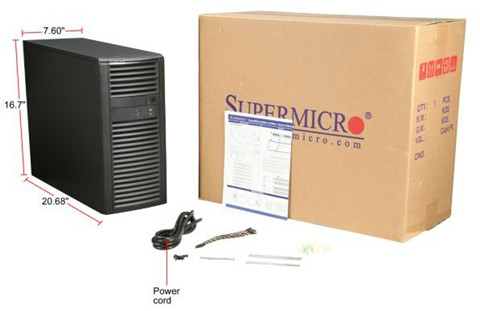

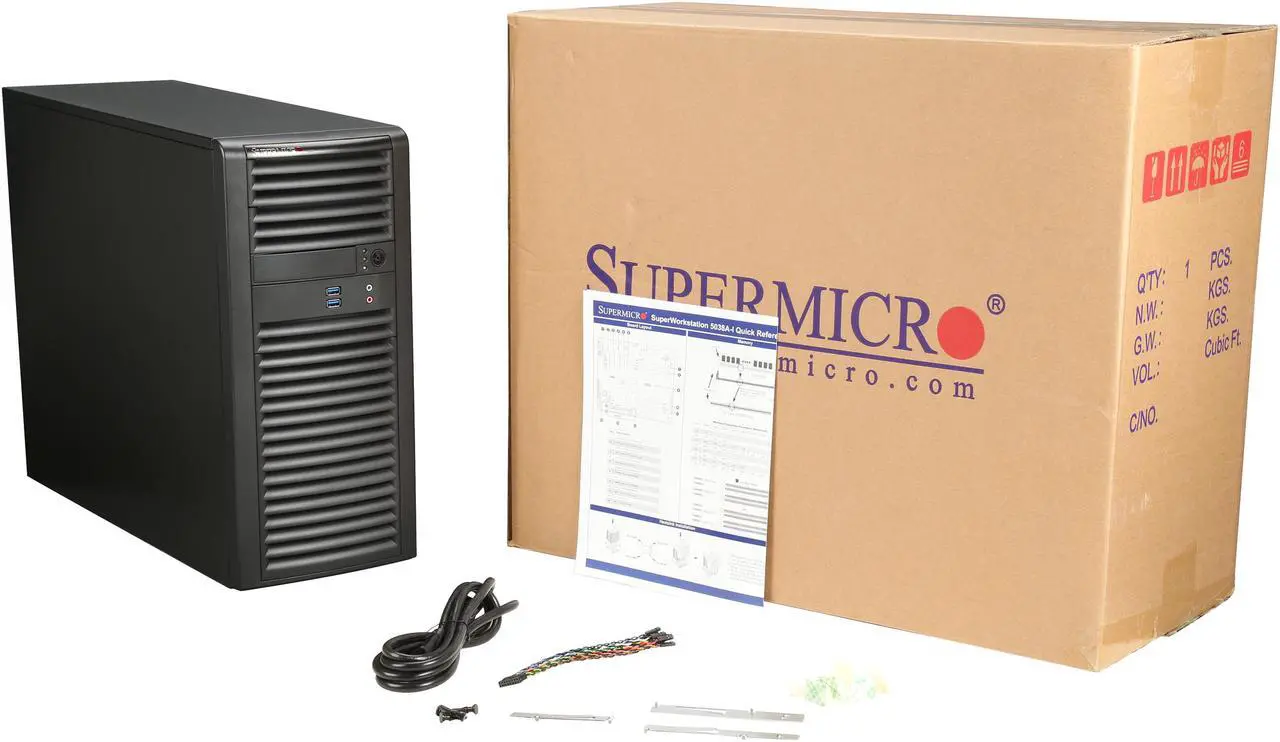

    Whats in the Box
