SuperMicro SYS-6016T-6RFT+ Manual

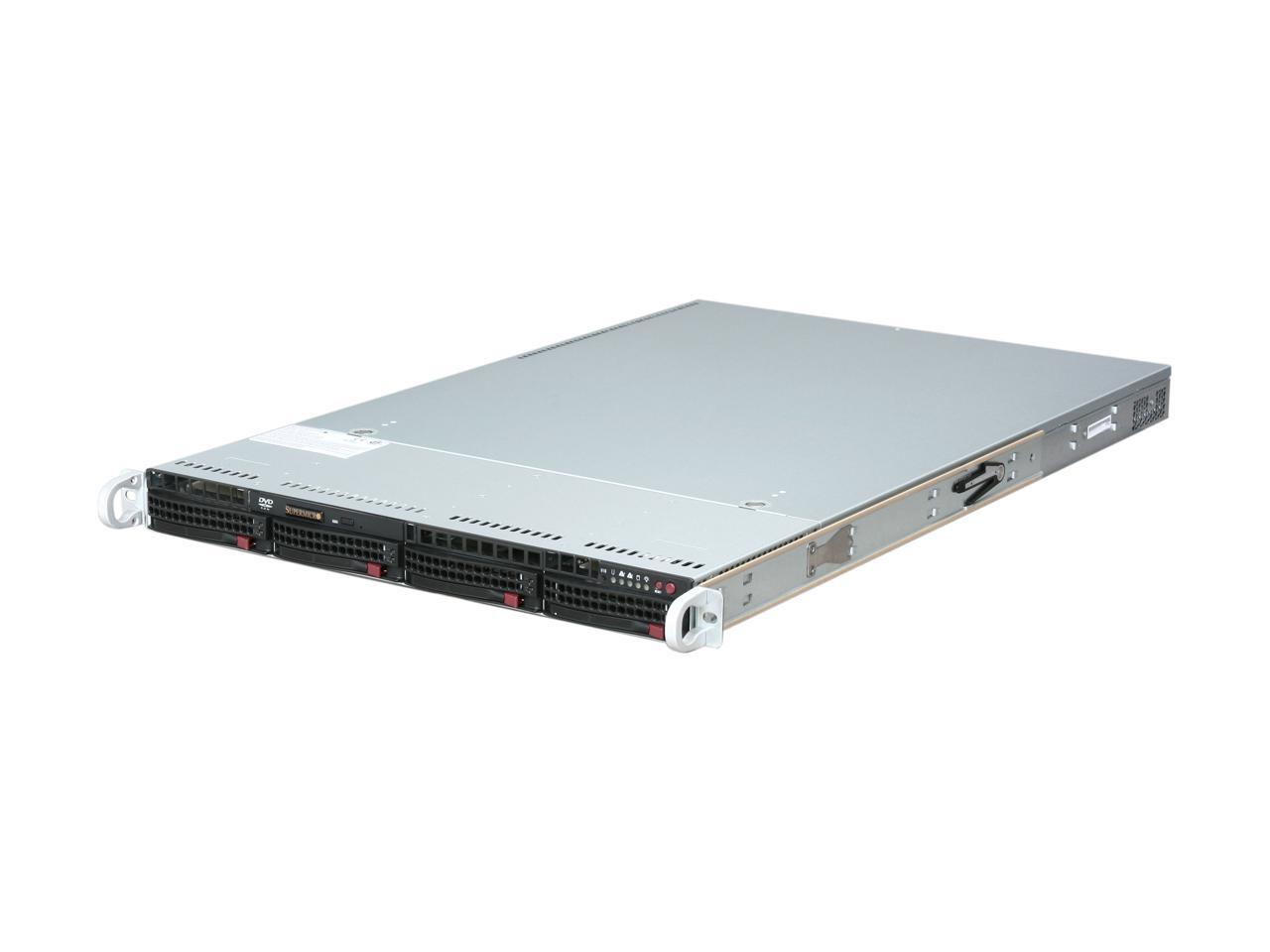

SUPERMICRO SYS-6016T-6RFT+ 1U Rackmount Server Barebone Dual LGA 1366 Intel 5520 DDR3 1333/1066/800

Visit Supermicro Store

SUPERMICRO SYS-6016T-6RFT+ 1U Rackmount Server Barebone Dual LGA 1366 Intel 5520 DDR3 1333/1066/800

Be the first to review this product...

Check more best sellers of "Server Barebones"

Check more lowest price of "Server Barebones"

Check more deals of "Server Barebones"

OUT OF STOCK.

Dual LGA 1366
Dual Intel Xeon 5600/5500 Series
18 x 240Pin Memory Slots
700W Gold-Level Redundant Power Supply

Specs

Reviews

Learn more about the Supermicro SYS-6016T-6RFT+

Model
Brand	SUPERMICRO
Series	SuperServer
Model	SYS-6016T-6RFT+

CPU Supported
CPU Type	Dual Intel Xeon 5600/5500 Series
CPU Socket	Dual LGA 1366

Chipset
North Bridge	Intel 5520
South Bridge	ICH10R

Memory Supported
Memory Slots	18 x 240Pin
Max Memory Supported	288GB
Memory Type Supported	DDR3 1333/1066/800
ECC Supported	Yes
Registered	Yes

Storage Supported
Serial ATA	6 x SATA 300
SATA RAID	RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux)
SAS	LSI 6Gbps SAS 2108 w/ Hardware RAID support RAID 0, 1, 5, 6, 10 support

Graphics
GPU/VPU	Matrox G200eW

Expansion Slots
PCI Express	Left Slot: 2 (x8) PCI-E 2.0 slots Right Slot: 1 (x4) PCI-E 2.0 (in x8 slot -Low-Profile - 5.5" depth)

Communications
First LAN	Intel 82599EB with 2 SFP+
Second LAN	Intel 82576 Dual-Port
Max. LAN Speed	10/100/1000Mbps + 10 Gigabit

Expansion Bays
Slim Bays	1
Hot-Swap Bays	4 x 3.5" SAS/SATA

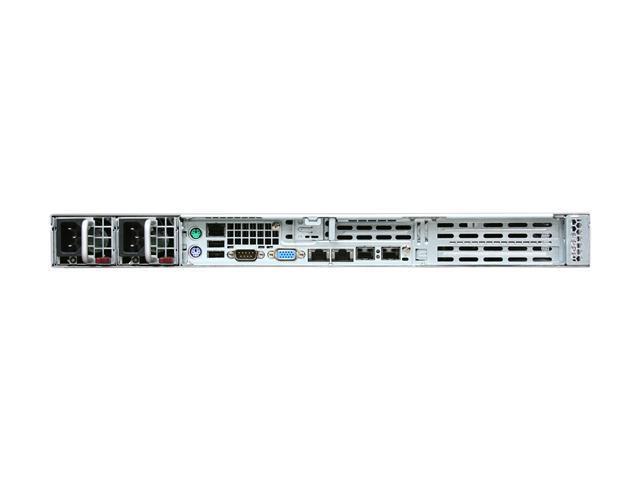

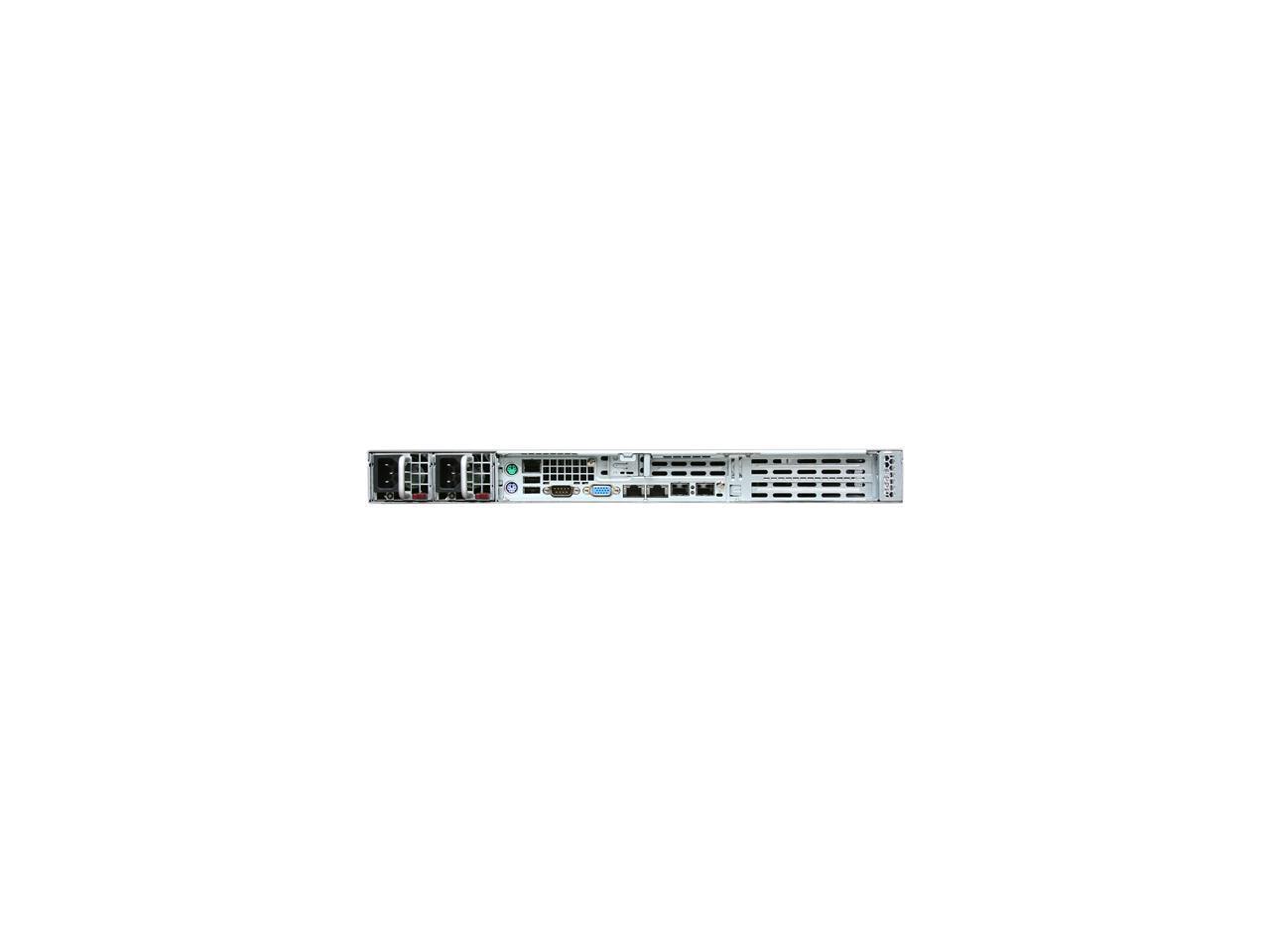

Panel Ports
COM	1
PS/2	2
VGA	1
Rear USB	2
RJ45	2x RJ45 LAN ports 2x SFP+ LAN port 1x RJ45 Dedicated IPMI LAN port

Power Supply
Max. Power	700W Gold-Level Redundant Power Supply

Features
Features	Color: Black Processor: Supports up to two Intel 64-bit Xeon processor(s) of the same type below: Intel Xeon Processor X5600/E5600/L5600 Series(Westmere) 40W - 130W Intel Xeon Processor X5500/E5500/L5500 Series(Nehalem-EP) 38W - 95W Memory Capacity: Supports up to 288GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 48GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory QPI: Up to 6.4 GT/s IPMI 2.0 with virtual media over LAN and KVM-over-LAN support. Super I/O: Winbond 83827HF chip Buttons: Power On/Off Button System Reset Button UID Button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Universal Information (UID) LED 1U SAS/SATA Backplane w/ SES2 Enclosure Management System Cooling: 5 x Cooling Fans 1 x Air Shroud RoHS Compliant

Details
Form Factor	1U Rackmount

Dimensions & Weight
Dimensions	27.75" x 17.2" x 1.7"
Weight	43.0 lbs. (Gross)

Additional Information
Date First Available	July 07, 2010
