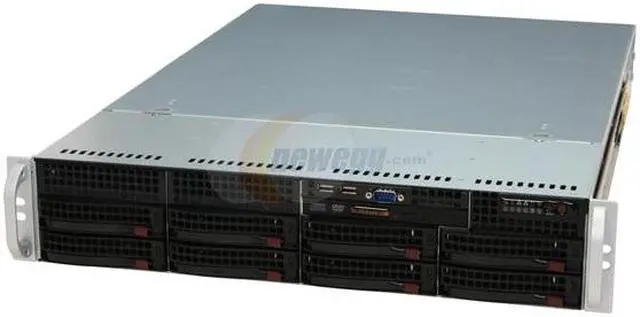

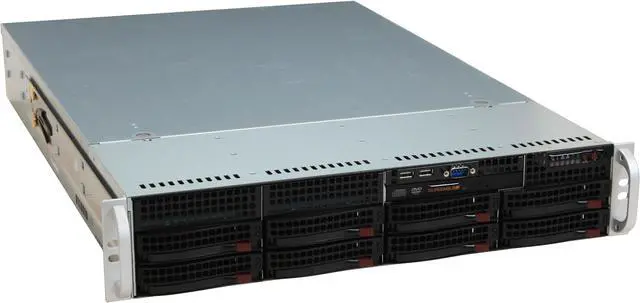

SUPERMICRO SYS-6025C-URB 2U Rackmount Server Barebone Dual LGA 771 Intel 5100 DDRII 667/533
- Dual LGA 771
- Dual Intel Xeon
- 6 x 240Pin Memory Slots
- 700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-6025C-URB
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-6025C-URB |
| Form Factor | 2U Rackmount |
| CPU Type | Dual Intel Xeon |
|---|---|
| CPU Socket | Dual LGA 771 |
| FSB | 1333/1066 MHz |
| North Bridge | Intel 5100 |
|---|---|
| South Bridge | ICH9R |
| Memory Slots | 6 x 240Pin |
|---|---|
| Max Memory Supported | 48GB |
| Memory Type Supported | DDRII 667/533 |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| ATA | 1x ATA 33/66/100 |
|---|---|
| Serial ATA | 6 x SATA 300 |
| SATA RAID | RAID 0, 1, 5, 10 support (Windows only) RAID 0, 1, 10 support (Linux) |
| GPU/VPU | ATI ES1000 |
|---|---|
| Video Memory | 32MB |
| PCI Express | 3 (x8) PCI-E Slots (Full-height / Full-length) |
|---|
| First LAN | Intel 82575EB |
|---|---|
| Second LAN | Intel 82575EB |
| Max. LAN Speed | 1 Gigabit |

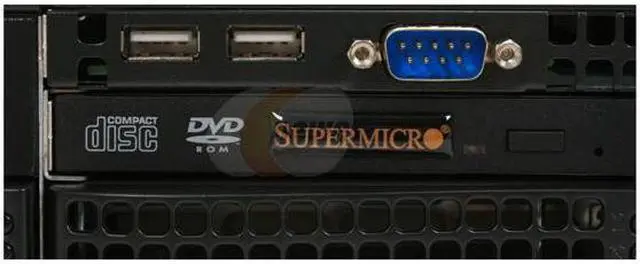

| Slim Bays | 1 |
|---|---|

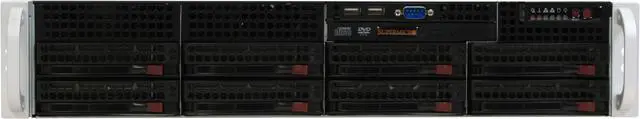

| Hot-Swap Bays | 8 |

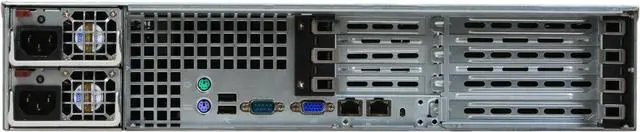

| COM | 1 |
|---|---|
| PS/2 | 2 |
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2 |
| Max. Power | 700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC |
|---|

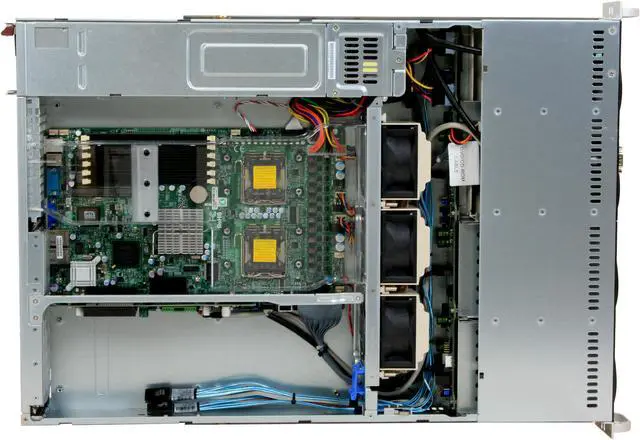

| Features | Color: Black Processor: Supports up to Dual Intel 64-bit Xeon processor(s) of the same type below: Quad-Core Intel Xeon Processor 5400/5300 sequence (Harpertown/Clovertown processor)up to 3.16 GHz. Dual-Core Intel Xeon Processor 5200/5100 sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz. Super I/O: Winbond 83627HF chip Buttons: Power On/Off button System Reset button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED Power fail LED 1 x Universal I/O (UIO) Slot 1 x 2U SATA backplane 3 x 80mm 6300 RPM fans 1 x Air Shroud Other: Chassis intrusion detection Chassis intrusion header SDDC RoHS Compliant. |
|---|
| Dimensions | 25.5" x 17.2" x 3.5" |
|---|---|
| Weight | 55 lbs. |
| First Listed on Newegg | October 07, 2008 |
|---|
