SUPERMICRO SYS-6029P-TR Dual Socket P (LGA 3647) DDR4 3.5" SATA3 2U Rackmount Server Barebone

In stock.
Ships from United States.
  • Dual LGA 3647
  • Dual Socket P (LGA 3647)
  • 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake / Skylake), Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
  • 1000W Redundant Power Supplies with PMBus
Overview
Specs
Reviews
c0l_logo_Supermicro

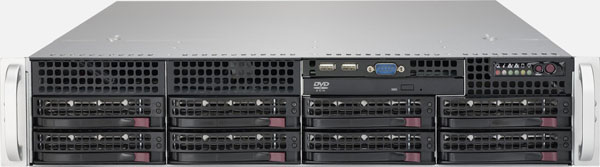

c0_6029P-TR

Supermicro SuperServer 6029P-TR, Model # SYS-6029P-TR

This is a dual-processor 2U rackmount server barebone ideal for compute-intensive applications, Cloud, Virtualization, and more. It's powered by Intel C621 chipset, supports two 2nd Gen Intel Xeon Scalable processors of up to 28 cores each, and features 16 DIMM slots, six PCI-E slots, and an M.2 PCI-E 3.0 x4 slot. Eight 3.5" SATA hot-swap drive bays make drive installation or removal a breeze. Two GbE Ethernet ports provide ample throughput for bandwidth-intensive applications. The redundant power supply configuration helps maximize uptime, with 80 Plus Titanium efficiency level allowing less waste heat for better system stability.

Please note: this is a server barebone, and you need one (two) processor(s), system RAMs, storage drives and Operating System to complete this system. All sold separately.

  • Cloud and Virtualization needs
  • Compute Intensive Application
  • Database Processing and Storage
  • High Availability Storage
  • Hosting & Application Delivery

1. Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)

2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane DCPMM

3. Four PCI-E 3.0 x16, two PCI-E 3.0 x8 slots

4. Eight Hot-swap 3.5" SATA3 drive bays; RAID 0, 1, 5, 10

5. Optional DVD-ROM drive, optional support: two fixed 2.5" NVMe/SSD/HDD, one M.2 support

6. M.2 Interface: PCI-E 3.0 x4

    M.2 Form Factor: 2260, 2280, 22110

    M.2 Key: M-Key

7. Two 1GbE LAN ports with Intel X722

8. 1000W Redundant Power Supplies, Titanium Level (96% efficiency)

Integrated Board

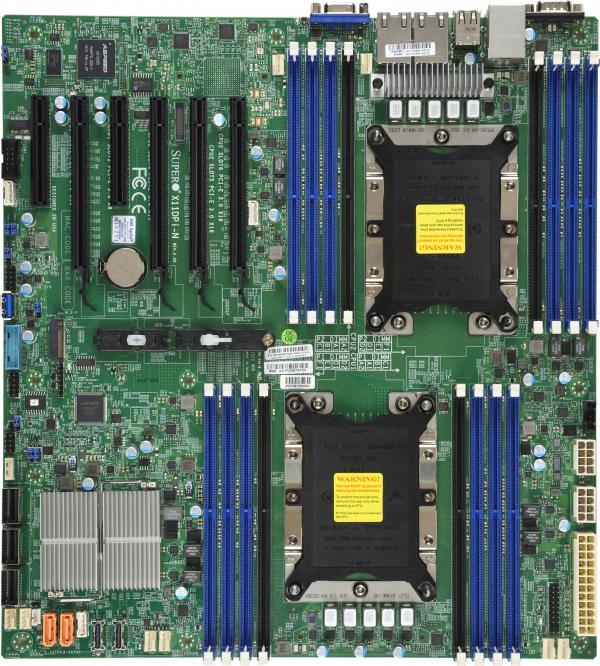

c1_Super X11DPi-N

Super X11DPi-N

Views
 g1_angled_view
g2_top_view

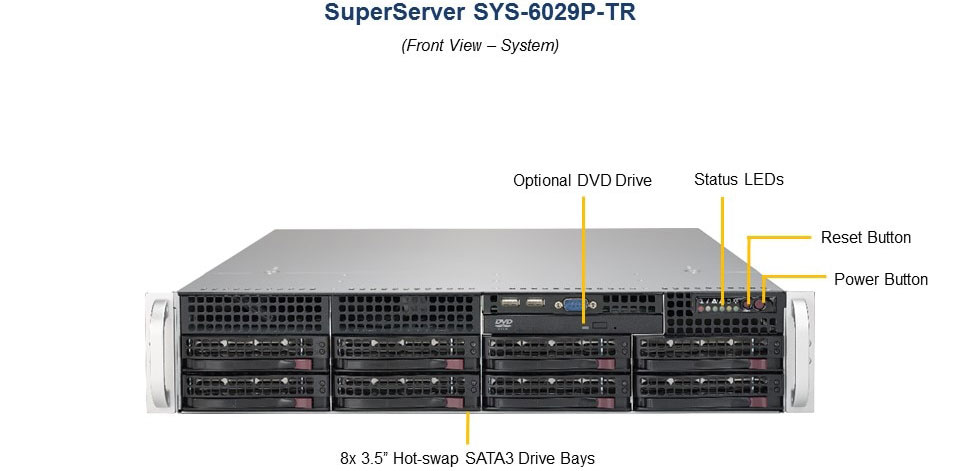

  g3_front_view

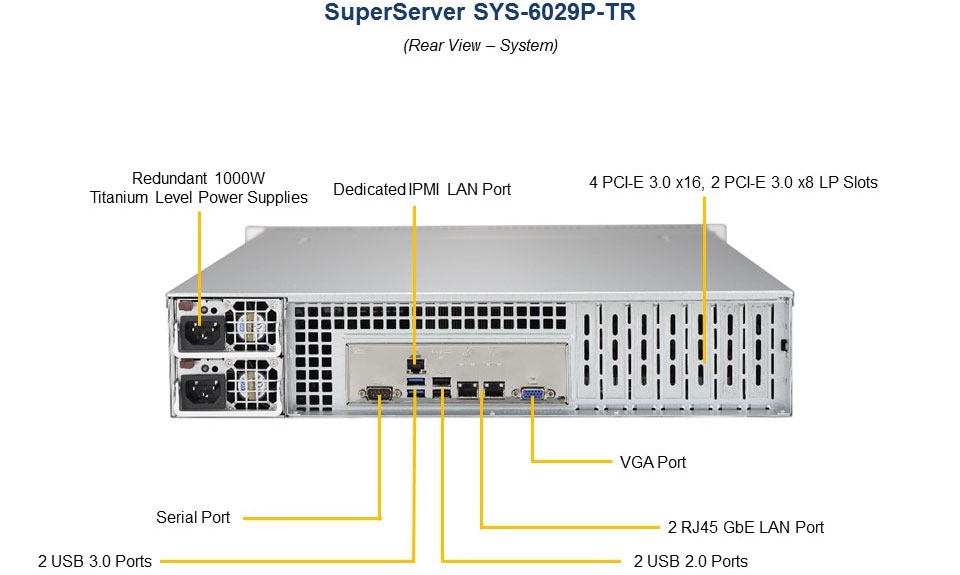

g4_rear_view
Specifications
Product SKUs
SYS-6029P-TR SuperServer 6029P-TR (Black)
Motherboard
Super X11DPi-N
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake),
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores Up to 28 Cores
Note BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM
Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note

2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset Intel® C621 chipset
SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers Dual 1GbE LAN with Intel® X722
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Input / Output
SATA 8 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • Rear USB: 2 USB 3.0 + 2 USB 2.0
  • Front USB: 2 USB 2.0
  • USB Header: 1 Type A
VGA 1 VGA port
Serial Port / Header
  • 2 Fast UART 16550 serial
  • 2 COM Ports (1 rear, 1 header)
DOM 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type AMI UEFI
Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • SSM, SPM, SUM
  • SuperDoctor® 5
  • Watch Dog

Power Configurations ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor 2U Rackmount
Model CSE-825TQC-R1K03LPB
Dimensions and Weight
Width 17.2" (437mm)
Height 3.5" (89mm)
Depth 25.5" (647mm)
Package 26.7" (H) x 11.4" (W) x 34.5" (D)
Weight
  • Net Weight: 35.5 lbs (16.1 kg)
  • Gross Weight: 69 lbs (31.2 kg)
Available Colors Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED
Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 (Low-profile)
  • 2 PCI-E 3.0 x8 (Low-profile)
Drive Bays
Hot-swap 8 Hot-swap 3.5" SATA drive bays
Backplane
2U SAS/SATA backplane
System Cooling
Fans 3 Heavy duty 80mm fans with PWM fan speed control
Power Supply (76mm Width)
1000W Redundant Power Supplies with PMBus
Total Output Power 800W/1000W
Dimension (W x H x L) 76 x 40 x 336 mm
Input
  • 100-127Vac / 12-9A / 50-60Hz
  • 200-240Vac / 7.2-6A / 50-60Hz
  • 200-240Vdc / 7.2-6A (for CCC only)
+12V
  •   Max: 66.7A / Min. 0A (100-127Vac)
  •   Max: 83A / Min. 0A (200-240Vac)
  •   Max: 83A / Min. 0A (200-240Vdc)
5Vsb Max: 4A / Min: 0A
Output Type 19 Pairs Gold Finger Connector
Certification Titanium Level
Operating Environment
RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
