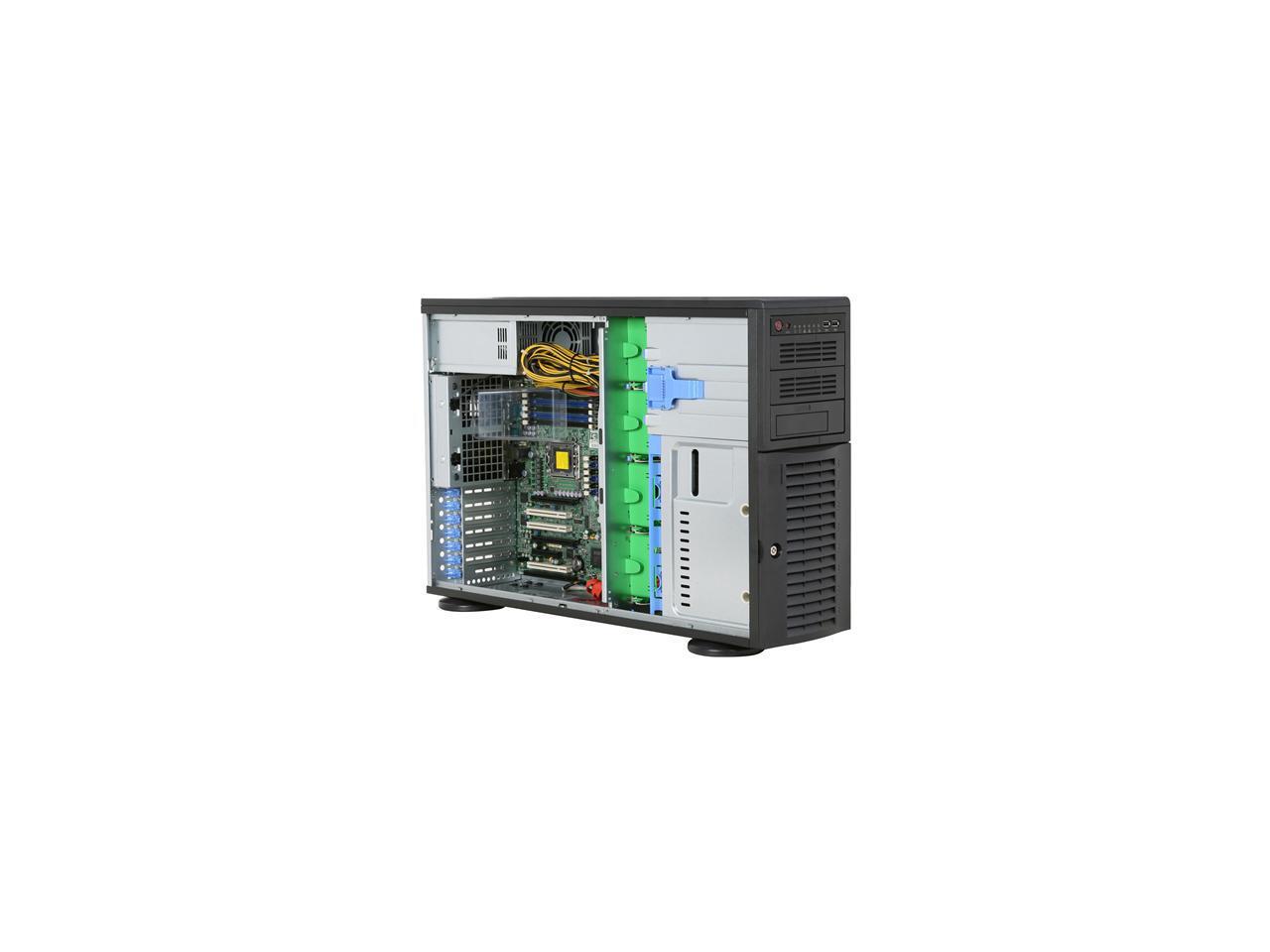

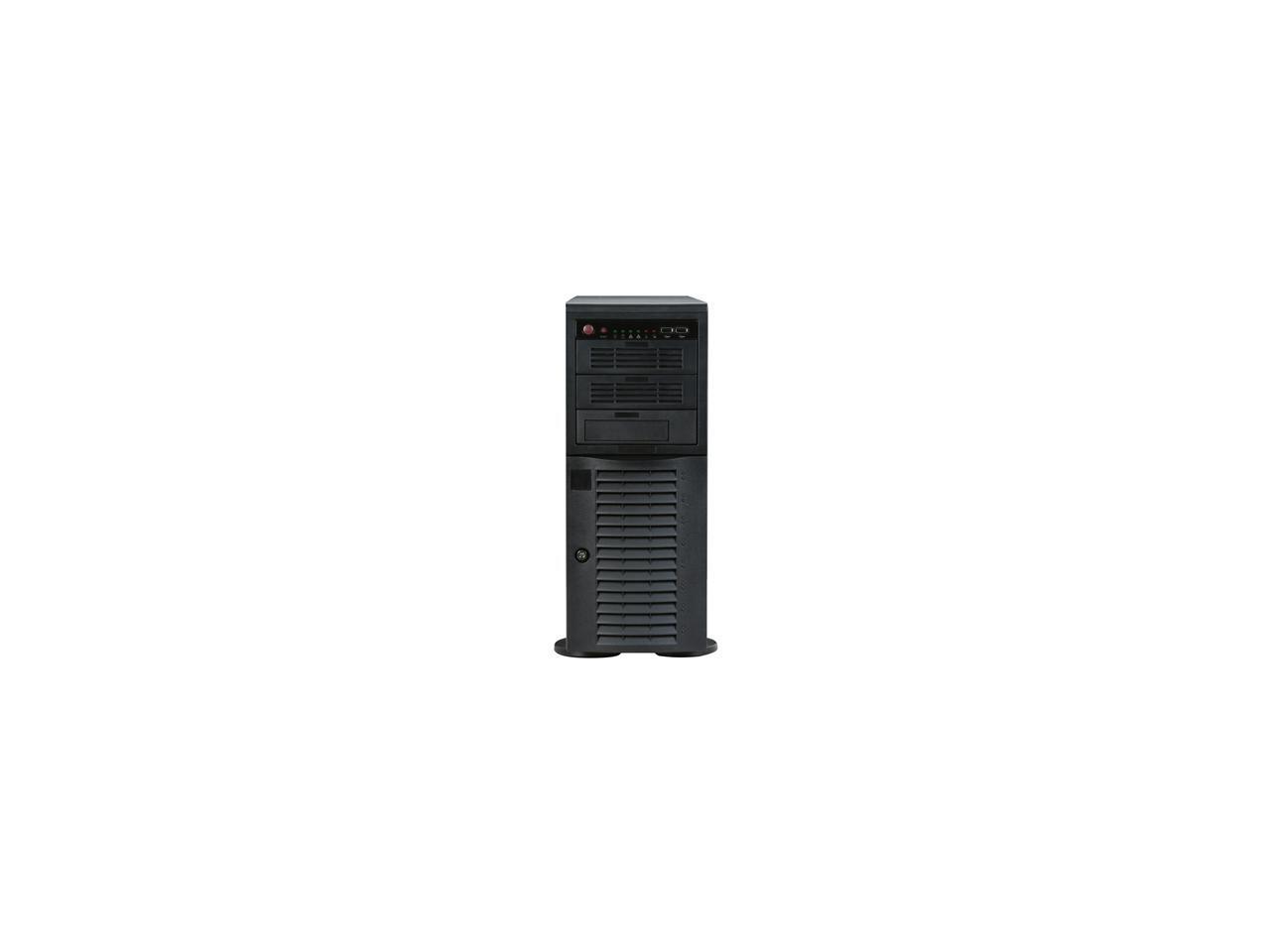

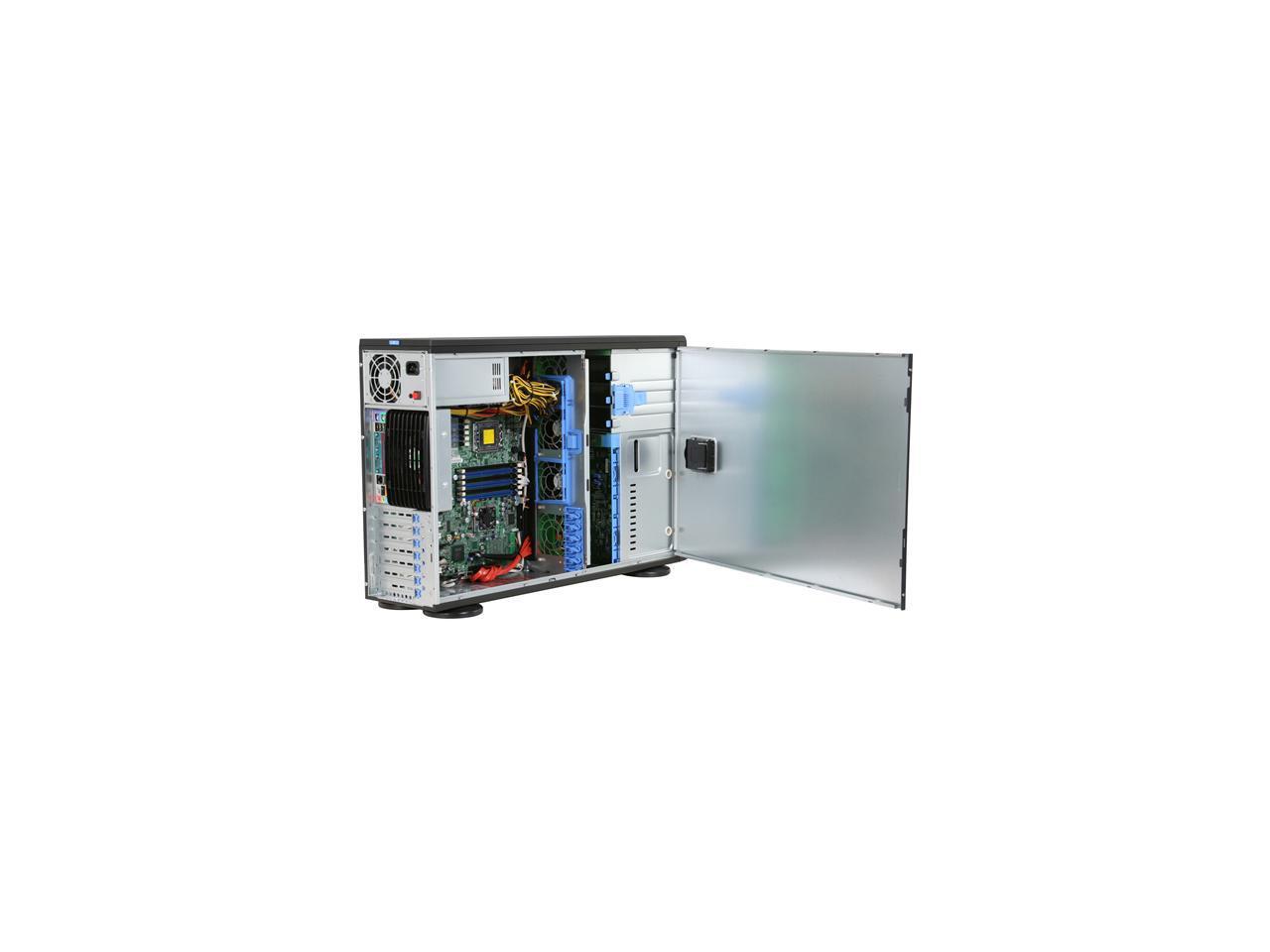

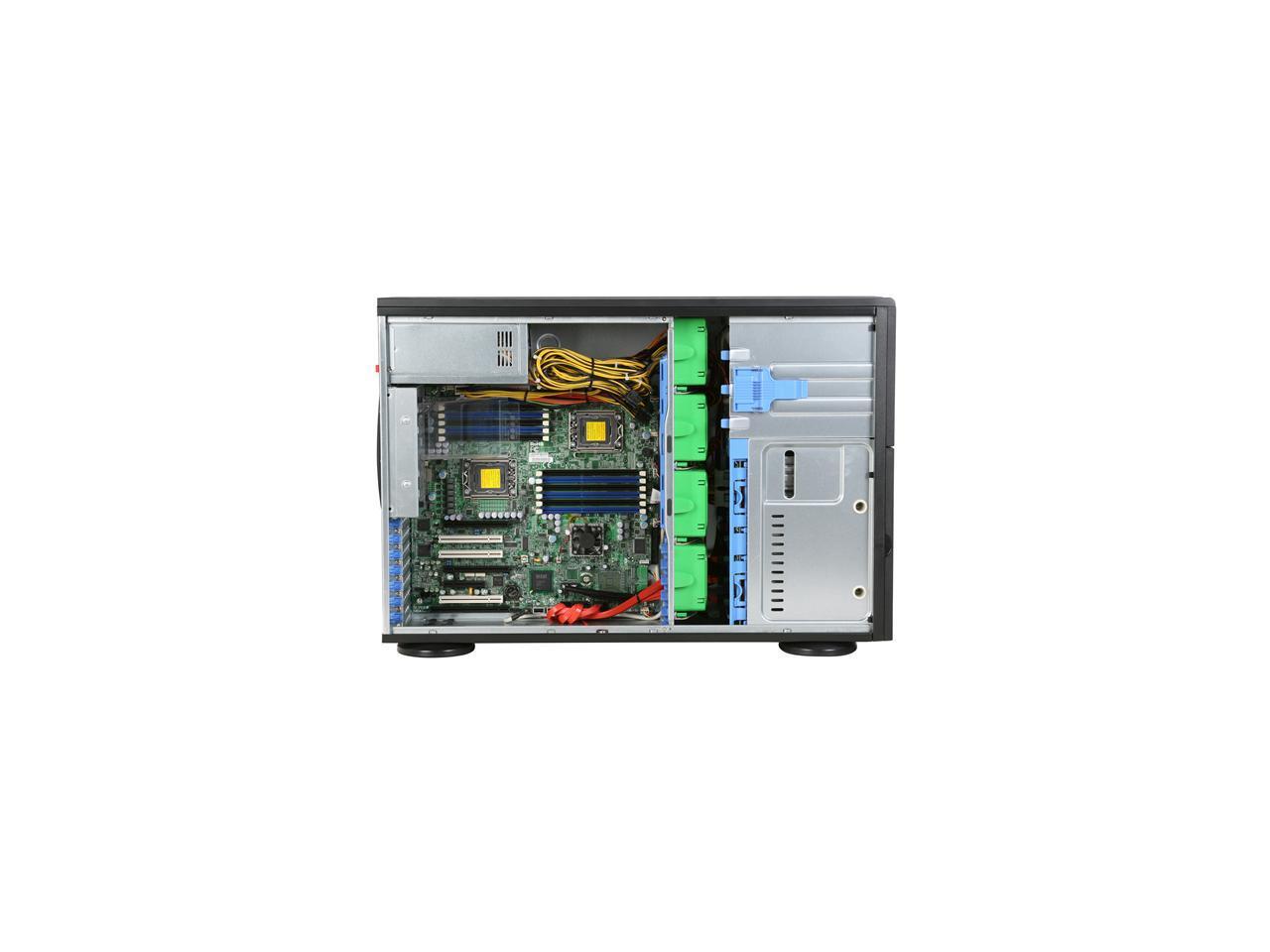

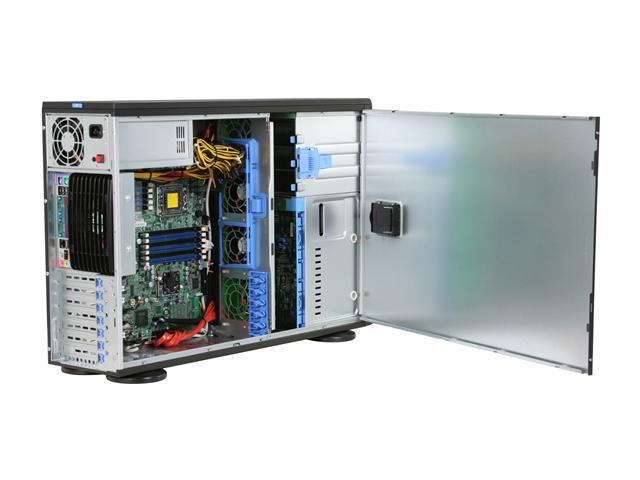

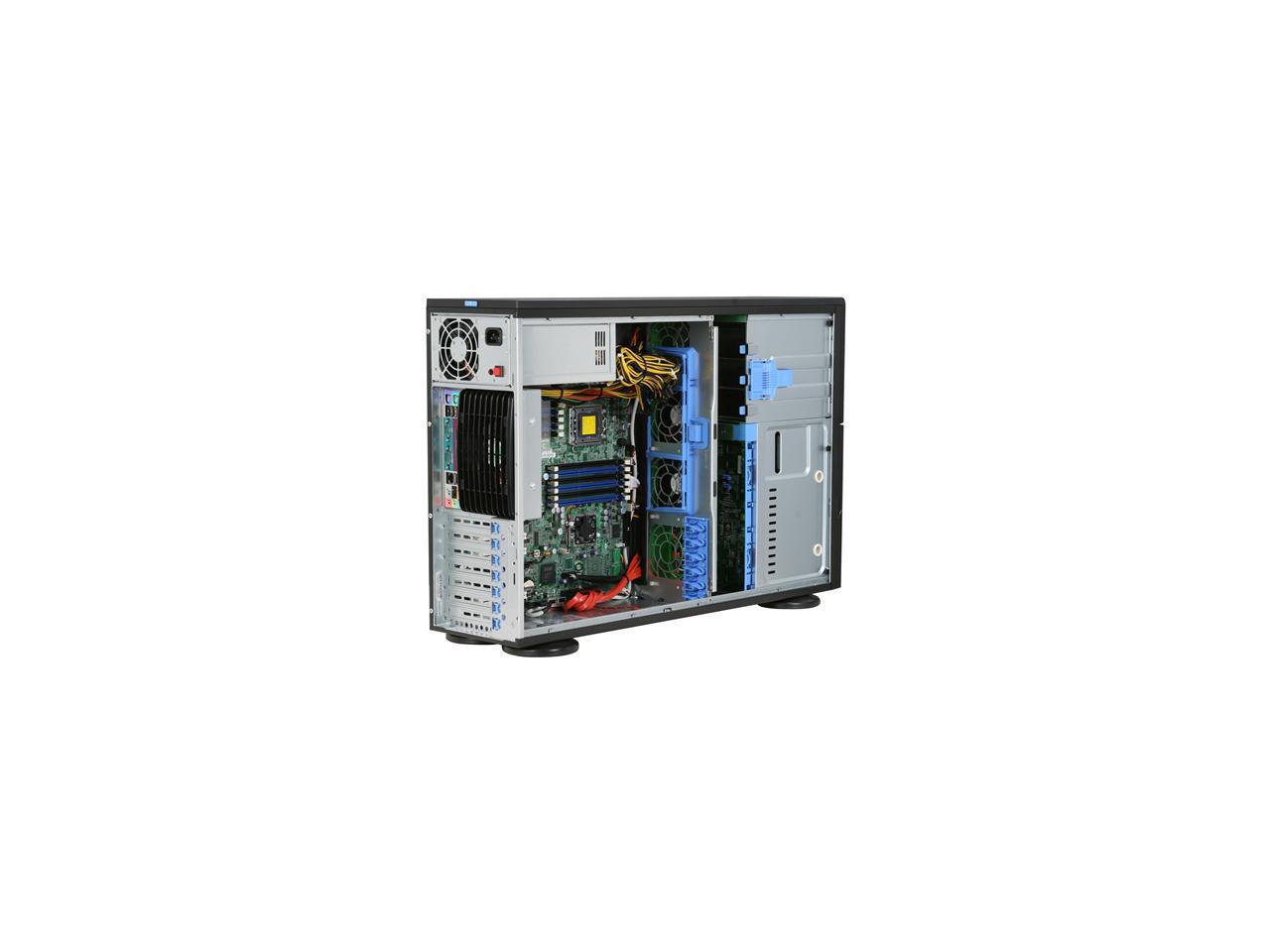

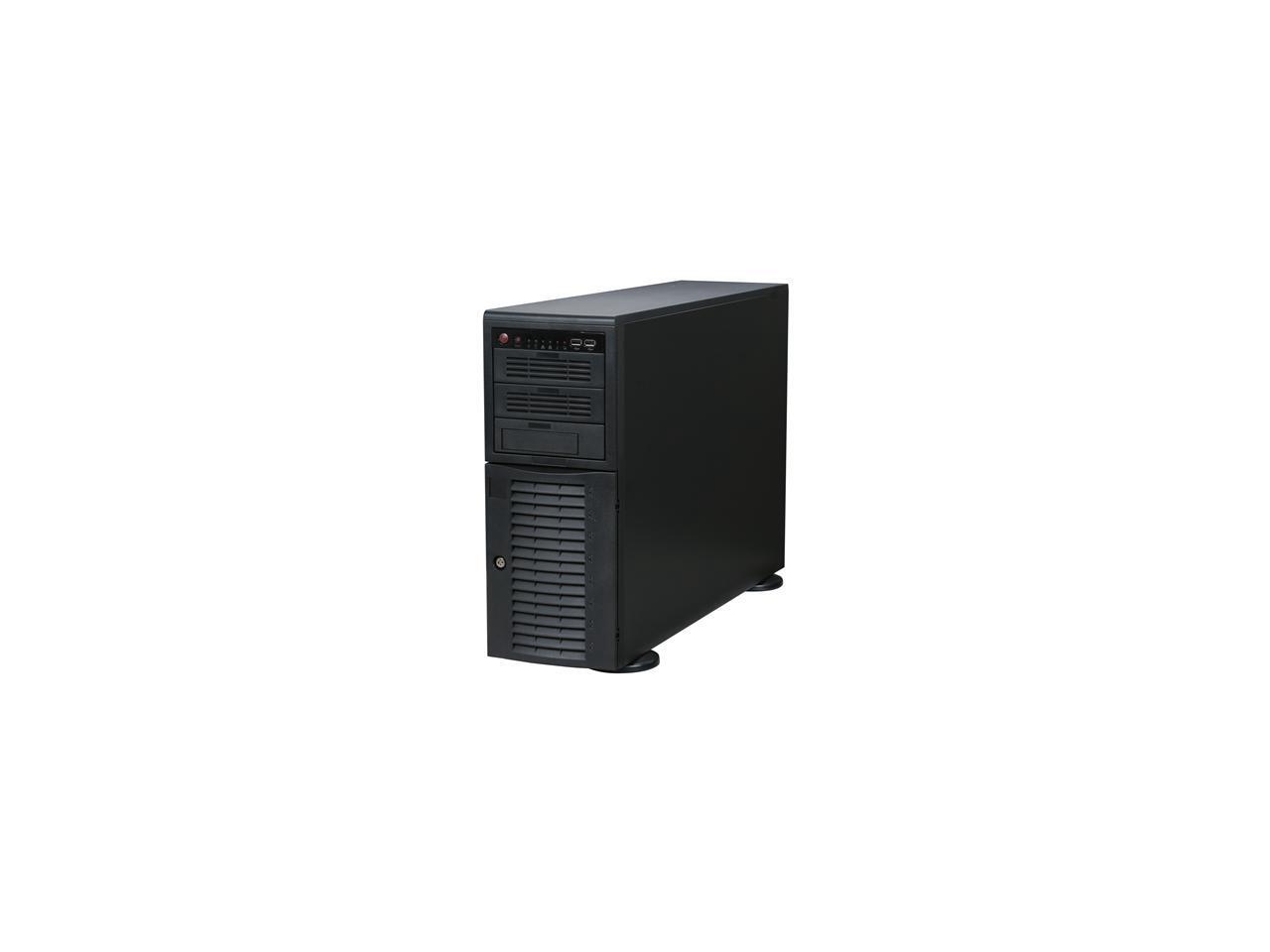

Supports Dual Intel Xeon 5500 SeriesWith dual LGA 1366 sockets, the SuperMicro SYS-7046A-T's Super X8DAi server board supports up to two multi-core Intel Xeon 5500 Series processors, providing the computing platform capability necessary for your increasing computing demand.
ECC Registered DDR3 Memory SupportTwelve DIMM sockets support ECC registered DDR3 1333, 1066 and 800 SDRAM in capacities of up to 96GB.

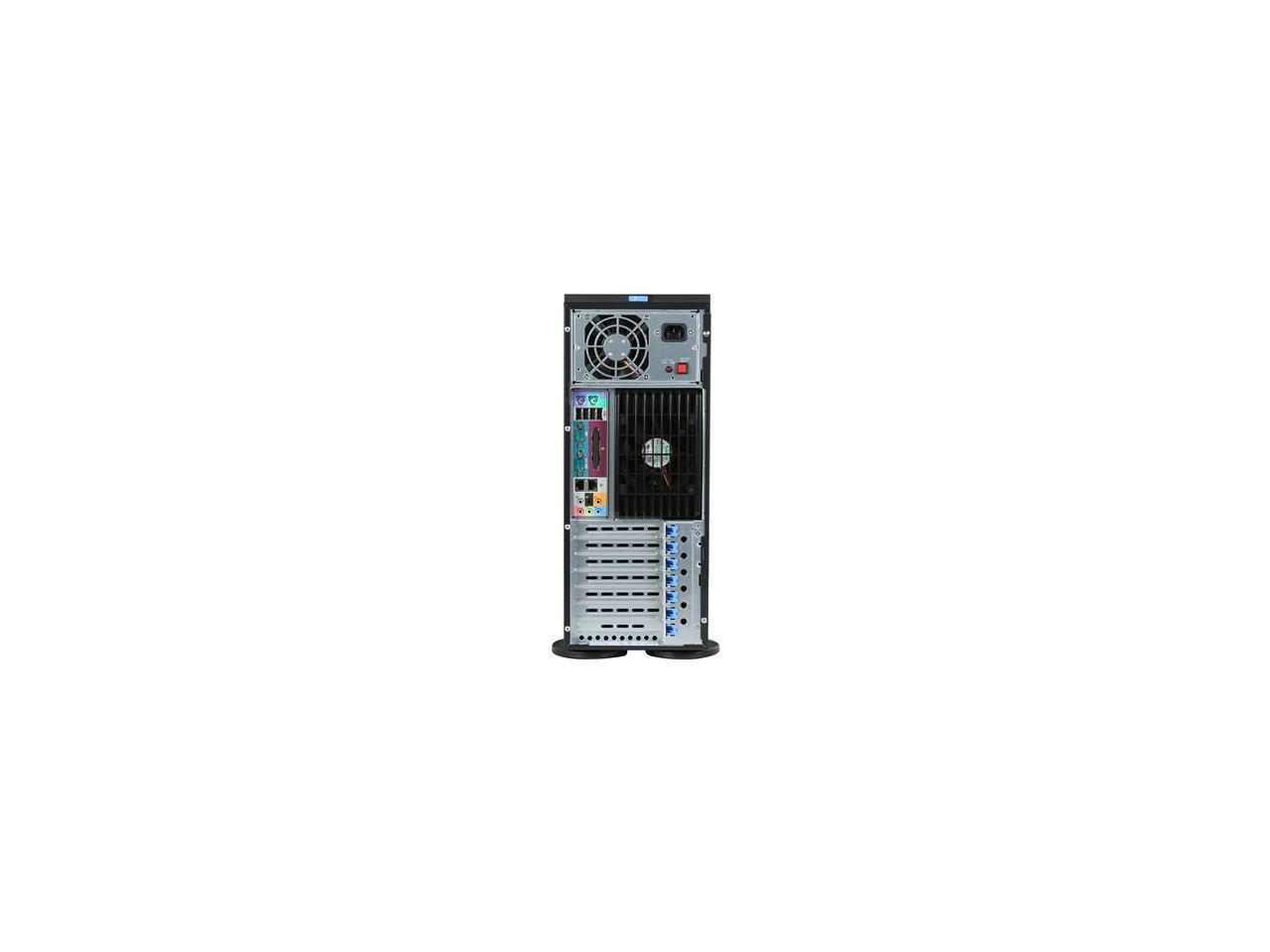

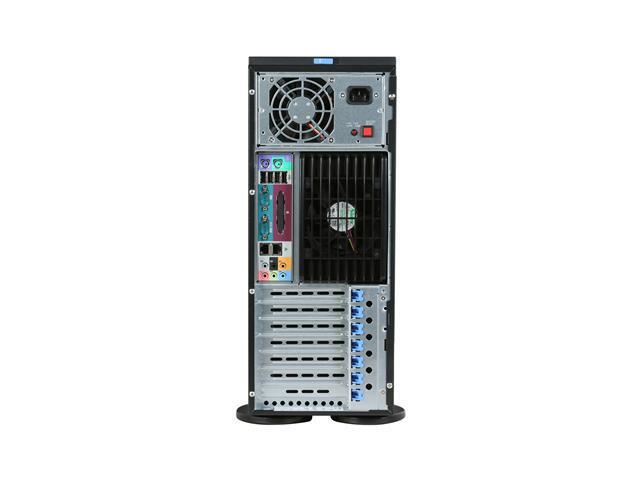

Dual Gigabit LANThe SuperMicro SYS-7046A-T features Intel Dual 82573V/L Gigabit Ethernet LAN controllers to deliver ultra-fast network connections.

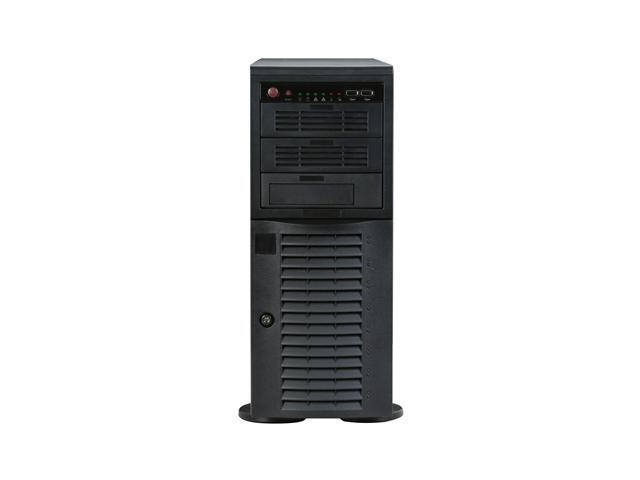

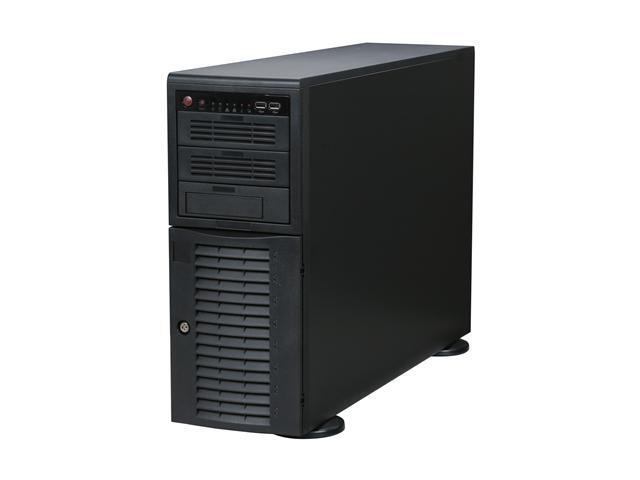

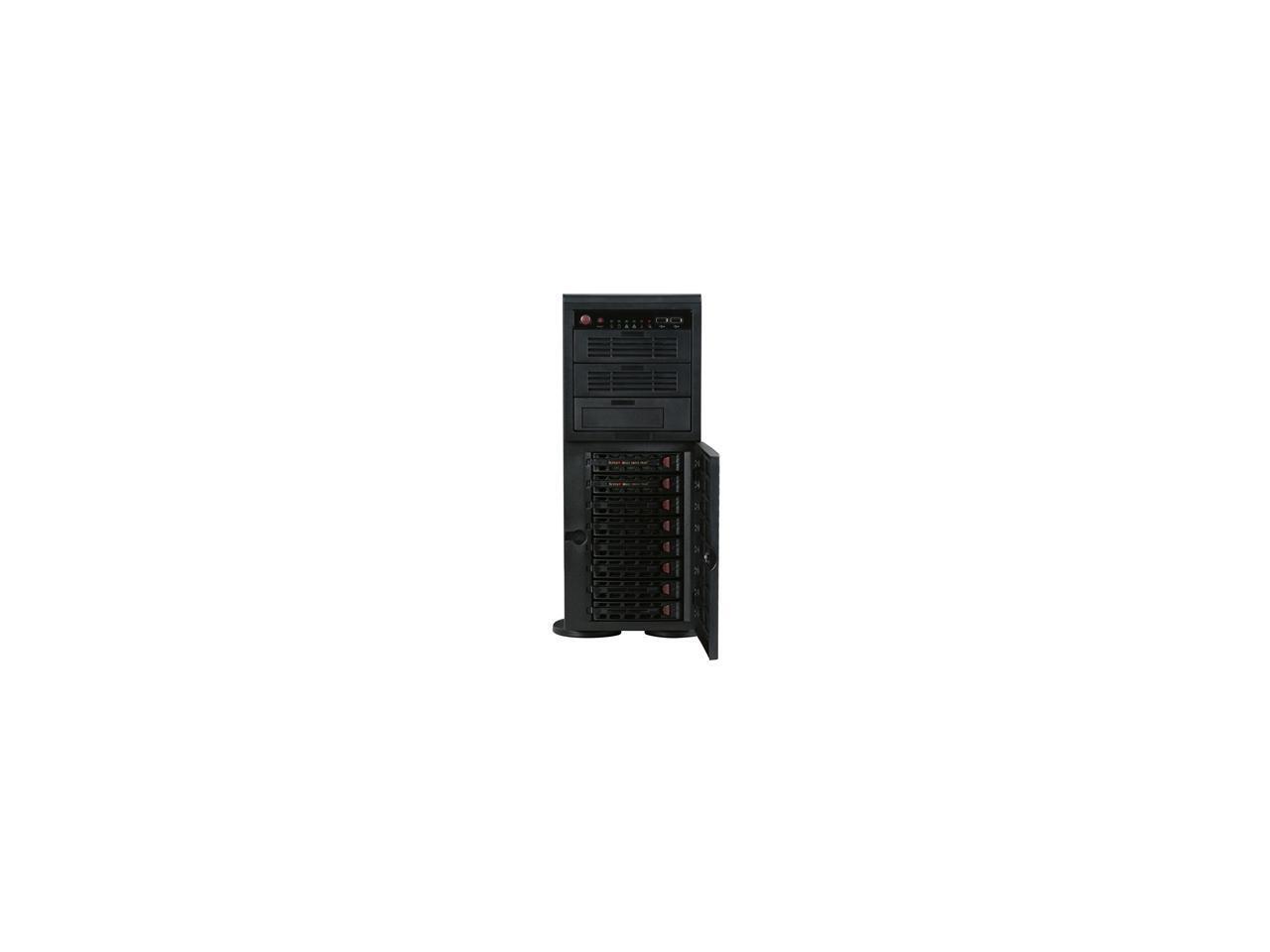

Hot-swappable SATA Drive BaysThe SuperMicro SYS-7046A-T features eight 3.5" hot-swappable SATA drive bays for easy installation and replacement.
80PLUS Certified Power SupplyThe 80PLUS Certified 865W Power Supply provides power for all components installed and ensures system reliability.
Pros: This is a very solidly constructed workstation platform. All of the fans are variable speed, the power supply is both quiet and high efficiency, and there is plenty of internal space. The lowest 5 SATA drive slots are wired to the motherboard and all 8 drive slots can be used if you add another controller or get the motherboard version that supports SAS drives.
Cons: It really should have come with all 4 mid-plane fans instead of only 2. The 2 additional fan locations were not blanked off so air recirculation may occur instead of flowing through the chassis. You can easily remedy this by purchasing 2 additional fans from numerous on-line vendors (NewEgg doesn't carry these fans).
Overall Review: I have 9 total disk drives installed; 5 1 TB SATA and 4 128 GB SSD. 24 GB of DDR3-1333 and 2 Nehalem Xeon CPUs, a PCIe X16 graphics card and a 3ware 9650SE RAID card. Everything works flawlessly; I could not be any happier with this system. Since there are multiple fan speed profiles available, you may elect to use this as a server, despite some reviewer claims.
