Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
16 x DIMMs; Up to 4TB 3DS ECC DDR4-2933 MHz RDIMM / LRDIMM
Support CPU TDP 70-205W

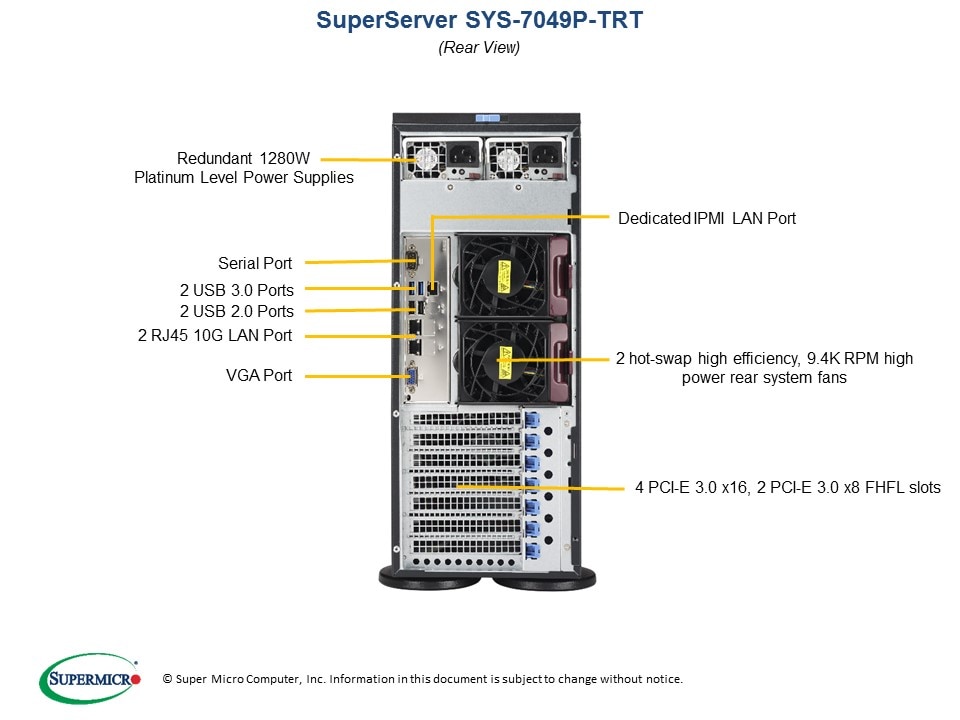

1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
Overview
Specs
Reviews
MAIN OVERVIEW FEATURES: Number of Processors Supported: 2Processor Socket: Socket P LGA-3647Processor Supported: Xeon Gold,Xeon Silver,Xeon Bronze,Xeon Platinum64-bit Processing: YesChipset Manufacturer: IntelChipset Model: C622Maximum Memory: 2 TBMemory Technology: DDR4 SDRAMMemory Standard: DDR4-2666/PC4-21300Number of Total Memory Slots: 16Controller Type: Serial ATA/600RAID Supported: YesGraphics Controller Manufacturer: ASPEEDGraphics Controller Model: AST2500Ethernet Technology: 10 Gigabit EthernetNumber of Total Expansion Bays: 11Number of External 5.25" Bays: 3Number of 3.5" Bays: 8Number of Total Expansion Slots: 6Number of PCI Express x8 Slots: 2Number of PCI Express x16 Slots: 4Total Number of USB Ports: 7Number of USB 3.0 Ports: 2Number of SATA Interfaces: 8Input Voltage: 120 V AC,230 V ACNumber of Power Supplies Installed: 2Maximum Power Supply Wattage: 1.28 kWColor: BlackForm Factor: TowerRack Height: 4UHeight: 17.80" (452.12 mm)Width: 7" (177.80 mm)Depth: 25.50" (647.70 mm)Weight (Approximate): 25.40 kgPackage Contents: SuperServer 7049P-TRT (Black) 1 x Super X11DPi-NT Motherboard 1 x 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis 2 x MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG 2 x MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG 1 x STD I/O shield for X9 socket R server MB with Gasket. 1 x SYS-7049P-TR/SYS-7049P-TRT, QRG 2 x 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism 2 x 1U 1280W, redundant single output power supply 1 x POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE 1 x CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) 3 x 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM) 1 x USB 3.0,INT,19 PIN/F TO 19PIN/F,2 CH,80CM,30/28/26AWG 2 x 80x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis 3 x 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 4U Chassis 8 x Black Hot-swap 3.5inch HDD Tray (w/o logo) 1 x Plastic feet (4 pcs set) for 4U tower chassis, black color 1 x SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB Environmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 3 Year

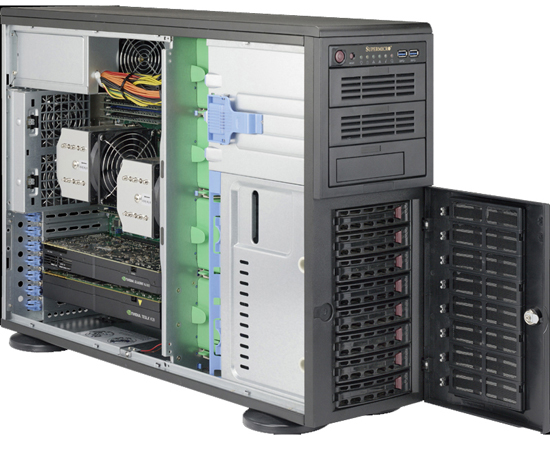

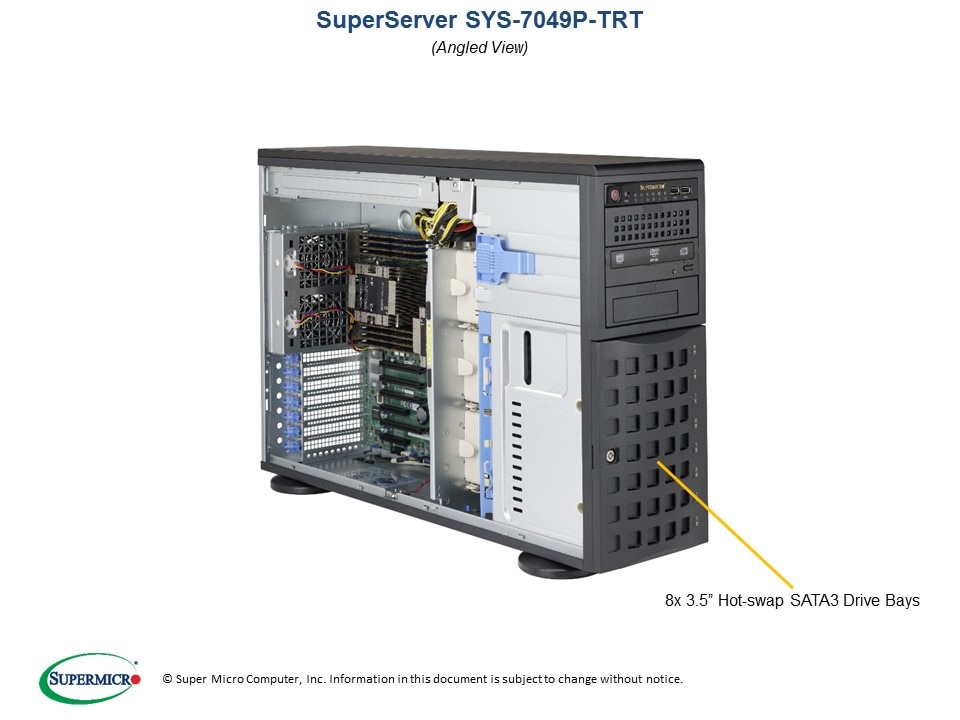

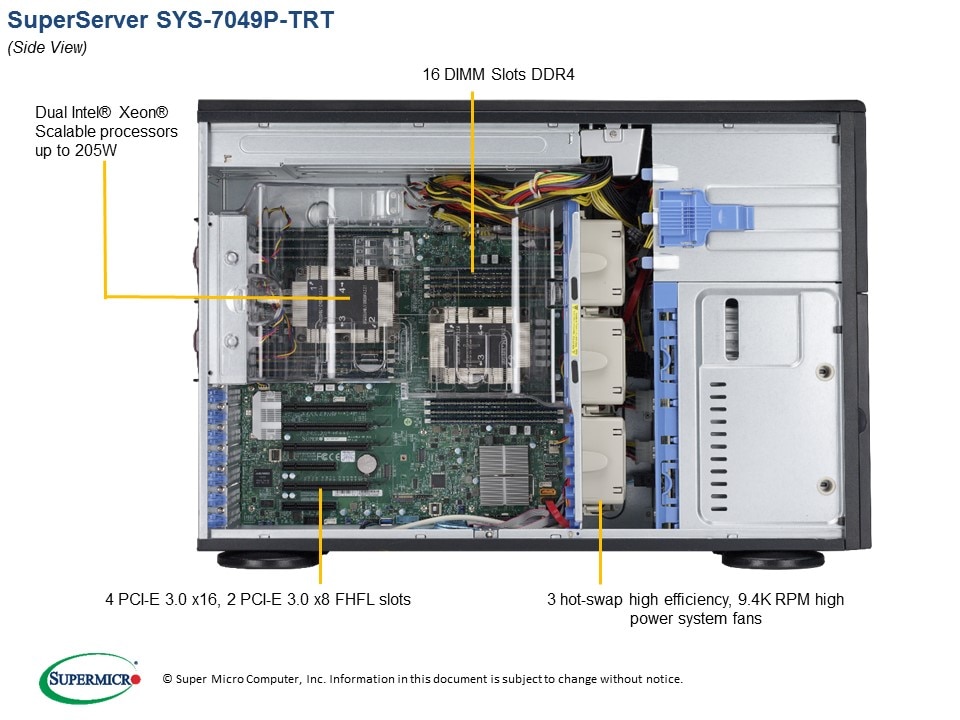

A cost-effective 4U rackmount/tower server barebone system that's ideal for building a workstation or server for your graphics- or computing-intensive applications. This barebone has two CPU sockets, and 16 DIMM slots that support up to 2TB ECC 3DS LRDIMM. It also comes with eight hot-swap drive bays, four PCIe 3.0 slots, and dual 10GbE LAN ports. 1280W power supplies are 80 PLUS Platinum certified, while the redundant configuration keeps your system running even when one power supply unit fails, ensuring maximized uptime your mission-critical applications require.
To complete this system, you'll need a processor, system memory, a storage drive and Operating System software.

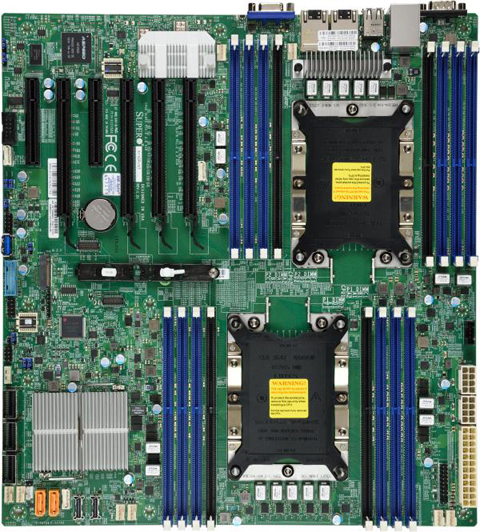

Integrated Board
X11DPi-NT
Intel Xeon Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, two UPI up to 10.4 GT/s
Intel C622
Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Four PCI-E 3.0 x16; two PCI-E 3.0 x8; M.2 Interface: PCI-E 3.0 x4; M.2 Form Factor: 2260, 2280, 22110; M.2 Key: M-Key,
