SUPERMICRO X9SRA ATX Server Motherboard

(19) Write a Review
  • LGA 2011
  • Intel C602
  • 8 x 240pin
Overview
Specs
Reviews (19)
MBD-X9SRA -B

SUPERMICRO X9SRA Single Socket R (LGA 2011) E5 ATX Workstation/Server Motherboard



Features

MBD-X9SRA -B
  • Single socket R (LGA 2011) supports Intel® Xeon® processor E5-2600/1600 and E5-2600/1600 v2 family† , 2nd and 3rd Gen. Core i7 series processors (Ci7 CPU only works w/ Non-ECC UDIMM)
  • Intel® C602 chipset
  • Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM slots
  • Expansion slots: 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x4 (in x8), 1x PCI-E 2.0 x4 (in x8), 1x PCI-32
  • Dual Gigabit Ethernet LAN ports; Intel® 82579LM and Intel® 82574L
  • 2 SATA3 (6Gb/s), 4 SATA (3Gb/s), & 4 SATA2 (3Gb/s) ports via SCU
  • 4 USB 3.0 (5Gbps) ports (2 rear, 2 via header) & 14 USB 2.0 ports (8 rear, 6 via header)
  • DOM power connector support


Specifications

Product SKUs
MBD-X9SRA -B X9SRA (Bulk Pack)
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6", (30.48cm x 24.4 cm)
Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600/1600 and E5-2600/1600 v2 family† (up to 12 cores and up to 150W)
  • Single Socket R (LGA 2011)
Note † BIOS version 3.0 or above is required
CPU Intel® 2nd and 3rd Gen. Core i7 series processors with Non-ECC UDIMM only
System Memory
Memory Capacity
  • 8x 240-pin DDR3 DIMM slots
  • Up to 512GB DDR3 ECC LRDIMM
  • Up to 256GB DDR3 ECC RDIMM
  • Up to 64GB DDR3 ECC/non-ECC UDIMM

    Note: LRDIMM only works with Intel Xeon E5-2600 and E5-2600 v2 family processors
Memory Type
  • 1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB,
 64GB LRDIMM
Memory Voltage 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel C602 chipset
SATA
  • SATA3 (6Gb/s) and SATA2 (3Gb/s)
  • RAID 0, 1, 5, 10 support (Windows)
  • RAID 0, 1, 5, 10 support (Linux)
Network Controllers
  • Intel® 82579LM and 82574L, 2x Gigabit LAN ports
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
  • RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Super I/O Winbond
Input / Output
SATA 2x RJ45 Gigabit Ethernet LAN ports
SCU 4x SATA 2.0 ports (3Gb/s) via SCU
LAN 2x RJ45 Gigabit Ethernet LAN ports
USB
  • 4x USB 3.0 ports (5Gbps)
  • 14x USB 2.0 ports total (8x rear + 6x via header)
Audio Line-in / Line-out / Microphone Ports
Keyboard/Mouse PS/2 Keyboard/Mouse port
Serial Port / Header 2x headers

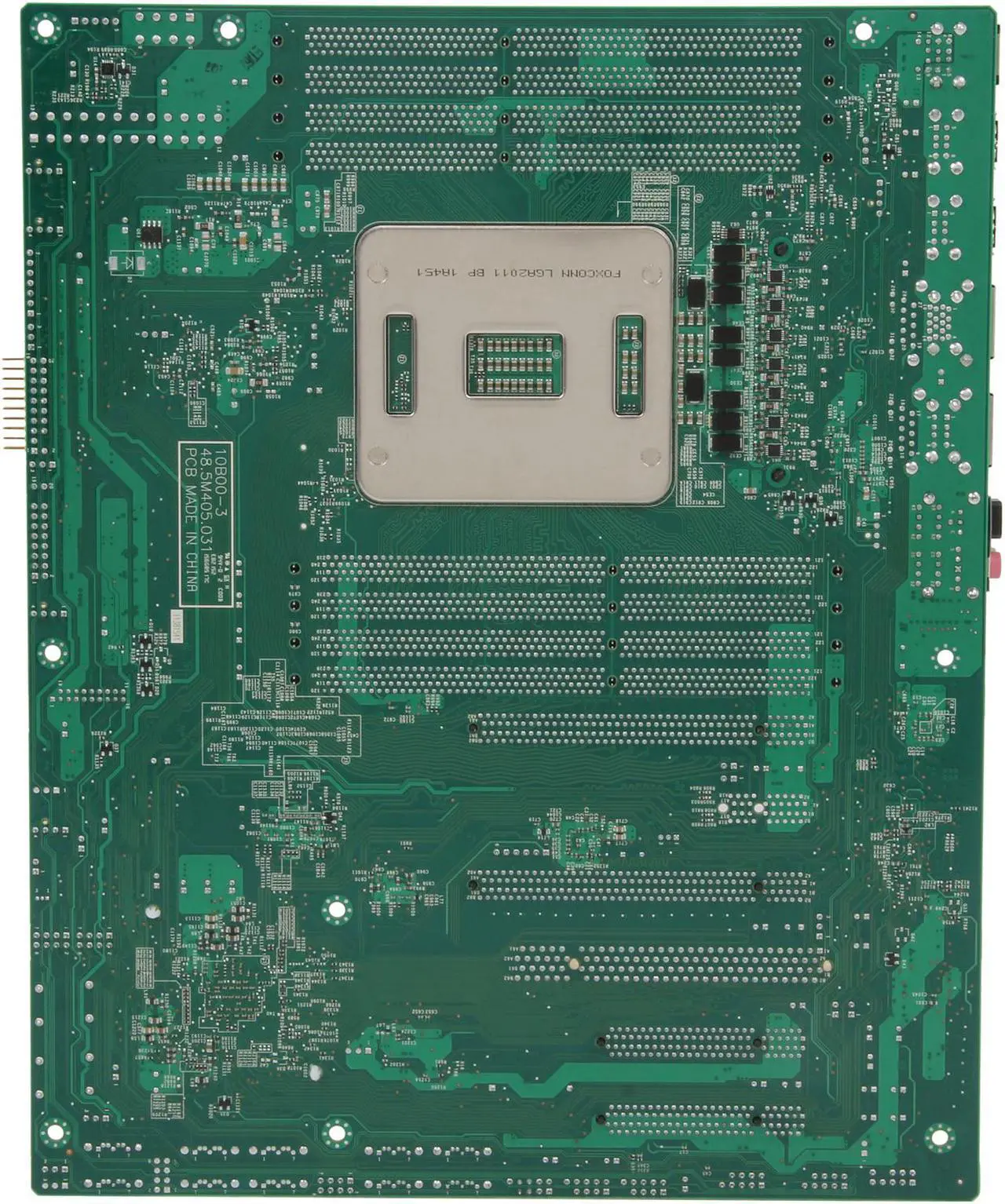

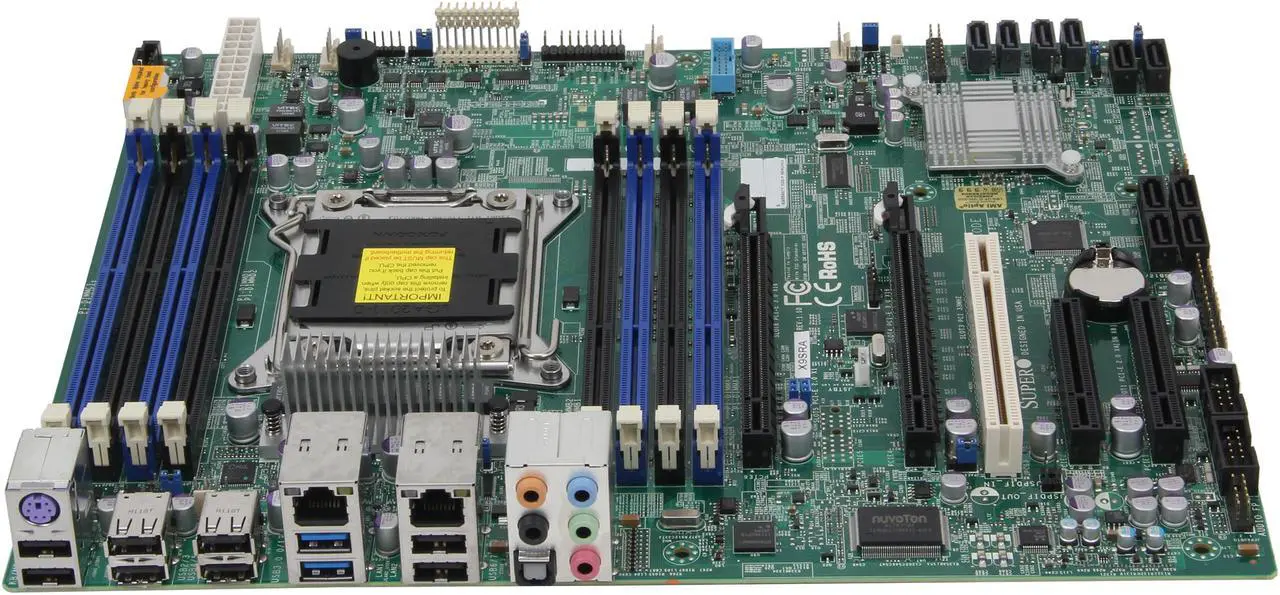

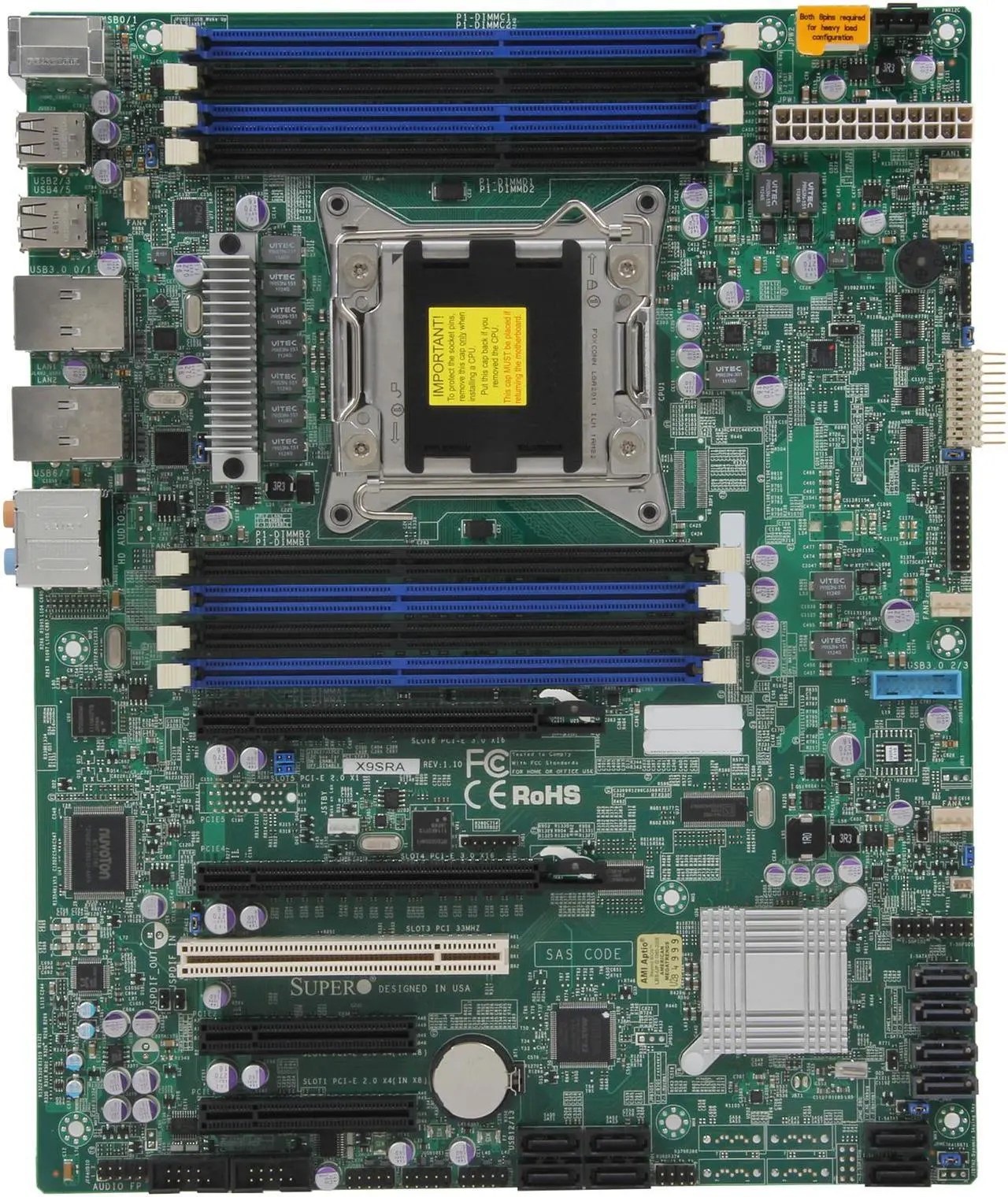

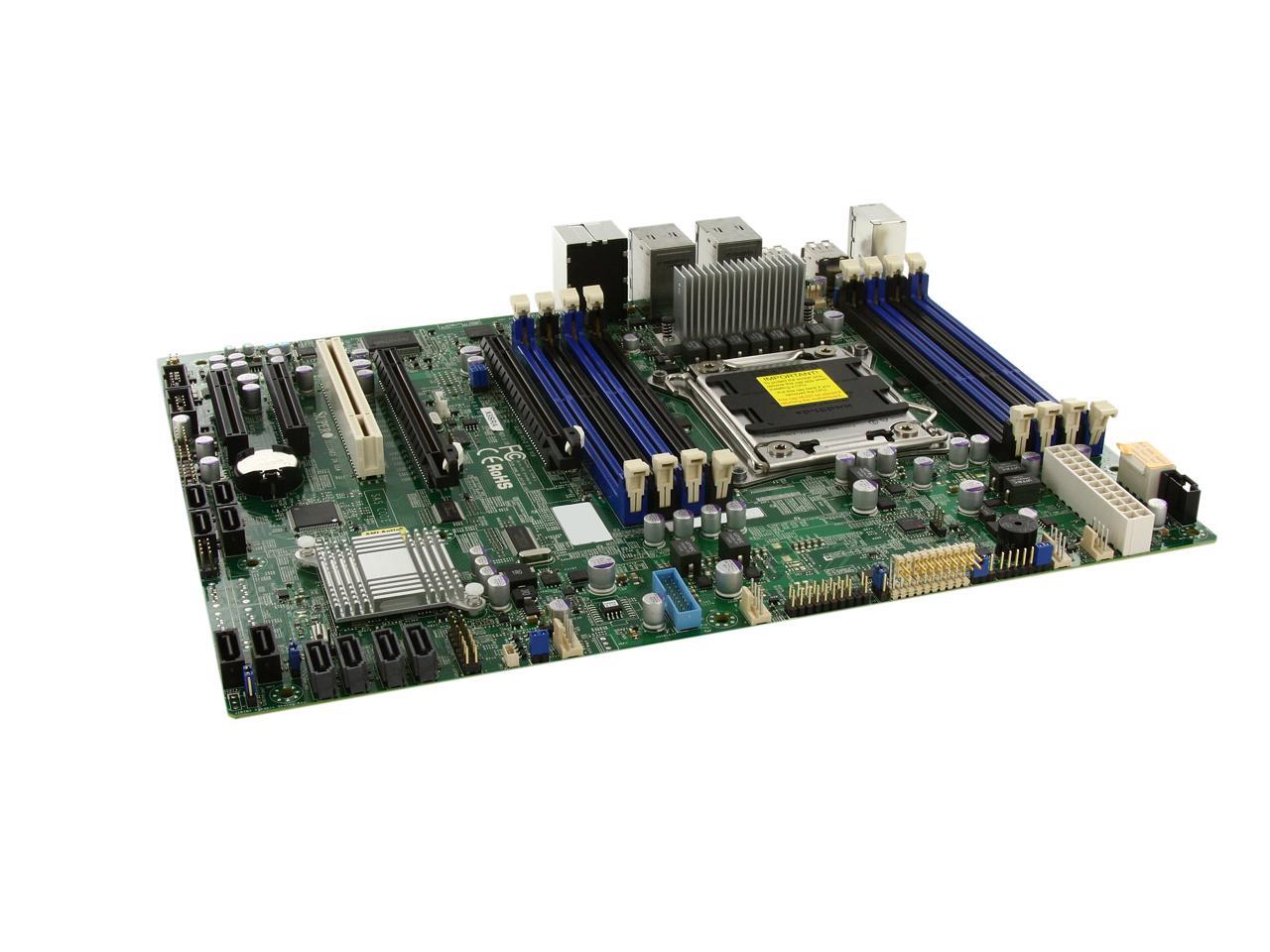

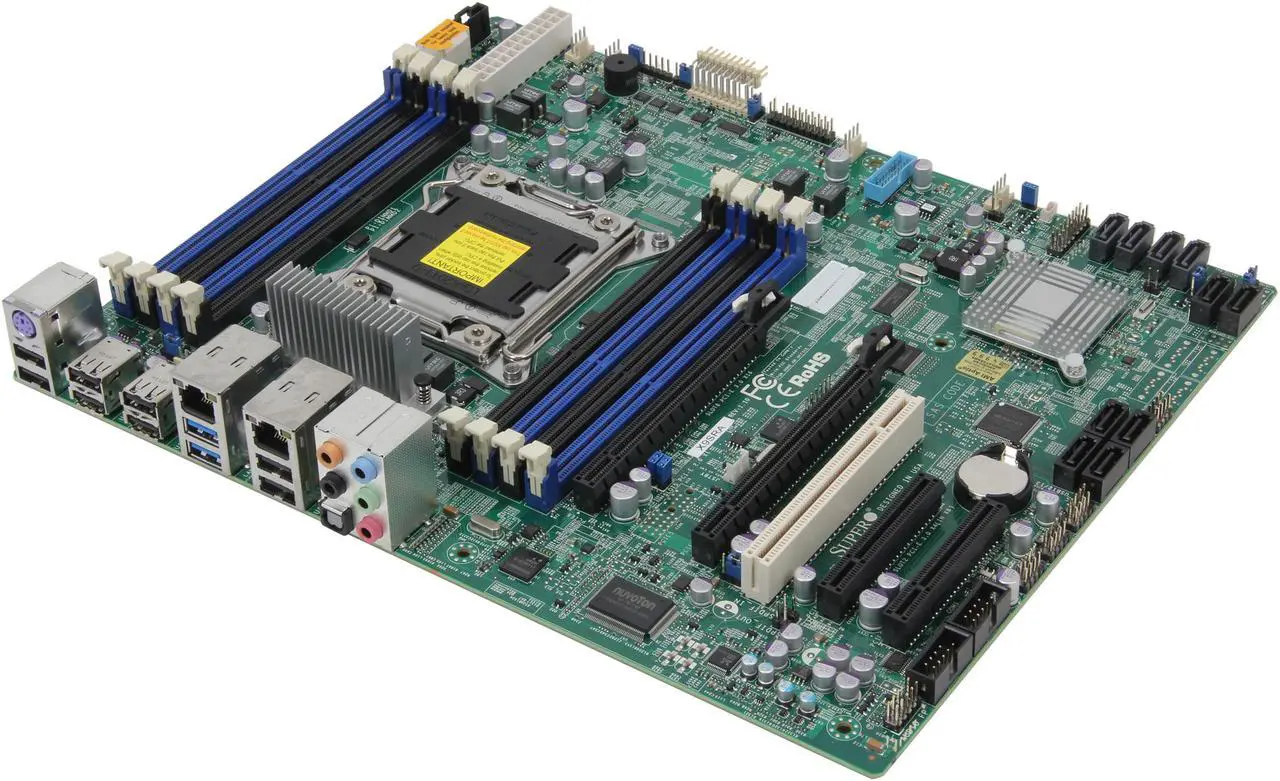

Gallery

MBD-X9SRA -B MBD-X9SRA -B

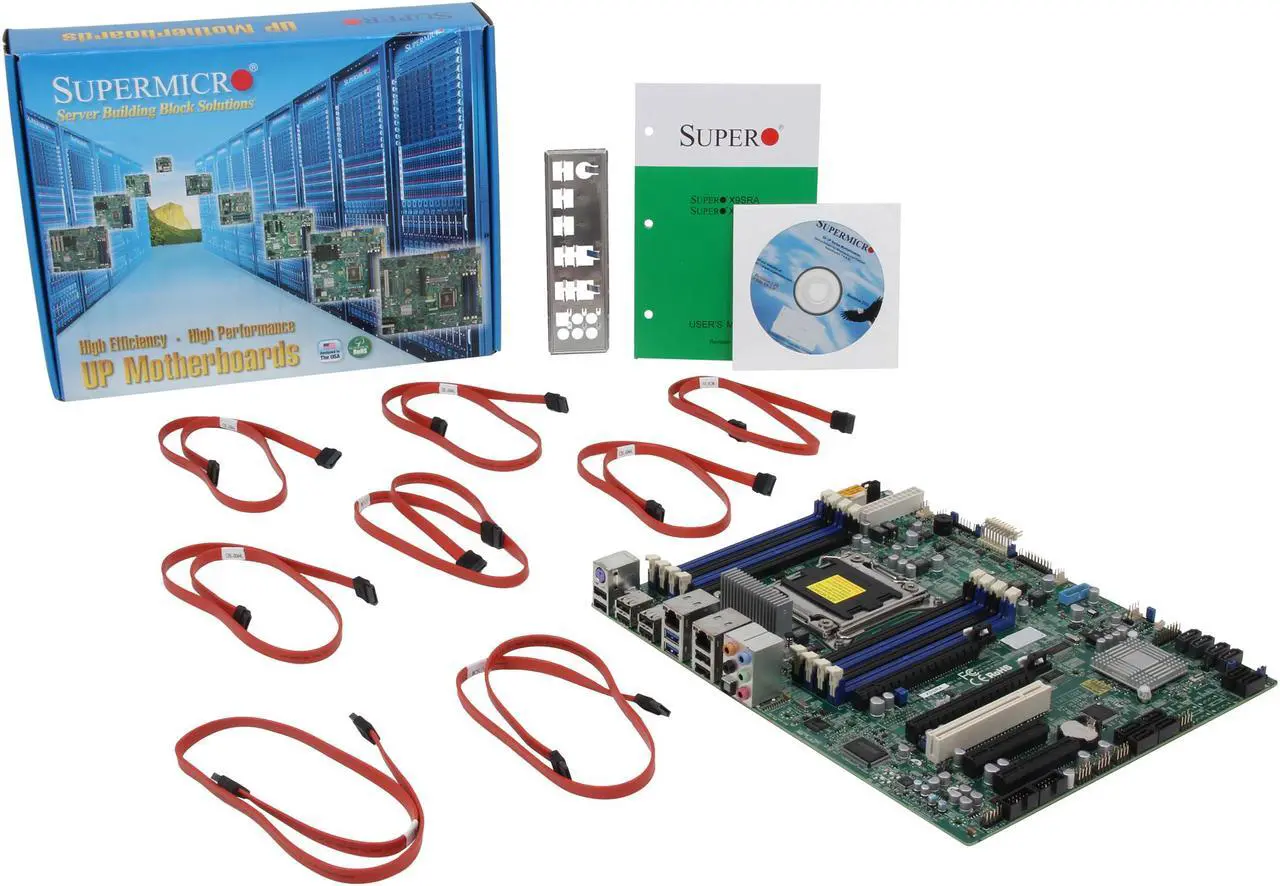

Whats in the Box

MBD-X9SRA -B

  • neweggIntel Xeon E5 CPU SupportBased on Intel C602 chipset, the SUPERMICRO X9SRA server motherboard supports eight-core Intel Xeon E5-2600/E5-1600 processors to address the demanding needs for high performance and balanced architecture by modern business. The Intel Xeon E5 processor packs more cores, larger cache, greater memory, and new technologies like Intel Turbo Boost Technology 2.0, delivering up to 80% performance boost, reduced I/O network latency and increased energy efficiency.
  • neweggMemoryThe SUPERMICRO X9SRA has eight DIMM sockets that can support up to 256 GB of DDR3 RDIMM, delivering ample capacity for demanding applications.
  • neweggFlexible Storage with RAID Support4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s ports with RAID 0/1/10 support permit flexible storage configuration with enhanced performance and data security.
  • neweggDual Gigabit LAN PortsIncorporating Intel 82579LM and 82574L GbE controllers in the motherboard, the SUPERMICRO X9SRA server motherboard is outfitted with two Gigabit Ethernet LAN ports to optimize network bandwidth, data throughput and communication efficiency.
  • neweggEasy ExpandabilityTwo PCIe 3.0 x16 slots, one PCI-E 3.0 x4 (in x8) slots, one PCIe 2.0 x4 (in x8) slot and one PCI slot support a range of I/O expansion cards and discrete graphics cards for flexible expansion.
