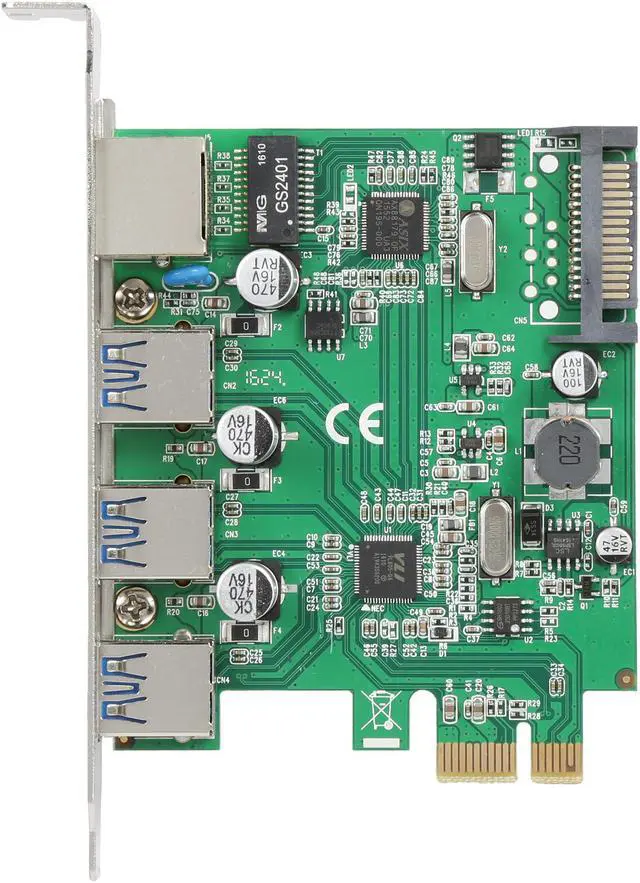

SYBA 3 Port USB 3.1 Gen 1 and Gigabit Ethernet PCI-e 2.0 x1 Card Model SD-PEX50100
- VLI VL805-Q6 and Axis AX88179 chipsets
- Compliant with Intel's Extensible Host Controller Interface (xHCI)
- Integral power connector for supplying +5V power to USB ports
- Supports Bulk Only Transfer (BOT) mode and USB Attached SCSI Protocol (UASP) mode
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T with auto-negotiation
- Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control
- Supports 4 KB jumbo frame
Specs
Reviews (6)
Learn more about the Syba SD-PEX50100
| Brand | SYBA |
|---|---|
| Model | SD-PEX50100 |
| Type | PCI Express to USB 3.0 ports and a Gigabit Ethernet port |
|---|---|
| External USB Ports | 3x USB Ports |
| Operating Systems Supported | Windows OS, Mac OS |
| Specifications | Add three USB 3.0 ports and a Gigabit Ethernet port to your desktop computer through a PCI Express expansion slot. By combining three USB 3.0 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation. The super Speed USB 3.1 Gen1 standard, operating at 5 Gbps full-duplex mode, is 10 times faster than USB 2.0 High-Speed standard. Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed. The 10/100/1000M Gigabit Ethernet port is Energy Efficient Ethernet (EEE) base on digital signal processing (DSP) technology with low dissipation |
| Features | VLI VL805-Q6 and Axis AX88179 chipsets Compliant with Intel's Extensible Host Controller Interface (xHCI) Integral power connector for supplying +5V power to USB ports Supports Bulk Only Transfer (BOT) mode and USB Attached SCSI Protocol (UASP) mode Supports 10BASE-T, 100BASE-TX, and 1000BASE-T with auto-negotiation Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control Supports 4 KB jumbo frame |
|---|

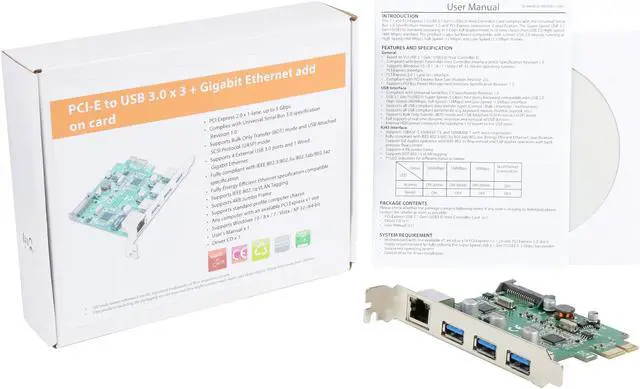

| Package Contents | 1 x PCI-Express USB 3.1 Gen1 Host Controller Card 1 x Driver CD 1 x User Manual |
|---|
| First Listed on Newegg | August 10, 2016 |
|---|
