10 /100 /1000 Mbps data rate auto negotiation operation
Features full duplex mode that doubles the network connections speed
Fully compliant with IEEE802.3, 802.3U and 802.3ab
Supports WOL (Wake-On-Lan) function
+
+
Overview
Specs
Reviews (7)
This PCI-Express RTL 8111 Four Gigabit Ethernet controller card is a high performance 10/10/1000 BASE-T Ethernet LAN controller, that supports the PCI Express 1.1 buss interface for host communications with power management, and is compliant with IEEE 802.3 AB specification for 1000 Mbps Ethernet. It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space, and is perfect for converting the PCI-Express interface into Four Gigabit Ethernet ports.Host Interface: PCI Express 1.1Total Number of Ports: 4Number of Network (RJ-45) Ports: 4Media Type Supported: Twisted PairNetwork Technology: 10/100/1000Base-TForm Factor: Plug-in CardPackage Contents: 4 Port Gigabit Ethernet PCI-e x1 Network Interface Card 1 x User Manual 1 x Driver CD 1 x Low Profile Bracket Device Supported: PCLimited Warranty: 1 YearPackage Contents 4 Port Gigabit Ethernet PCI-e x1 Network Interface Card 1 x User Manual 1 x Driver CD 1 x Low Profile Bracket
4 Port Gigabit Ethernet PCI-e x1 Network Interface Card
Key Feature at a Glance
4 Gigabit Ethernet ports
Designed to meet PCI Express Specification Revision 1.1
Single-lane (x1) PCI Express throughput supports rate of 2.5Gbps
10/100/1000Mbps data rate auto negotiation operation
Features full duplex mode that doubles the network connections speed
Fully compliant with IEEE802.3, 802.3u and 802.3ab
Supports WOL (wake-On-LAN) fucntion
RTL8111 Chipset

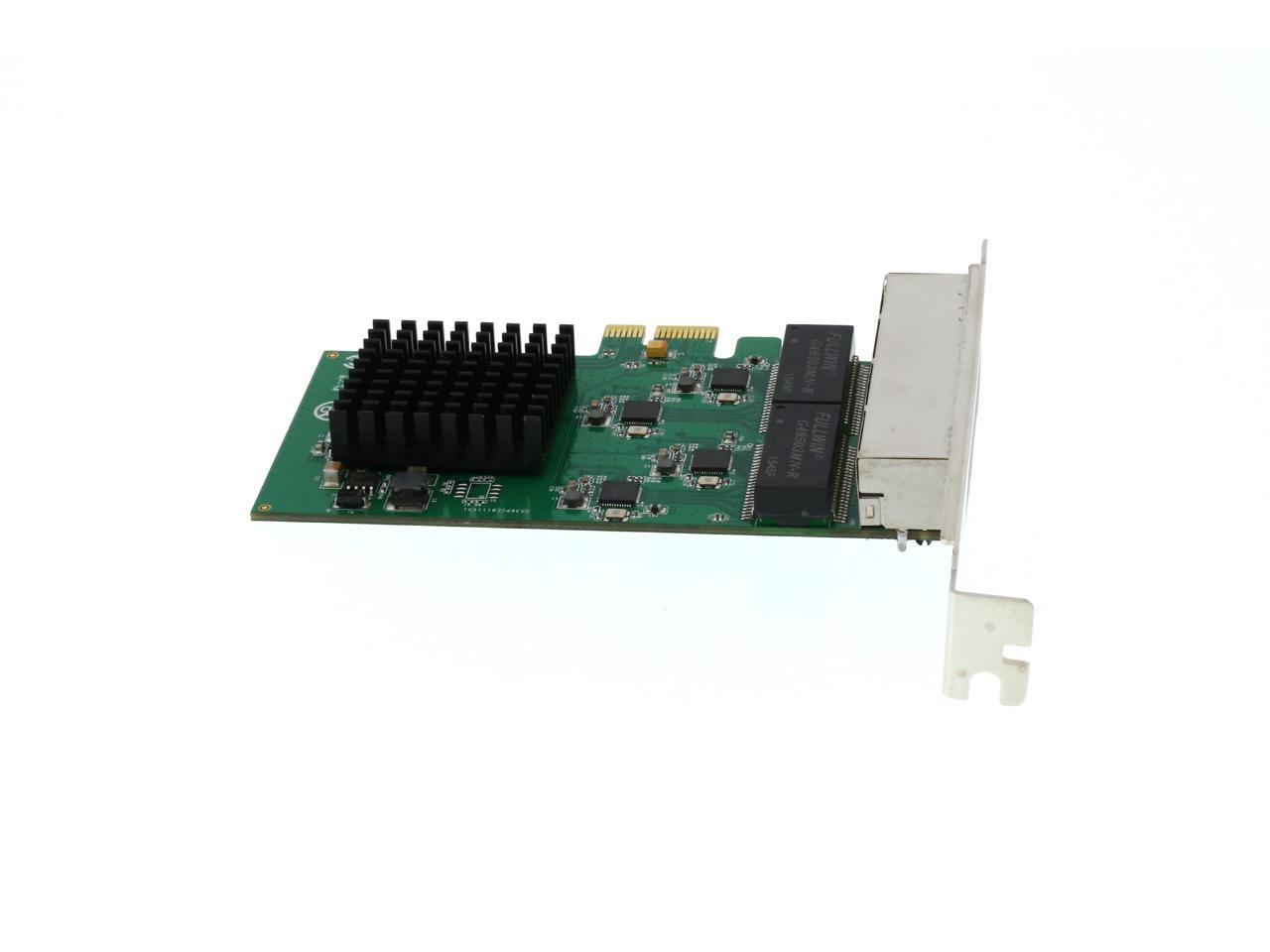

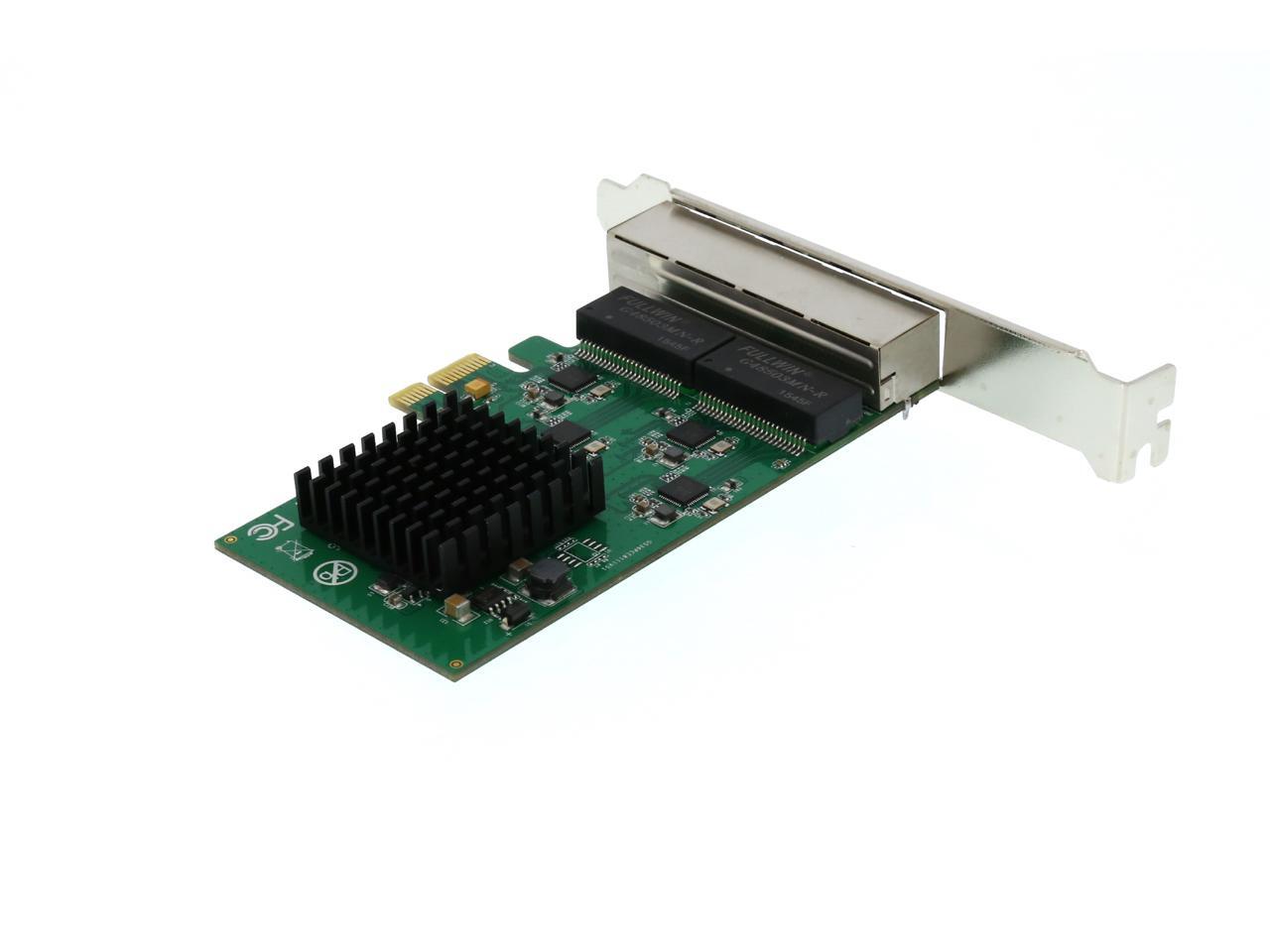

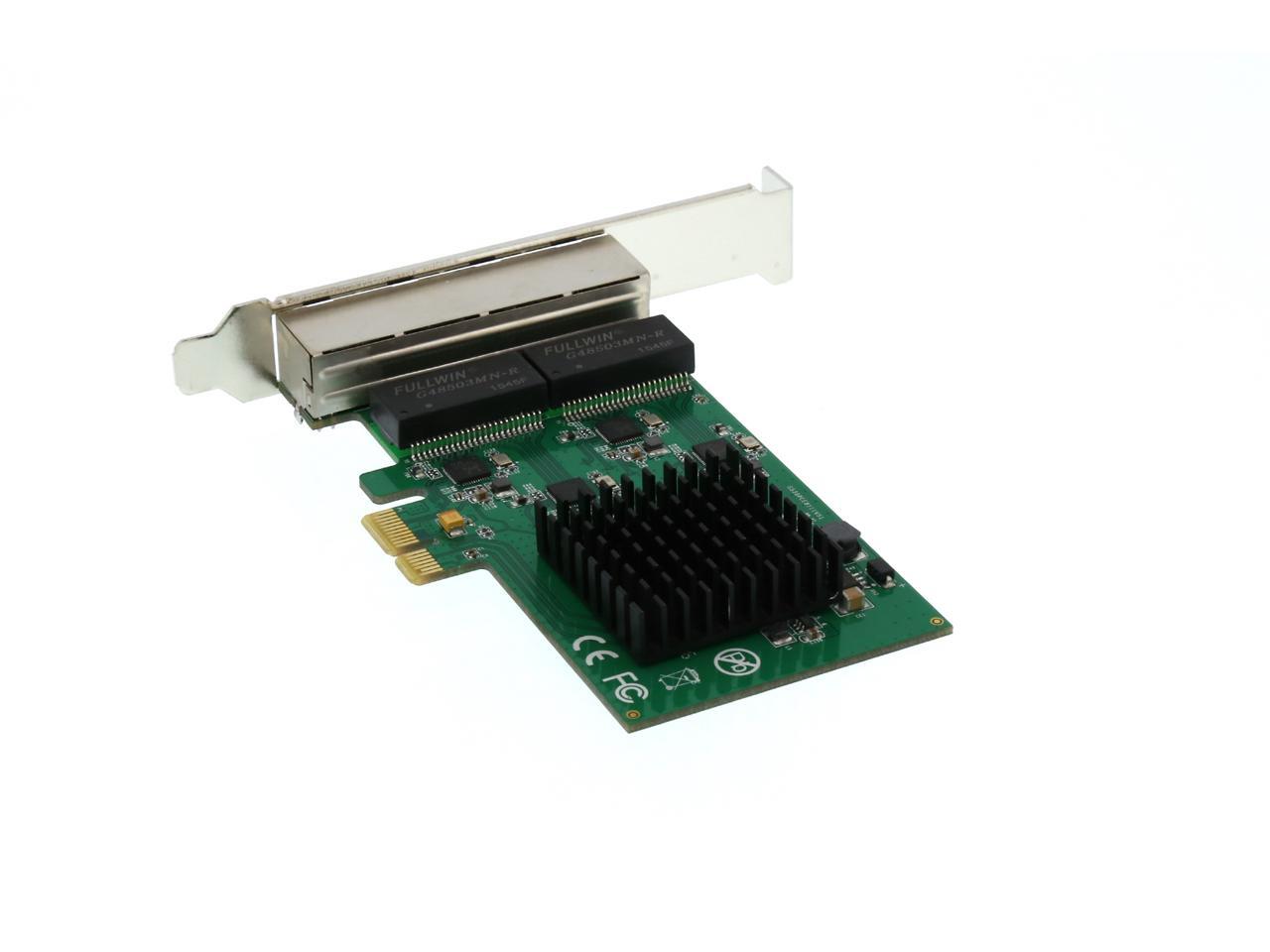

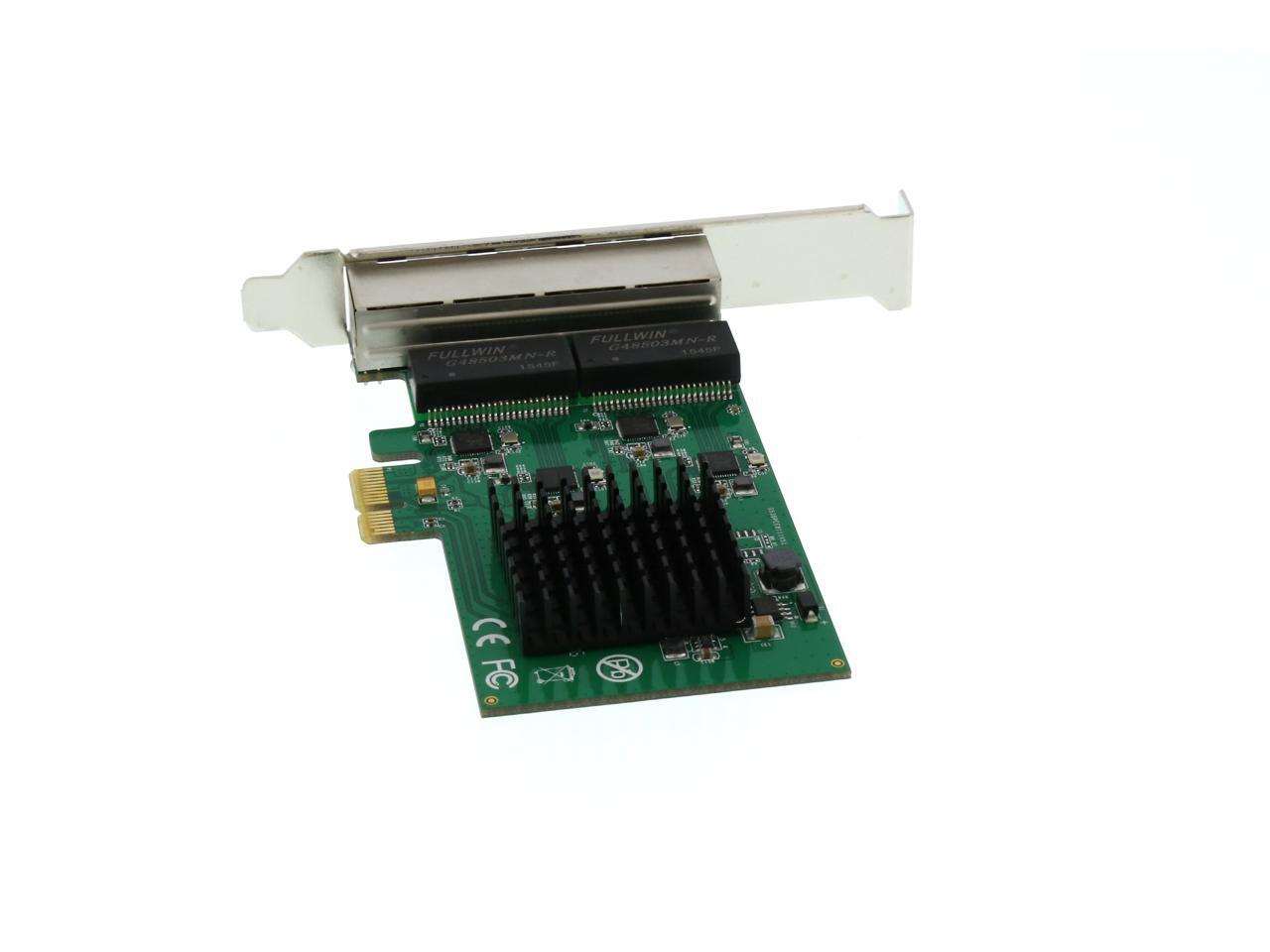

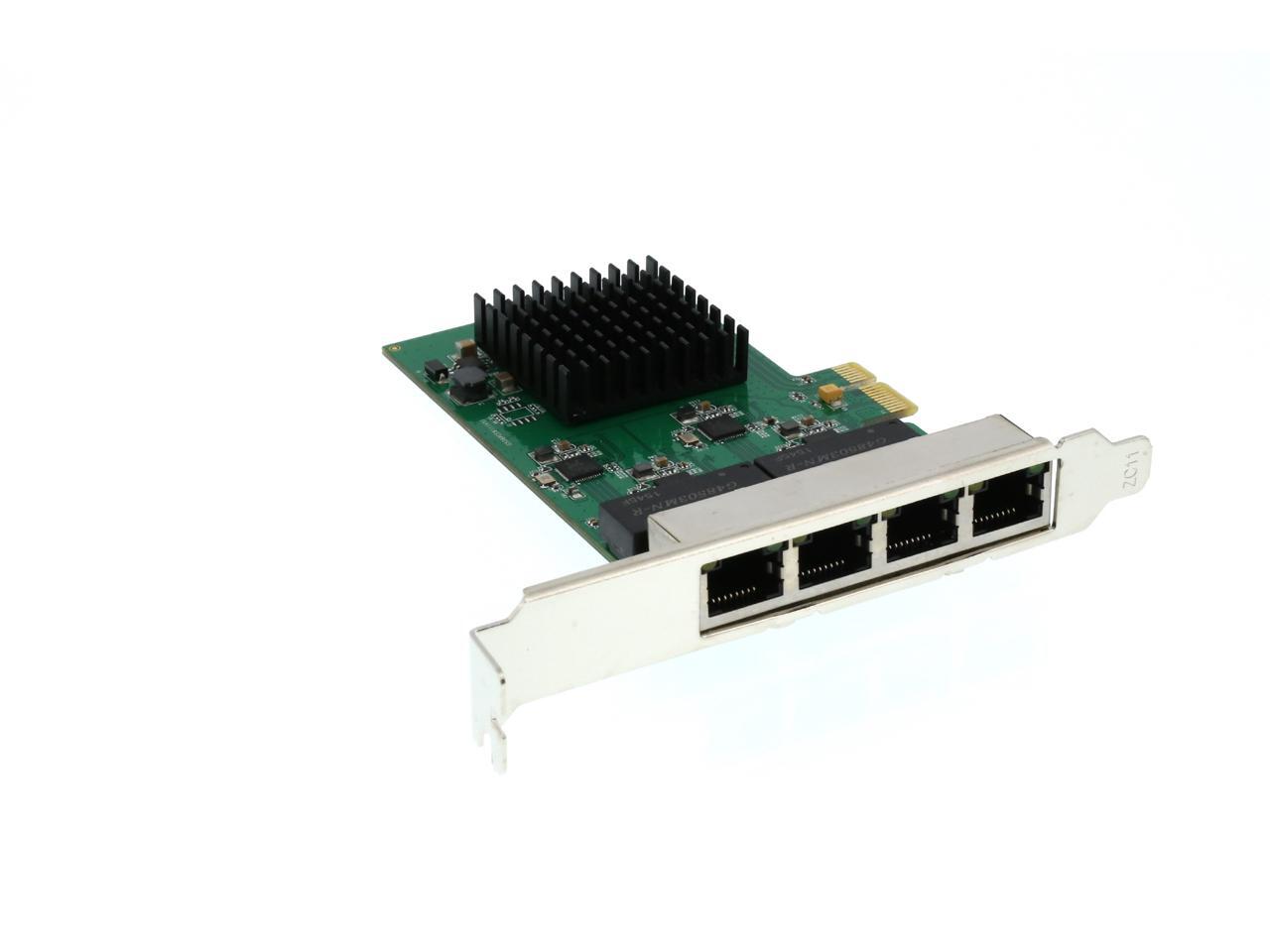

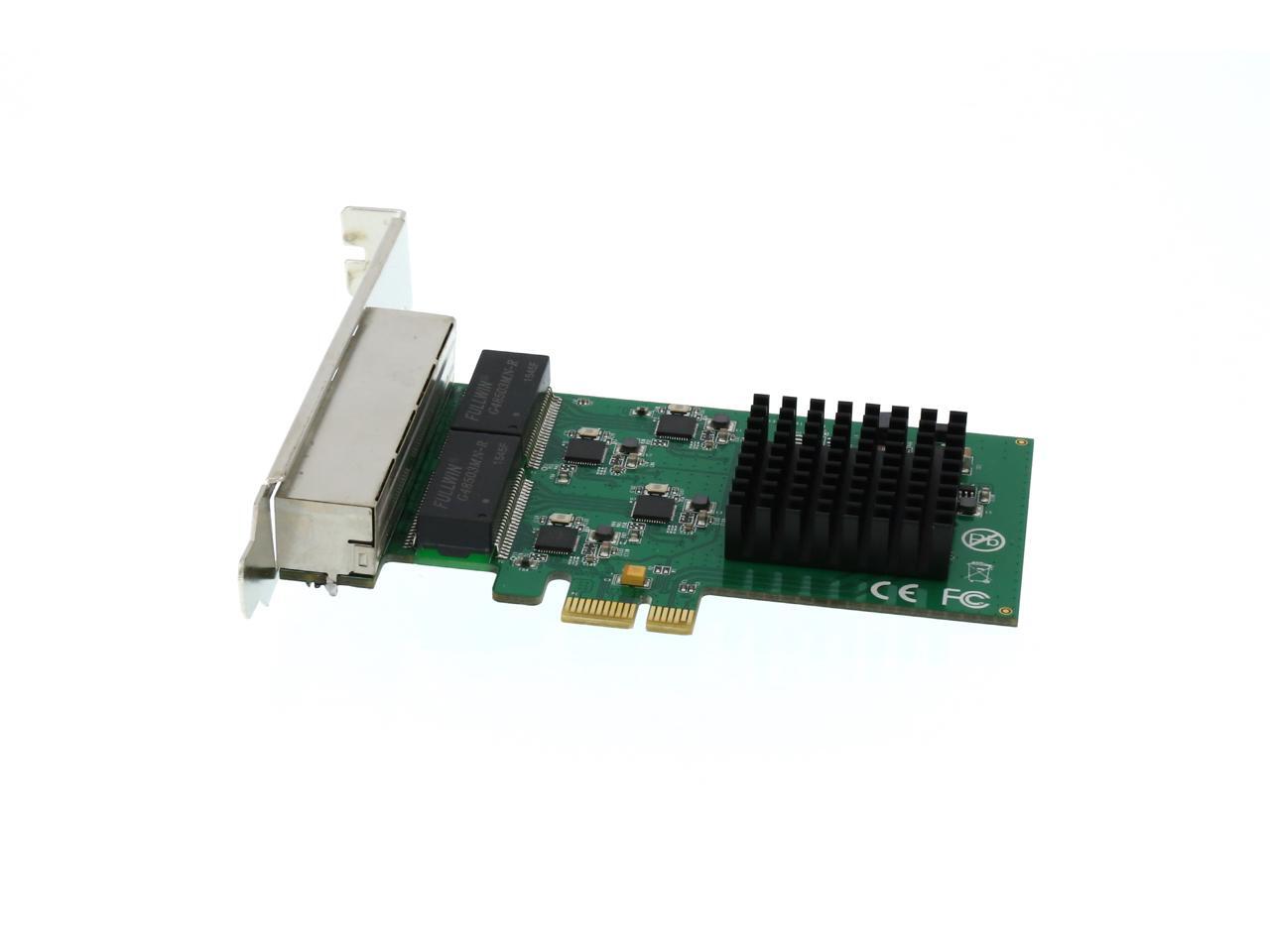

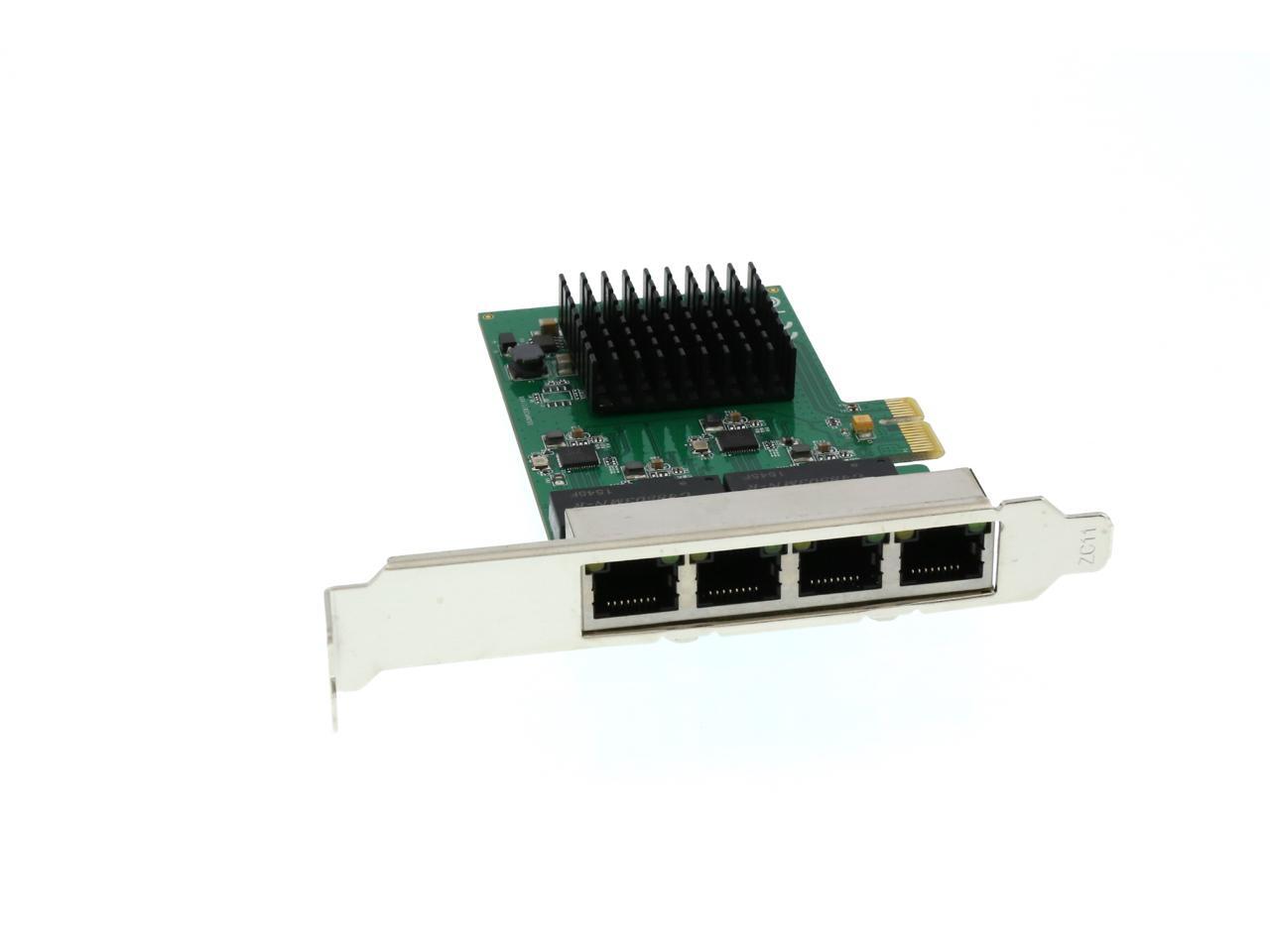

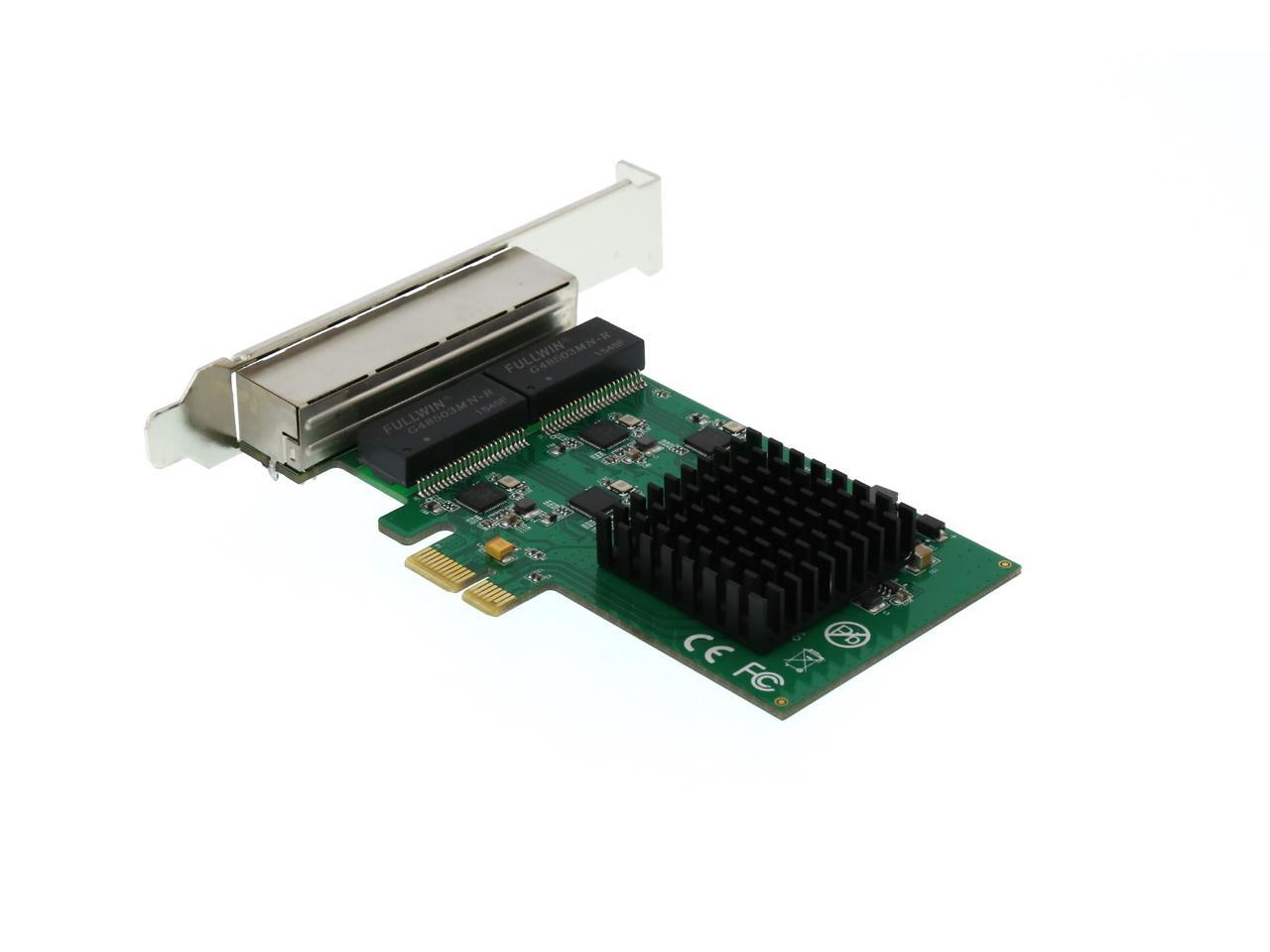

With one PCI-e x1 interface and four Gigabit Ethernet ports, the SYBA PCI-Express RTL 8111 Four Gigabit Ethernet controller card helps convert one PCI-Express interface into four Gigabit Ethernet ports. It adds connections to up to four separate high-speed Gigabit networks from a single desktop client, server or workstation.
It is a high performance 10/10/1000 BASE-T Ethernet LAN controller. It supports the PCI Express 1.1 bus interface for host communications with power management, and is compliant with IEEE 802.3 AB specification for 1000 Mbps Ethernet. The support for full duplex mode doubles the network connections speed.
It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space.
Learn more about the Syba SI-PEX24042
Model
Brand
SYBA
Model
SI-PEX24042
Details
Speed
10/100/1000Mbps
Interface
PCI-e x1
Wake On LAN
Yes
Features
Features
4 Gigabit Ethernet ports
Designed to meet PCI Express Specification Revision 1.1
Single-lane (x1) PCI Express throughput supports rate of 2.5 Gbps
10/100/1000 Mbps data rate auto negotiation operation
Features full duplex mode that doubles the network connections speed
Fully compliant with IEEE802.3, 802.3u and 802.3ab
Supports WOL (wake-On-LAN) fucntion
Dimensions & Weight
Weight
0.3
Packaging
Package Contents
1 x PCI-Express Four Gigabit Ethernet controller card 1 x User Manual 1 x Driver CD 1 x Low Profile Bracket
