Will this board fit two 2080ti double width video cards?

Yes, this board has 3x PCI-E 3.0 x16 slots and 2x PCI-E 3.0 x8 slots, which should be sufficient to fit two double-width 2080ti video cards.

Does it support m.2 NVMe drives? Also, how many max PCIe lanes?

It doesn't support NVMe. Don't let support fool you into thinking it does. They had a page on their site that said NVMe is for servers and this is a workstation so it would never support NVMe - their words as best as I remember them. I guess they think that people who buy dual 8-core xeon workstations with 128GB of ram (my config) must not care about performance. I put in an after-market M2 card on one of the PCIe slots and I'm able to get the M2 to work with Windows but not to boot. PCIe lanes is an interesting question. In this case, one big plus for this board is three true PCIex16 slots, accounting for 48 lanes. There's a combination of lanes used in the smaller PCIe and SATA slots, as well. But a single Xeon has a max of 40 lanes and dual-Xeons a max of 80 lanes. Then the C612 has, I think, 8 lanes - it's been a while and I don't feel like looking it up. If you put only one CPU then you will get a max of 40+8 lanes. Again, it's been a while since I set mine up and don't remember exactly what's left if you only use one CPU. The manual is available for download from their site.

I'm looking to purchase a machine with the following specs: -At least 64gb ram -At least 6 core proc -DISK C: RAID1 - (2) 120gb SSD -DISK D: RAID5 - (3) 500gb SSD Can you help?

This is NewEgg. They sell that stuff. You're in the right place. Hope that helps.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

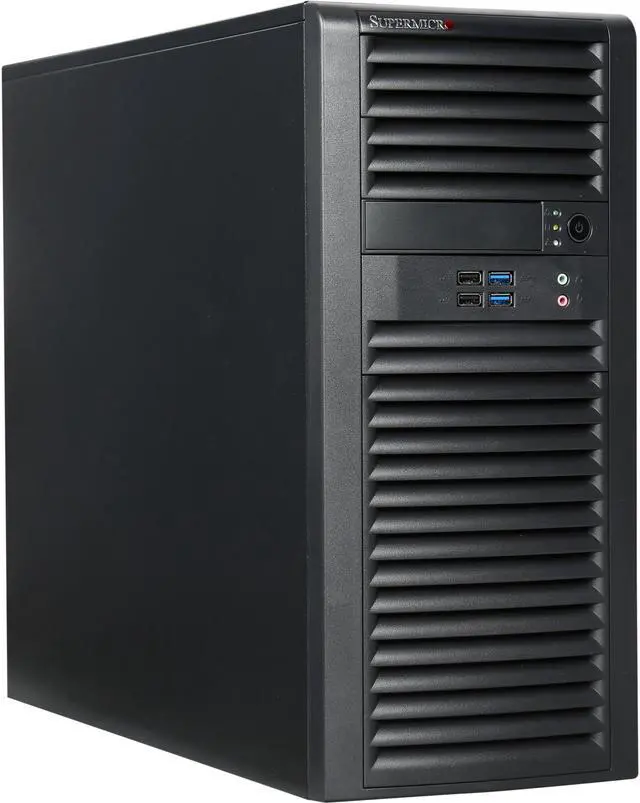

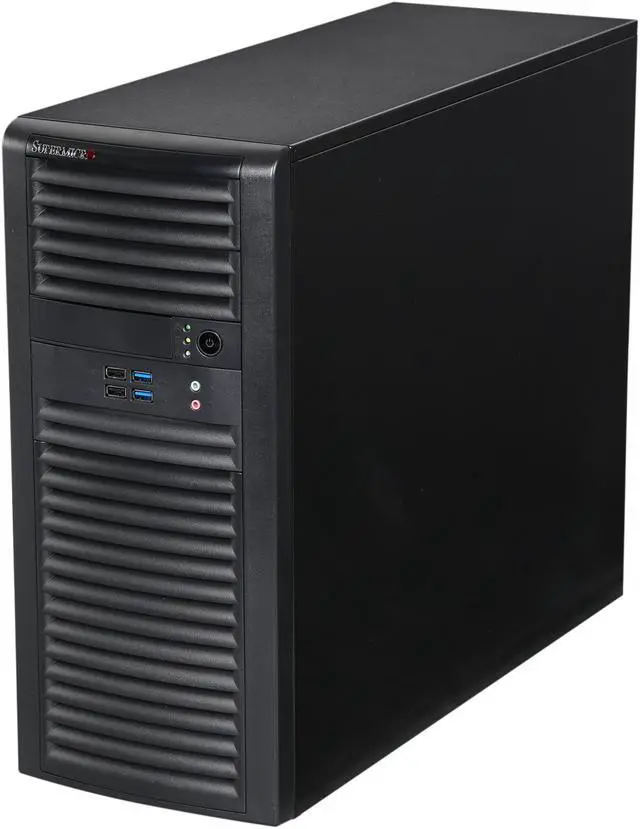

Main image of SUPERMICRO SYS-7038A-I Mid-Tower Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

100%

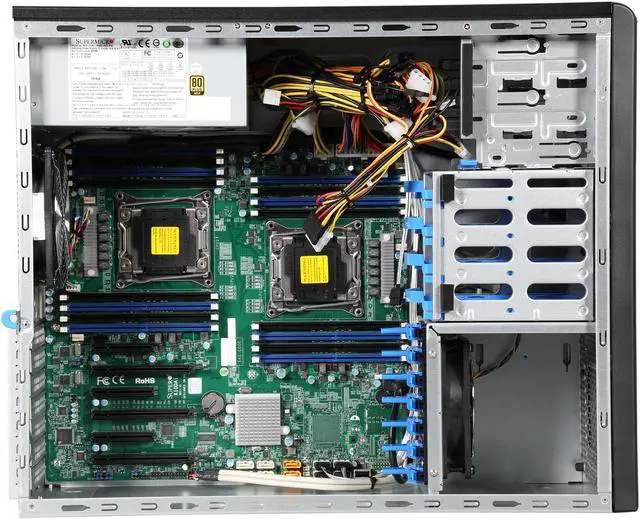

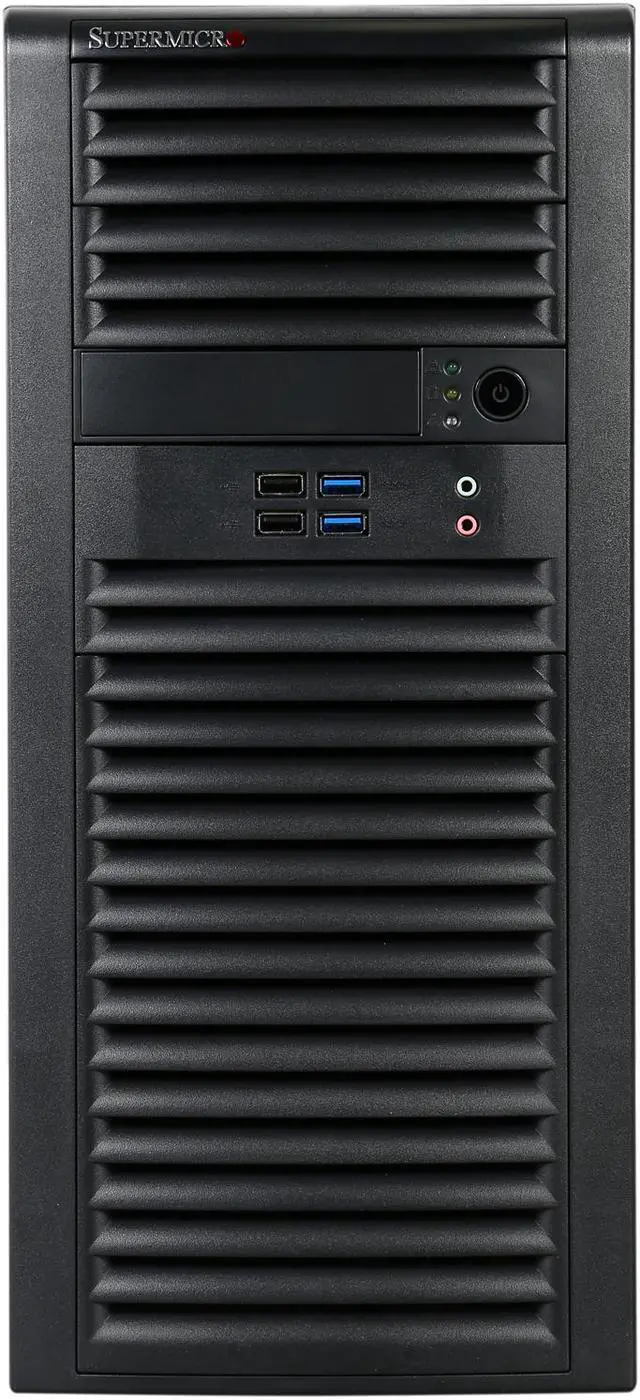

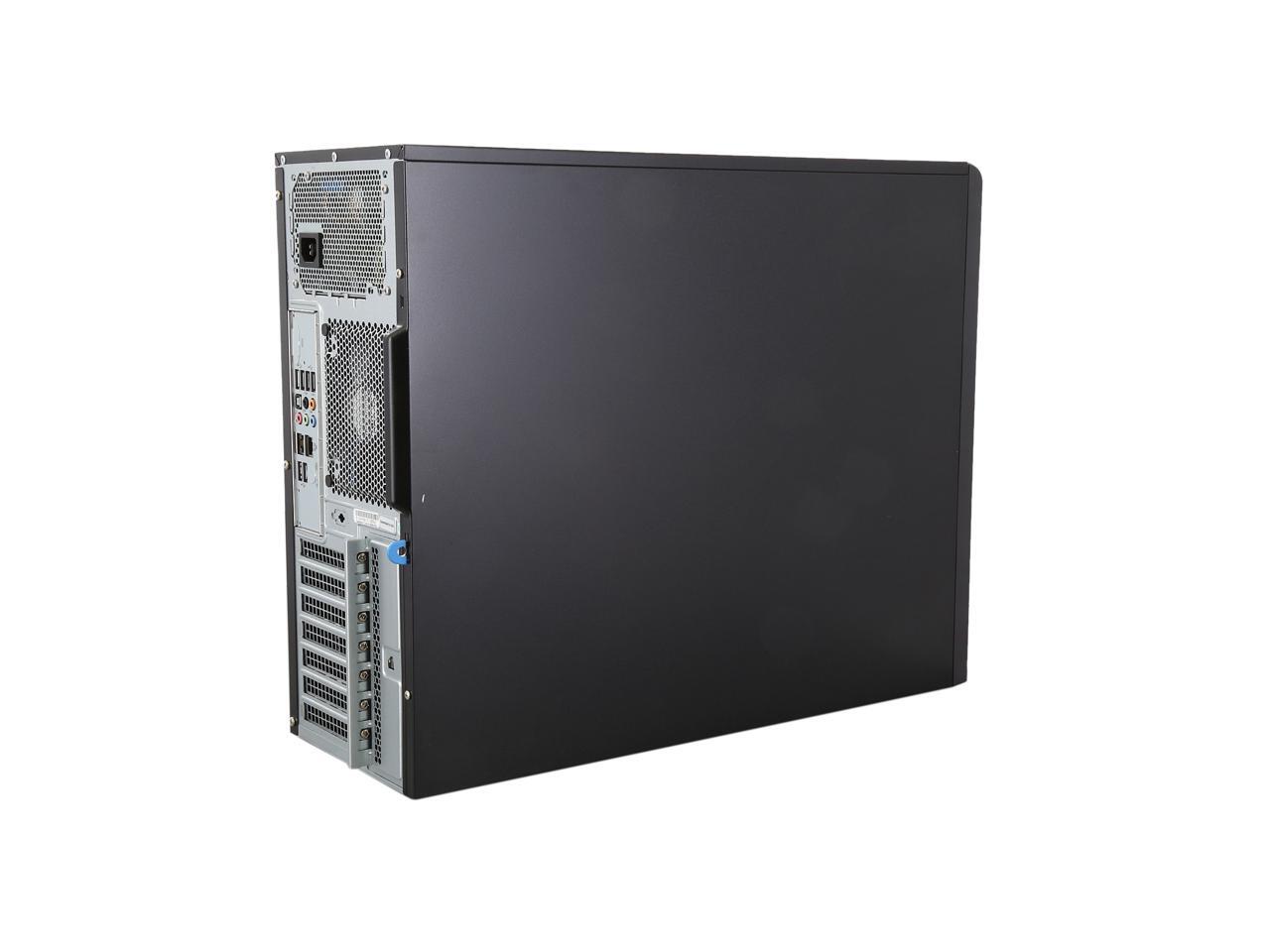

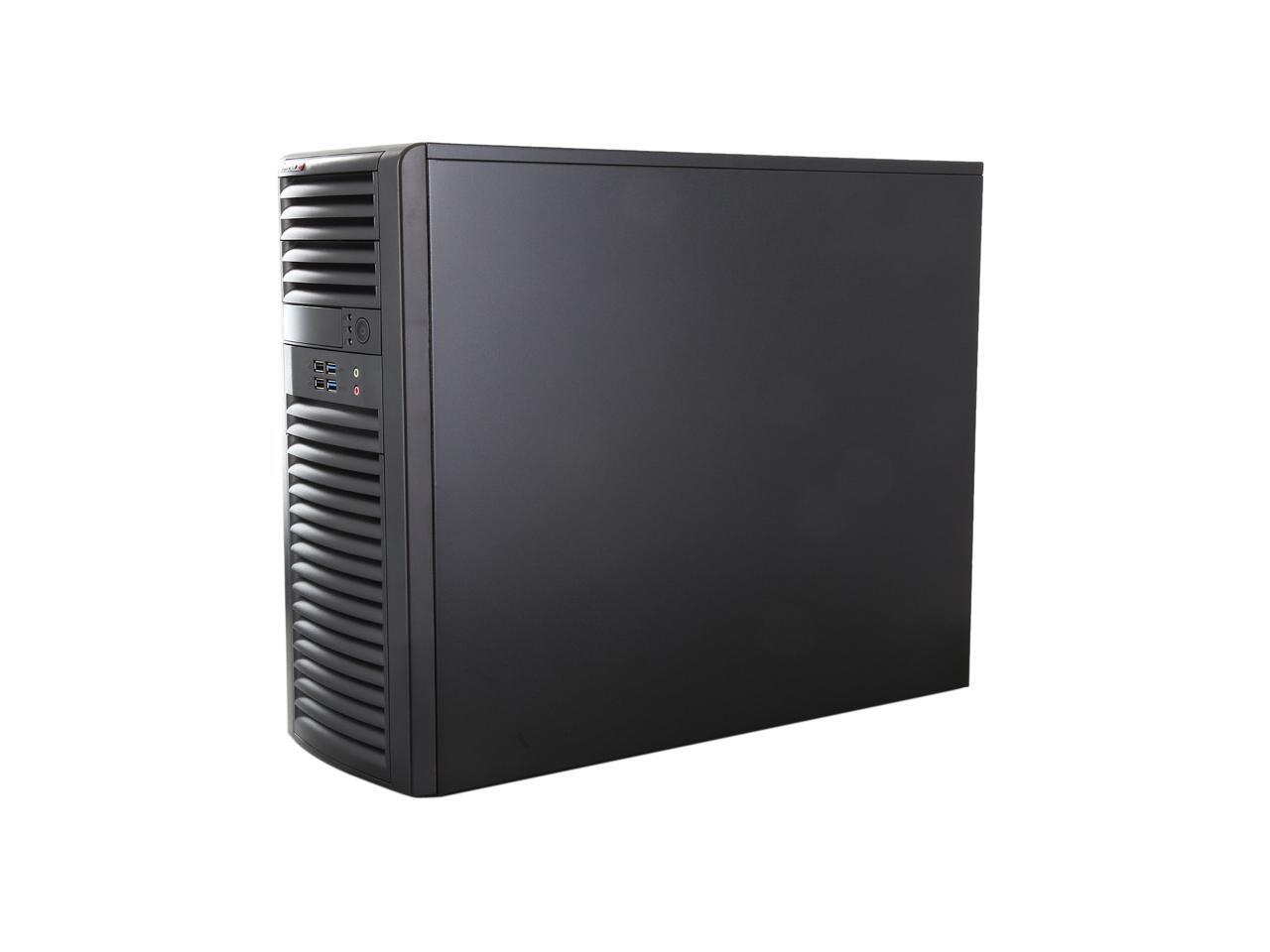

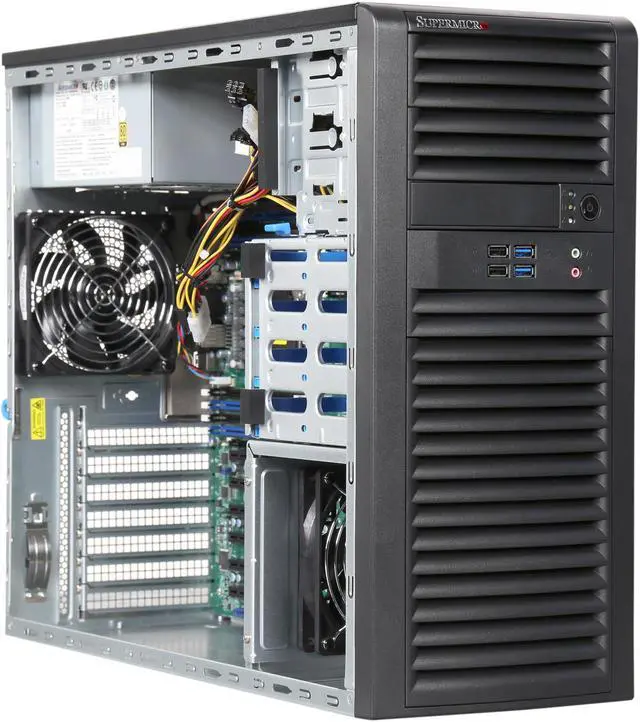

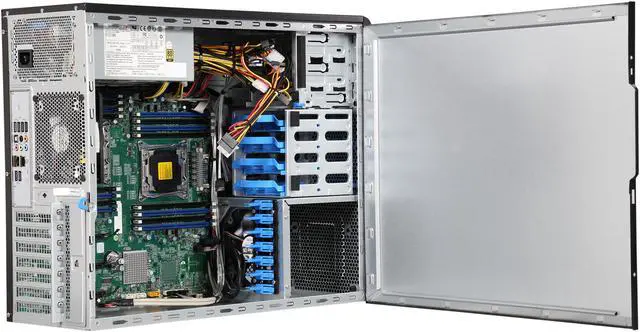

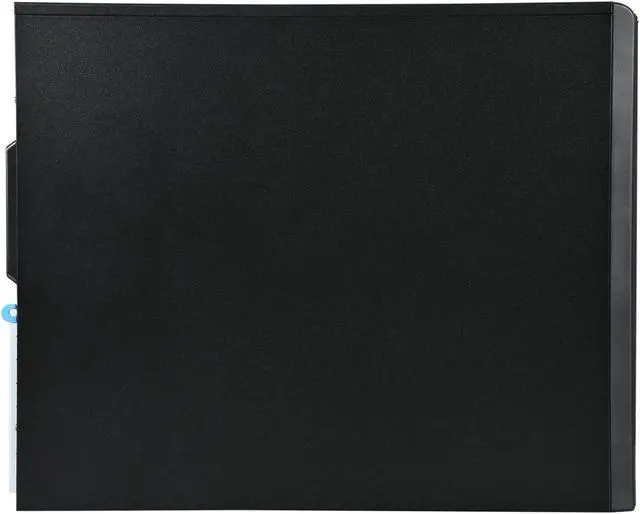

Alt view image 2 of 9 - SUPERMICRO SYS-7038A-I Mid-Tower Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

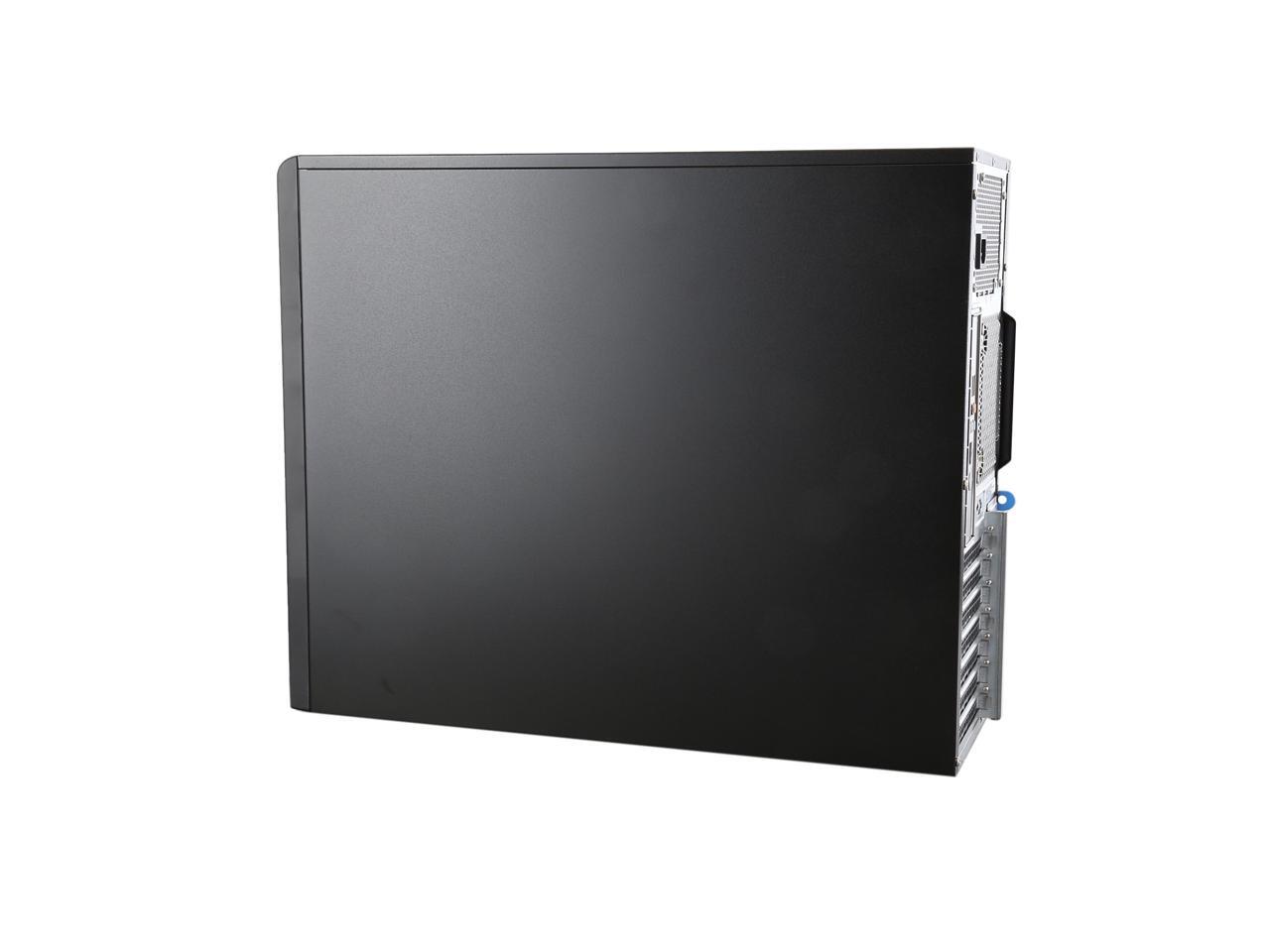

Alt view image 3 of 9 - SUPERMICRO SYS-7038A-I Mid-Tower Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

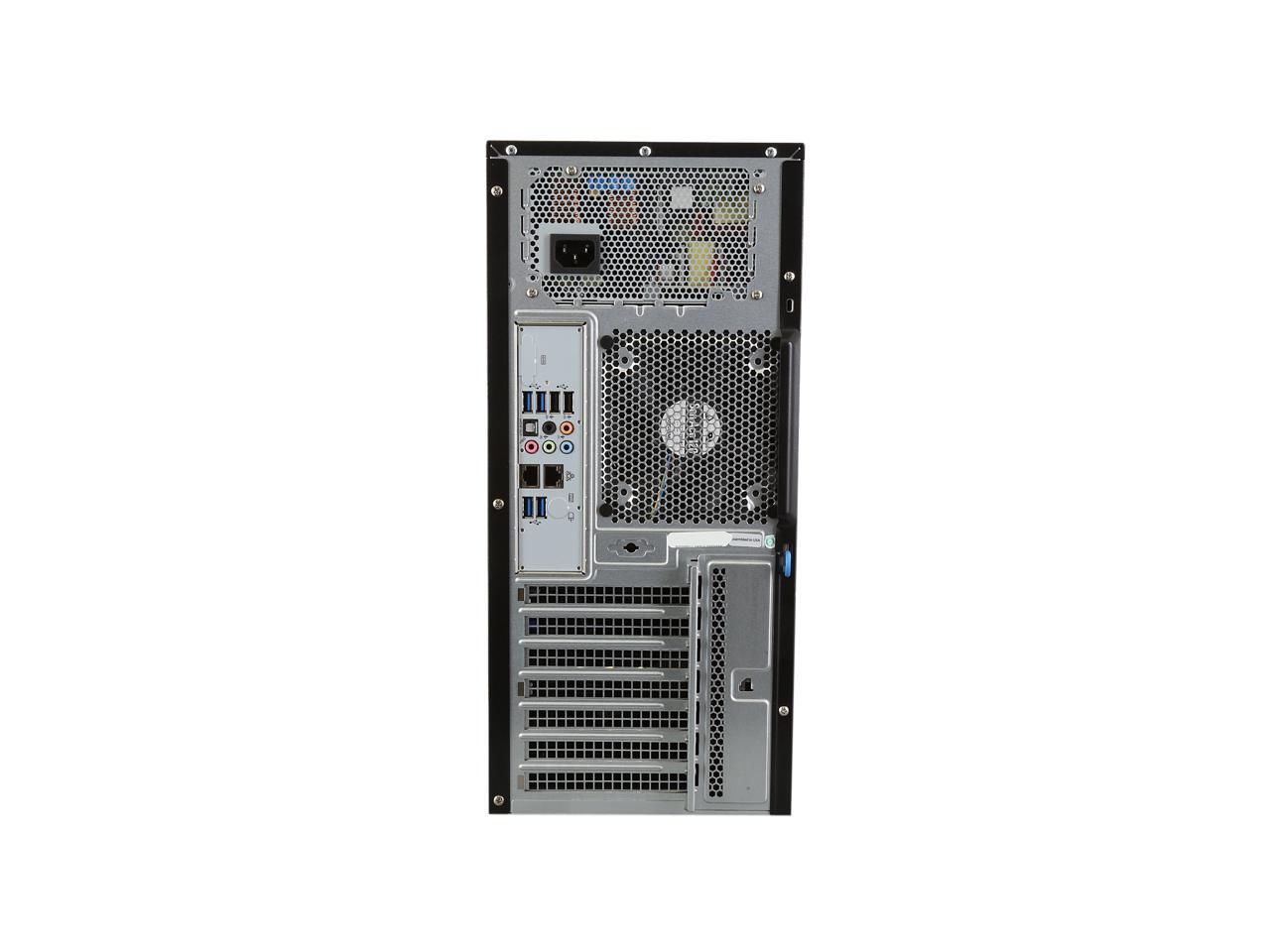

Alt view image 4 of 9 - SUPERMICRO SYS-7038A-I Mid-Tower Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 5 of 9 - SUPERMICRO SYS-7038A-I Mid-Tower Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 6 of 9 - SUPERMICRO SYS-7038A-I Mid-Tower Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 7 of 9 - SUPERMICRO SYS-7038A-I Mid-Tower Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 8 of 9 - SUPERMICRO SYS-7038A-I Mid-Tower Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 9 of 9 - SUPERMICRO SYS-7038A-I Mid-Tower Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

360^°

Shop All Supermicro Products

SUPERMICRO SYS-7038A-I Mid-Tower Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

(3) Write a Review

Dual LGA 2011
Intel Xeon processor E5-2600 v3 family (up to 160W TDP **) ** Please contact your Supermicro sales representative for additional details.
16 x 288Pin Memory Slots
900W

Overview

Specs

Reviews (3)

Any questions? Our AI beta will help you find out quickly.

Try me now

SUPERMICRO SYS-7038A-I Mid-Tower Server Barebone

Features

Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
Up to 1TB reg. ECC DDR4 2133MHz; 16x DIMM slots
3x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, 1x PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
Intel® i210 Dual port GbE LAN
7.1 HD Audio
4x 3.5" HDD bays (internal), 2x 5.25" drive bays, and 1x 3.5" internal fixed drive bay
900W Multi-output Power Supply Gold Level Certified

Specifications

Product SKUs
SuperWorkstation	SYS-7038A-I (Black)
Motherboard
Motherboard	Super X10DAi
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v3 family (up to 160W TDP) * Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 18 Cores / Up to 45MB Cache
System Bus	QPI up to 9.6 GT/s
Note	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity	16x 288-pin DDR4 DIMM slots Up to 1TBGB DDR4 ECC LRDIMM Up to 512GB DDR4 ECC RDIMM
Memory Type	2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes	RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C612 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Intel® i210 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	RealTek ALC888 7.1 High Definition Audio with S/PDIF header
Super I/O	Nuvoton W83627
Input / Output
SATA	10x SATA3 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports
USB	6x USB 3.0 ports (4 rear + 2 via header) 5x USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Audio	7.1 HD Audio with optical S/PDIF
DOM	2x DOM (Disk on Module) power connectors
TPM	1x TPM 1.2 20-pin Header
Expansion Slots
PCI-Express	3x PCI-E 3.0 x16 slots 2x PCI-E 3.0 x8 slots 1x PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1

Whats in the Box

MAIN OVERVIEW FEATURES:

Number of Processors Supported: 2
Processor Socket: Socket LGA 2011-v3
Processor Supported: Xeon
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C612 Express
Maximum Memory: 1 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2133/PC4-17000
Number of Total Memory Slots: 16
Controller Type: Serial ATA/600
RAID Supported: Yes
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 7
Number of External 5.25" Bays: 2
Number of 3.5" Bays: 5
Number of Total Expansion Slots: 6
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 11
Number of USB 3.0 Ports: 6
Number of SATA Interfaces: 10
Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 900 W
Color: Black
Form Factor: Mid-tower
Height: 16.70" (424.18 mm)
Width: 7.60" (193.04 mm)
Depth: 20.68" (525.27 mm)

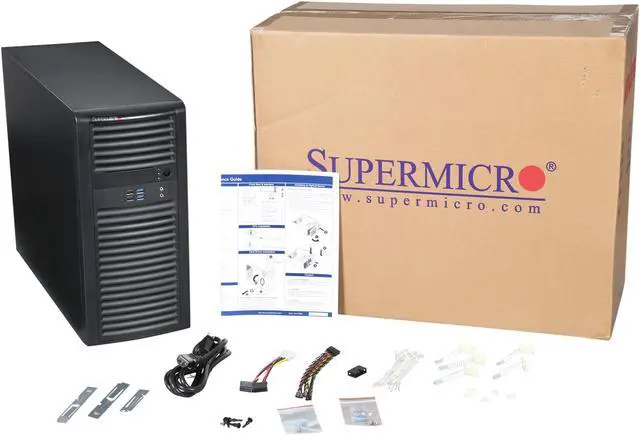

Package Contents:
- SuperWorkstation 7038A-I Barebone System
- 1 x Super X10DAi Motherboard
- 1 x 3U Mid-Tower Chassis
- 4 x 70cm SATA cable S-S 30AWG,RoHS/REACH,PBF
- 1 x Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
- 1 x PS2 900W Multi-Output Power Supply 80Plus Gold
- 1 x USB 3.0 Internal Cable-60 cm(19 pin Female to 19pin Female)
- 1 x USB 2.0 2 Port internal cable 9 pin to 9 pin,60cm. 28/24AWG
- 1 x Front control cable 16 pin split, 6
- 1 x HD/AC97 Audio Cable-60cm
- 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30
- 4 x SC731 Tool-less Internal 3.5inch HDD Tray
- 1 x SC731 Card Reader Rail
- 2 x 1 Front and 1 Rear Cooling Fan
Environmentally Friendly: Yes
Environmental Certification: RoHS

General
Brand	SUPERMICRO
Model	SYS-7038A-I
Form Factor	Mid-Tower

CPU Supported
CPU Type	Intel Xeon processor E5-2600 v3 family (up to 160W TDP ) Please contact your Supermicro sales representative for additional details.
CPU Socket	Dual LGA 2011
Installed CPU	No CPU Installed
Max Processors	2

Chipset
North Bridge	Intel C612

Memory Supported
Memory Slots	16 x 288Pin
Installed Memory Size	No Memory Installed
Max Memory Supported	Up to 1TB reg. ECC
Memory Type Supported	DDR4 2133/1866/1600
ECC Supported	Yes
Registered	Yes

Storage Supported
Installed HDD	No Storage Installed
Serial ATA	10 x SATA3 (6Gbps)
SATA RAID	RAID 0/1/5/10

Expansion Slots
PCI Express	3x PCI-E 3.0 x16 slots 2x PCI-E 3.0 x8 slots 1x PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
Onboard Audio	RealTek ALC889 7.1 High Definition Audio with S/PDIF header

Communications
First LAN	Intel I210
Second LAN	Intel I210
Max. LAN Speed	Dual 1 Gigabit

Expansion Bays
3.5" Bays	4x 3.5" SATA HDD Bays (90° rotatable drive cage) 1x 3.5" internal fixed drive bay
5.25" Bays	2x 5.25" standard drive bays

Panel Ports
Front USB	2 x USB 3.0 3 x USB 2.0
Front Audio Ports	7.1 HD Audio with optical S/PDIF
COM	2x COM Ports (1 rear, 1 header)
Rear USB	2 x USB 3.0
RJ45	2x RJ45 Gigabit Ethernet LAN ports
Other Ports	2x Fast UART 16550 serial 2x DOM (Disk on Module) power connectors 1x TPM 1.2 20-pin Header

Power Supply
Max. Power	900W

Features
Features	Whisper Quiet Workstation 1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s 2. Up to 1TB reg. ECC DDR4 2133MHz; 16x DIMM sockets 3. 3x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, 1x PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC 4. Intel i210 Dual port GbE LAN 5. 7.1 HD Audio 6. 4x 3.5" HDD bays (internal), 2x 5.25" drive bays, and 1x 3.5" internal fixed drive bay 7. 900W Multi-output Power Supply Gold Level Certified

Dimensions & Weight
Dimensions	16.7" (89mm) x 7.6" (437mm) x 20.68" (787mm) (H x W x D)
Weight	40 lbs (18.1 kg)

Additional Information
First Listed on Newegg	October 15, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
