Tagan TG600-U35 600 W ATX12V / EPS12V SLI Certified CrossFire Ready 80 PLUS Certified TMI(Tagan Modular Interface) Active PFC Power Supply
- ATX12V / EPS12V
- TMI(Tagan Modular Interface)
- 80 PLUS Certified
- 100 - 240 V 50/60 Hz
- +3.3V@28A,+5V@28A,+12V@48A(4 Rails),[email protected],[email protected]
Specs
Reviews (1)
Learn more about the TAGAN TG600-U35
| Brand | Tagan |
|---|---|
| Model | TG600-U35 |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 600 W |
| Fans | Upper 135mm Fans |
| PFC | Active |

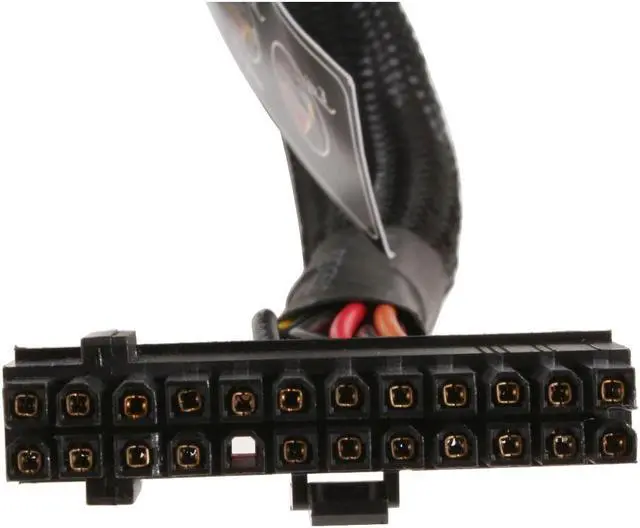

| Main Connector | 20+4Pin |
| +12V Rails | Yes |
| PCI-Express Connector | 2 x 6-Pin |
| SLI | SLI Certified |
| CrossFire | CrossFire Ready |
| Modular | TMI(Tagan Modular Interface) |
| Efficiency | > 80% |
| Energy-Efficient | 80 PLUS Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10A @ 115V, 6A @ 230V |

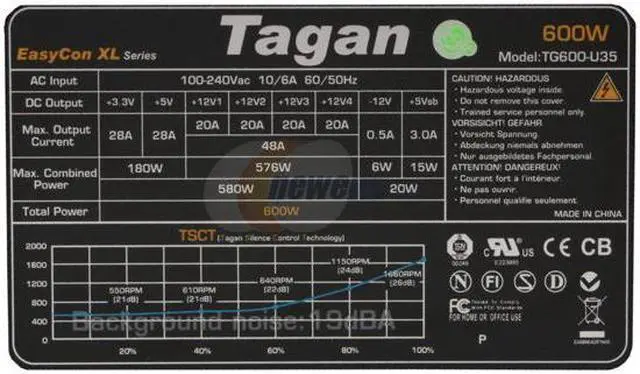

| Output | +3.3V@28A,+5V@28A,+12V@48A(4 Rails),[email protected],[email protected] |
| Approvals | TUV, UL, CE, CB, FCC, Semko, Nemko, Demko, Fimko |

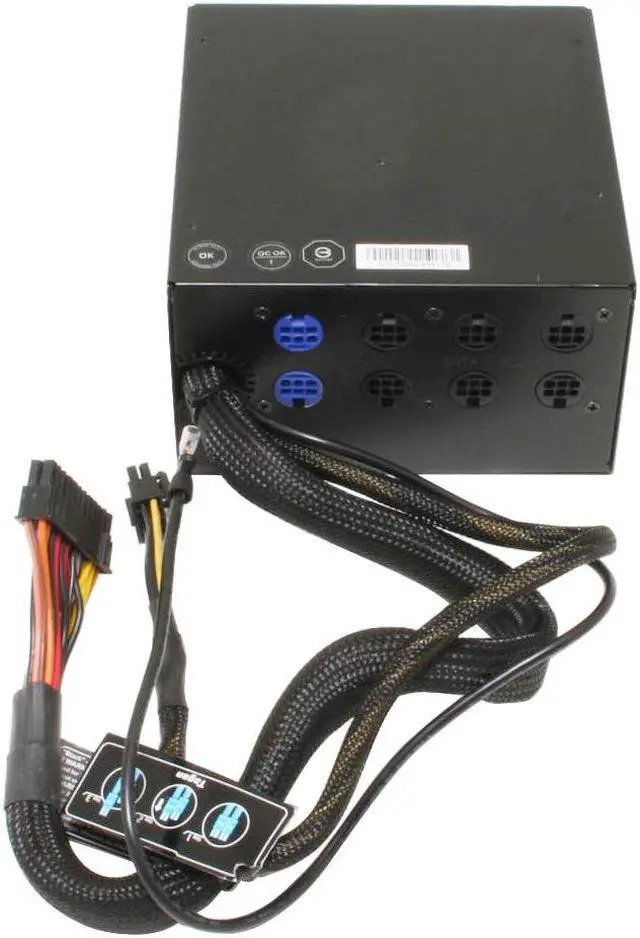

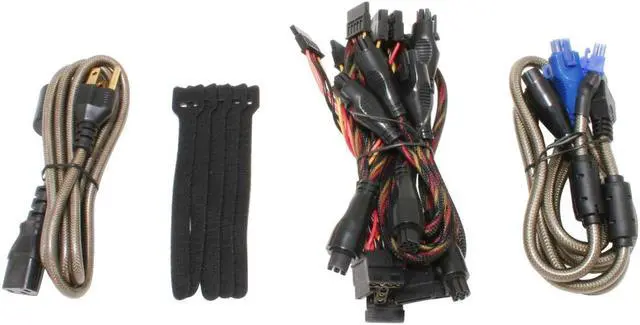

| Connectors | 1 x Main connector (20+4 pin) 1 x 12V (P4+4) 6 x Peripheral 2 x PCI-E 6Pin 2 x VGA 4Pin 8 x SATA 2 x Floppy |
| Features | Dual Transformer Black painting case Low ripple and noise 100% Hi-Pot Tested Short circuit protection on all outputs Over Current Protection Over Voltage Protection Over 80% efficiency |
|---|
| First Listed on Newegg | November 17, 2006 |
|---|
