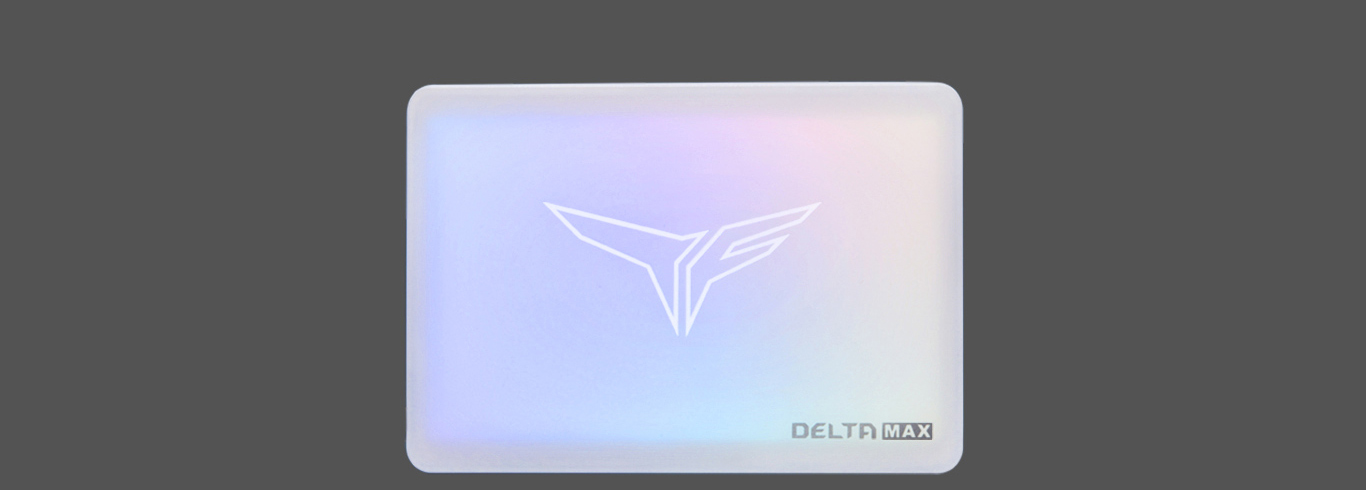

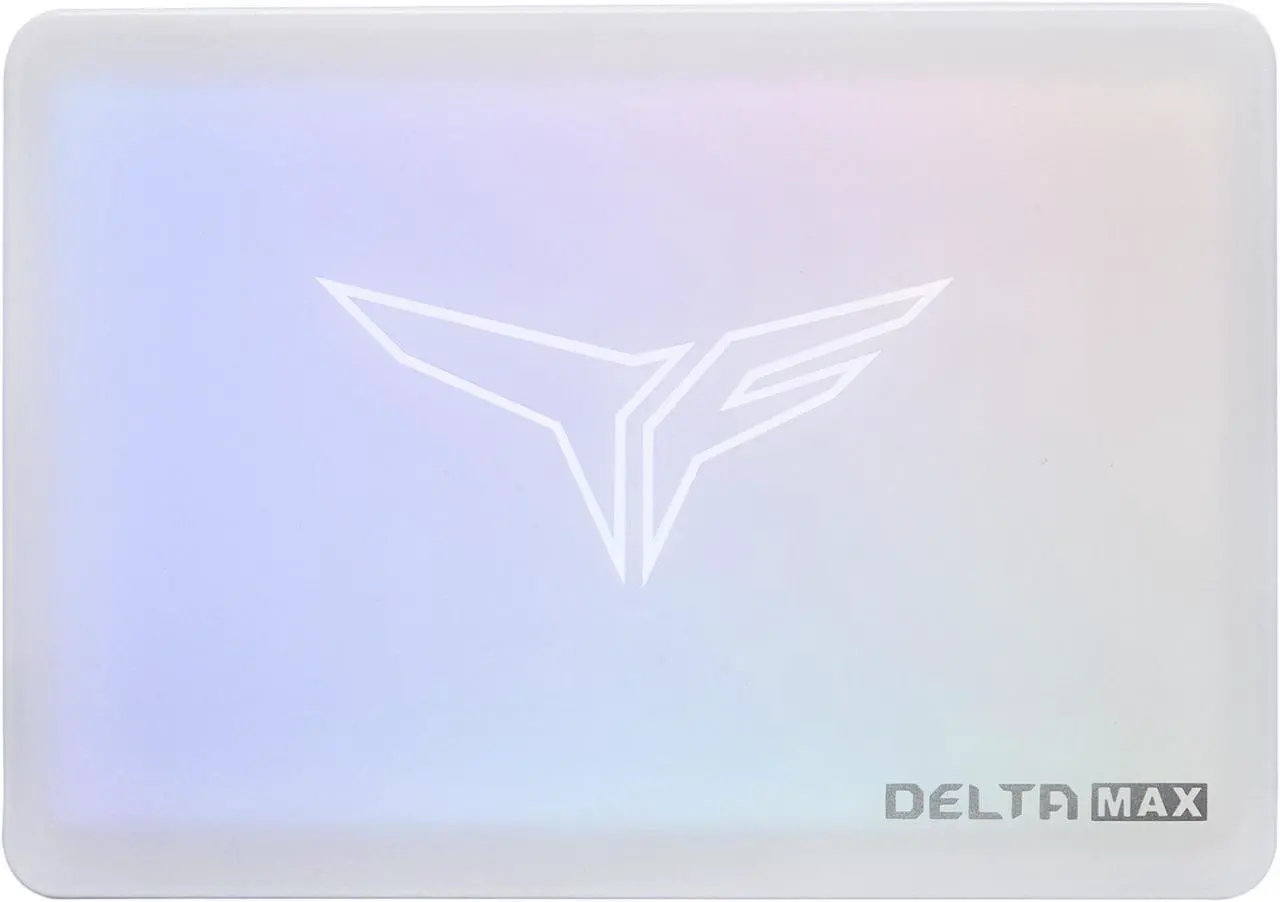

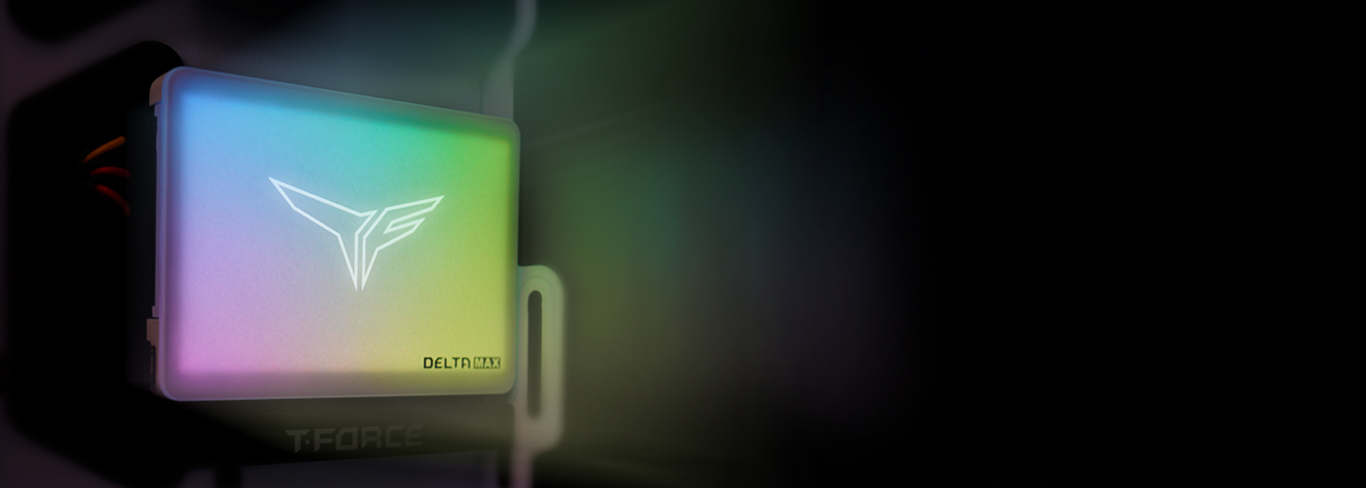

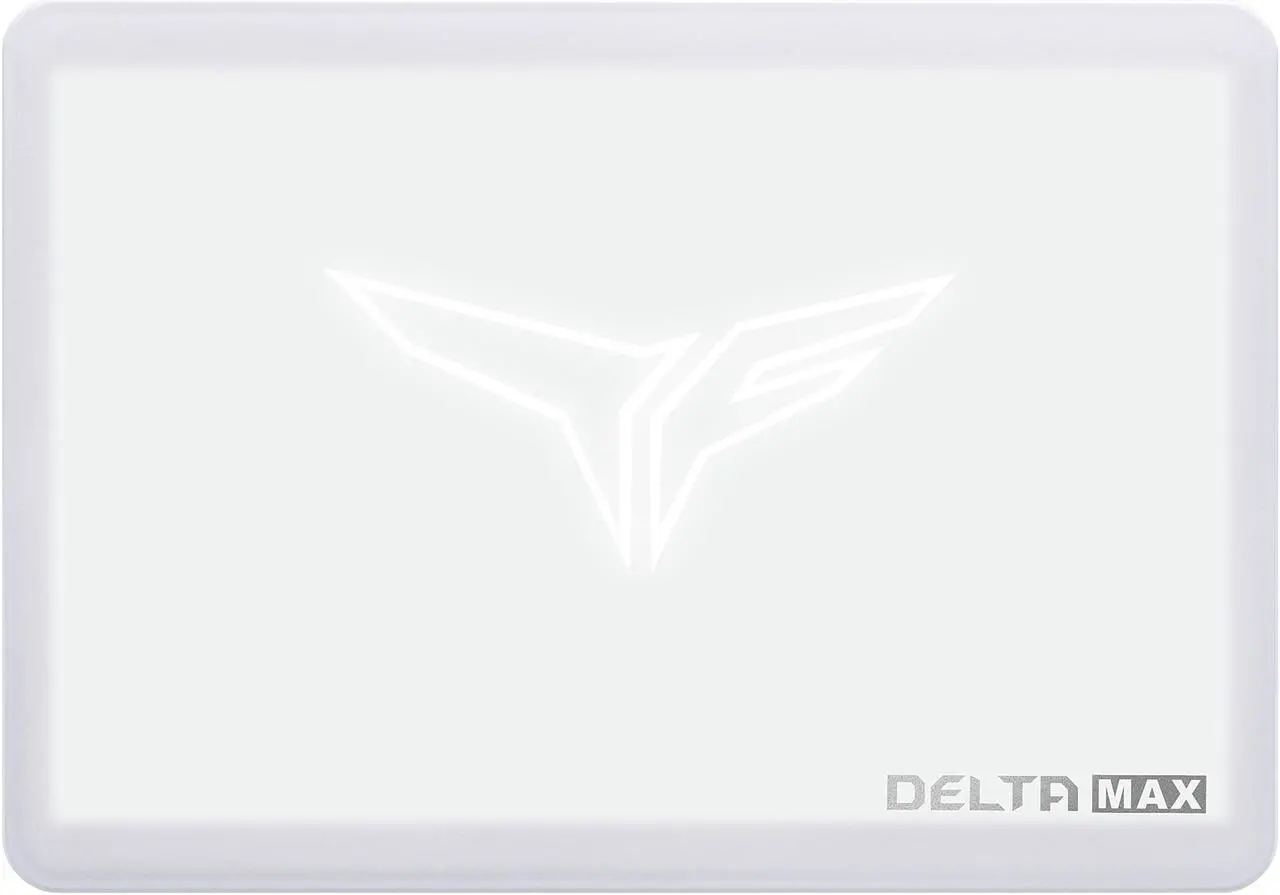

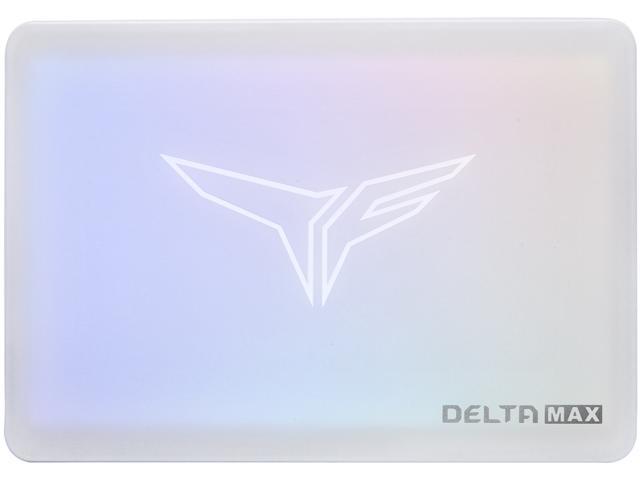

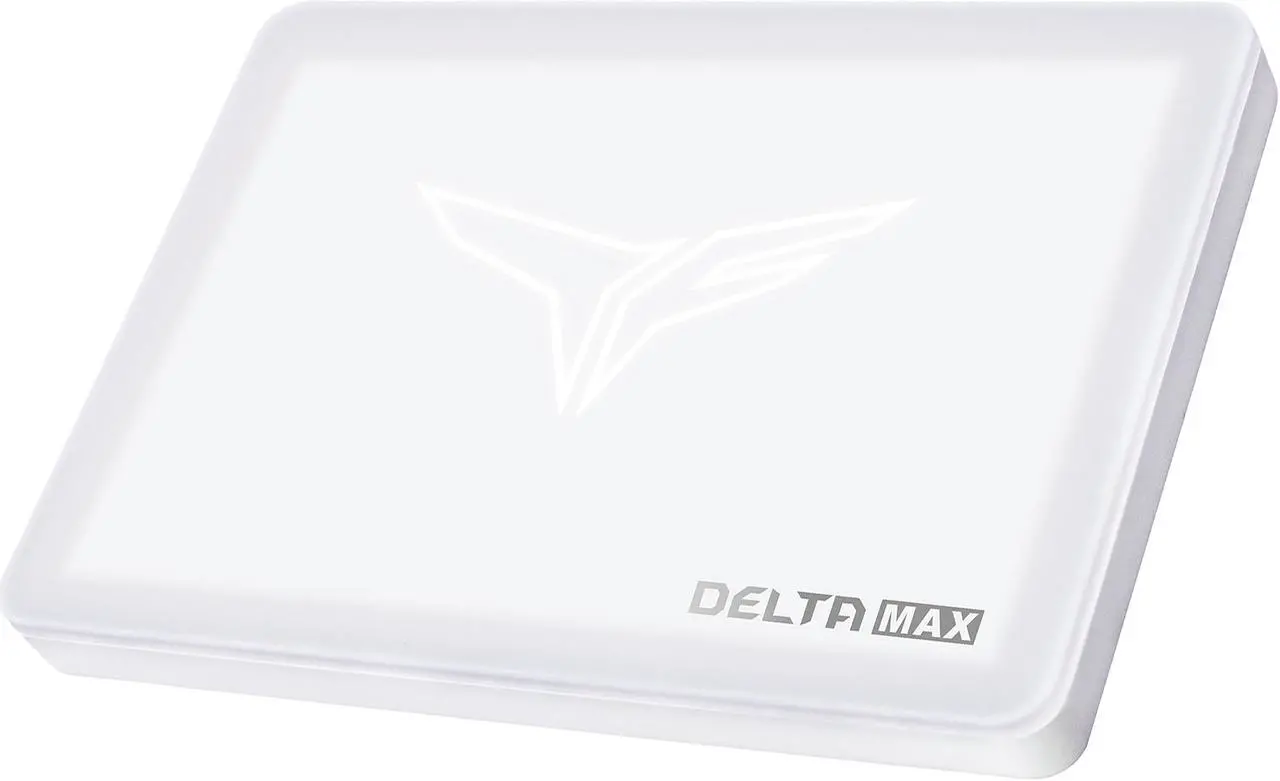

Translucent Aura White Largest switchable translucent luminous area
With a panel-like RGB luminous area, the DELTA MAX WHITE allows gamers to freely switch between eye-catching and colorful RGB effects, and enjoy and unprecedented fresh experience. The special luminous design of DELTA MAX WHITE has received United States Patent (number:US10803713B1).

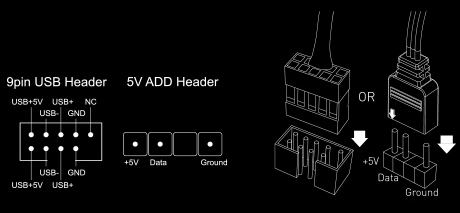

Dual control interface
The DELTA MAX WHITE RGB SSD has two ways to operate the lighting effects. Depending on the corresponding lighting control source, different cables are used:
1. Use 5V ARGB 3 pin to Micro B Cable to synchronize lighting effects
2. Use USB 10 pin to Micro B Cable for built-in lighting mode [1][2]

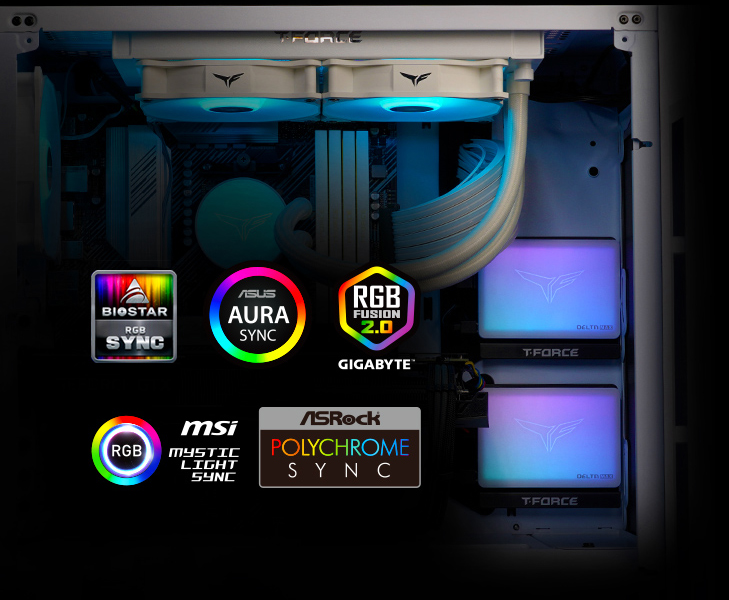

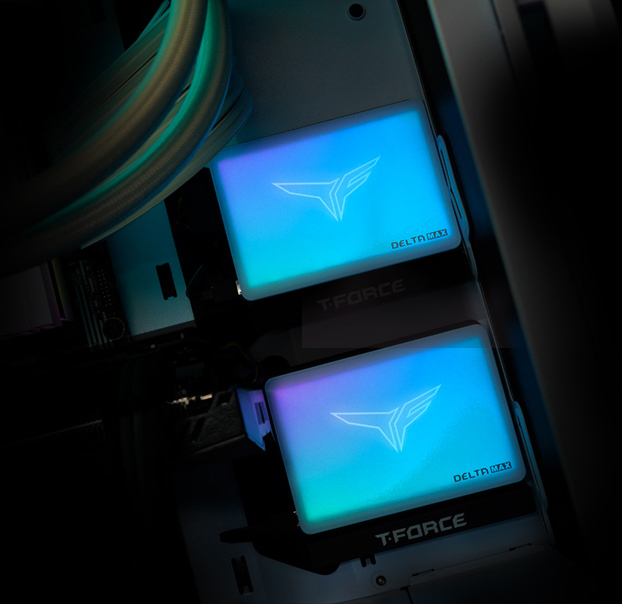

Provide white themed gaming spirit, Supports multiple lighting control software
The T-FORCE DELTA MAX WHITE RGB SSD supports ASUS Aura Sync / GIGABYE RGB Fusion 2.0 / MSI Mystic Light Sync / ASROCK Polychrome Sync / BIOSTAR Advanced VIVID LED DJ. With the DELTA MAX WHITE RGB SSD, gamers can use these lighting control software to control and synchronize the lighting effects, creating unique and colorful aesthetic styles and an eye-catching RGB white themed system![3]
A reliable solution to protect your data
By using 3D NAND flash memory chip, it is both durable and shockproof, offering total protection for the data, and allowing gamers to enjoy games without any worries.
Smart optimization
It is built in with smart algorithm management mechanism. The garbage collection function can ensure operation efficiency. The powerful Wear-Leveling technology and ECC (Error Correction Code) function improve the reliability of data transfer. It supports Windows TRIM optimization command which is able to release free blocks, allowing the operating system to use them immediately when writing data. The optimized access control technology of NCQ can speed up the read and write performance of the SSD, and effectively prolong the service life.
Specification
| Interface | SATA III 6Gb/s - With Backwards Compatibility to SATA Rev. 2.0 |
| Capacity | 1TB[4] |
| Voltage | DC +5V |
| Operation Temperature | 0°C ∼ 70°C |
| Weight | 78g |
| Dimensions | 100(L) x 69.9(W) x 9.5(H) mm |
| Operating System | Windows 10 / 8.1 / 8 / 7 / Vista, MAC OS 10.4 or later, Linux 2.6.33 or later |
| MTBF | 100000 hours |
| Terabyte Written | 1TB / >800TB>[5] |
| Performance | ATTO / Crystal Disk Mark: 1TB/2TB Read: 560MB/s; Write: 510MB/s[6] IOPS: 1TB/2TB 4K Random Read/Write: 90K/80K IOPS Max[6] |
| Warranty | 3-year limited warranty |
[1] DELTA MAX WHITE RGB SSD currently has built-in breathing light with white color effect. Provide it with 5V power and it is good to go.
[2] Lighting software synchronization control. Its lighting effects will depend on the software of each brand’s motherboard.
[3] For more details about how to control the lighting effect by the software(ASUS Aura Sync / GIGABYTE RGB Fusion / MSI Mystic Light Sync / ASROCK-Polychrome Sync / BIOSTAR Advanced VIVID LED DJ), please visit the official website of the software developer(ASUS/GIGABYTE/MSI/ASRock)
[4] 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
[5] Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard
[6] Transmission speed will vary according to different hardware/software conditions, therefore the data can only be used for basic reference.
[7] Note that it is not possible to connect to the 12V RGB Header, which will cause damage to the product and will lose the warranty.
[8] When using the synchronous light effect use 5V ARGB 3 pin to Micro B Cable connection, if there is already 5V power supply before the synchronization software control is started, that showed initial built-in lighting effect . (Rainbow style)
[9] If you use USB 10 Pin to Micro B cable connect DELTA MAX, only have the initial Rainbow light effect, cannot sync and control by motherboard signal.
NOTES:
We reserve the right to modify product specifications without prior notice.
