TESmart KVM Switch HDMI+DisplayPort ,2 In 2 Out ,Dual Monitor KVM Switch ,support 4K 3840*2160@60Hz with Audio interface and USB 2.0
Limited time offer, ends 05/16 By TESmart
- [Dual-Monitor-KVM-Switch-2 Port ] TESmart KVM switch using only 1 set of keyboard, mouse and 2 monitors to control 2 computers, support display one computer’s main and extended desktop
- [Daul HDMI KVM Switch with USB2.0 Port] Supports Connecting your usb 2.0 port device such as Scanner/USB driver/3D Printer/Monitor Camera
- [Support Many Ways to Control] Support keyboard hotkey, front panel buttons and IR signals to control this Dual Monitor KVM (CR2025 battery not included)
- [4K 60Hz Resolution & Smart EDID] The HDMI+HDMI KVM Switch max resolution up to 3840*2160@60Hz,it comes with EDID emulators in each input port, keep PCs always having correct display information
- [A Higher Level of Keyboard and Mouse Compatibility] It supports keyboard and mouse pass-through mode (Semi-DDM USB), takes advantage of DDM (Dynamic Device Mapping) technology, compatible with more keyboard and mouse devices.
- Using only 1 set of keyboard, mouse and 2 monitors to control 2 computers. Package with all cables needed except monitor cables
- Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based systems
- Support hot-plug, connect or disconnect devices to the KVM at any time without turning off devices
- Support front panel buttons, IR signals, keyboard shortcuts to control the KVM
- Available to use keyboard and mouse without any delay after switching computers

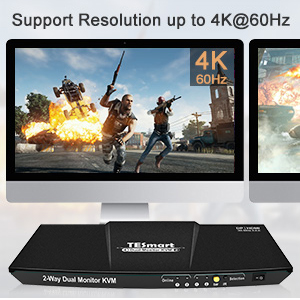

- Support resolution up to 4K(3840*2160) @ 60Hz
- With extra standard USB 2.0 hub port, make it possible to connect the bar code scanner, USB hard drive or other USB devices to KVM
- Support keyboard and mouse pass through mode to improve KVM compatibility
nstallation Guide Tips (incorrect connection will cause malfunction):

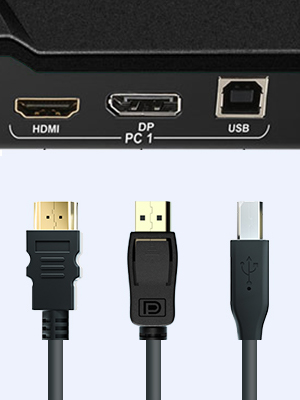

- Each computer must connection 1 HDMI cable and 1 DP cable and 1 USB A / B cable to ensure keyboard, mouse and monitor to work correctly.

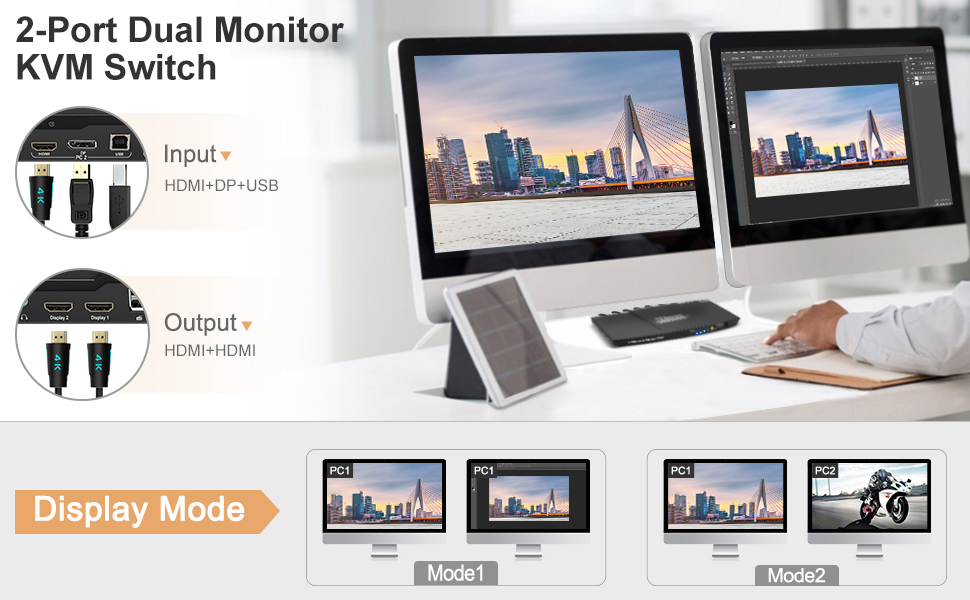

- The 1 HDMI port and 1 DP port is used to connect the second video output of the same computer, so that the monitor can display correctly (extended display)
- Don't recommend HDMI -->DP adapter
- Support DP --> HDMI adapter
- Support Mini DP --> DP adapter
- Support USB-C --> HDMI / DP adapter
- Support Thunderbolt --> HDMI / DP adapter
Dedicated mouse and keyboard ports have emulation programming. Second gen chipsets have "Passthrough Mode" to send special characters such as multimedia keys (play, pause, volume up/down), which improves keyboard compatibility. Keyboard software such as Logitech Options, Corsair iCUE, etc conflicts with the emulation and limits the ability to use macro keys. We recommend using the KVM's USB2.0 port as a workaround if this software if needed. USB2.0 port does not have emulation programming and KVM will not recognize hotkey commands. Please use a powered USB hub to expand USB connectivity.
Audio is transmitted via HDMI connection. HDMI or DisplayPort monitor required for audio.
Use powered USB hub to expand the USB2.0 port if multiple connections are needed.
Use USB extender to reduce distance to receiver if wireless mouse/keyboard is" jumpy".
Please install CR2025 battery before use (battery not included).

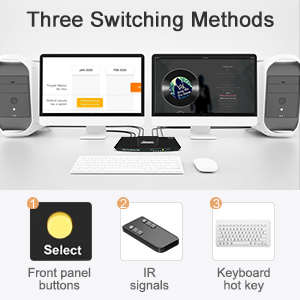

- Front panel buttons
- IR remote control ( for safety, the battery is not in the package)
- Keyboard shortcut keys

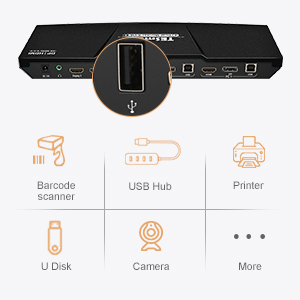

An extra USB 2.0 port, makes it possible to connect a bar code scanner, USB hard drive, USB microphone with a built-in sound card, or other USB devices to KVM just as your requirement.
This 2 way KVM Switch is equipped with top-grade image sensor. Ultra HD 4K Brings you Better Definition and Clarity, makes Images Look Life-like.
Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based systems.
1 * 4x2 Dual KVM Monitor
1 * DC 12V Power Adapter
1 * IR Remote Control
1 * User manual
2 * DP cable
2 * HDMI+USB cable
