Bring the power and security of a RAID 5 back-up server home with the N3200 from Thecus. It can handle up to 3 SATA drives in its hot swappable bays. The Auto Rebuild and Hot Spare functions combine to keep your data secure even if a drive goes down. You can add drives to the eSATA ports and the 2 USB 2.0 ports for added capacity.
The journaling file system keeps your backups current. Support for Microsoft, Mac and Linux protocols makes this a great choice for a multiplatform environment. It also supports FTP and HTTP/s for web based transfers.
This is more than just a data storage device. It can stream audio and video to DLNA compatible televisions and receivers. It also has an iTunes server so anyone on the network can listen to the centrally stored music. You can also show pictures with the photo web server.
Bring the power and security of a RAID 5 back-up server home with the N3200 from Thecus. It can handle up to 3 SATA drives in its hot swappable bays. The Auto Rebuild and Hot Spare functions combine to keep your data secure even if a drive goes down. You can add drives to the eSATA ports and the 2 USB 2.0 ports for added capacity.
The journaling file system keeps your backups current. Support for Microsoft, Mac and Linux protocols makes this a great choice for a multiplatform environment. It also supports FTP and HTTP/s for web based transfers.
This is more than just a data storage device. It can stream audio and video to DLNA compatible televisions and receivers. It also has an iTunes server so anyone on the network can listen to the centrally stored music. You can also show pictures with the photo web server.
Supports SATA Storage up to 3TBWith three 3.5” drive bays, the Thecus N3200 accommodates up to three SATA hard drives for a maximum storage of 3TB to suit your growing network storage needs.
Ultra-fast eSATA InterfaceThe Thecus N3200 features an eSATA interface for up to 3Gbps data transfer speed, which is over six times the speed of USB 2.0.
RAID SupportThe Thecus N3200 supports multiple RAID modes including RAID 0, 1, 5 and JBOD to ensure data integrity.
Superior ConnectivityThe Thecus N3200 features Gigabit WAN and LAN ports for lightning-fast file transfers over the Internet or your home/office network. Two high-speed USB 2.0 ports are featured to connect your external storage devices for network storage expansion or data backup.
Learn more about the Thecus N3200
Model
Brand
Thecus
Model
N3200
Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interfaces
Port RJ-45
1 x 10/100/1000M WAN + 1 x 10/100/1000M LAN
Port USB
2 x USB2.0
Port eSATA
1 x eSATA II
HDD Interface
3 x SATA (3 x Bay)
Port Others
1 x DC in
Configuration
Operating System
Microsoft Windows NT/2000/XP/2003/Vista Unix/Linux/BSD MAC OS X, OS 9, OS 8.6
Hard Drive Performance
Included HDD Capacity
Diskless System
RAID
RAID 0, 1, 5, and JBOD Auto Rebuild Hot Swappable Hot Spare Disk Roaming
Convenience
Supported Protocols
Microsoft Networks (CIFS/SMB) Apple Filing Protocol (AFP 3) File Transfer Protocol (FTP) WebDisk through Hyper Text Transfer Protocol (HTTP) or Secure Hyper Text Transfer Protocol (HTTPs)
Management
Share Management: User Authentication: Microsoft NT Domain Controller (PDC); Microsoft Active Directory Authentication (AD); Supports built-in user accounts; Supports built-in user groups Folder Management: Share Folder Level Permission; Public Folder
Administration: Multi-Lingual Web-based Administration: Web-based server management Interface Supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish Setup Wizard: MS Windows, MAC OS X device discovery and setup utility program Email Notification: Send system message via Email to specified Email accounts NTP support: Network Time Protocol support

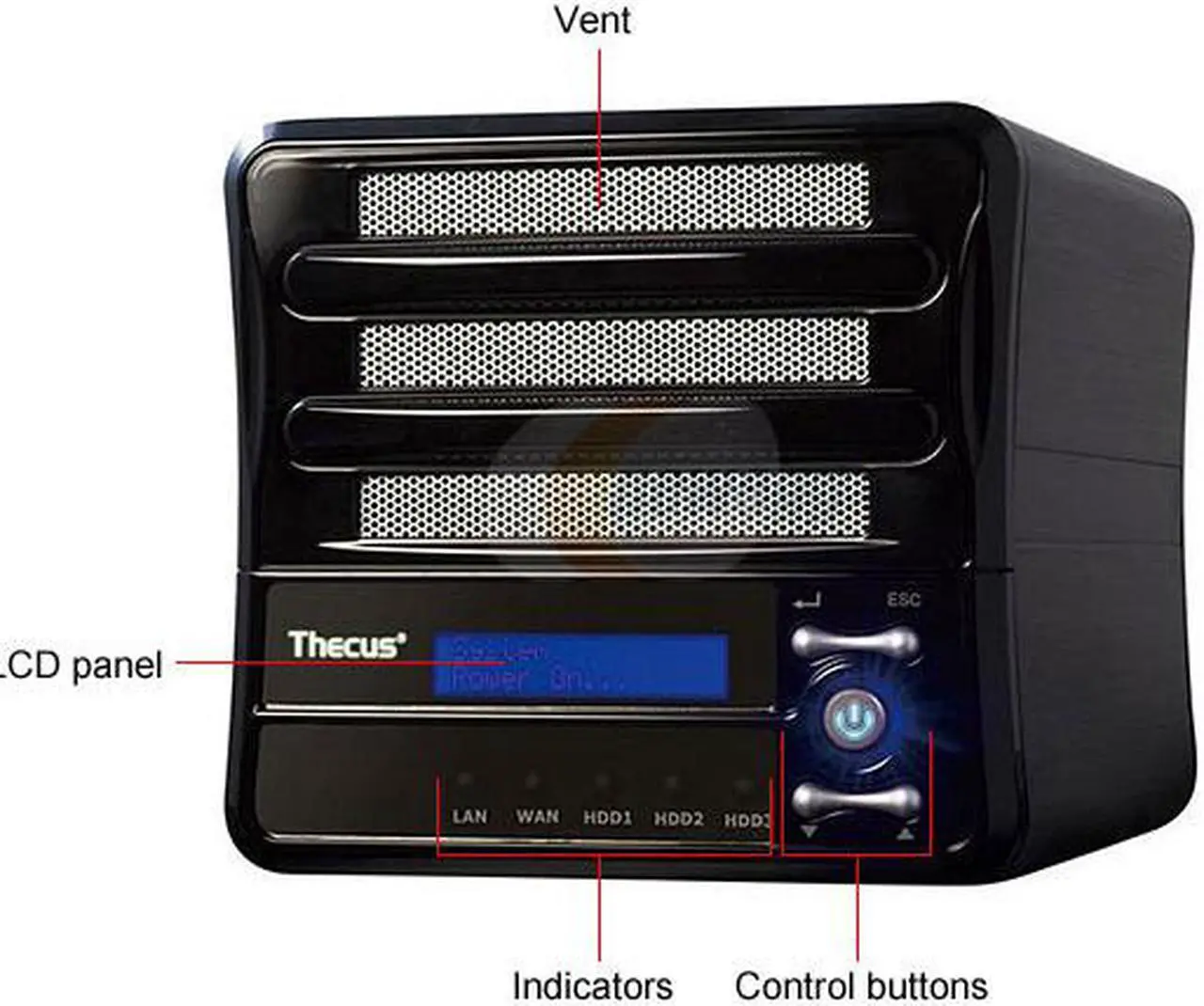

LEDs
1 x Power LED 2 x Network link + activity LED 3 x Hard drive power + activity LED
Power
Power
External power adapter: AC 100 ~ 240 Volt, 50/60 Hz, auto detection Power Management: Disk idle spin-down
Environmental
Temperature
5°C - 40 °C
Humidity
0-80% RH non-condensing
Features
Features
Home NAS with RAID5 Protection Home Application Oriented Features Unlimited Expandability Stylish Design Easy Disk Management LCD Display Wireless Ready

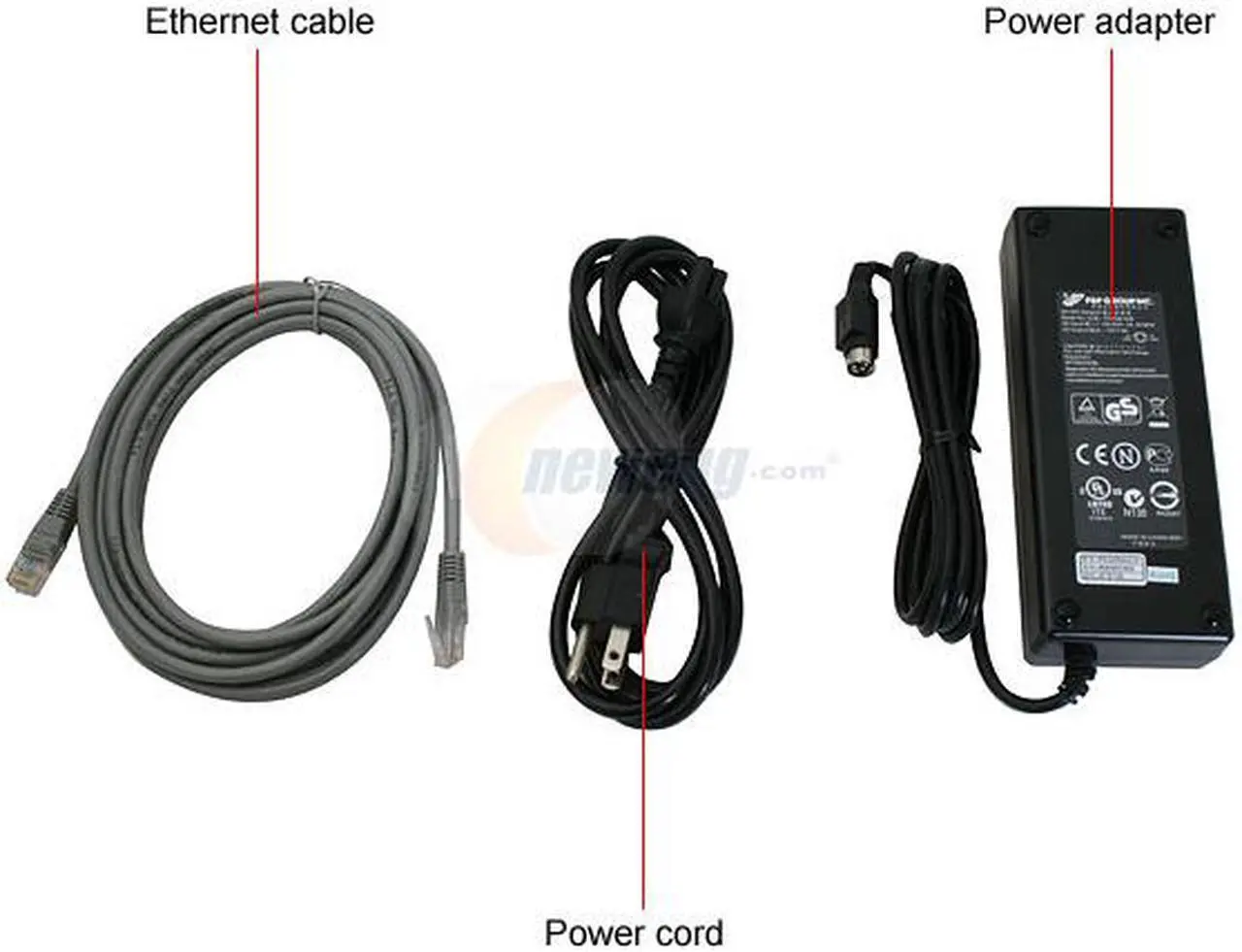

Package Contents
Package Contents
N3200 Power Cord Power Adapter RJ45 Cable Resource Disk Quick Installation Guide
