Brand | Thermaltake |
---|---|
Model | Bigwater 745 |
Type | Liquid Cooling System |
Block Compatibility - Intel | LGA775 |
---|---|

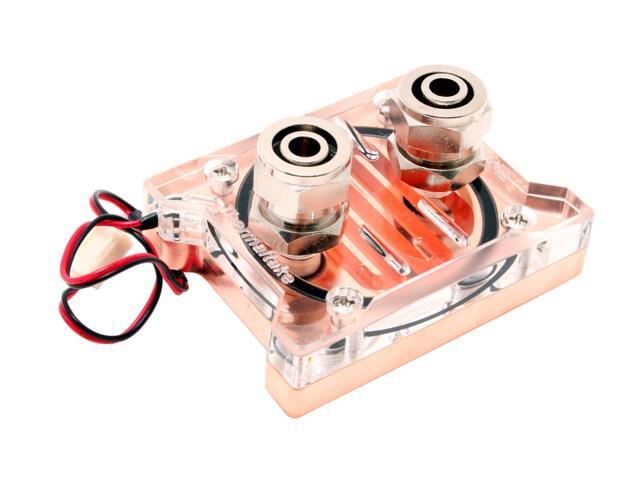

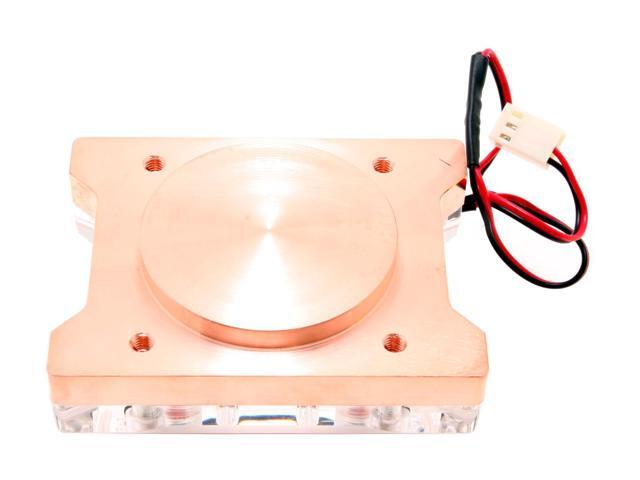

Block Dim. | 78(L) X 60(W) X 23.5(H) mm |
Block Material | Copper & Acrylic |

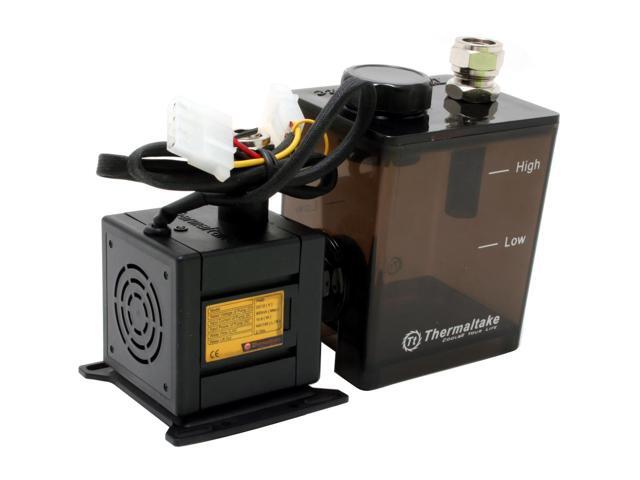

Pump Dim. | 75(L) X 70(W) X 75(H) mm |
---|---|
Pump Bearing | Ceramic |
Pump Capacity | 400 L/hr |
Pump Noise | 16 dBA |

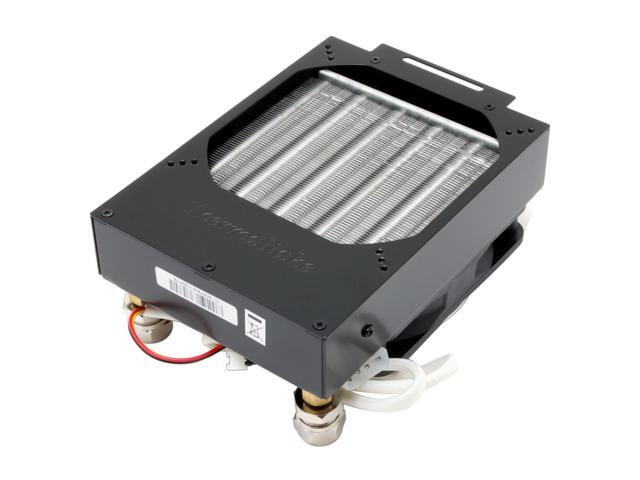

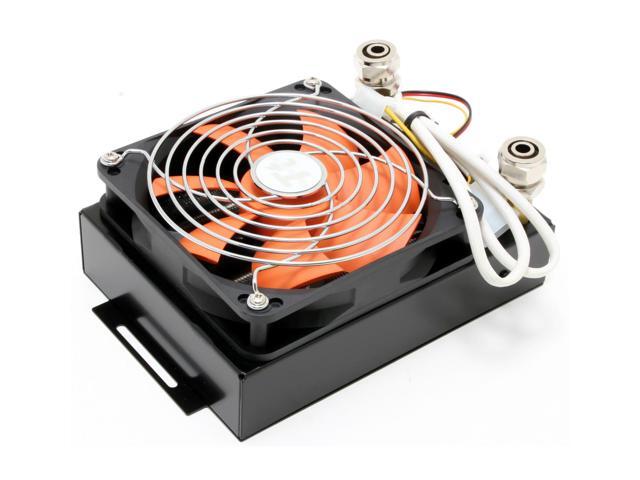

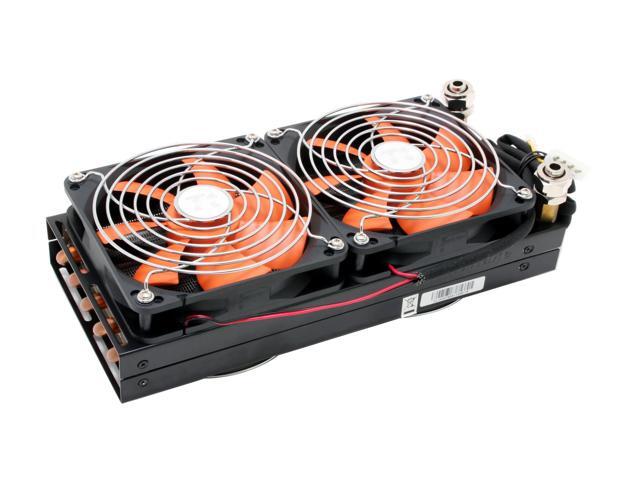

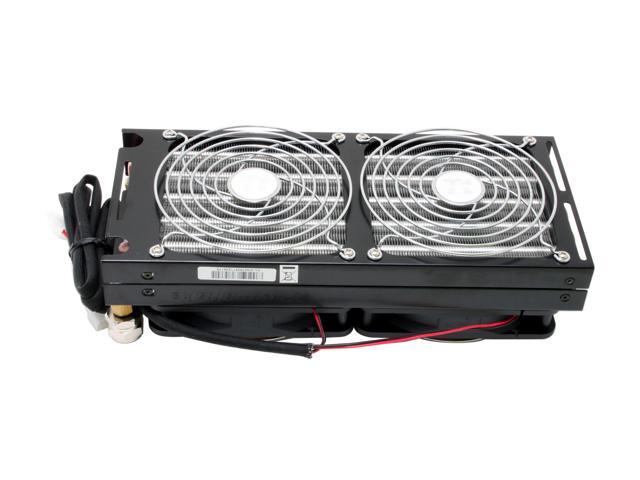

Radiator Size | 240mm Radiator: 272(L) X 120(W) X 35(H) mm 120mm Radiator: 166(L) X 122(W) X 35(H) mm |
---|---|
Radiator Material | Aluminum |
Fan Dim. | 3 x 120mm Fan |
---|---|
Fan RPM | 1300-2400 RPM |
Fan Air Flow | 38.6-93.7 CFM |
Fan Noise | 16-30 dBA |
Fan Connector | 4 Pin |

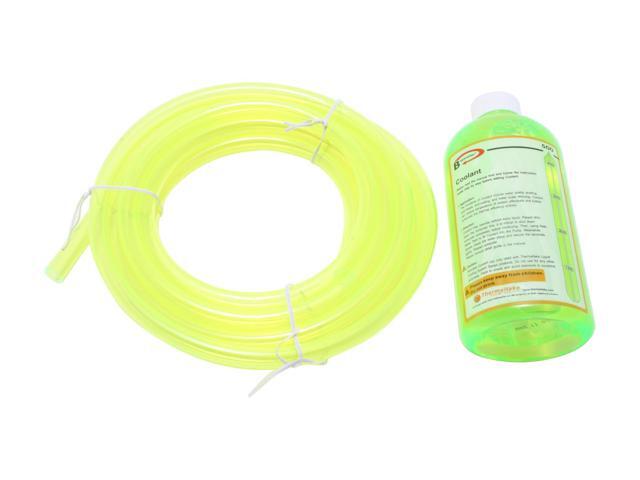

Tube Dim. | 9.5mm ID(3/8 " ) tube |
---|---|
Tube Material | Green UV |
Reservoir Dim. | 86(L) X 66(W) X 110(H) mm except connector |
---|---|
Reservoir Capacity | 350 cc |
Coolant Capacity | 500 cc |
---|
Features | World 1st liquid cooling system supports ATX / BTX motherboard Application for Intel P4 LGA775 Intel BTX platform and all AMD K8 series Remarkable 120mm Radiator: High performance radiator with a 120mm silent VR fan(1300 ~ 2400rpm) Superb Liquid Pump with 400 L/hr: 1. Silent and powerful P400 pump provides superb reliability 2. The pedestal can be secured onto the case by screws 3. The ceramic bearings significantly extend the life-expectancy of the pump 4. Thoughtful inlet and outlet design prevents air blocks from the water flow Exceptional Liquid Tank : 1. High capacity liquid tank capable of holding 350c.c. of liquid for continuous usage 2. Easy to refill Second-to-none Copper Water Block : 1. With blue LED acrylic covering illuminates the CPU 2. Increased number of water channel within the water block greatly enhances the thermal efficiency 3. Circle base of water block is applicable to BTX motherboard Durable 3/8" Tube: 1. Special material to prevent wear & tare from being clogged up from over bending 2. User Friendly Installation, tool-less connector design |
---|

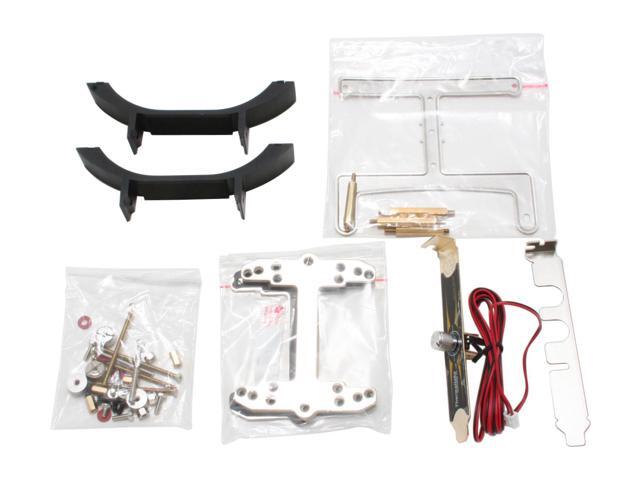

Package Contents | CPU Cooler Block Fan Speed Controller Pump/Reservoir Thermal Grease Coolant Radiator Hose Clips Bolts |
---|
Date First Available | March 03, 2006 |
---|
Pros: 20 degree drop in cpu temp over stock 805 fan...green tube looks cool..lots of compliments...very quiet on low fan setting...easy to assemble
Cons: the day after I installed I noticed a small crack in the acrylic cpu block. never leaked though...after less than 4 months I heard a pop, saw black smoke and then bye bye pump...
Overall Review: liked it while it worked but sent it back..cost a jackson to mail it back for RMA!!! They said they don't have anymore so getting my money back...gonna go with swiftec next round...be prepared to buy a new pump and buy some distilled water cause not enough coolant supplied
