Incorporating various high-quality components, the Smart Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
Smart Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Smart 700W connector’s specification as below:
|MODEL / CABLE||
Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® Standard Certified.
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

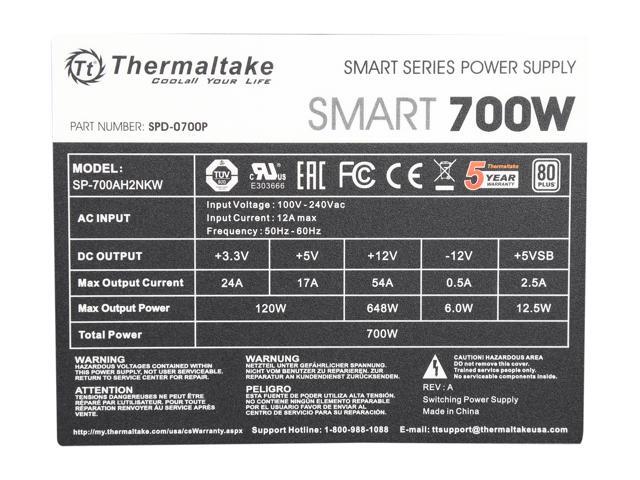

Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading. Please see the output specification below:
|Type||Intel ATX 12V 2.3|
|Max. Output Capacity||700W|
|Dimension (H x W x D)||86mm x 150mm x 140mm|
|PFC (Power Factor Correction)||Active PFC|
|Power Good Signal||100-500 msec|
|Hold Up Time||16msec (minimum) within 60% load|
|Input current||12A max|
|Input Frequency Range||50 Hz - 60 Hz|
|Input Voltage||100Vac – 240Vac|
|Operating Temperature||5? to +40?|
|Operating Humidity||20% to 85%,non-condensing|
|Operating Temperature||-40 ? to +55 ?|
|Operating Humidity||10% to 95%, non-condensing|
|Cooling System||120mm Fan: 1800 R.P.M. ± 10%|
|Efficiency||82-86% efficiency @ 20-100% load|
|MTBF||100,000 hrs minimum|
|Safety Approval||CE/CB/TUV/ UL/ FCC|
|PCI-E Connector||PCI-E 6+2pin x 2|
