Thermaltake Toughpower Grand RGB 750W Gold RGB Sync Edition SLI/CrossFire Ready Continuous Power Smart Zero Fan ATX12V v2.4 / EPS v2.92 80 PLUS GOLD Certified 10 Year Warranty Full Modular Power Supply PS-TPG-0750FPCGUS-S

Ships from United States. Most customers receive within 4-8 days.

Sold and Shipped by Super Component Store a-seller

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • RGB LED Analog control with RGB 12V SYNC Capable (ASUS, Gigabyte, MSI, ASRock, Biostar)
  • 80 PLUS Gold efficiency with 100% 105°C/221°F Japanese Capacitors
  • Smart Zero Fan offers 0RPM for silent operation
  • Fully Modular Low-Profile Flat Cable
  • High Amperage Single +12V Rail & DC to DC Design
  • Industry Leading 10 Year Warranty

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

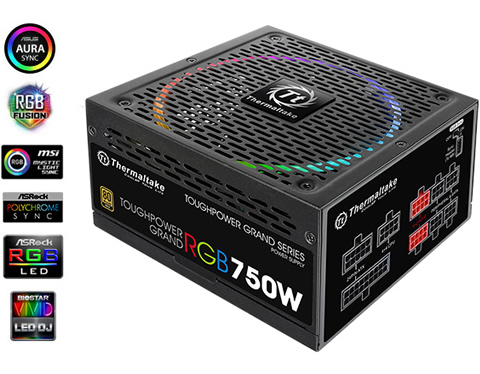

Thermaltake Toughpower Grand RGB 750W Gold (RGB Sync Edition)

Built to deliver 80 PLUS Gold efficiency, Toughpower Grand RGB Gold (RGB Sync Edition) Series comes with capacities ranging from 650W to 850W. The preinstalled patented 256-color Riing 14 RGB fan allows 5 lighting modes and built-in memory function, and permits more custom RGB lighting possibilities thanks to the light synchronization with enthusiasts’ favorite RGB capable motherboard brands, including ASUS, GIGABYTE, msi, BIOSTAR and ASRock. Constructed with premium components and ample 10-year warranty, this fully modular member’s near silent operation, trouble free installation and reliable performance have made itself satisfy the market where users are looking for a stylish power supply with advanced features and aesthetic appeal.

Thermaltake Thermaltake

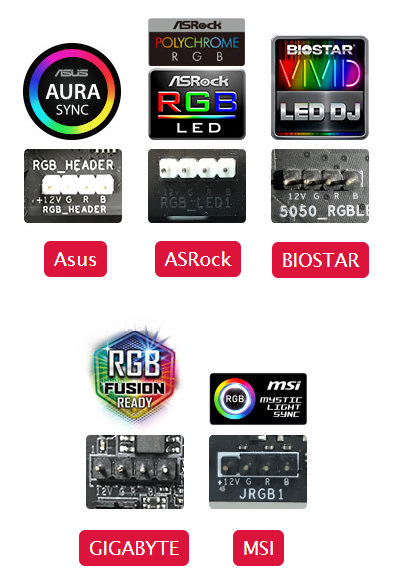

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, ASRock RGB LED, BIOSTAR Vivid LED DJ, GIGABYTE RGB Fusion and MSI Mystic Light Sync, the integrated RGB LED ring supports the motherboards that have a 12V RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. Visit the support page for motherboard information or to download the software:

Thermaltake

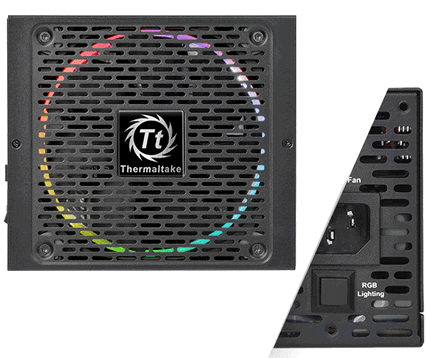

One Button to Your Desired Color

Simply press the RGB lighting button and enjoy 5 distinctively gorgeous illumination modes: 256-Color RGB Cycle, Solid Red, Green, Blue, White, and a LED Off mode. There is also a built-in memory function to save the color applied and insure the same color selection every time you boot your PC.

Thermaltake

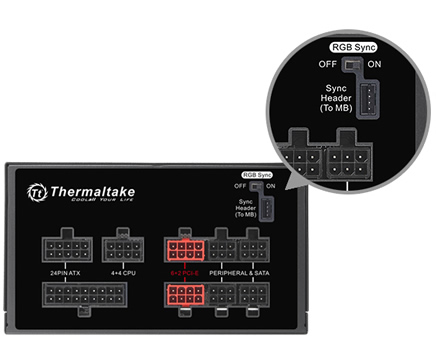

Software/Hardware controllable RGB Lighting Through a Switch

With the RGB Sync switch at the back side, it is easy breezy to shift between software/hardware controlled RGB Lighting. Turn the switch on to experience the ultimate RGB lighting compatibility with ASUS Aura Sync, GIGABYTE RGB Fusion, msi Mystic Light Sync, ASRock RGB LED and BIOSTAR Vivid LED DJ-ready motherboards; turn off for hardware controlled lighting modes.

Thermaltake

80 PLUS Gold Certified and Intel C6/C7 States Ready

Toughpower Grand RGB Sync Edition saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Thermaltake

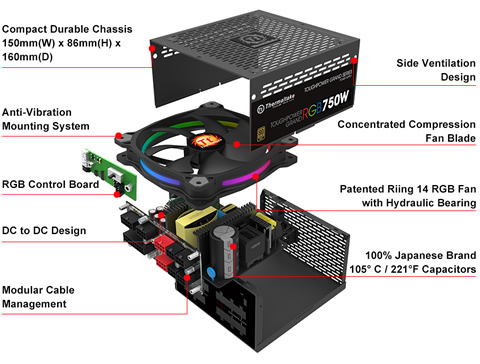

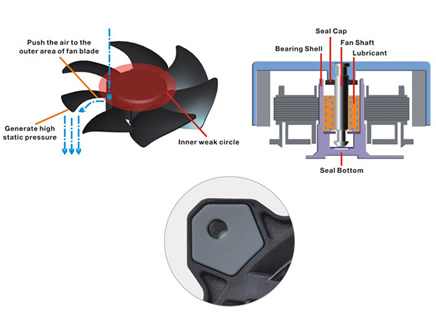

Riing 14 RGB Fan with Concentrated Compression Fan Blade

Riing 14 RGB Fan features concentrated compression fan blade to enhance static pressure, hydraulic bearings to guarantee silent operation, and the anti-vibration mounting system to strengthen stability. Its in-mold injection anti-vibration rubber pads provide hassle-free usage with 80% protection coverage for all corners.

Thermaltake

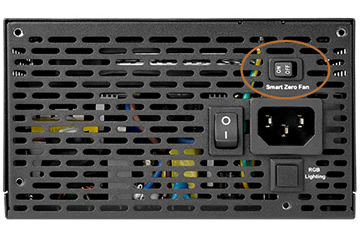

Ultra Quiet Smart Zero Fan

With Smart Zero Fan starting to operate when the power supply working load goes over 20%, undesired noise will be minimized. A switch is provided for those who prefer the fan to spin constantly.

Thermaltake Thermaltake

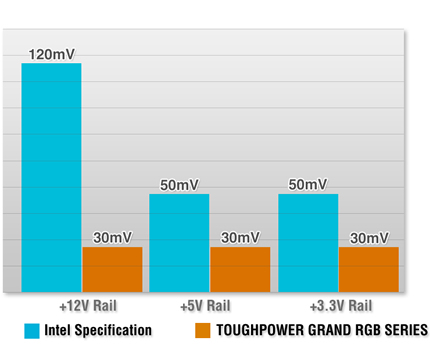

? 30 mV Low Ripple Noise

All ripples are lower than 30mV for high stability on +12V, +5V, or +3.3V from 0% to 100% load to ensure a high quality power supply. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.

Thermaltake

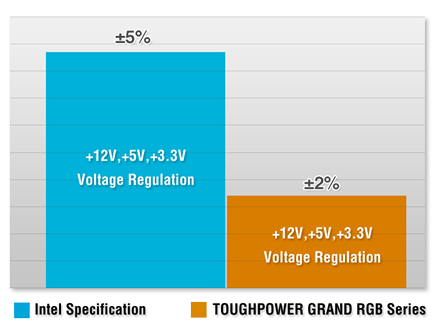

? ±2% Strict Voltage Regulation

The voltage regulation is set to no more than ±2% for major rails to meet the highest performance. The strict voltage regulation is better than Intel’s standard ±5% for major rails and ±10% for -12V.

Thermaltake

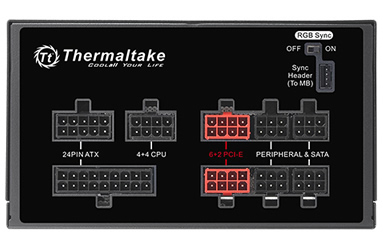

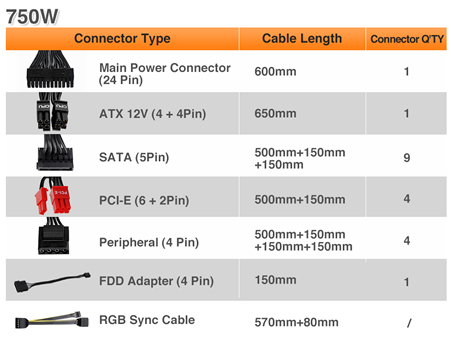

Fully Modular Low-Profile Flat Cable

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

Thermaltake Thermaltake

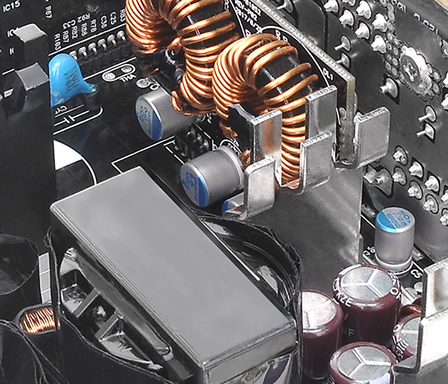

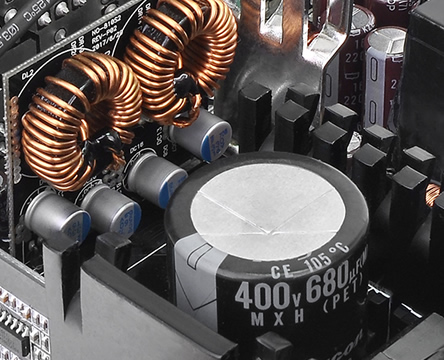

100% High Quality Japanese 105°C/221°F Capacitors

Greatly improves the durability and offers the highest stability and reliability.

Thermaltake Thermaltake

High Amperage Single +12V Rail & DC to DC Design

Powerful single +12V rail and DC to DC design ensure a stable and reliable supply to other PC components.

Thermaltake Thermaltake Thermaltake

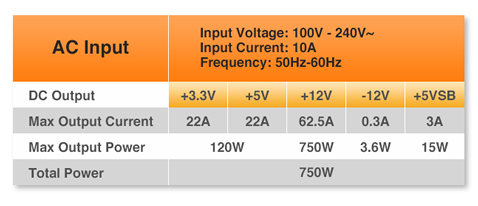

Specification

P/N PS-TPG-0750FPCGUS-S
Model TPG-750AH3FSGR
Type ATX 12V v2.4 and EPS v2.92
Max. Output Capacity 750W
Peak Output Capacity 900W
Color Black
Dimension (H x W x D) 150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input current 10A
Input Frequency Range 50 Hz - 60 Hz
Input Voltage 100Vac – 240Vac
Operating Temperature 0℃ to +50℃
Operating Humidity 20% to 90%,non-condensing
Operating Temperature -40℃ to +70℃
Storage Humidity 20% to 95%, non-condensing
Cooling System 14cm hydraulic bearing fan
Efficiency Meet 80 PLUS Gold at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC
PCI-E 6+2pin 4
Protection OVP,SCP,OPP,UVP,OTP,OCP

Learn more about the Thermaltake PS-TPG-0750FPCGUS-S

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
  • Read full details
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Works as advertised

Pros: Works well with MSI Mystic light app, quiet,

Cons: Easy install, bright RGB works well with MSI Mystic Light app

Overall Review: none

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Solid PSU Purchase

Pros: Perfect for me.

Cons: No Ragrats.

0 out of 1 people found this review helpful. Did you?
Ownership: 1 month to 1 year
2/ 5
I have a weird problem

Pros: everything

Cons: got a major problem with the cable plug in socket it started to electric short at input socket.

0 out of 1 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5

Pros: Has been solid since i got it and the rgb is a nice touch.
Came with plenty of cables. 10 year warranty

Cons: none,

Did you find this review helpful?
