Thermaltake Toughpower GX1 RGB 500W ATX 12V v2.4 and EPS v2.92 80 PLUS GOLD Certified Active PFC Power Supply PS-TPD-0500NHFAGU-1

In stock.
Ships from United States.
  • 500W
  • 600W
  • 700W
  • Non-LED
  • RGB
  • 10 RGB LED FAN - 120mm 10 RGB LED Fan displaying 7 colors (Red, Green, Blue, Yellow, Purple, Light Blue, White) with 3 illumination modes (Pulse, Full-Lighted, RGB Cycle)
  • ONE BUTTON RGB CONTROL - RGB Lighting Button controls lighting effects. Total 16 modes
  • 16 LIGHTING MODES - Pulse mode (7 colors), Full-Lighted (7 colors), RGB Cycle, and LED Off
  • 80+ GOLD - Efficiency up to 90% and optimized for C6/C7 States Ready
  • ULTRA QUITE - 120mm RGB hydraulic bearing fan with RPM control guarantee superior cooling performance and silent operation
  • 24 Pin x 1, ATX 12V 4+4 Pin x 1, SATA 4 Pin x 6, PCI-E 6+2 Pin x 2, Peripheral x 4, FDD Adapter x 1
  • MAIN JAPANES CAPACITORS - 105°C/221°F Japanese capacitors provide superb performance and reliability
  • INDUSTRIAL PROTECTIONS - (OPP) Over Power, (OVP) Over Voltage, and (SCP) Short-Circuit protections
  • SINGLE +12V RAIL DESIGN - Powerful 12V+ single rail supports today’s GPU demands supporting DC to DC design for non-stop usage with stable reliable performance
LOADING...
Overview
Specs
Reviews

Thermaltake Toughpower GX1 RGB 500W Gold

80 PLUS Gold Certified Non-Modular PSU with RGB Hydraulic Bearing Fan

Built to deliver 80 PLUS Gold efficiency, Thermaltake's Toughpower GX1 RGB power-supply series features capacities ranging from 500W to 700W. Ten RGB LEDs come pre-installed on the Hydraulic Bearing fan to provide multiple vivid lighting mode/color options, LED Off and a built-in memory function. Coming with premium components, Japanese 105°C/221°F main capacitor, its near-silent operation, trouble-free installation and reliable performance have made it satisfy the market where value-oriented users are looking for a power supply with advanced features and aesthetic appeal.

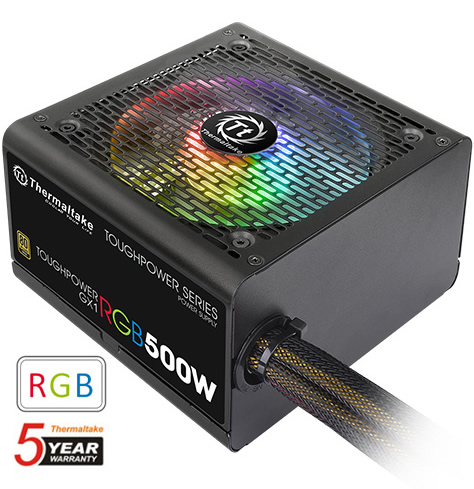

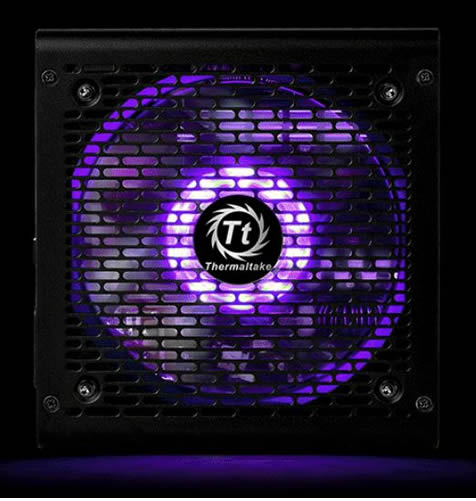

Thermaltake Toughpower GX1 RGB 500W ATX Power Supply Face forward

One Button to Your Desired Color

Adding personal appeal to your build has never been easier. By just pressing one RGB lighting button! There is also a built-in memory function to save the applied color and ensure the same color selection every time you turn on your PC.

One Button to Your Desired Eight Colors RGB lighting button close-up

Ten Pre-Installed RGB LEDs

Ten RGB LEDs come pre-installed on the 120mm fan. Capable of displaying seven colors (Red, Green, Blue, Yellow, Purple, Light Blue and White), three illumination modes including: Pulse, Full-Lighted and 256-Color RGB Cycle, and an LED Off mode.
All images are for reference only; actual specification and lighting effects are based on the real product.

10 RGB LEDs Preinstalled capable of displaying 7 colors

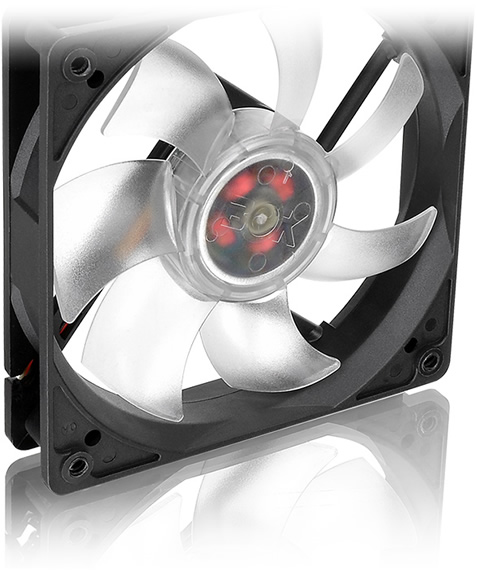

120mm RGB Hydraulic Bearing Fan

Featuring an 120mm RGB Hydraulic Bearing fan with intelligent RPM control to guarantee superior cooling performance and silent operation.

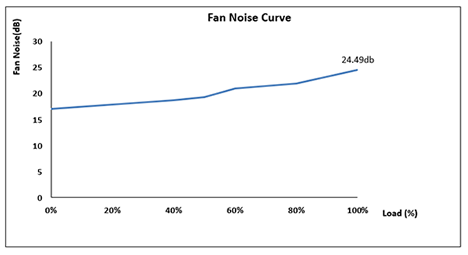

120mm RGB Hydraulic Bearing Fan side view Fan Noise Curve graph

Low Ripple Noise

The maximum ripple/noise is lower than 60mV on the +12V rail, and lower than 40mV on the +5V &+3.3V rails to ensure an excellent power supply stability. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.

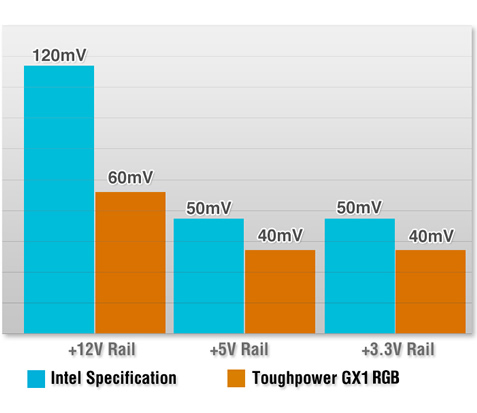

Low Ripple Noise comparison graph

<±3% Strict Voltage Regulation

The voltage regulation of the PSU is set to no more than ±3% for major rails to meet the highest performance. The strict voltage regulation is better than Intel’s standard ±5% for major rails and ±10% for -12V.

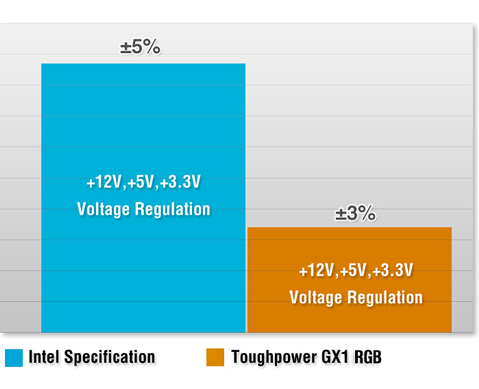

Thermaltake Toughpower GX1 voltage regulation comparison

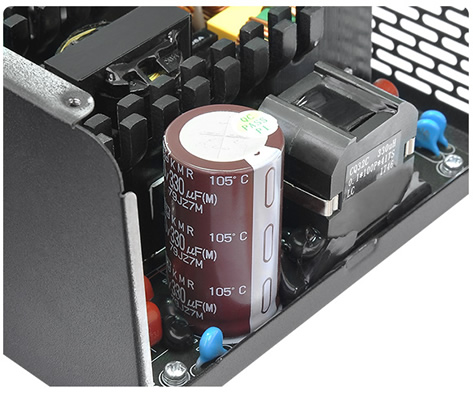

High-Quality Japanese 105°C/221°F Main Capacitor

Comes with high quality 105 °C (221 °F) Japanese main capacitor to greatly improve the durability and offer the highest stability and reliability.

Japanese Main Capacitor close-up Japanese Capacitor icon

High-Quality Japanese 105°C/221°F Main Capacitor

Comes with high-quality 105°C (221°F) Japanese main capacitor to greatly improve the durability and offer the highest stability and reliability.

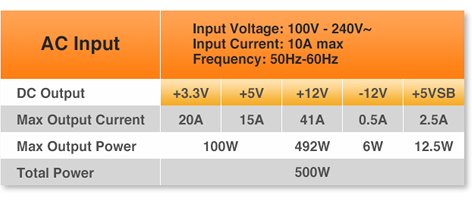

High Quality Japanese Main Capacitor close-up Powerful icon Thermaltake Toughpower GX1 power parameter graph

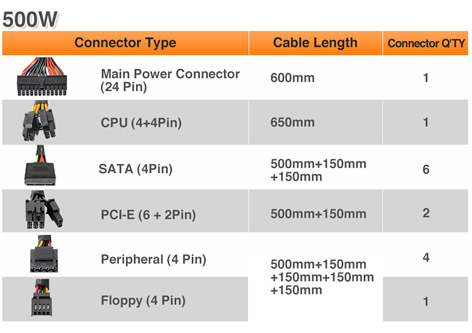

Multiple Connectors

All sleeved cables make cable installation an easy task while powering the system at an advantageous voltage.

Multiple Connectors Parameter Graph

80 PLUS Gold Certified and Intel C6/C7 States Ready

Toughpower GX1 RGB saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

80 PLUS Gold Certified and Intel C6/C7 States icon

RGB Lighting Gives the Best Aesthetics for All Chassis

Toughpower GX1 RGB Series is the best idea for users to go with when they are looking for an RGB PSU that permits remarkable functionality and aesthetics in all cases.

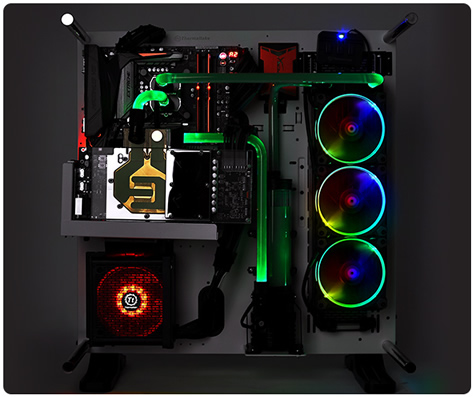

Thermaltake Toughpower GX1 RGB Lighting Gives Best Aesthetics for All Chassis Demonstration Thermaltake Toughpower GX1 RGB Lighting Internal structure Demonstration

Specification

P/N PS-TPD-0500NHFAGU-1
WATTS 500W
RGB FAN Yes
FORM FACTOR ATX
MODEL TP-500AH2NKG
MAX. OUTPUT CAPACITY 500W
PEAK OUTPUT CAPACITY 600W
COLOR Black
DIMENSION ( W / H / D ) 150mm(W) x 86mm(H) x 140mm(D)
PFC (POWER FACTOR CORRECTION) Active PFC
POWER GOOD SIGNAL 100-500ms
HOLD UP TIME >12ms at 80% of full load
INPUT CURRENT 10A max.
INPUT FREQUENCY RANGE 50Hz-60Hz
INPUT VOLTAGE 100V~240V
OPERATING TEMPERATURE + 5°C to + 40°C
OPERATING HUMIDITY 20% to 85%, non-condensing
STORAGE TEMPERATURE -40°C to + 55°C
STORAGE HUMIDITY 10% to 95%, non-condensing
COOLING SYSTEM 12cm hydraulic-bearing fan
EFFICIENCY Meet 80 PLUS® Gold at 115Vac input
MTBF 100,000 hours minimum
SAFETY APPROVAL CE/TÜV SUD/FCC/UL/BSMI/S-mark
PCI-E 6+2PIN 2
