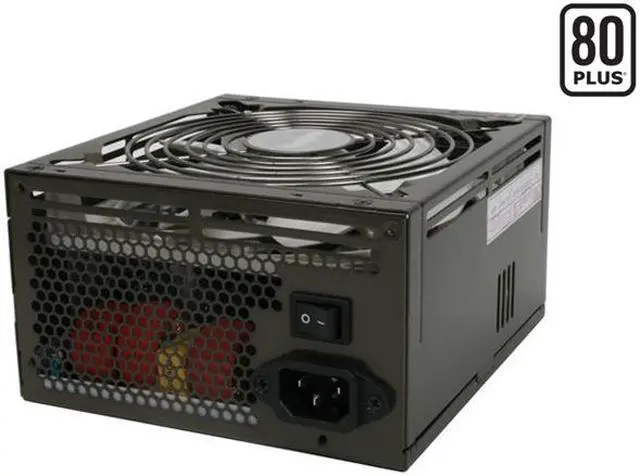

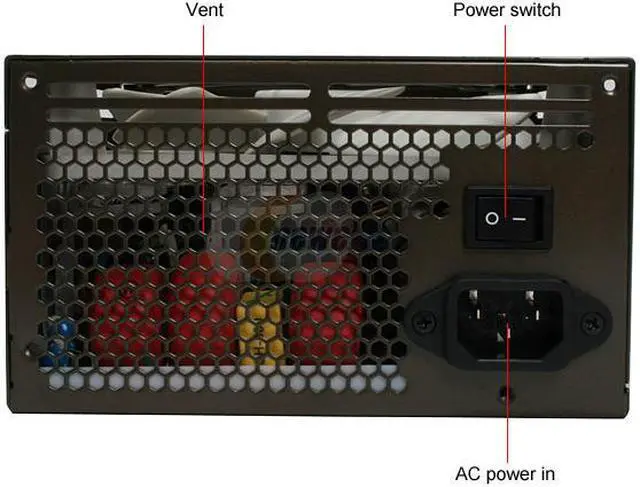

Thermaltake Toughpower QFan Series W0151RU 500 W ATX 12V 2.2/ EPS 12V 2.91 SLI Ready CrossFire Ready 80 PLUS Certified Modular Active PFC Power Supply

(5) Write a Review
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (5)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Thermaltake W0151RU

General
Brand Thermaltake
Series Toughpower QFan Series
Model W0151RU
Details
Type ATX 12V 2.2/ EPS 12V 2.91
Maximum Power 500 W
Fans 1
PFC Active

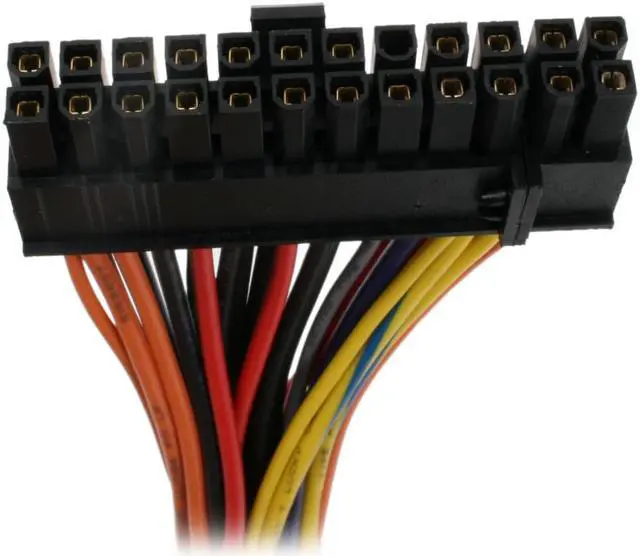

Main Connector 20+4Pin
+12V Rails 3
PCI-Express Connector 2 x 6-Pin
SLI SLI Ready
CrossFire CrossFire Ready
Modular Modular
Power Good Signal 100-500ms
Efficiency Up to 85%
Energy-Efficient 80 PLUS Certified
Over Voltage Protection Yes
Input Voltage 115 / 230 V
Input Frequency Range 47 - 63 Hz
Input Current 6A @ 115V, 3A @ 230V

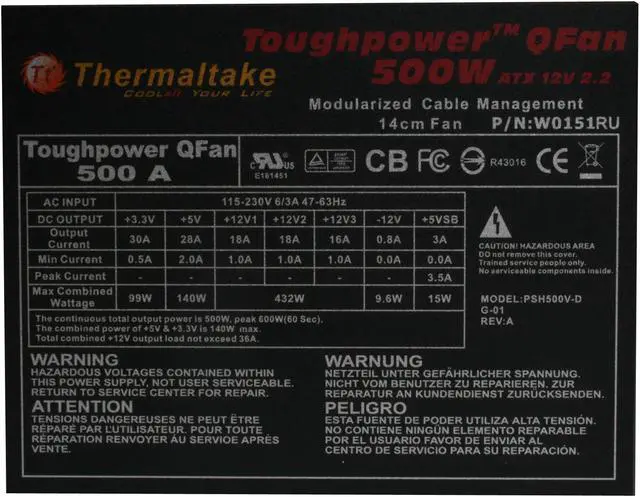

Output +3.3V@30A,+5V@28A,+12V1@18A,+12V2@18A,
+12V3@16A,[email protected],[email protected]
MTBF 120,000 hrs minimum
Approvals CE, CB, TUV, FCC, UL, CUL, and BSMI certified

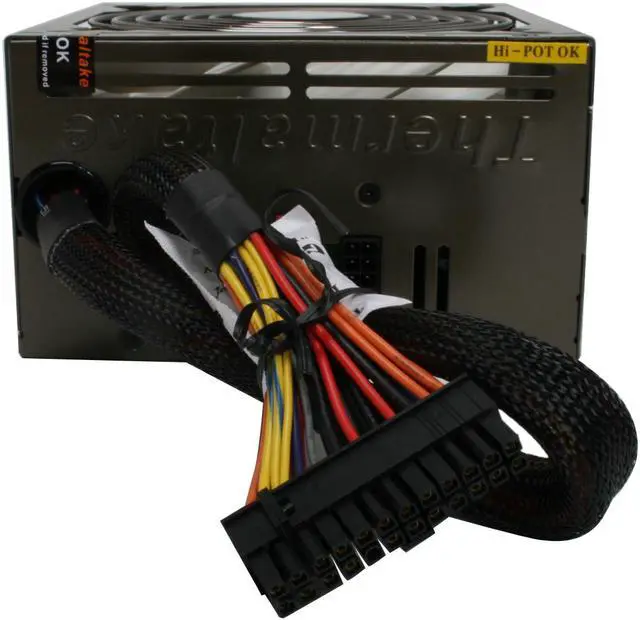

Connectors 1 x Main connector (20+4Pin)
1 x 12V(4/8Pin)
7 x peripheral
6 x SATA
2 x Floppy
2 x PCI-E
Features

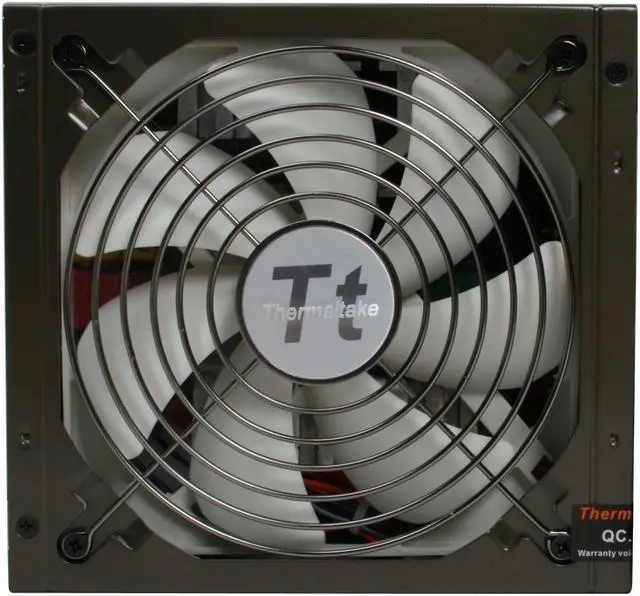

Features Extremely Quiet 140mm ball-bearing fan decreases 17% noise level
Stable 500W continuous output (at 50°C operating environment)
Complies with ATX 12V 2.2 & EPS 12V 2.91 version
Three independent & dedicated +12V rails (12V1, 12V2, 12V3) provide stable and superior performance for PC system (combined loading of 36A).
Supports Dual Core CPU and all Multi-Core GPU technologies.

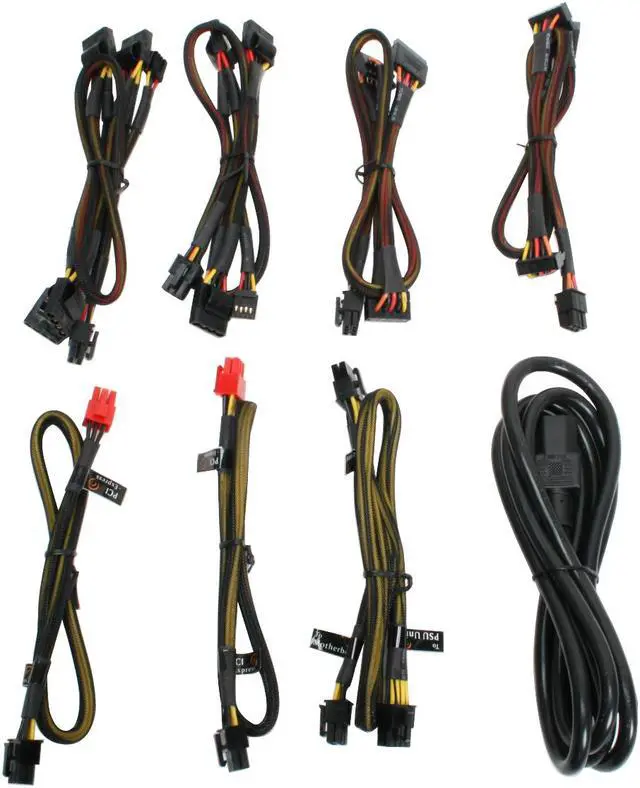

Modularized Cable Management to eliminate clutter and improve airflow inside the case.
Independent Voltage Circuit: offers unflappable current delivery under heavy load.
Strict voltage regulation (±3%): provides steady voltage for system.
Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%).
Protections: Over Current, Over Voltage, and Short-Circuit protection.
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.
Additional Information
First Listed on Newegg December 05, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
