Question 1

Does this item have holes on the bottom of it to mount to flat against a wall?

Accepted Answer

No, there are no mounting holes on the bottom of the unit - only some small indentations where rubber feet can be applied, to use the unit on a table/shelf.

You can purchase the optional mounting bracket kit to mount this unit to a standard width equipment rack.

Question 2

Does this switch also provide QoS service?

Accepted Answer

I have not found anyplace online to imply that it supports Qos. As it is un-managed, there is no way to log in and look. Having said that, This is the fastest gigabit switch I have found. Upon determining that the switch was my networks bottleneck, I bought a few to test with and this gave me the best transfer rates.

Hope that helps!

Question 3

Does this have PoE for any ports?  I'm assuming no because I see no mention of it in the specs but want to be sure.

Accepted Answer

It does not have any PoE ports. Mine has been an excellent switch. Outlasted a couple that cost much more.

Question 4

Does this have a fan, and is it quiet or loud?  I don't see a db rating.

Accepted Answer

Ive had it for over a year and never heard a peep out of it... I'm pretty sure its passive cooling

Question 5

Is this the 1.0R (discontinued version) or the 2.0R ?

Accepted Answer

I bought mine in aug of 2013 and it is a 1.0r

We have been very happy with it

Question 6

The description states "Lifetime Limited Warranty", yet under the warranty tab it says 1 year, and in many of the reviews it says 3 years.  What is the true answer?

Accepted Answer

Hello, Thank you for contacting us in regards to your question. This particular product is being offered through a Newegg Marketplace Seller. For more information, please contact them directly through their Seller Profile page. https://www.newegg.com/Tech-Provisions/about Thank you, Newegg Support

Question 7

What is the meaning of the "D" in the two similar versions of this product?  Model number...

Accepted Answer

I think it is duplex as opposed to half-duplex. Meaning that it can send and receive data without a problem.

Question 8

The specs listed are for the TEG-S24DGv1, not the TEG-S24DGv2. Does that mean that the unit supplied will be a v1? If not, why provide specifications that may or may not apply to the product we'll get?

Accepted Answer

The switch I received was the correct  v2 switch, but there really isn't much difference. the correct specs are available on trendnet website.

Format	Rackmount
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control IEEE 802.3az (draft 2.0)
Network Management Type	Unmanaged

Uplink Ports	None
Primary Ports	24 x RJ45
Primary Port Speed	10/100/1000Mbps

MAC Address Table	8K
Jumbo Frames	Yes
Buffer Memory	3.5 MBits

Protocols	CSMA/CD
PoE	No
Stackable	No
Layer	Layer 2 Only
Topology	Star
LEDs	Power, Link/ACT, 100Mbps, 1000Mbps

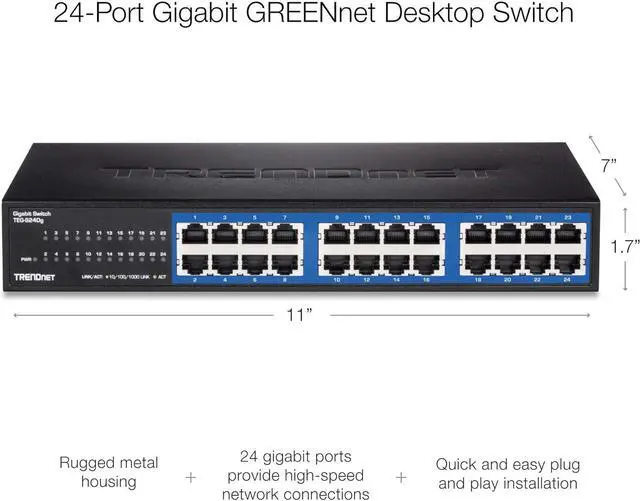

Dimensions	11.0" x 7.0" x 1.7"
Weight	3.8 lbs.

TRENDnet 24-Port Unmanaged Gigabit GREENnet Desktop Switch, Ethernet Network Switch, 24 x 10-100-1000 Gigabit Ethernet RJ-45 Ports, 48Gbps Switching Capacity, Lifetime Protection, Black, TEG-S24DG

Learn more about the TRENDnet TEG-S24DG

Customer Reviews of the TRENDnet TEG-S24DG

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Temperature	0°C to 40°C (32°F to 104°F)
Humidity	90% Maximum, Non-condensing
