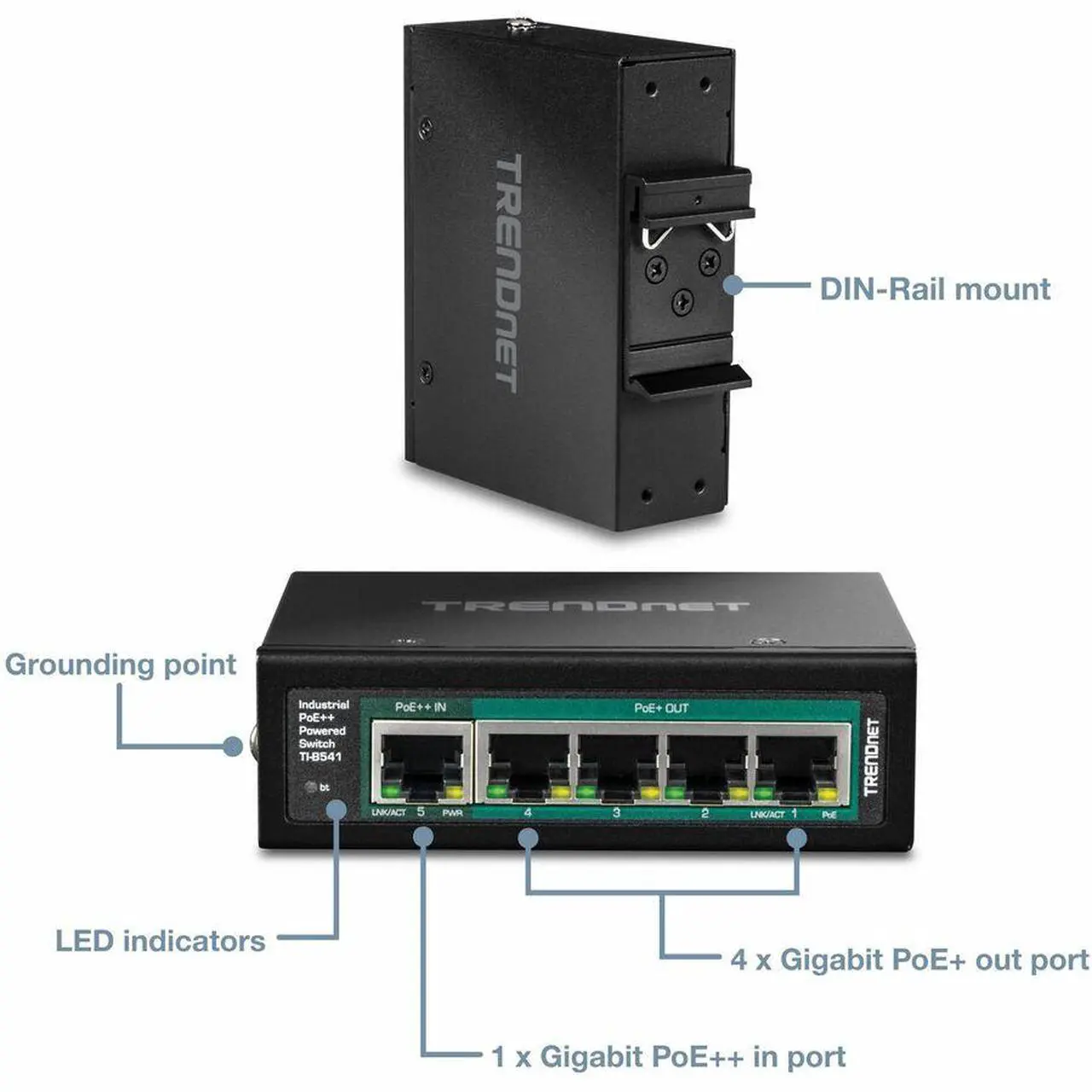

DEVICE INTERFACE: 1 x Gigabit PoE++ input port; 4 x Gigabit PoE+ output ports.
SWITCHING CAPACITY :10Gbps switching capacity.
DIN-RAIL/WALL MOUNTS:The PoE-powered industrial switch features an IP30 rated metal enclosure with included DIN-Rail and wall mount hardware.
SHOCK & VIBRATION RESISTANT: Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6).
GROUNDING POINT: Grounding point on the PoE-powered industrial switch protects equipment against external electrical surges.
+
+
Overview
Specs
Reviews

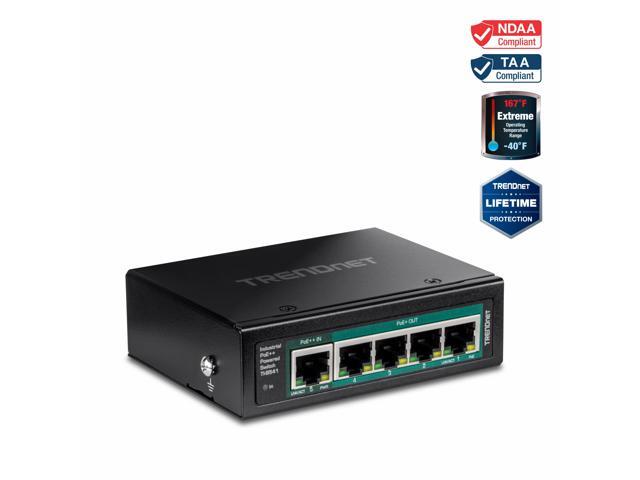

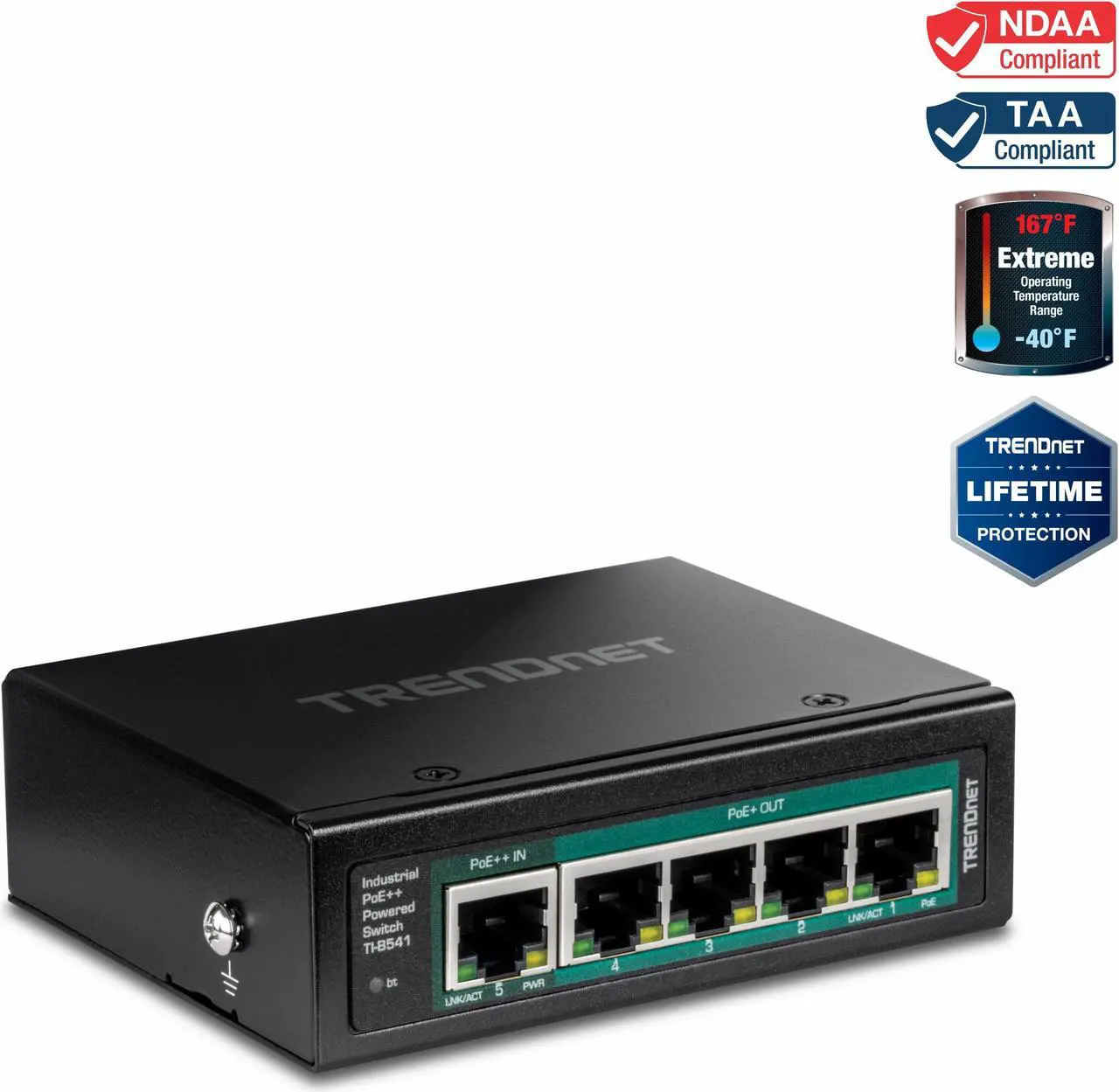

TRENDnets 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through, model TI-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The PoE-powered industrial switch features four gigabit PoE+ ports to power devices such as IP cameras, VoIP handsets, and wireless access points. The switchs PoE++ powered feature allows it to be installed in a place where there is no power source nearby. With an operating temperature range of -40° 75 °C (-40° 167 °F), the hardened IP30 rated housing is suitable for extreme industrial environments.
1 x Gigabit PoE++ in port 4 x Gigabit PoE+ out port
PoE Power Budget
65W PoE budget with IEEE 802.3bt Type 4 (90W) input power 50W PoE budget with IEEE 802.3bt Type 3 (60W) input power 21W PoE budget with IEEE 802.3at (30W) input power
Power
IEEE 802.3bt Type 4 (90W), IEEE 802.3bt Type 3 (60W), or IEEE 802.3at (30W), PoE input only (no external power supply) IEEE 802.3bt Type 4 PoE PD Class 7 IEEE 802.3bt Type 3 PoE PD Class 5 IEEE 802.3at Type 2 PoE PD Class 4 IEEE 802.3af Type 1 PoE PD Class 0
Max Power Consumption
3.9 W (no PoE)
Dimensions & Weight
Dimensions
102 x 80 x 31mm (4.01 x 3.14 x 1.22 in.)
Weight
160g (0.35 lb.)
Environmental
Certification
CE FCC LVD IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Features
Features
1 x Gigabit PoE++ input port; 4 x Gigabit PoE+ output ports NDAA / TAA compliant (U.S. and Canada only) 65W PoE power budget with PoE++ Type 4 (90W) input power 10Gbps switching capacity Extreme operating temperature range of -40° - 75° C (-40° - 167° F) Hardened IP30 rated metal switch; Includes DIN-Rail and wall mounts Includes DIN-Rail and wall mounts Lifetime Protection
