Converts HDMI audio/video to an IP-based signal, which is transmitted to and distributed through a dedicated Ethernet network switch up to 328 ft. away using Cat5/Cat6 cabling
Designed for managed network switches with IGMP
Compatible with B160-001-DPSI, B160-001-HDSI and B160-001-VSI transmitters
Supports video resolutions up to 1920 x 1080(1080p) @ 60 Hz and supports RS-232 serial baud rates up to 57600 Bps
No software or drivers required
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

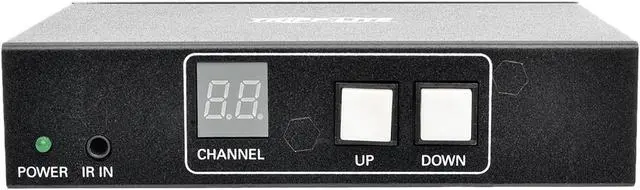

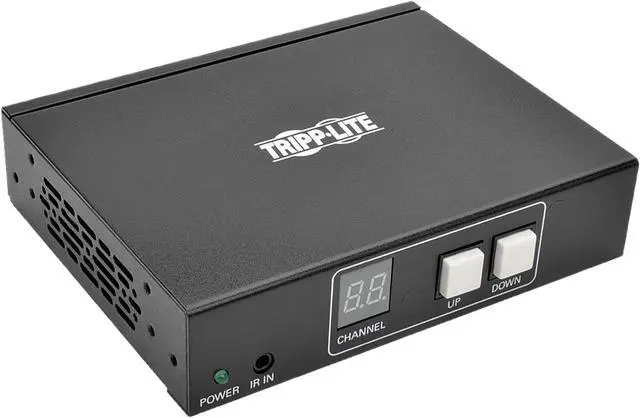

DVI/HDMI over IP Extender Receiver over Cat5/Cat6, RS-232 Serial and IR Control,
Learn more about the Tripp Lite B160-100-HDSI
Model
Brand
Tripp Lite
Model
B160-100-HDSI
Details
Type
HDMI Audio/Video
Color
Black
Cable Length
328 ft.
Specifications
Extends and Distributes HDMI/DVI A/V, Serial and IR Control Signals over Cat5/6 Cabling Converts source video to IP-based signal transmitted to and distributed through network switch Adapter cable included for connecting a DVI display Extends signal up to 328 ft.(100 m) from switch Can also connect directly to transmitter up to 328 ft. away

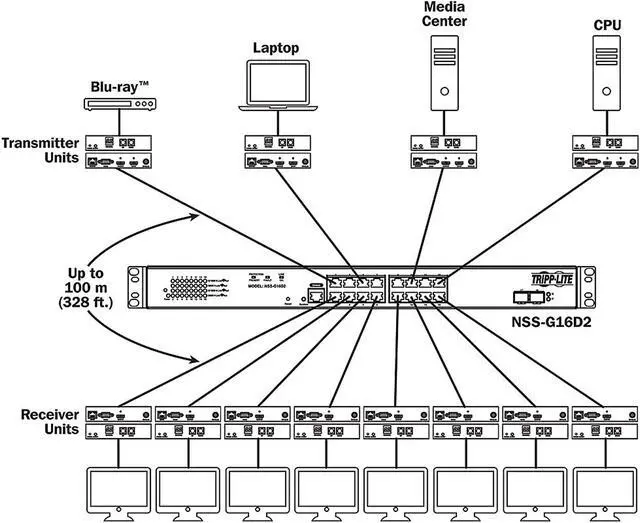

Designed for Managed Network Switches with IGMP Allows login and remote management via switch interface Works with any analog or digital source, including DisplayPort and VGA Connect up to 64 transmitters and 255 receivers in single managed switch installation
Enhanced Technical Features Supports video resolutions up to 1920 x 1080(1080p) @ 60 Hz Uses H.264 video compression standard Transmits on 20–60 kHz IR frequency Extends IR control signals that control a source from a remote display Supports RS-232 serial baud rates up to 57600 Bps HDCP and 3D compatible when used with a DisplayPort or HDMI transmitter (not compatible with VGA transmitter)

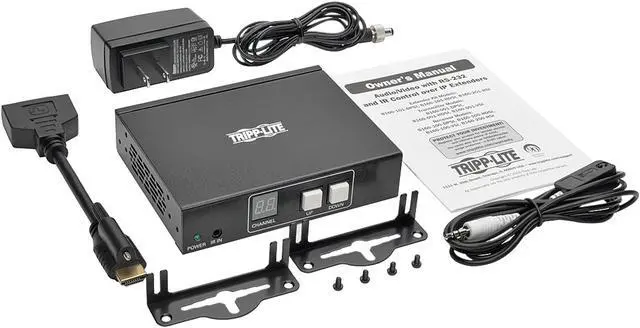

Plug and Play Functionality No software or drivers required Hardware included for mounting on wall, rack or pole Compatible with B160-001-DPSI, B160-001-HDSI and B160-001-VSI transmitters
TAA-Compliant Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
Features
Features
Designed for managed network switches with IGMP
Compatible with all analog or digital sources
Supports video resolutions up to 1920 x 1080 (1080p)
Plug and play - no software or drivers required
Mounts on wall, rack or pole with included hardware
