Passive Mini DP to HDMI/VGA/DVI adapter connects your Mini DP or Thunderbolt 1/2 laptop to a VGA, DVI or HDMI display.
Multiple video outputs connect to most displays—no more carrying multiple adapters
HDMI port delivers UHD quality at resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz
Compact unit fits easily into briefcase or laptop bag for instant use anywhere
Plug-and-play operation with no software required for easy, immediate installation
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Passive Adapter Connects a Mini DisplayPort Device to a VGA, DVI or HDMI Display No more carrying around separate adapters for various monitors, projectors and televisions. This Keyspan Mini DP to HDMI/VGA/DVI adapter connects a VGA, DVI or HDMI display to the Mini DisplayPort or Thunderbolt 1/2 port on your Chromebook, MacBook, Microsoft Surface or other compatible laptop or tablet. Only one display can be connected at a time. Simple All-in-One Solution for Displaying 4K Video on a Large Screen The P137-06N-HDV4KW is ideal for classrooms, lecture halls and anywhere else you may need to connect to a monitor. Just connect the converter between your laptop and a VGA, DVI or HDMI display. You no longer have to dig around in your laptop bag for the correct adapter to match the display. Transmits Crystal-Clear Video up to 4K x 2K for Ultra ...Cable Type: DVI/HDMI/Mini DisplayPort/VGACable Length: 6Connector on First End: 1 x Mini DisplayPort Male Mini DisplayPort 1.2 Digital Audio/VideoConnector on Second End: 1 x DVI-I (Dual-Link) Female VideoConnector on Second End: 1 x 15-pin HD-15 Female VGAConnector on Second End: 1 x HDMI Female Digital Audio/VideoFeatures: PassiveDevice Supported: ChromebookDevice Supported: MonitorDevice Supported: NotebookDevice Supported: TabletDevice Supported: MacBookDevice Supported: Audio/Video DeviceDevice Supported: ProjectorSupported Resolution: 3840 x 2160Color: WhitePackage Contents: Keyspan P137-06N-HDV4KW DVI/HDMI/Mini DisplayPort/VGA Audio/Video Cable Quick Start Guide Environmentally Friendly: YesEnvironmental Certification: REACHEnvironmental Certification: RoHSLimited Warranty: 3 YearPackage Contents Keyspan P137-06N-HDV4KW DVI/HDMI/Mini DisplayPort/VGA Audio/Video Cable Quick Start Guide "
Learn more about the Tripp Lite P137-06N-HDV4KW
Model
Brand
Tripp Lite
Model
P137-06N-HDV4KW
Details
Type
Mini DP to VGA / HDMI / DVI
Changer Type
Mini DisplayPort 1.2 to VGA/DVI/HDMI Adapter
Color
White
Specifications
Passive Mini DP to HDMI/VGA/DVI adapter connects your Mini DP or Thunderbolt 1/2 laptop to a VGA, DVI or HDMI display.
Multiple video outputs connect to most displays-no more carrying multiple adapters
HDMI port delivers UHD quality at resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz
Compact unit fits easily into briefcase or laptop bag for instant use anywhere
Plug-and-play operation with no software required for easy, immediate installation
Passive adapter requires connected computer to have DP++ port for signal pass-through
Connectors
Connector A

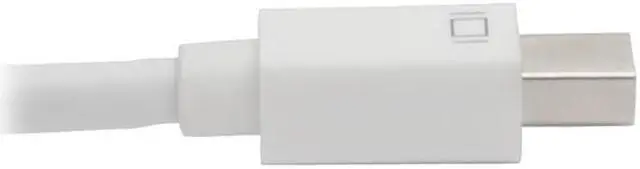

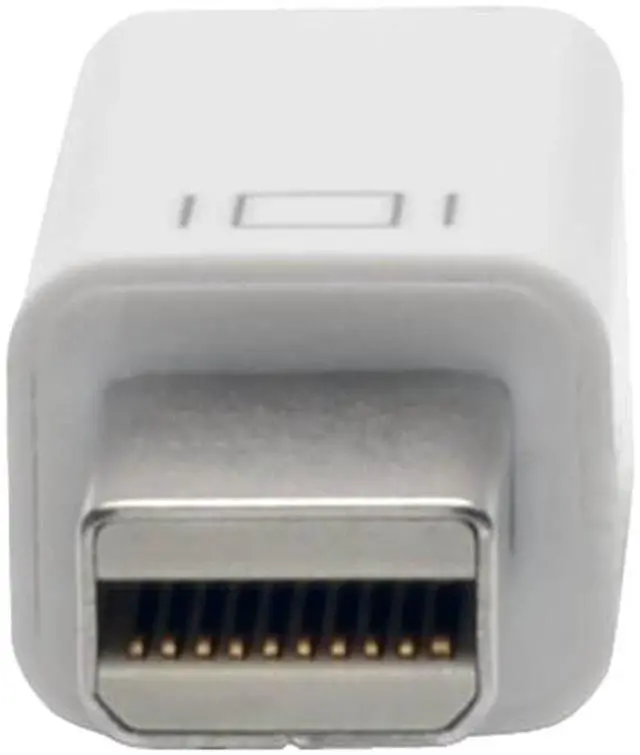

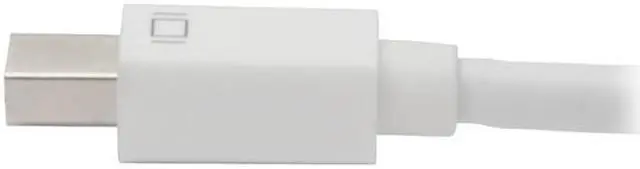

1 x Mini DisplayPort male
Connector B

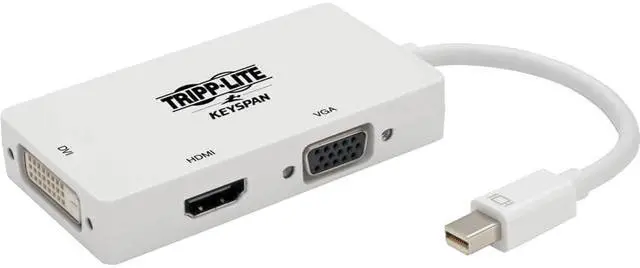

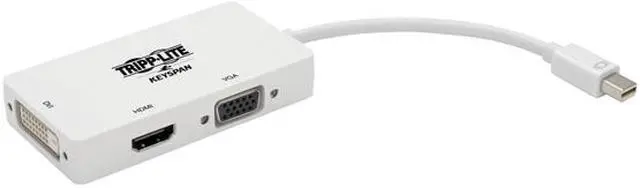

1 x HDMI Female, 1 x DVI-I Female, 1 x VGA Female
Features
Features
Passive Adapter Connects a Mini DisplayPort Device to a VGA, DVI or HDMI Display No more carrying around separate adapters for various monitors, projectors and televisions. This Keyspan Mini DP to HDMI/VGA/DVI adapter connects a VGA, DVI or HDMI display to the Mini DisplayPort or Thunderbolt 1/2 port on your Chromebook, MacBook, Microsoft Surface or other compatible laptop or tablet. Only one display can be connected at a time.

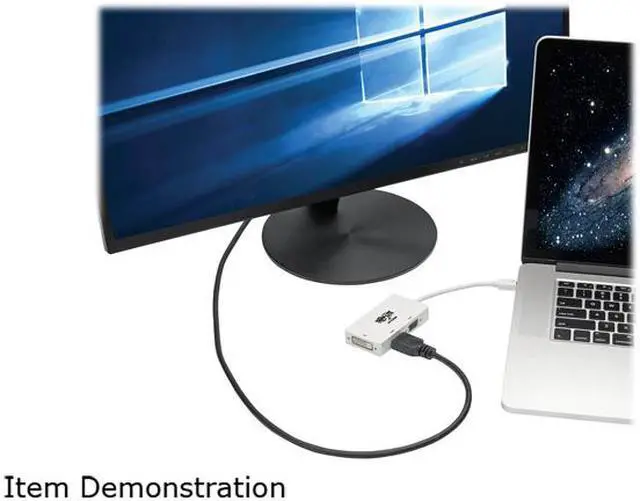

Simple All-in-One Solution for Displaying 4K Video on a Large Screen The P137-06N-HDV4KW is ideal for classrooms, lecture halls and anywhere else you may need to connect to a monitor. Just connect the converter between your laptop and a VGA, DVI or HDMI display. You no longer have to dig around in your laptop bag for the correct adapter to match the display.

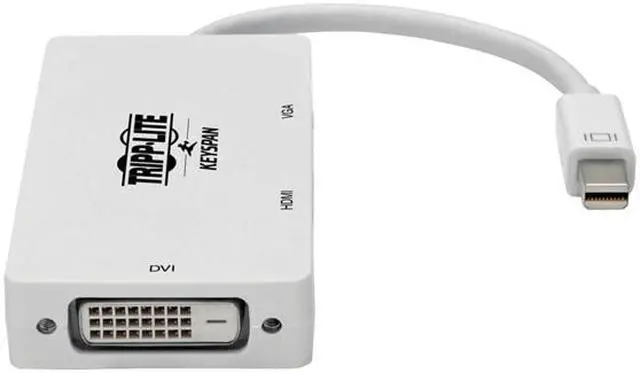

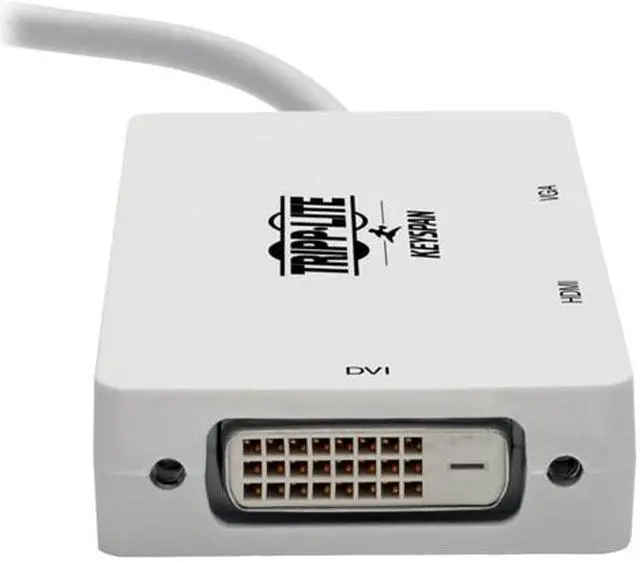

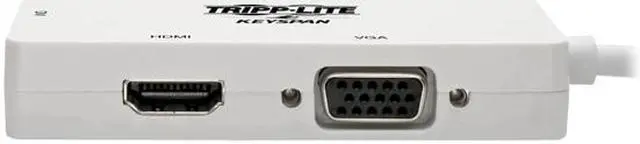

Transmits Crystal-Clear Video up to 4K x 2K for Ultra HD Presentations This all-in-one unit features separate female HD15, DVI and HDMI ports. The HD15 port supports high-definition video resolutions up to 1920 x 1200, including 1080p. The DVI-I dual-link port supports HD resolutions up to 1920 x 1080 (1080p). The HDMI port supports Ultra HD 4K x 2K video (3840 x 2160) at 24/30 Hz, as well as 36-bit Deep Color (12 bits per channel). The HDMI port is backward compatible with non-4K displays.
Passive Adapter for Use with Dual-Mode DisplayPort Sources The P137-06N-HDV4KW is a passive adapter that requires the connected computer to support DisplayPort++ (DP++). This allows HDMI and DVI signals to be passed through. Check the documentation for your Mini DisplayPort source for compatibility.
Ready to Use Right from the Package, So You Can Plug and Play Immediately The plug-and-play adapter requires no software, drivers or external power, works with both Windows and Mac operating systems, and is compatible with laptops, tablets and other devices equipped with a female Mini DisplayPort or Thunderbolt 1/2 port. With its small size and built-in cable, the P137-06N-HDV4KW is recomm
Dimensions & Weight
Weight
0.15
Additional Information
Date First Available
May 24, 2018
