30 individually controllable outlets - 24 x C13, 6 x C19
Built-in LX Platform interface for remote access 24/7
NEMA L21-30P PDU input with 10.0 Feet AC power cord

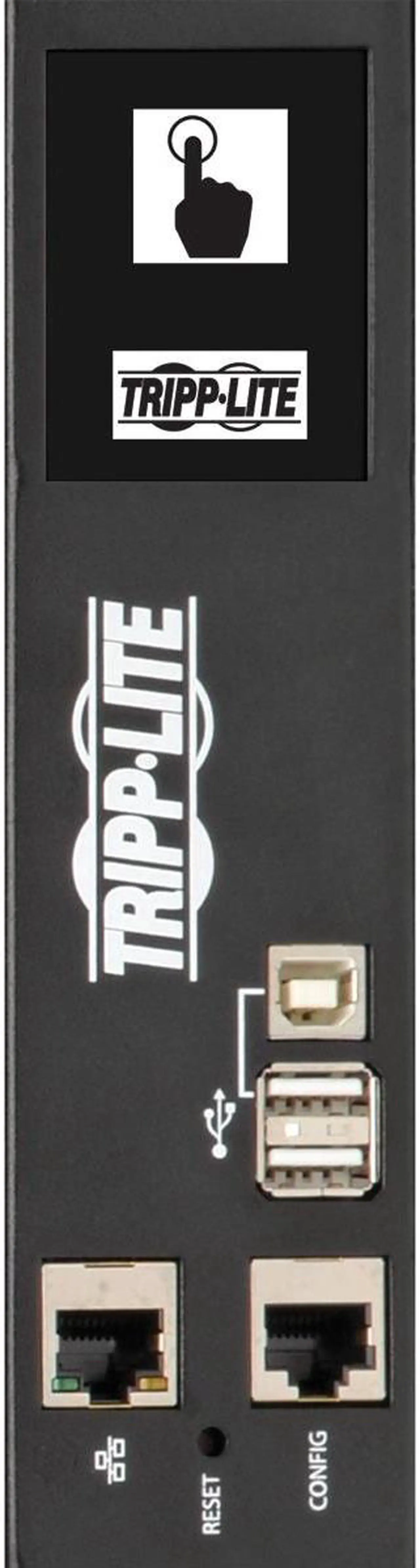

Touchscreen LCD with mobile access option via QR code
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

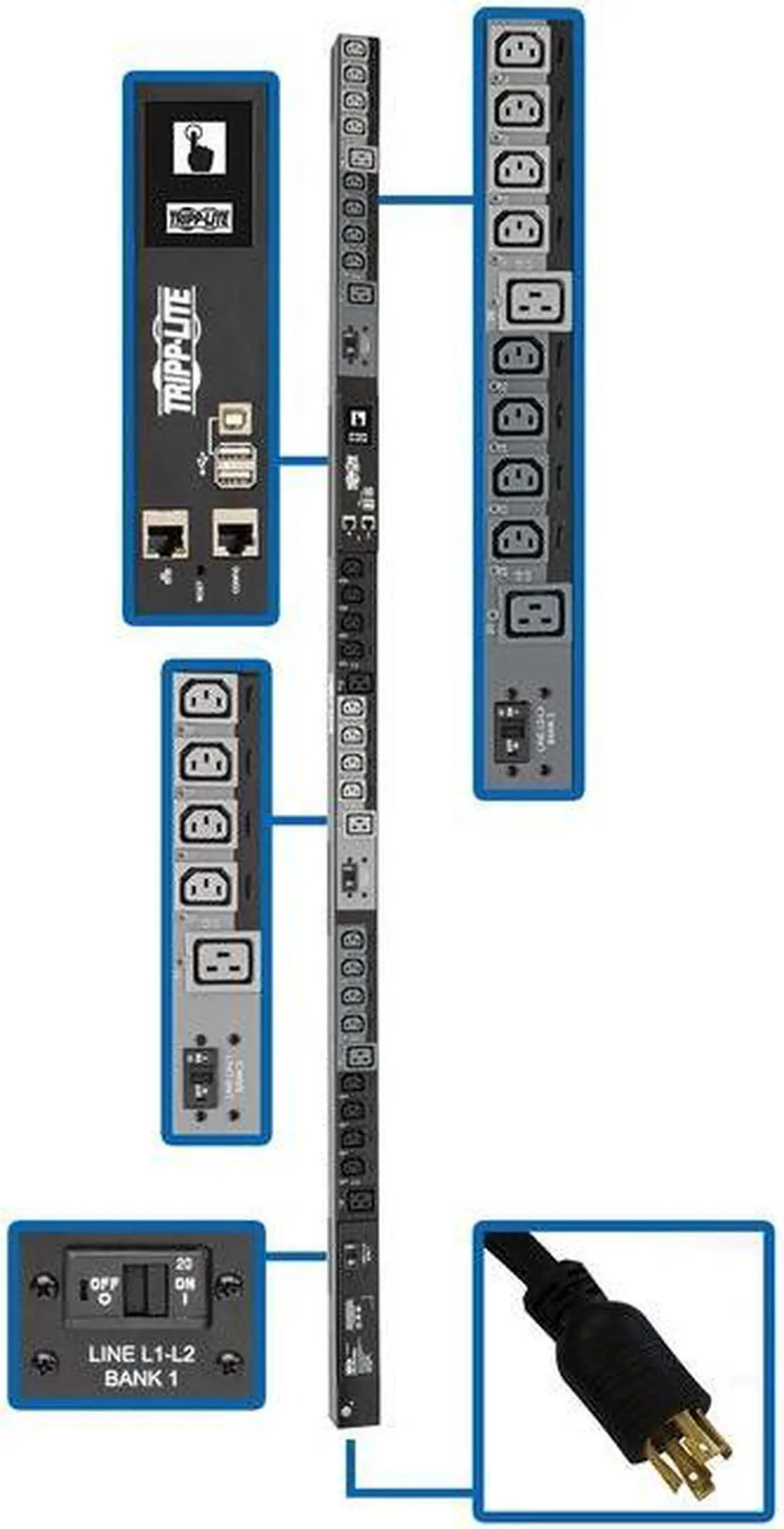

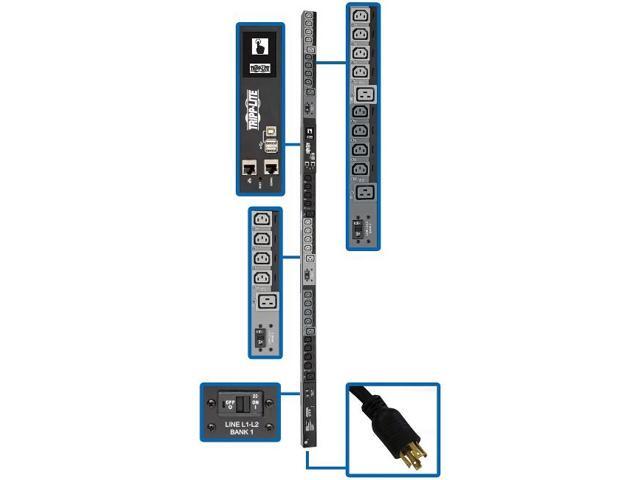

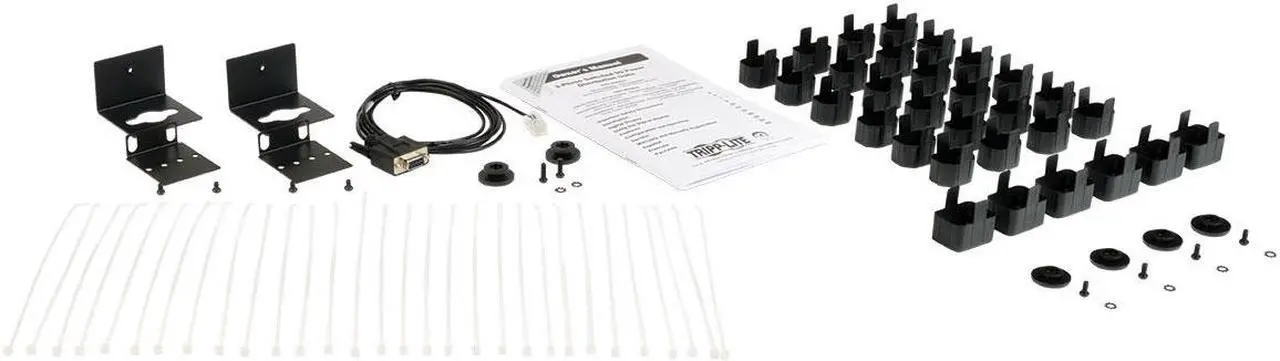

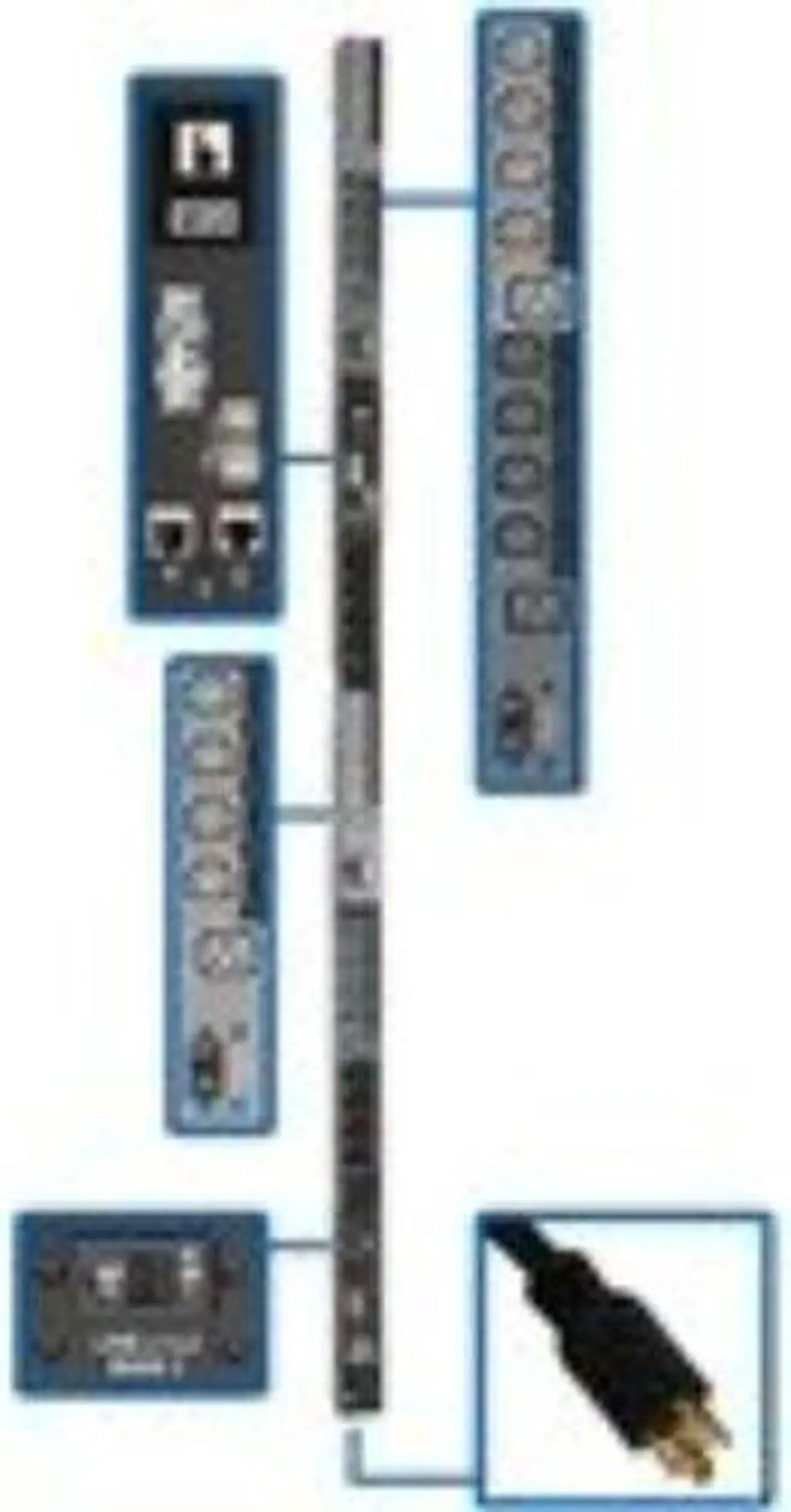

The PDU3EVSR10L2130 10kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.The 0U PDU features 30 switched outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L21-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. O...Input Receptacles: NEMA L21-30POutput Receptacles: 24 x IEC 60320 C13Output Receptacles: 6 x IEC 60320 C19Protection Type: Overload ProtectionInput Voltage: 230 V ACOutput Voltage: 230 V ACPower Rating (Watt): 10 kWInput Current: 24 AManagement: IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP Network (RJ-45): YesMounting Orientation: VerticalPlacement: RackForm Factor: Rack-mountableRack Height: 0UHeight: 70Width: 2.2"Depth: 2.9"Weight (Approximate): 20.01 lbPackage Contents: PDU3EVSR10L2130 10kW 3-Phase Switched PDU Built-in LX Platform Interface Configuration Cable 30 x Plug-lock Insert Sleeves Rack-mounting Hardware PDUMVROTATEBRKT Mounting Bracket Accessory Owner's Manual Environmentally Friendly: YesEnvironmental Certification: RoHSTAA Compliant: YesLimited Warranty: 2 YearPackage Contents PDU3EVSR10L2130 10kW 3-Phase Switched PDU Built-in LX Platform Interface Configuration Cable 30 x Plug-lock Insert Sleeves Rack-mounting Hardware PDUMVROTATEBRKT Mounting Bracket Accessory Owner's Manual "
Learn more about the Tripp Lite PDU3EVSR10L2130
Model
Brand
Tripp Lite
Model
PDU3EVSR10L2130
Details
Type
Switched
Rack Size
0U
Style
Vertical
Certifications
Tested to UL60950-1: 2007 R10.14 (USA), CAN/CSA-C22.2 NO. 60650-1-07+A1: 2011+A2: 2014 (Canada), Class A Part 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
ROHS
Yes
Input
Input Voltage
200V, 208V, 240V
Input Connector(s)
NEMA L21-30P
Cord Length
10.0 Feet
Output
Output Voltage
200V, 208V, 240V
Output Frequency
50/60Hz
Output Connector(s)
24 x C13, 6 x C19

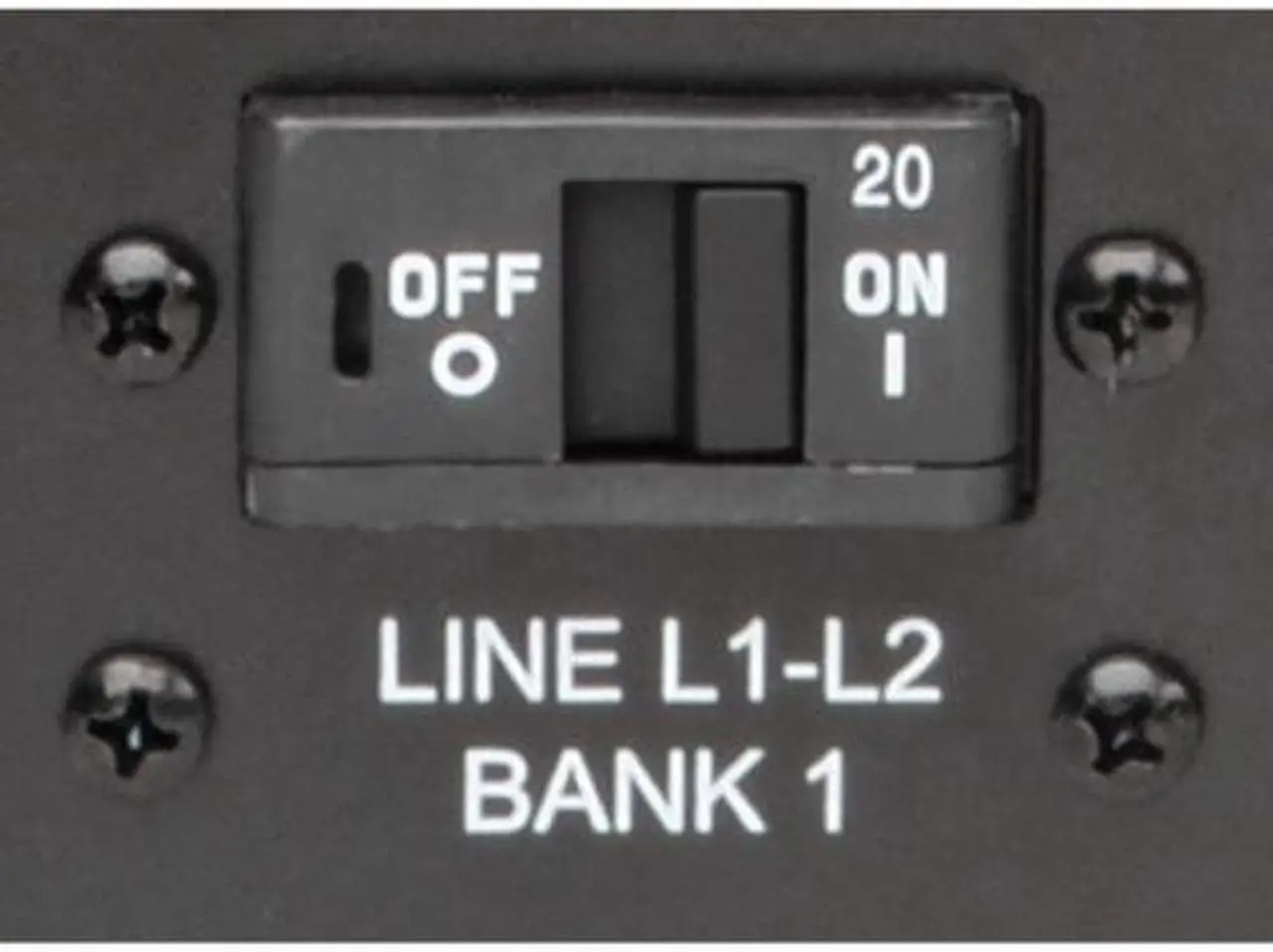

Overload Protection
20A
Environmental
Operating Environment
0 - 50 Degree Celcius
Operating Relative Humidity
5 - 95%
Operating Elevation
0 - 3000 m
Storage Temperature
-15 - 60 Degree Celcius
Storage Relative Humidity
5 - 95%
Feature
Features
Distributes, Monitors and Manages Network-Grade AC Power
