16/20A single phase 200-240V Metered Power Distribution Unit / PDU(Agency de-rated to 16A continuous)
1U horizontal rackmount; Digital current meter

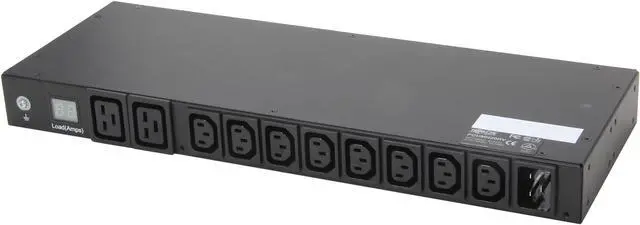

10 total outlets (8 C13, 2 C19)
C20 input with L6-20P plug adapter; 12 ft. / 3.7m line cord

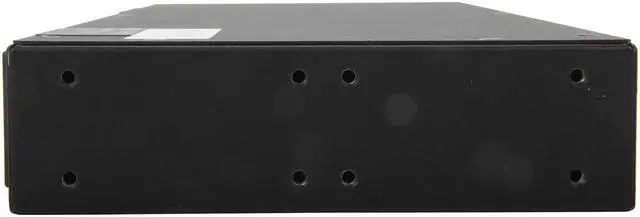

Reversible housing; 6.5 in. / 16.5 cm depth
+
+
Overview
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
PDUMH20HV Metered, 1U rack PDU supports 20A maximum capacity at 208/240 & 230V (agency de-rated to 16 amps). Includes C20 inlet and detachable input cable with both C20 and L6-20P input plug options. 10 total output receptacles (8 C13 and 2 C19). Visual current meter tracks the output current of all outlets combined. Supports 1U rackmount installation in 19 inch 2 or 4 post racks. Included cord retention bracket keeps vital network equipment plugged in and continuously powered. Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more. Included mounting brackets support horizontal installation in 19 inch racks or other surfaces, such as under-counter or wallmount configurations. Key Features 208/240 & 230V metered 1U horizontal mount Power Distribution Unit (PDU) 20A maximum capacity (Agency de-rated to 16A) Includes L6-20P and C20 line cord options (detachable via C20 inlet) 10 total output receptacles (8 C13 and 2 C19) Outlets are arranged in a single unbreakered, metered load bank Current meter offers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications Easy to read, two-character LED display offers continuous whole-PDU current monitoring data in one-amp increments Included cord retention brackets keep vital network equipment plugged in and continuously powered 1U rackmount installation supported in 2 or 4 post racks Typical Applications Ideal for network configurations requiring a metered PDU Package Includes Rackmount PDU Rack mounting brackets
Digital display reports total PDU output current in amps
Certifications
Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), CE (IEC 60950), RoHS compliant, TAA compliant
ROHS
Yes
Input
Input Voltage
200; 208; 220; 230; 240
Maximum Input Current
20A
Input Connector(s)
NEMA L6-20P; IEC-320 C20
Cord Length
12 ft
Output
Output Voltage
200; 208; 220; 230; 240
Output Frequency
50/60Hz
Output Connector(s)
8 C13 and 2 C19 outlets
Overload Protection
No
Environmental
Operating Elevation
0 - 10,000
Feature
Features
Includes L6-20P and C20 line cord options (detachable via C20 inlet)
Outlets are arranged in a single unbreakered, metered load bank
Current meter offers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications
Included cord retention brackets keep vital network equipment plugged in and continuously powered
1U rackmount installation supported in 2 or 4 post racks
Dimensions & Weight
Dimensions
1.75" x 17.50" x 6.50"
Weight
6.80 lbs.
Details
Package Includes

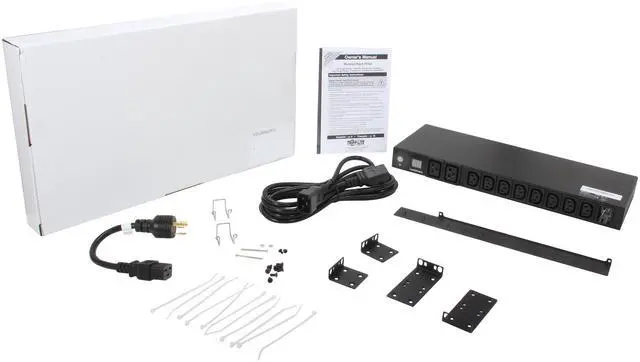

Rackmount PDU C19 to L6-20P plug adapter Rack mounting brackets
Additional Information
First Listed on Newegg
June 06, 2020
