How many outlets does the Tripp Lite Switched PDU have, and what type are they?

The Tripp Lite Switched PDU has 16 C13 outlets.

What is the maximum input current for the Tripp Lite Switched PDU?

The maximum input current for the Tripp Lite Switched PDU is 32A.

$799^.99

This item is not returnable

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

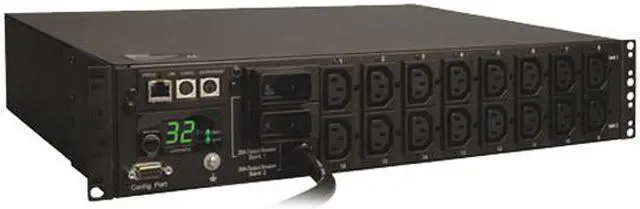

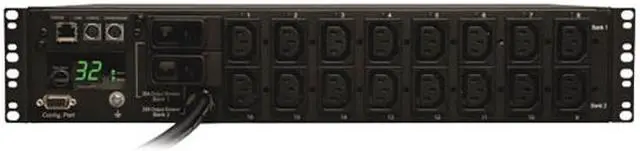

Main image of Tripp Lite Switched PDU, 7.4kW Single-Phase 230V Outlets (16-C13), IEC-309 Blue 230V 32A, 12ft Cord, 2U Rack-Mount (PDUMH32HVNET)

Alt view image 2 of 6 - Tripp Lite Switched PDU, 7.4kW Single-Phase 230V Outlets (16-C13), IEC-309 Blue 230V 32A, 12ft Cord, 2U Rack-Mount (PDUMH32HVNET)

Alt view image 3 of 6 - Tripp Lite Switched PDU, 7.4kW Single-Phase 230V Outlets (16-C13), IEC-309 Blue 230V 32A, 12ft Cord, 2U Rack-Mount (PDUMH32HVNET)

Alt view image 4 of 6 - Tripp Lite Switched PDU, 7.4kW Single-Phase 230V Outlets (16-C13), IEC-309 Blue 230V 32A, 12ft Cord, 2U Rack-Mount (PDUMH32HVNET)

Alt view image 5 of 6 - Tripp Lite Switched PDU, 7.4kW Single-Phase 230V Outlets (16-C13), IEC-309 Blue 230V 32A, 12ft Cord, 2U Rack-Mount (PDUMH32HVNET)

Alt view image 6 of 6 - Tripp Lite Switched PDU, 7.4kW Single-Phase 230V Outlets (16-C13), IEC-309 Blue 230V 32A, 12ft Cord, 2U Rack-Mount (PDUMH32HVNET)

Shop All Tripp Lite Products

Tripp Lite Switched PDU, 7.4kW Single-Phase 230V Outlets (16-C13), IEC-309 Blue 230V 32A, 12ft Cord, 2U Rack-Mount (PDUMH32HVNET)

Be the first to review this product...

Switched 32A 7.4kW 230V PDU; 2U horizontal rackmount
Reports voltage, frequency & loading information via ethernet interface
Visual current meter; Reversible housing

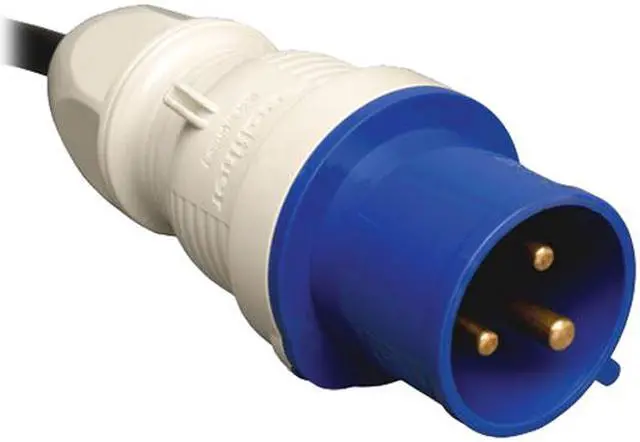

Blue 230V IEC-309 32A (2P+E) input cable
16 C13 switched outlets with cord retention brackets
2-Year Limited Warranty

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	Tripp Lite
Model	PDUMH32HVNET

Details
Type	Switched
Rack Size	2U
Style	Rackmount
Remote Management Protocol	HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP, NTP
Front Panel LEDs	16 power availability LEDs confirm power off / on status for each built-in outlet. Two additional LEDs with toggle button identify which bank the visual current meter is reporting (bank 1, bank 2 or bank 1&2 combined)
Certifications	Tested to CE (IEC 60950-1)
ROHS	Yes

Input
Input Voltage	230V
Maximum Input Current	32A
Input Connector(s)	IEC-309 32A BLUE (2P+E)
Cord Length	12 ft

Output
Output Voltage	230V
Output Frequency	50/60Hz
Output Watts (VA)	7.36 kVA
Output Connector(s)	16 C13 outlets
Overload Protection	Outlets are arranged in two banks of 8. Each bank is protected by a separate 20A circuit breaker

Environmental
Operating Elevation	0 - 10,000
Storage Temperature	-15 - 50 ºC

Feature
Features	Supports individually controllable output receptacles, current metering, network monitoring and remote control via built-in web/network monitoring and control card Offers the ability to turn on, turn off, recycle or lock-out power to each individual PDU receptacle on a programmable or real-time basis Remote interface provides data regarding input power conditions, load level and individual outlet power status via secure network or web browser interface Supports notification and logging of all major power events and user specified alarm thresholds Optional ENVIROSENSE temperature and humidity probe enables remote monitoring of environmental conditions and the ability to report conditions from up to four SRSWITCH or user supplied contact closure sensors DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses 10/100 Mbps auto-sensing allows optimal communication compatibility with your current 10/100 Base-T network Real-time clock support maintains the time of day and date even if the PDU is shut down and unpowered Tiered access priviledges allow an administrator and a guest to log into the web browser for monitoring and/or management of all PDUs Alert notifications via email or SNMP traps give users the added advantage of having an immediate event notification Front panel ammeter with push-button toggle switch displays power consumption for all 3 loading segments (8 outlets in bank 1, 8 outlets in bank 2 and total load of both banks combined) On initial power-up, outlets are automatically energized at 250 millisecond intervals to prevent inrush-related equipment interaction and mains circuit overloads Included cord retention ties keep vital network equipment plugged in and continuously powered

Dimensions & Weight
Dimensions	3.50" x 17.50" x 12.50"
Weight	13.70 lbs

Additional Information
First Listed on Newegg	June 22, 2011
