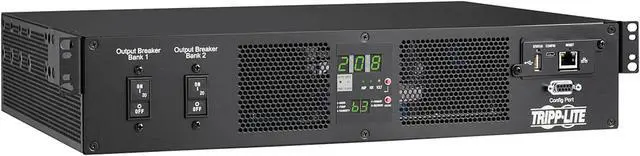

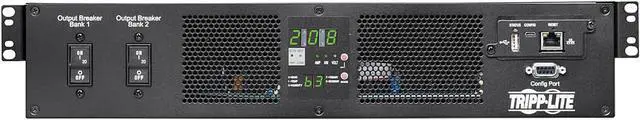

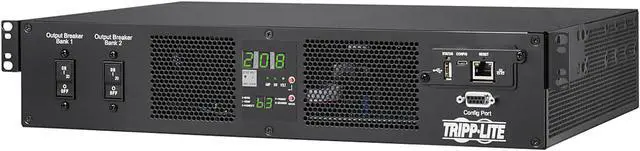

Tripp Lite PDUMNH32HVAT2 7.4kW 200-240V Single-Phase ATS/Monitored PDU - 16 C13 & 2 C19 Outlets, Dual IEC 309 32A Blue Inputs, 3 m Cords, 2U, TAA
- Built-in HTML5-based LX Platform interface allows you 24/7 remote access
- Enables redundant A/B power option for single-corded network devices
- Digital meter for real-time voltage, amp and load monitoring helps prevent overloads

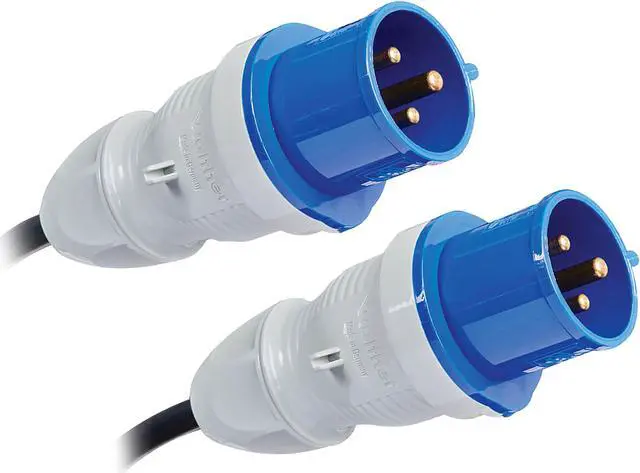

- 3 m cords with IEC 309 32A Blue inputs connect to separate power sources
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Tripp Lite PDUMNH32HVAT2
| Brand | Tripp Lite |
|---|---|
| Model | PDUMNH32HVAT2 |
| Type | Monitored |
|---|---|
| Rack Size | 2U |
| Certifications | IEC 62368-1; RETIE (Colombia) |
| Input Voltage | 200 - 240V |
|---|---|
| Maximum Input Current | 32A |
| Input Connector(s) | (2) IEC-309 32A BLUE (2P+E) |
| Cord Length | 10 ft |
| Output Voltage | 200; 220; 230 |
|---|---|
| Output Frequency | 50/60Hz |
| Output Watts (VA) | 7.4kW |
| Output Connector(s) | (16) C13; (2) C19 |

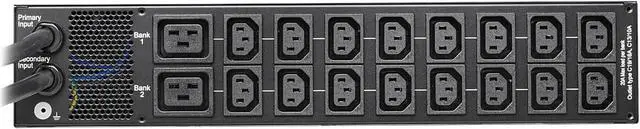

| Overload Protection | Includes two 20A output circuit breakers; Breaker 1 controls the upper row of 9 outlets (8 C13, 1 C19); Breaker 2 controls the lower row of outlets (8 C13, 1 C19) |
| Operating Environment | 0C ~ 40C (32F ~ 104F) |
|---|---|
| Operating Relative Humidity | 5-95% non condensing |
| Operating Elevation | 0 - 3000 m |
| Storage Temperature | -30°C to +50°C (-22°F to +122°F) |
| Features | Single-Phase 32A 200-240V ATS PDU Distributes and Monitors Network-Grade Power in Real Time This monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH32HVAT2 features 16 C13 and 2 C19 outlets in two load banks, each bank protected by a 20A circuit breaker. Dual three-meter power cords with IEC 309 32A Blue inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources. Switches from Primary to Secondary Power Source in Milliseconds Dynamic solid-state automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 1-5 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source. Built-In LX Platform Network Management Card Allows Remote Access 24/7 The Java-free HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite's PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations. Digital Load Meter Helps Prevent Potentially Expensive Overloads Mounts into 2U of Rack Space or on a Wall TAA-Compliant for GSA Schedule Purchases |
|---|
| Dimensions | 3.50" x 17.50" x 12.50" |
|---|---|
| Weight | 13.70 lbs. |
| Package Includes | PDUMNH32HVAT2 7.4kW Single-Phase ATS/Monitored PDU Configuration cable, USB-A to USB Micro-B Rack-mounting hardware Installable plug-retention sleeves Cable ties Owner's manuals |
|---|
| First Listed on Newegg | April 22, 2025 |
|---|
