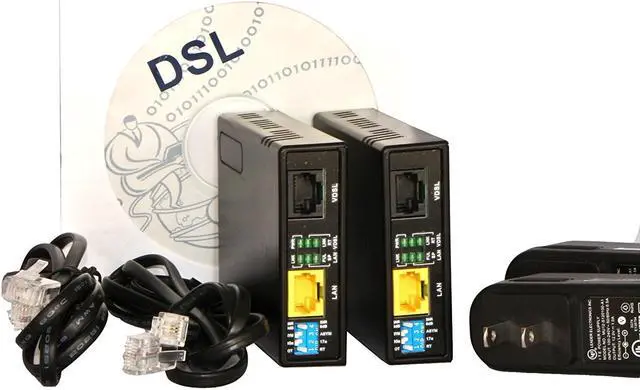

Ethernet Extender Kit (Pair 2pc) - Tupavco TEX-100 - Range up to 1 Mile/7000FT over Phone Copper Wire or CAT5/CAT6 Network Cable -VDSL2 Lan Booster Bridge Repeater-VDSL High-Speed Broadband 100 Mbps

Ethernet Extender Kit TEX-100 VDSL2 is a high-speed, Long Reach Ethernet Booster/LAN Repeater with one RJ45 Ethernet port and one RJ45 VDSL port. Bridge modem uses VDSL2 technology to extend Ethernet service over Ethernet Extender Kit TEX-100 VDSL2 is a high-speed, Long Reach Ethernet Booster/LAN Repeater with one RJ45 Ethernet port and one RJ45 VDSL port. Bridge modem uses VDSL2 technology to extend Ethernet service over a single-pair copper cord phone line. VDSL2 Ethernet Extender features 100Mbps of a symmetric data rate. VDSL Bridge TEX-100 is a high-speed Ethernet Extender designed for Utility applications.

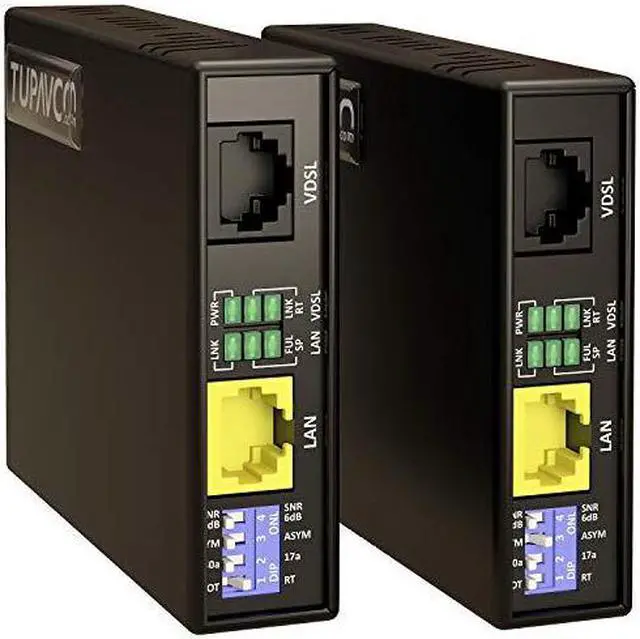

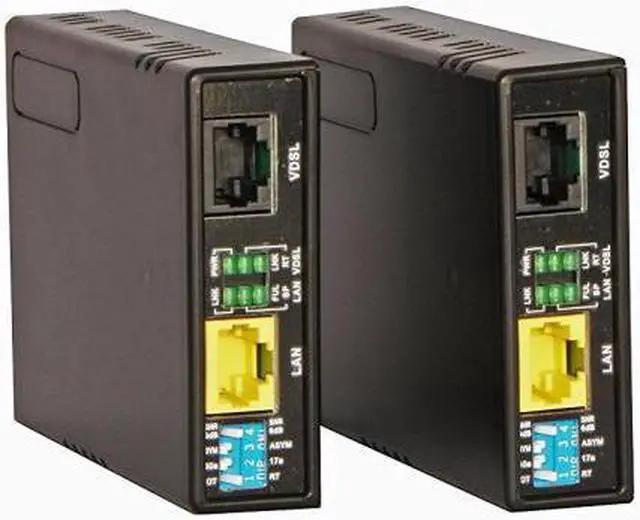

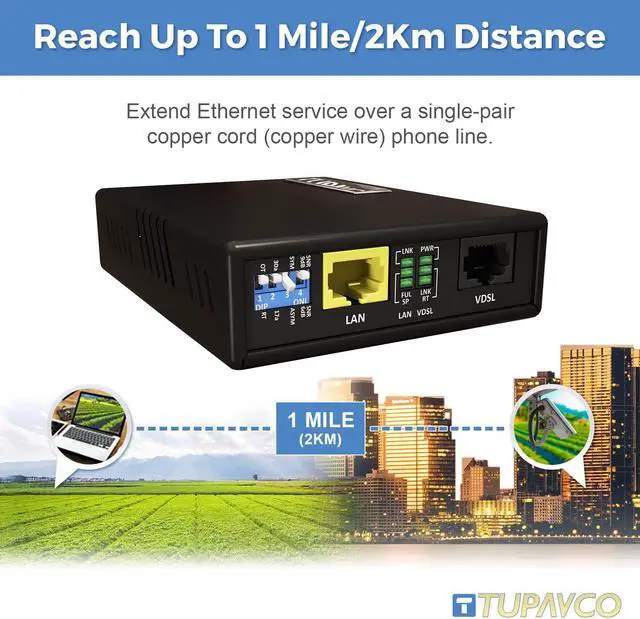

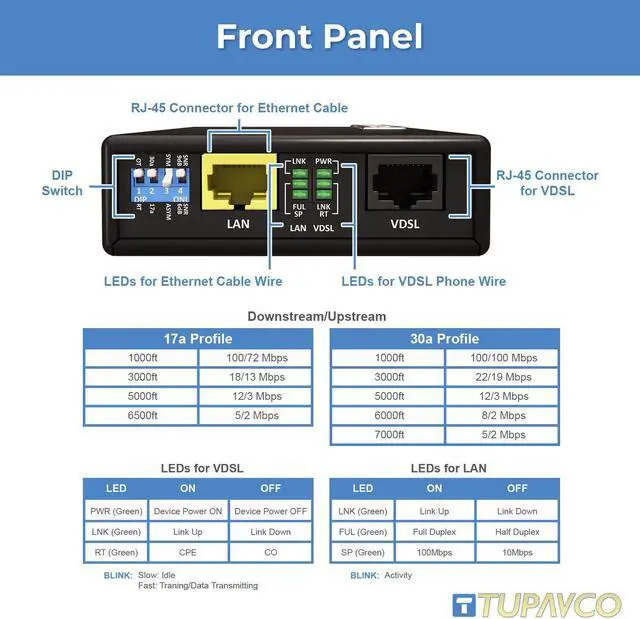

This VDSL extender is equipped with one Ethernet port (RJ-45 connector) and one VDSL port (Phoenix connector ). Ethernet Repeater is a bridge mode modem, well-accommodating VDSL2 (Very-high-data-rate Digital Subscribe Loop) technology to extend Ethernet service over a single-pair copper cable phone line. LAN Booster is compliant with ITU-T G. 993.2 standard and supports VDSL2 30a profile that features 100Mbps of symmetric data rate over the existing copper wires. Supporting both symmetric and asymmetric transmission, this Ethernet booster can reach up to 100/100 Mbps bandwidth ( line rate) within 300M or 10/10 Mbps ( line rate) for 1-mile long range connections.

By providing ultra-high speed, TUPEX-100 VDSL2 Ethernet Extender makes your telephone line achieve its best performance than before. LAN Repeater has the advantage of minimum installation time (simply as plug-n-play) and minimum expense by allowing video streaming and data to share the same telephone pair without interference. single-pair phone line. TEX-100 VDSL2 Ethernet Extender delivers everything needed to quickly deploy a high-speed IP-based network for providing high-speed Internet access, video-on-demand services, and voice services. The resulting compact, cost-effective form factor offers Systems Integrators, small business owners an attractive Long Reach Ethernet solution? Cost effective bridge function to connect two Ethernet LAN Support flow control on Fast Ethernet port via PAUSE frame or Back Pressure IEEE 802.1Q VLAN tag transparent Easy installation via simple plug-and-play Selectable CPE and CO mode via

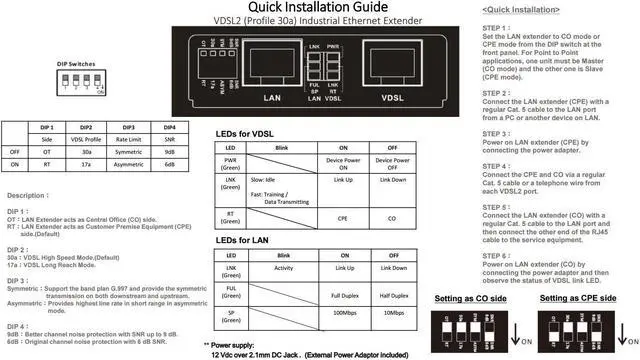

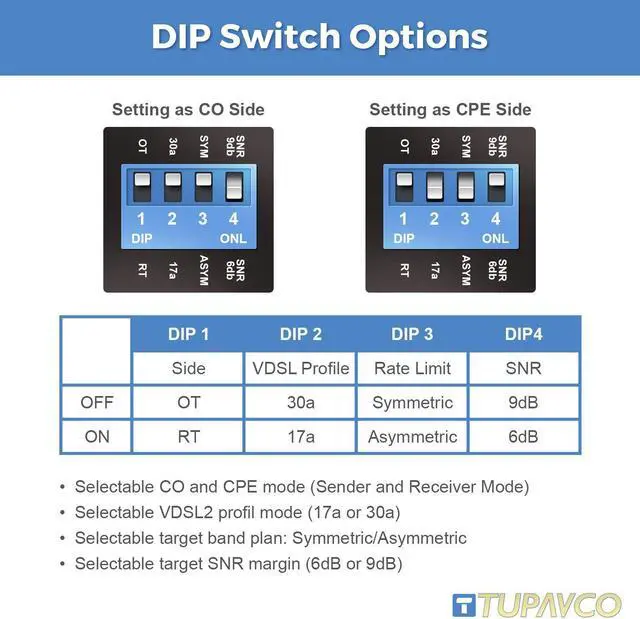

DIP switch: Two working modes are built in the same unit, which keeps the flexibility of installation and easy provision of service but lower inventory of service provider
Selectable VDSL2 profile mode (17a or 30a): Support up to VDSL2 30a profile to ensure high data rate.
Selectable target band plan:
Symmetric: Support the band plan G. 997 and provide the symmetric transmission on both downstream and upstream.

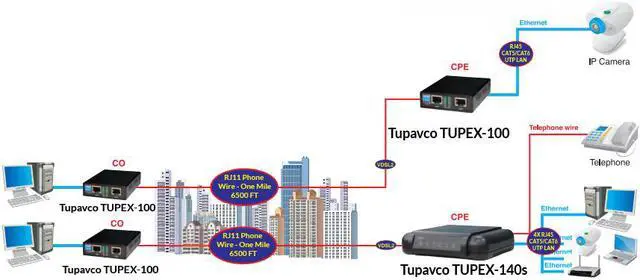

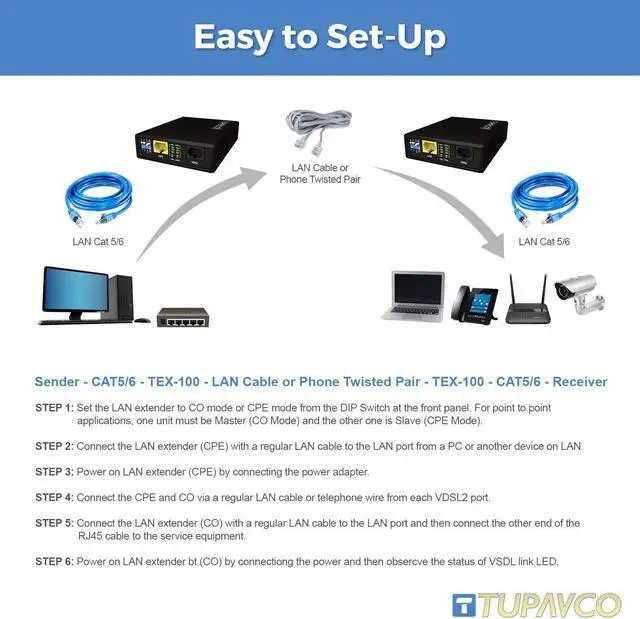

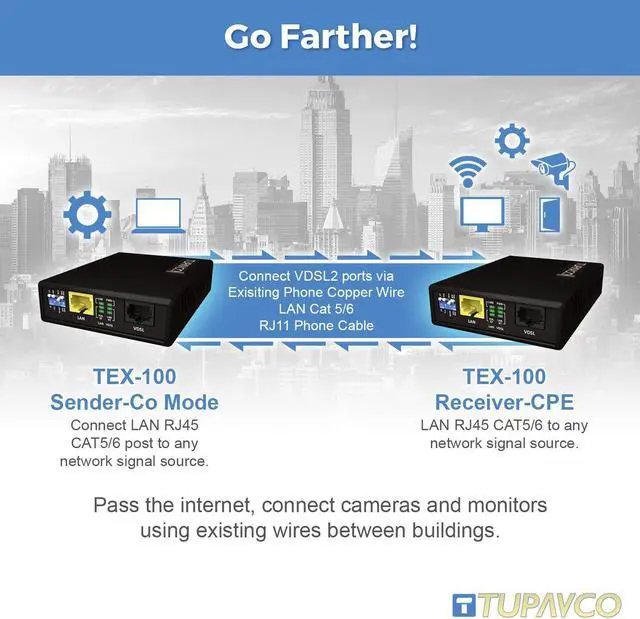

Asymmetric: Provides highest line rate in short range in the asymmetric mode. Selectable target SNR margin Compatible with the 724M/708M DSLAM & third party DSLAM. Use two TEX-100 VDSL2 in CO and CPE mode to establish a point-to-point connection in your network. The RJ-45 is designed to connect to the Local Network with the Unshielded Twisted Pair (UTP) cable. Remember to change the DIP switches so that one unit is CO (or Central Office) that's the switch/firewall/main network end - and the other is RT or CPE (that's Remote Terminal or Customer Premise Equipment) that's the device end (like wireless AP, or an IP phone, remote camera, another switch or something else). You can use CAT5e/CAT6 cable too, in place of the phone cable to connect the two extenders. To use it with a line that already has analog voice service, please check TEX-140S device and pair it with TEX-100 on the other end.? Profile 17a VDSL Profile-Down/Up stream 1000ft-100/72 Mbps 2000ft-42/46 3300ft-18/13 4000ft-16/7 5000ft-12/3 6000ft-9/2 6500ft-5/2 Profile 30a VDSL2 1000ft-100/100 Mbps 2000ft-40/45 2000ft-40/45 3000ft-22/19 4000ft-16/7 5000ft-12/3 6000ft-8/2 7000ft-5/2
