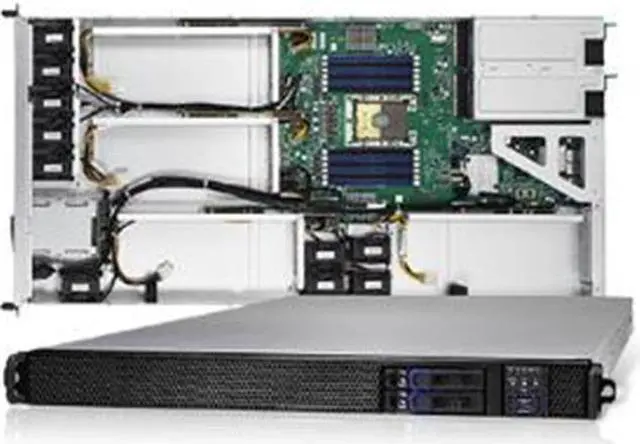

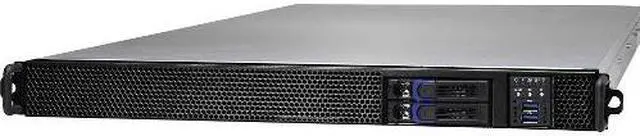

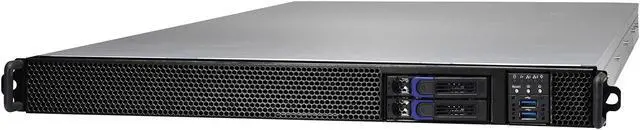

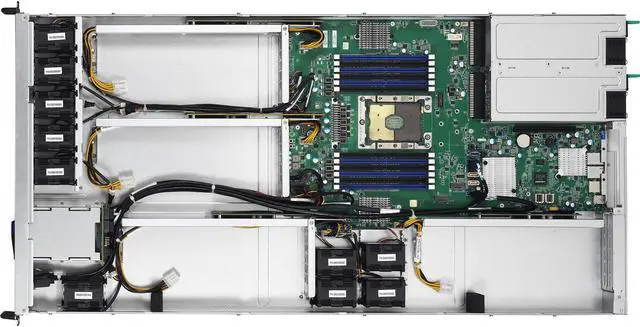

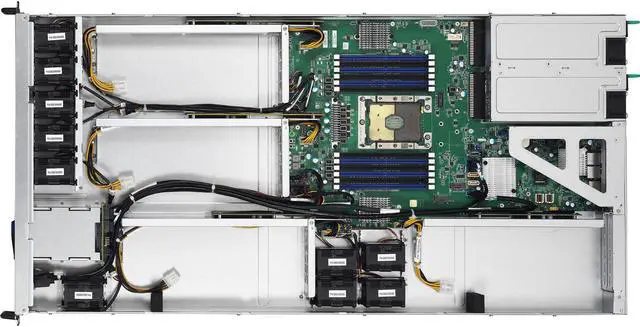

TYAN 1U GPU Barebone B5631G88V2HR-2T-N Single Socket Xeon SP, 4 GPUs, 12 DIMMs
OPEN BOX Product Type
- Single socket Xeon Scalable Processor based 4 GPU server designed for Neural Network, Artificial Intelligence, and Machine Learning workloads
- Fits 4x GPU cards with TDP up to 300W
- Dimensions: H43.6mm x W438mm x D890mm (35")
- Intel Xeon Scalable Processor w/ TDP up to 165W
- Chipset Intel C621 PCH (LBG-1G) + (2) PLX PEX8747 PCIe Switches
- Memory:
- - (12) DDR4 DIMM slots (6 memory channels), supporting up to 768GB RDIMM/LRDIMM 2666 memory
- PCI Expansion Slots
- - (4) FH/FL PCIe G3 x16 slots + (1) FH/HL PCIe G3 x16 slot
- - (2) 2280/22110 PCIe x4 M.2 ports
- Network
- - (2) 1000BASE-T or 10GBASE-T ports (Intel X540-AT2)
- - (1) 1000BASE-T Dedicated IPMI port (Realtek RTL8211)
- Storage
- - (2) hot-swap 2.5" SATA 6G HDDs (Intel RSTe 5.0)
- - (2) PCIe x4 M.2 2280 / 22110 NVMe
- AST2500 BMC with iKVM, IPMI, and Redfish support
- (1+1) 1,600W hot-swap RPSU, 80+ Platinum
- (10) 4056 easy-swap redundant fans
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TYAN B5631G88V2HR-2T-N
| Brand | TYAN |
|---|---|
| Model | B5631G88V2HR-2T-N |
| Form Factor | 1U Rackmount |
| CPU Type | Supports Intel Xeon Scalable Processor |
|---|---|
| CPU Socket | LGA 3647 |
| North Bridge | Intel C621 |
|---|
| Max Memory Supported | Up to 384GB RDIMM / 768GB LRDIMM / 1,536GB RDIMM 3DS / LRDIMM 3DS *Follow latest Intel DDR4 Memory POR |
|---|---|
| Memory Type Supported | DDR4 RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS 2666 |
| GPU/VPU | Aspeed AST2500 |
|---|
| PCI Express | 4 x PCI-E Gen3 x16 slots (FH / 10.5"L / DW) 1 x PCI-E Gen3 x16 slot (FH / HL) |
|---|
| Rear USB | 1 x USB3.0 port |
|---|---|
| RJ45 | 2 x 10 GbE ports, 1 x GbE dedicated for IPMI |
| Features | Single-socket Xeon Scalable Processor 12 x DDR4 DIMM slots 2 x Hot-swap SATA 6G drive bays 4 x Double-width PCIex16 slots for GPUs 1 x PCIex16 slot for NIC up to 100Gb/s 2 x NVMe M.2 22110/2280 slots 2 x onboard 10GBase-T LAN ports AST2500 BMC with Redfish support |
|---|
| Dimensions | 1.71" x 17.24" x 34.84" |
|---|---|
| Weight | 30.00 lbs. |
| First Listed on Newegg | March 20, 2024 |
|---|
