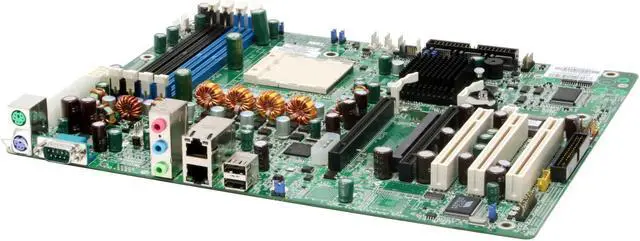

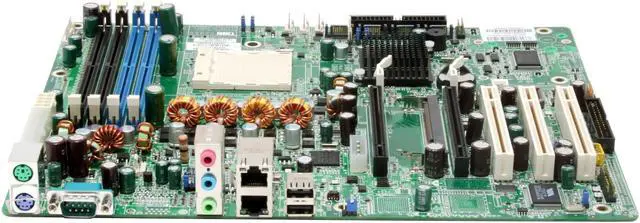

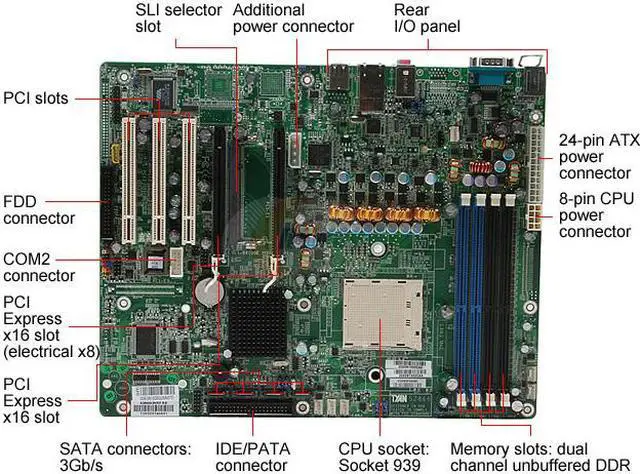

TYAN S2866A2NRF-RS ATX Server Motherboard 939 NVIDIA nForce4 Professional 2200
- 939
- NVIDIA nForce4 Professional 2200 SMSC DME1737
- 4 x 184Pin
+
+
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TYAN S2866A2NRF-RS
| Brand | TYAN |
|---|---|
| Model | S2866A2NRF-RS |
| CPU Socket Type | 939 |
|---|---|
| CPU Type | Athlon 64 X2/Athlon 64 FX/Sempron Opteron 100 series processors |
| System Bus | 1000 MHz |
| North Bridge | NVIDIA nForce4 Professional 2200 |
|---|---|
| Other Chipset | SMSC DME1737 |
| Number of DDR Slots | 4 x 184Pin |
|---|---|
| DDR Standard | DDR 400 (PC 3200) |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express x16 | One x16 PCI-E slot One x16 PCI-E slot for x8 PCI-E signal (support SLI) |
|---|---|
| PCI Slots | 3 x PCI Slots |
| Other Slots | One SO-DIMM socket for SLI card |
| PATA | 1 x ATA 133 2 Dev. Max |
|---|---|
| PATA RAID | NV RAID 0/1/0+1 JBOD |
| SATA | 4 x SATA 3.0Gb/s |
| SATA RAID | NV RAID 0/1/0+1 JBOD |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Broadcom BCM5705 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Marvell 88E1111-CAA |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|

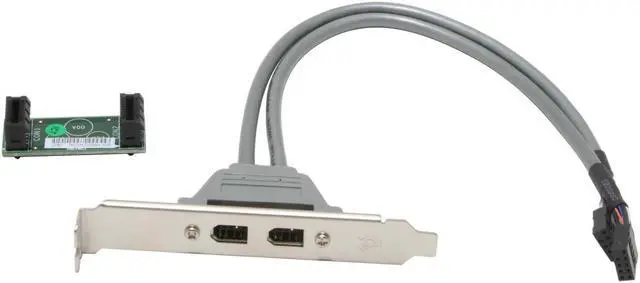

| Onboard 1394 | 2 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |

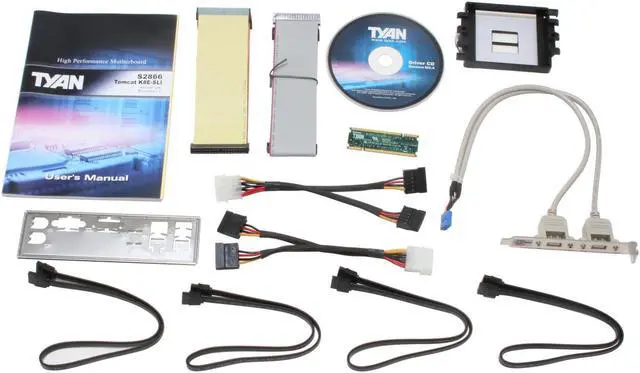

| Package Contents | S2866A2NRF-RS User Manual Software Disk Rear I/O Panel Shield CPU Clip 2 x Power Cable IDE Cable FDD Cable 4 x SATA Cable SLI Bridge IEEE 1394 Bracket USB Bracket Other Accessories |
|---|
| Date First Available | November 05, 2019 |
|---|
