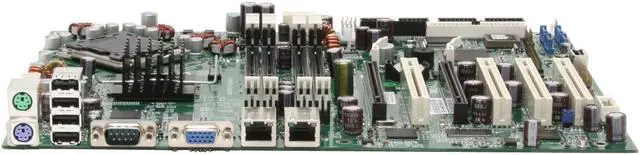

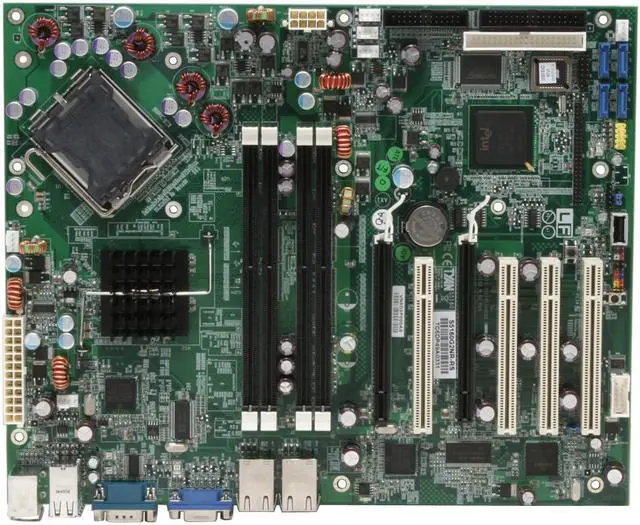

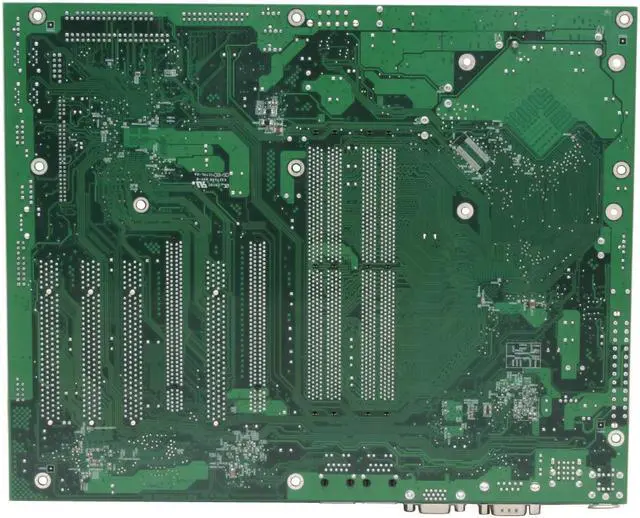

    TYAN S5160G2NR-RS ATX Server Motherboard LGA 775 Intel E7230 DDR2 667

    (2) Write a Review
    • LGA 775
    • Intel E7230 SMSC SCH5017 super I/O chip
    • 4 x 240Pin
    +
    +
    Specs
    Reviews (2)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the TYAN S5160G2NR-RS

    Model
    Brand TYAN
    Model S5160G2NR-RS
    Supported CPU
    CPU Socket Type LGA 775
    CPU Type Intel Pentium 4 (Prescott Ready)
    System Bus 1066/800/533 MHz
    Supported CPU Technologies Hyper-Threading Technology
    Chipsets
    North Bridge Intel E7230
    South Bridge Intel ICH7R
    Other Chipset SMSC SCH5017 super I/O chip
    Memory
    Number of DDR2 Slots 4 x 240Pin
    DDR2 Standard DDR2 667
    Maximum Memory Supported 8GB
    Channel Supported Dual Channel
    ECC Supported Yes
    Expansion Slots
    PCI Express x16 1 x PCI Express x16 slot (with x8 signal)
    1 x PCI Express x16 slot (with x4 signal)
    PCI Slots 4 x PCI Slots
    Storage Devices
    SATA 4 x SATA 3.0Gb/s
    SATA RAID Integrated Host RAID 0, 1, 5, and 10 support
    Windows Driver Support ONLY
    Onboard Video
    Onboard Video Chipset XGI Volari Z7
    Onboard LAN
    LAN Chipset Broadcom BCM5721
    LAN Speed 10/100/1000Mbps
    Second LAN Chipset Broadcom BCM5721
    Second LAN Speed 10/100/1000Mbps
    Max LAN Speed 2 x 1Gbps
    Rear Panel Ports
    PS/2 2
    COM 1
    Video Ports D-Sub
    USB 1.1/2.0 4 x USB 2.0
    Onboard Ports
    Onboard USB 4 x USB 2.0
    Dimensions
    Form Factor ATX
    Dimensions (W x L) 12" x 9.6"
    Packaging

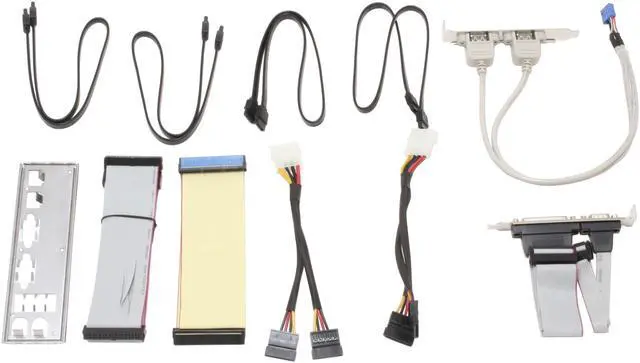

    Package Contents S5160G2NR-RS
    Rear I/O Panel Shield
    User Manual
    Driver Disk
    IDE/PATA Cable
    FDD Cable
    4 x SATA Cable
    2 x Power Cable
    USB Bracket
    Other Accessories
    Additional Information
    First Listed on Newegg October 01, 2019
