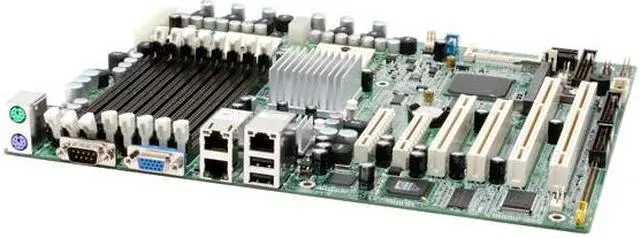

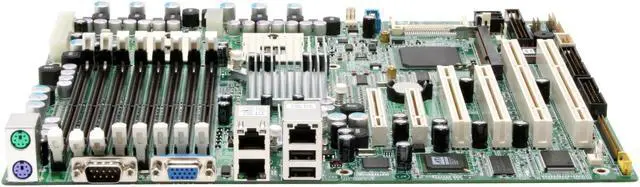

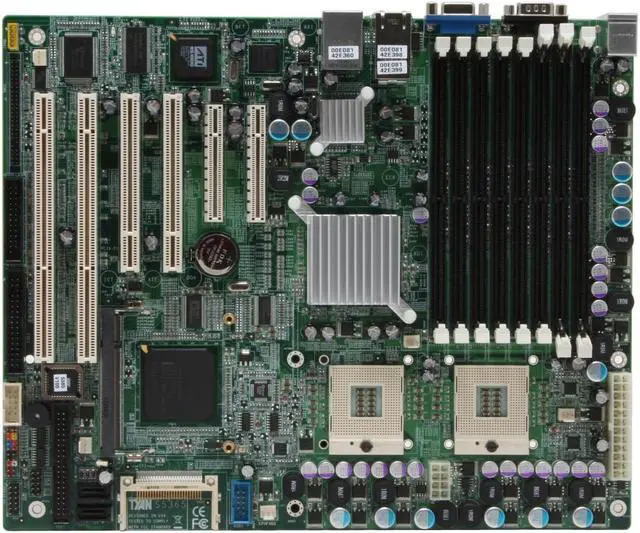

    TYAN S5365G3NR ATX Server Motherboard Dual 479 Intel E7520 DDR2 400

    Be the first to review this product...
    • Dual 479
    • Intel E7520
    • 8 x 240Pin
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the TYAN S5365G3NR

    Model
    Brand TYAN
    Model S5365G3NR
    Supported CPU
    CPU Socket Type Dual 479
    CPU Type Dual Intel Xeon(Dual Core support)
    System Bus 667/533 MHz
    Chipsets
    North Bridge Intel E7520
    South Bridge Intel 6300ESB
    Memory
    Number of DDR2 Slots 8 x 240Pin
    DDR2 Standard DDR2 400
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    ECC Supported Yes
    Registered Yes
    Expansion Slots
    PCI Express x16 None
    PCI Express x8 2 x PCI Express x8
    PCI-X Slots (64-bit 66MHz) 2
    PCI Slots 2 x PCI Slots
    Other Slots One proprietary 200-pin TARO SO-DIMM connector
    Storage Devices
    PATA 1 x ATA 100 2 Dev. Max
    SATA 2 x SATA 1.5Gb/s
    SATA RAID 0/1
    Onboard Video
    Onboard Video Chipset ATI ES1000
    Onboard LAN
    LAN Chipset Dual Intel 82571EB
    LAN Speed 10/100/1000Mbps
    Second LAN Chipset Intel 82551QM
    Second LAN Speed 10/100Mbps
    Max LAN Speed 2 x 1Gbps + 100Mbps
    Rear Panel Ports
    PS/2 2
    COM 1
    Video Ports 1
    USB 1.1/2.0 2 x USB 2.0
    Onboard Ports
    Onboard USB one internal USB header
    Features
    Features RoHs Complianced
    Dimensions
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Packaging
    Package Contents S5365G3NR
    User Manual
    Software Disk
    Rear I/O Panel Shield
    2 x SATA Cable
    IDE Cable
