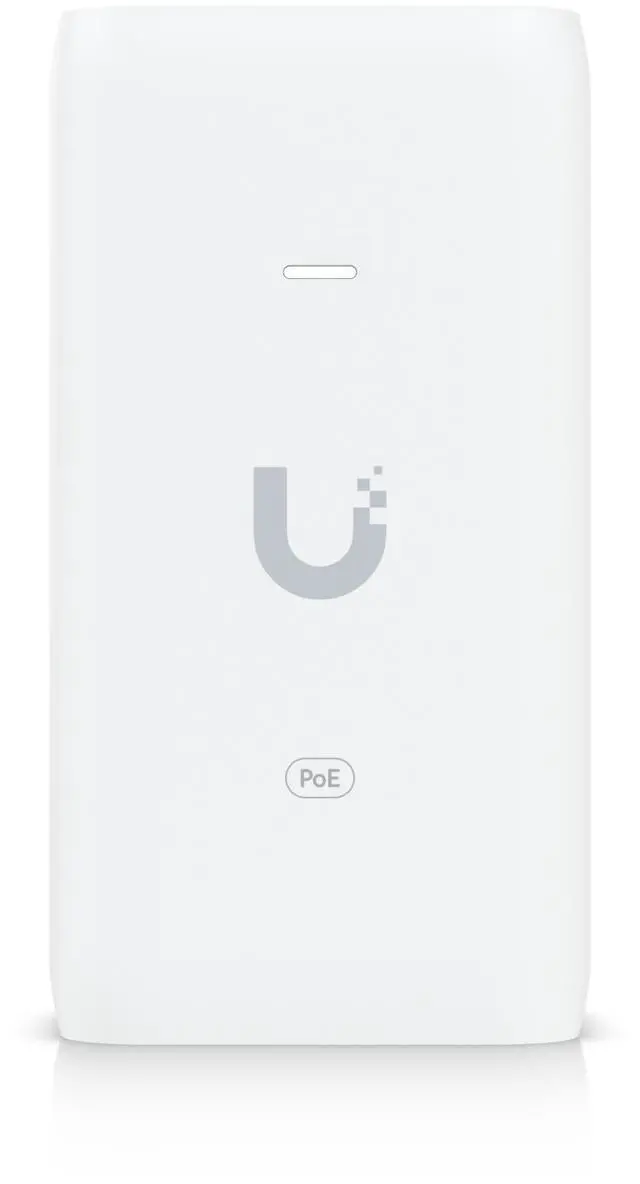

Main image of Ubiquiti PoE Adapter (15W) (U-PoE)

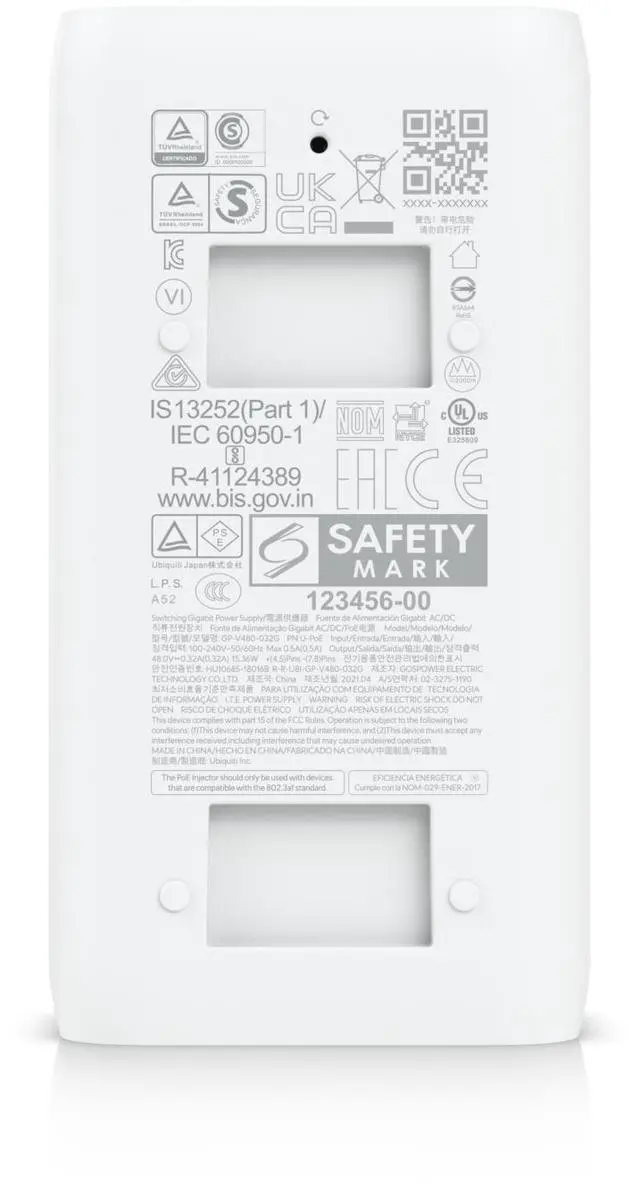

Alt view image 2 of 4 - Ubiquiti PoE Adapter (15W) (U-PoE)

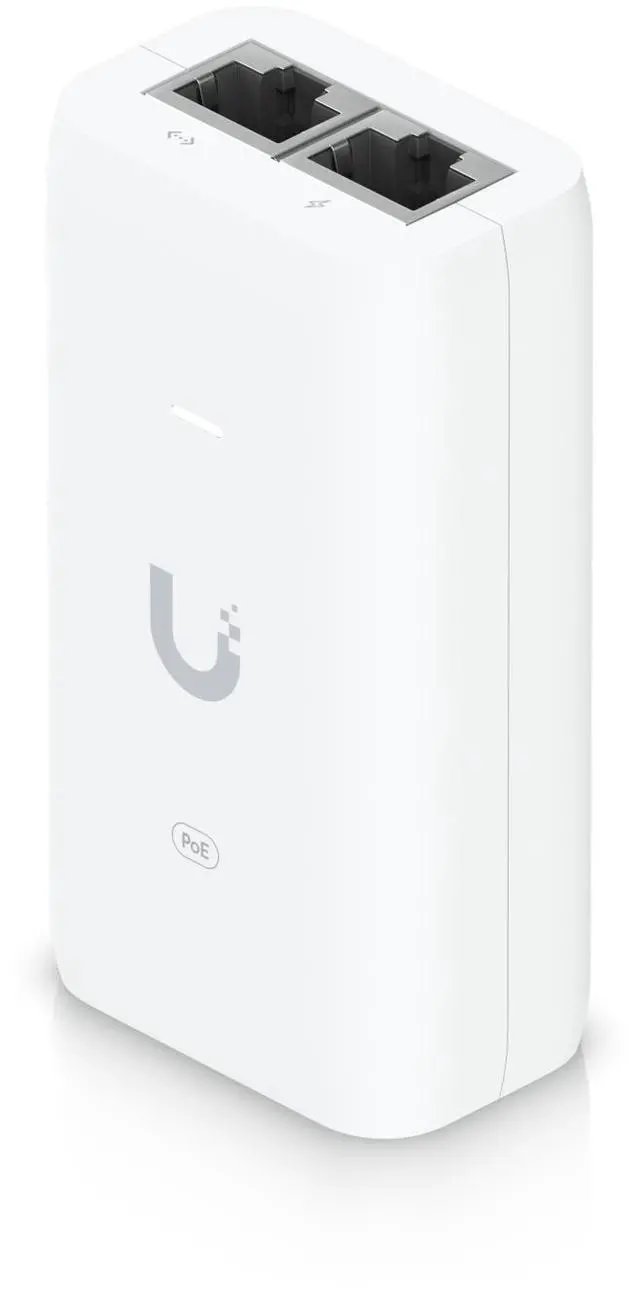

Alt view image 3 of 4 - Ubiquiti PoE Adapter (15W) (U-PoE)

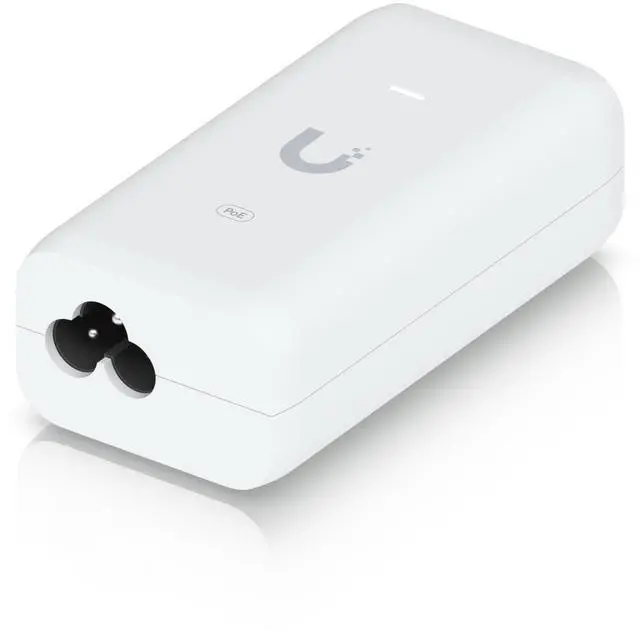

Alt view image 4 of 4 - Ubiquiti PoE Adapter (15W) (U-PoE)

Shop All Ubiquiti Networks Products

Ubiquiti PoE Adapter (15W) (U-PoE)

Option: U-POE (15W)

U-POE (15W)
U-POE+ (30W)
U-POE++ (60W)

Delivers up to 15W of PoE
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE output
LED indicator for status monitoring
Compatibility: UK-Ultra, U6-PLUS, U6-IW, U6-Mesh, U6-Pro, U6-Lite, UAP-AC-IW, UTP-Touch, UVC-G5-Dome-Ultra, UVC-G5-Turret-Ultra, UVC-G5-Pro, UVC-G5-Flex, UVC-G5-Bullet, UVC-G5-Dome, UVC-AI-Pro, UVC-AI-DSLR, UVC-AI-Bullet, UVC-AI-360, UVC-AI-Theta-Pro, UVC-AI-Theta, UVC-AI-Theta-Hub, UVC-G4 Doorbell Pro PoE Kit, UVC-G4-DOME, UVC-G4-Bullet, UVC-G4-Pro, UVC-G3-FLEX

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

Ubiquiti 24V PoE AdapterBrand NewIncludes One Year Limited WarrantyProduct # U-POE-AF

The Ubiquiti 24V PoE Adapter is highly reliable and provide surge protection, earth grounding, clamping protection, maximum surge discharge and protection against electrostatic discharge events when used with Ubiquiti TOUGHCable™. The adapter can mount on the wall with help of optional wall-mount brackets. This adapter works with the airGateway™ to bridge airMAX® connections to Wi-Fi at customer locations.

24V PoE Adapter Features:

PoE Switch
Surge Protection
Clamping Protection
Maximum Surge Discharge
Peak Pulse Current
AC Cable with Earth Ground
Gigabit LAN Port

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: non-refundable

Return for replacement within: non-replaceable

This item is covered by Newegg.com's Manufacturer Only Return Policy. Read full return policy for details.

Type	PoE Adapter
Color	White
Specifications	Dimensions: 86 x 46 x 33 mm (3.4 x 1.8 x 1.3") Weight: 100 g (3.5 oz) Output voltage: 48V DC @ 0.32A Gigabit LAN port Rated voltage: 100—240V AC @ 50/60Hz Input current: 500mA max. Inrush current: <100A peak at 25°C Efficiency: 84.25+% Output ripple: 200mV p-p Switching frequency: 65 kHz Line regulation = 3% Load regulation = 5% 2-pair powering Pins: 4, 5 (+) and 7, 8 (-) AC connector: IEC-320 C6 Data In / PoE: RJ45 shielded socket Surge protection: Difference and common mode Clamping protection: 11V data, 60V power Max. surge discharge: 1500A (8/20 µs) power Peak pulse current: 36A (10/1000 µs) data Shunt capacitance: <5 pF data Response time: <1 ns Ambient operating temperature: 0 to 40° C (32 to 104° F) Storage temperature: -30 to 70°C (-22 to 158° F) Ambient operating humidity: 10 to 95% noncondensing Certifications: CE, FCC, IC, UL
