Ubiquiti Networks Fiber WiFi 6 (UF-WiFi6)
OPEN BOX Product Type
- GPON customer-premises equipment (CPE) with WiFi6 support.
- (1) GPON port
- Integrated 4-port GbE switch
- Integrated WiFi 6
- Note: This device is only compatible with the Fiber OLT. It cannot be used with third-party OLTs.
+
+
Specs
Learn more about the Ubiquiti Networks UISP Fiber WiFi 6
| Brand | Ubiquiti Networks |
|---|---|
| Model | UISP Fiber WiFi 6 |
| Part Number | UF-WiFi6-US |

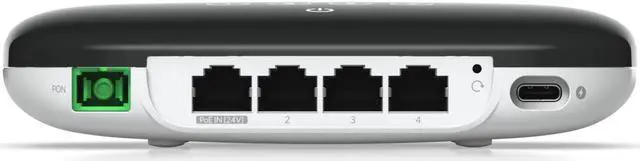

| Standards | (1) SC/APC, ITU-G.984 GPON WAN port (4) GbE RJ45 LAN ports |
|---|---|
| WiFi Generation | WiFi 6 |
| Wireless Standard | 802.11 b/g/n/ac/ax |
| Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES) |
| WPA | WPA-PSK WPA-ENT WPA WPA2 WPA3 TKIP AES |
| WAN Ports | (1) SC/APC, ITU-G.984 GPON WAN port |
| LAN Ports | (4) GbE RJ45 LAN ports |

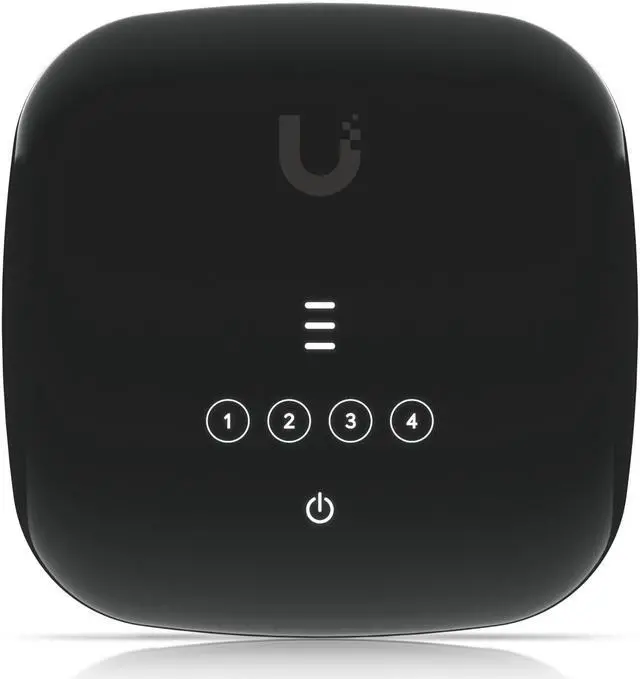

| LEDs | PON status (3) signal LEDs All-OFF: bootup 1x orange: signal too low (< -28 db) 1x white: signal low (>= -28 db) 2x white: signal good (>= -25 db) 3x white: signal strong (>= -11 db) 1x orange + 2x white: signal too strong (>= -8 db) 3x orange: no signal LEDs alternate between orange + white + orange and a signal strength indicator: No authority Ethernet Steady white: link up Blinking white: activity OFF: link down Power White: ON |
| Wireless Data Rates | 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11ax (WiFi 6) 8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Antenna | Max. WiFi TX power 2.4 GHz 5 GHz 20 dBm 20 dBm MIMO 2.4 GHz 5 GHz 2 x 2 2 x 2 Max. WiFi radio rate 2.4 GHz 5 GHz 300 Mbps 1.2 Gbps Antenna gain 2.4 GHz 5 GHz 1 dBi 3 dBi |
| Power Supply | Power method USB-C 5V DC, 3A 24V passive PoE, 0.5A Power supply 5V DC, 3A power adapter, 1.5 m cord (included) Passive PoE 2-pair (4, 5+; 7, 8-) Supported voltage range 10–30V DC (passive PoE) 5V DC (adapter) Max. power consumption 11W |
| Dimensions | 140.8 x 141.5 x 31.7 mm (5.5 x 5.6 x 1.3") |
| Weight | 415 g (14.6 oz) |
| Temperature | -15 to 45° C (5 to 113° F) |
| Humidity | 10 to 90% noncondensing |
| Special Features | Fiber Operating wavelength TX RX 1310 nm 1490 nm Line code Scrambled NRZ Optical interface nominal bit rate Downstream Upstream 2488.32 Mbit/s 1244.16 Mbit/s Physical reach 20 km |
|---|
| Date First Available | June 14, 2024 |
|---|
