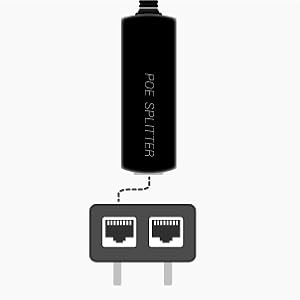

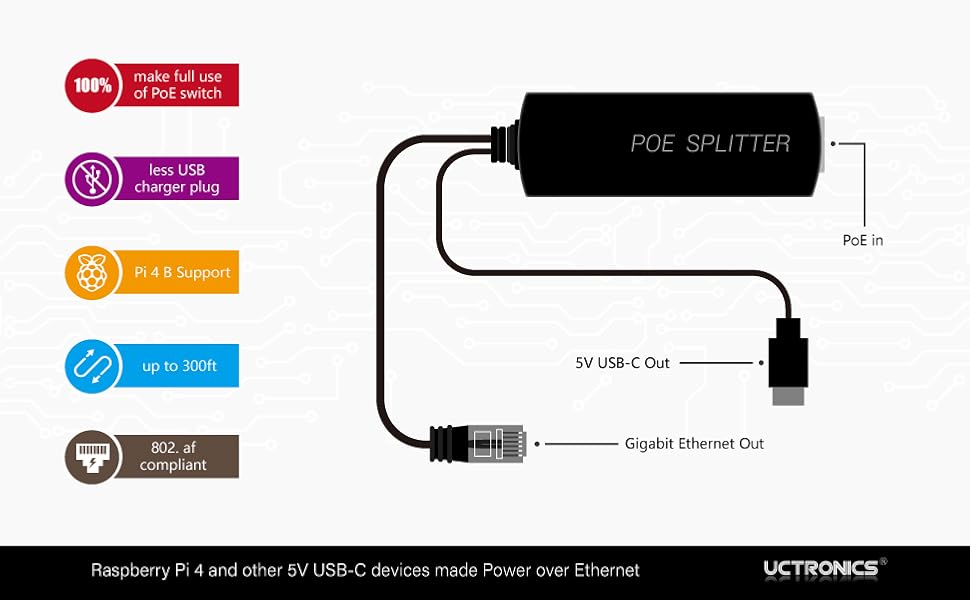

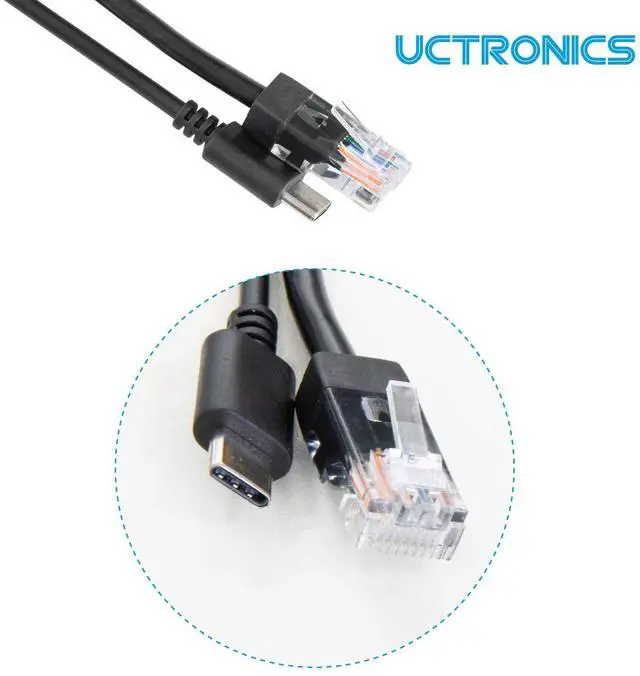

UCTRONICS produces reliable PoE splitters to add Power over Ethernet support to 5V USB-C devices. PoE splitters save USB adapter wall plugs, extend power line to where your Ethernet cable reaches, and make full use of the extra PoE ports by converting them to 5V USB-C power supply. It’s designed for 5V USB-C devices to be powered over Ethernet cables for powerline adaptation or extension. We recommend you use this item with IEEE 802.3af compliant PoE switches or injectors.
Specs:
- Power Input: 802.3af 44-56V Mode A&B 300mA
- Isolation: 2.5KV
- Model: UC-3AF-USBC
- Power Output: DC 5V 2.4A Max
- Safety & Emissions: FC, CE
- Data Transfer Rate: 10/100/1000 Mbps
- Power Pin: 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
- Operating Temp.: 0?~40?(32?~104?)
- Storage Temp.: -40?~70?(-40?~158?)
- Operating Humidity: 10%~90% RH, Noncondensing
- Storage Humidity: 5%~90% RH, Noncondensing
Package Includes:
- UCTRONICS 802.3af USB-C Gigabit PoE splitter U6115
- An Instruction Manual

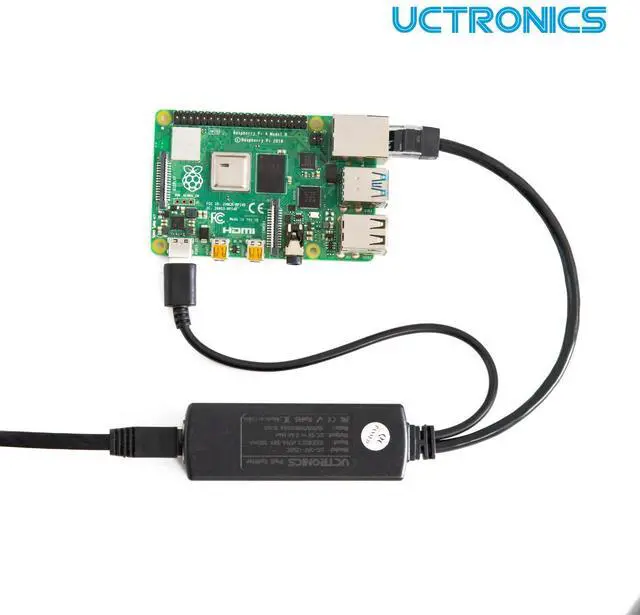

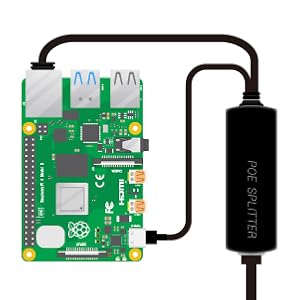

Raspberry Pi 4 PoE HAT alternative
Another way to power your Raspberry Pi 4 over Ethernet where the PoE HAT is not applicable. You can deliver up to 2.4A power if your switch or injector is 802.3af. Check IEEE802.3at (PoE+) switches and adapters(B07V35DH5F) for power-hungry applications.

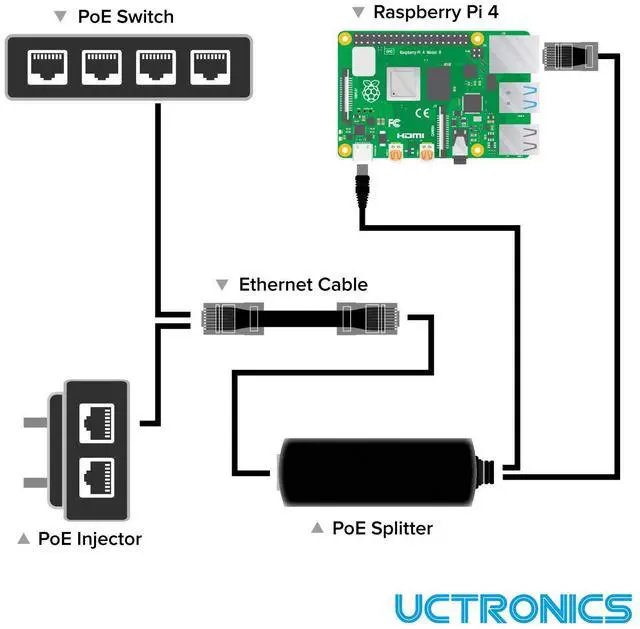

Extend Powerline with Ethernet Cable
PoE helps you deliver power to places where AC outlets are not around with a long Ethernet cable. This PoE splitter can power 5V USB-C devices with a PoE source 300 feet away

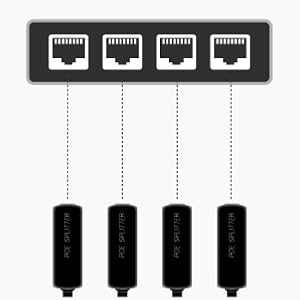

Make Full Use of Your PoE Switch
PoE splitters extend the possibilities of PoE switches. The other end of the PoE port does not have to be a 48V PoE network device, and it could be a 5V USB-C devices like a Raspberry Pi 4.
 2-in-1 USB-C/Micro USB PoE Splitter(U6271) |  USB-C PoE Splitter(U5259) |  Gigabit PoE Splitter(U6114) |  PoE Splitter 12V (U5160+U6023) |  Micro USB Ethernet/PoE Adapter(U6113) |  Micro USB PoE Splitter(U5159) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — no data | — | — |
| Power Output | DC 5V 3A | DC 5V 4A | DC 5V 4A | DC 12V 2A | DC 5V 2.5A | DC 5V 2.4A |
| Compliant Standard | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af | IEEE 802.3af |
| Data Transfer Rate | Gigabit | Gigabit | Gigabit | 10/100M | 10/100M | 10/100M |
| Interface | Micro USB/USB-C | USB-C | Barrel Jack/USB-C | 12V DC barrel jack | Micro USB | Micro USB |
| Compatible Devices | Raspberry Pi 3/4, Security IP Cameras and More | Raspberry Pi 4 and 5V USB-C devices | Jetson Nano, Raspberry Pi 4, and More | Internet Protocol Camera | Raspberry Pi Zero, Fire TV Stick, Chromecast, Google Mini, and More | Tablets, Dropcam or Raspberry Pi 2/3B+ , and More |
UCTRONICS produces reliable PoE splitters to add Power over Ethernet support to 5V USB-C devices. PoE splitters save USB adapter wall plugs, extend power line to where your Ethernet cable reaches, and make full use of the extra PoE ports by converting them to 5V USB-C power supply. It’s designed for 5V USB-C devices to be powered over Ethernet cables for powerline adaptation or extension. We recommend you use this item with IEEE 802.3af compliant PoE switches or injectors.
Specs:
- Power Input: 802.3af 44-56V Mode A&B 300mA
- Isolation: 2.5KV
- Model: UC-3AF-USBC
- Power Output: DC 5V 2.4A Max
- Safety & Emissions: FC, CE
- Data Transfer Rate: 10/100/1000 Mbps
- Power Pin: 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
- Operating Temp.: 0?~40?(32?~104?)
- Storage Temp.: -40?~70?(-40?~158?)
- Operating Humidity: 10%~90% RH, Noncondensing
- Storage Humidity: 5%~90% RH, Noncondensing
Package Includes:
- UCTRONICS 802.3af USB-C Gigabit PoE splitter U6115
- An Instruction Manual
Raspberry Pi 4 PoE HAT alternative
Another way to power your Raspberry Pi 4 over Ethernet where the PoE HAT is not applicable. You can deliver up to 2.4A power if your switch or injector is 802.3af. Check IEEE802.3at (PoE+) switches and adapters(B07V35DH5F) for power-hungry applications.
Extend Powerline with Ethernet Cable
PoE helps you deliver power to places where AC outlets are not around with a long Ethernet cable. This PoE splitter can power 5V USB-C devices with a PoE source 300 feet away
Make Full Use of Your PoE Switch
PoE splitters extend the possibilities of PoE switches. The other end of the PoE port does not have to be a 48V PoE network device, and it could be a 5V USB-C devices like a Raspberry Pi 4.
2-in-1 USB-C/Micro USB PoE Splitter(U6271) | USB-C PoE Splitter(U5259) | Gigabit PoE Splitter(U6114) | PoE Splitter 12V (U5160+U6023) | Micro USB Ethernet/PoE Adapter(U6113) | Micro USB PoE Splitter(U5159) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — no data | — | — |
| Power Output | DC 5V 3A | DC 5V 4A | DC 5V 4A | DC 12V 2A | DC 5V 2.5A | DC 5V 2.4A |
| Compliant Standard | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af | IEEE 802.3af |
| Data Transfer Rate | Gigabit | Gigabit | Gigabit | 10/100M | 10/100M | 10/100M |
| Interface | Micro USB/USB-C | USB-C | Barrel Jack/USB-C | 12V DC barrel jack | Micro USB | Micro USB |
| Compatible Devices | Raspberry Pi 3/4, Security IP Cameras and More | Raspberry Pi 4 and 5V USB-C devices | Jetson Nano, Raspberry Pi 4, and More | Internet Protocol Camera | Raspberry Pi Zero, Fire TV Stick, Chromecast, Google Mini, and More | Tablets, Dropcam or Raspberry Pi 2/3B+ , and More |
2-in-1 PoE Splitter 5V 3A
