Docking Station Dual Monitor for Laptop & Desktop
Merchant Video
AV Access KVM Switch with Docking Station
 iDock C10 |  iDock C20 |  iDock P10 |  iDock B10 (8K KVM) |  iDock M10 (for MacBook) |  iDock D23 |  iDock B30 | |
|---|---|---|---|---|---|---|---|
Computers | 1 Laptop + 1 Desktop | 2 Laptops | 1 Laptop + 1 Desktop | 1 Laptop + 1 Desktop | 1 MacBook + 1 Desktop | 2 Desktop (NOT for laptop) | 1 Laptop + 2 Desktops |
Monitors | Dual Monitor | Dual Monitor | Dual Monitor | Dual Monitor | Dual Monitor | Triple Monitor | Dual Monitor |
Video Interface | Type-C, DP, HDMI | Type-C, HDMI | Type-C, DP, HDMI | Type-C, DP, HDMI | Type-C, DP, HDMI | DP | Type-C, HDMI |
Control | Panel Button | Panel Button/Remote Button | Panel Button/Remote Button | Panel Button/Remote Controller | Panel Button/Remote Controller | Panel Button/Hotkey | Panel Button/IR Remote/Hotkey |
Remote Switch Button | Ã? | â??(not included) | â??(included) | â??(included) | â??(included) | â??(not included) | Ã? |
Video Resolution | 4K@60Hz 2K@144Hz 1080P@240Hz | 4K@60Hz 2K@144Hz 1080P@240Hz | 4K@60Hz 3440x1440@60Hz | 8K@60Hz, 4K@165Hz | 4K@60Hz 2K@144Hz 1080P@240Hz | 8K@60Hz 4K@165Hz 1080P@144Hz | 4K@60Hz 2K@144Hz 1080P@240Hz |

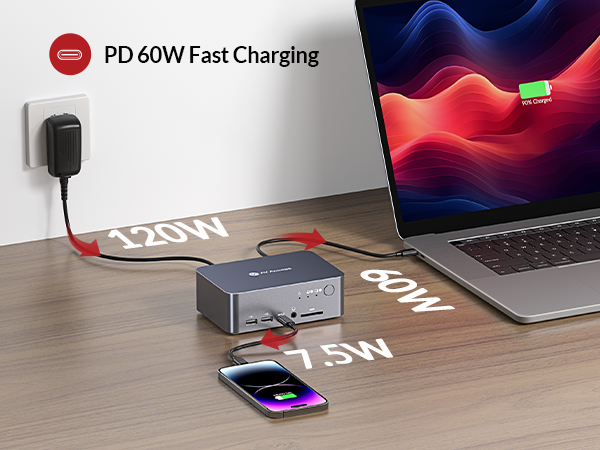

Power Delivery | â?? | â?? | â?? | â?? | â?? | Ã? | â?? (Laptop only) |
EDID Emulation | â?? | â?? | â?? | Ã? | â?? | Ã? | â?? |
Ethernet Connection | â?? (Laptop only) | â?? | â?? (Laptop only) | â?? (for Laptop and Desktop) | â?? (for Mac and Desktop) | â?? | â?? (Laptop only) |
USB Peripherals | 1*USB-C3.0,2*USB2.0,3*USB3.0 | 1*USB-C 3.0,4*USB 2.0,2*USB3.0 | 1*USB-C3.0,2*USB2.0,2*USB3.0 | 1*USB-C3.2,2*USB 3.0,3*USB 3.2 | 1*USB-C3.2, 2*USB3.0, 2*USB3.2 | 1*USB1.1,1*USB2.0,4*USB3.0 | 1*USB 1.1,1*USB 2.0,3*USB 3.0 |
SD Card | â?? | â?? | â?? | â?? | â?? | â?? | Ã? |
Cables included | 1*USB B-A,1*DP,1*HDMI,1* USB-C | 2*USB-C | USB-A to C, USB-C | USB-A,USB-C 3.2,HDMI 2.1,DP1.4 | USB-A to C,Dual-USB-C ,HDMI,DP | 2*USB B-A,6*DP | 2*USB B-A,2*HDMI,1* Type-C |

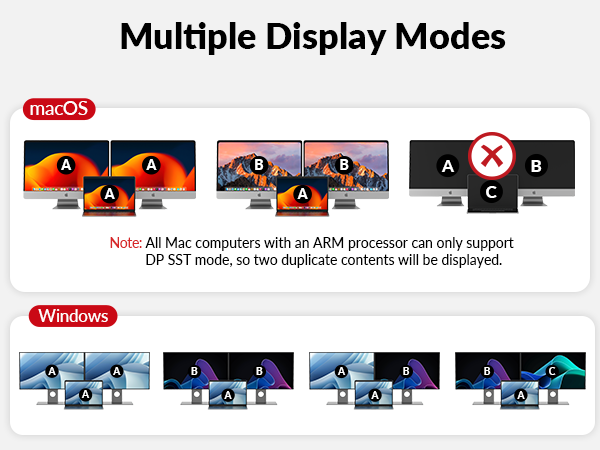

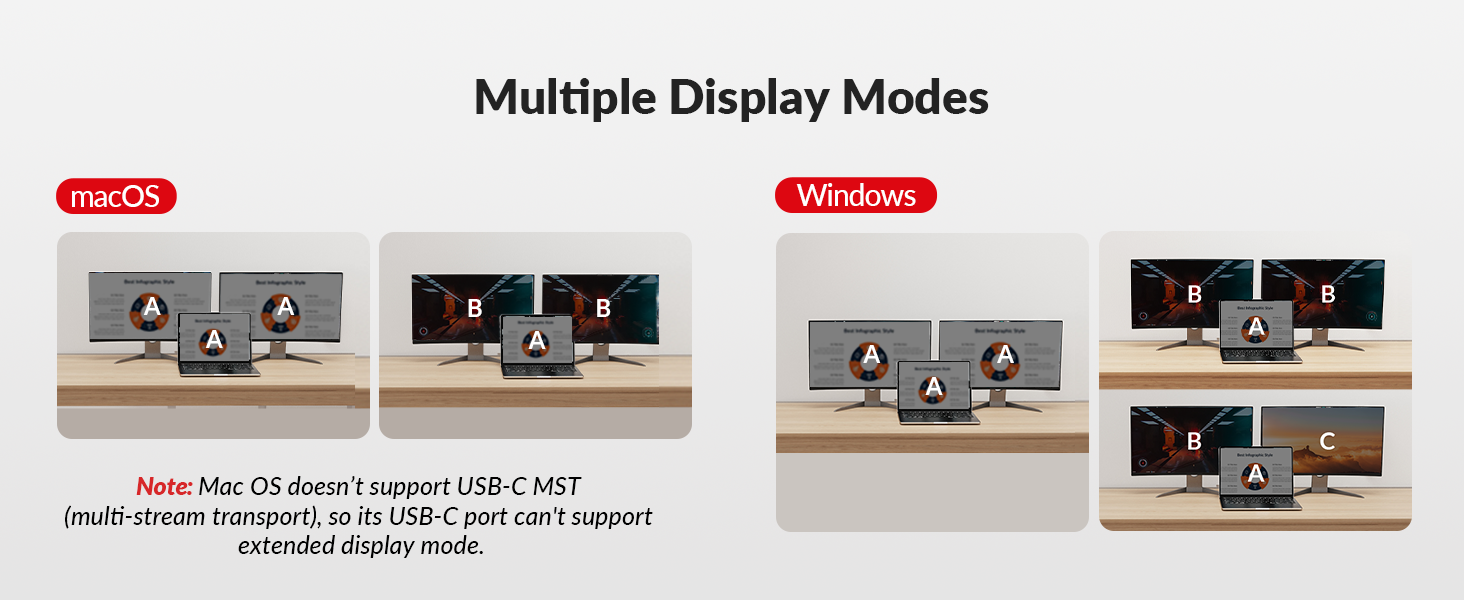

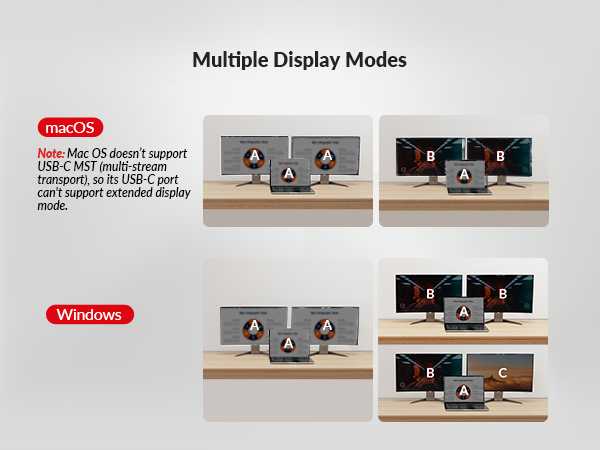

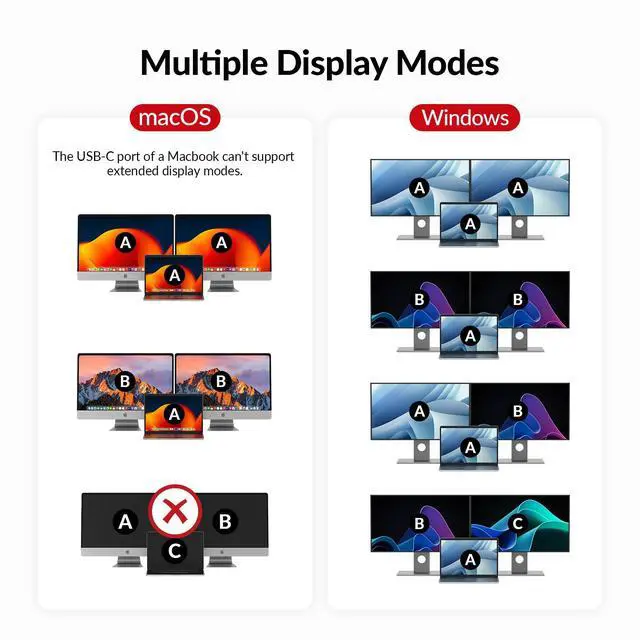

My MacBook only outputs mirrored dual screens but can't output extended dual screens. Why is that?
MacBook's USB-C port itself only supports single stream transport (SST), not multi stream transport (MST). Thus, the dual screens can only display in mirror copy mode. If you need extended dual screen output with your MacBook, please let us know.
My laptop source can not display 4k on both monitors. What should I do?

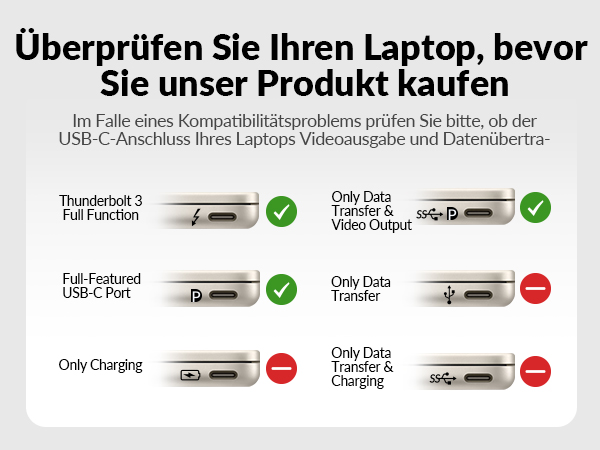

A: 1. Use the USB-C cable included in the package (do not use thunderbolt cable), and try connecting it to different USB-C ports on your laptop. 2. Try lowering the resolution and refresh rate.
Can the device work with single monitor?

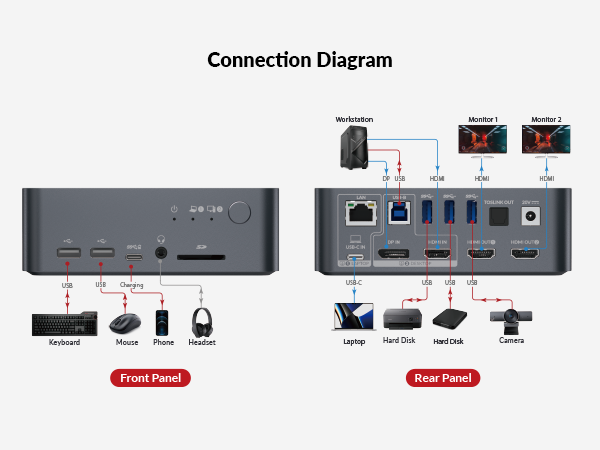

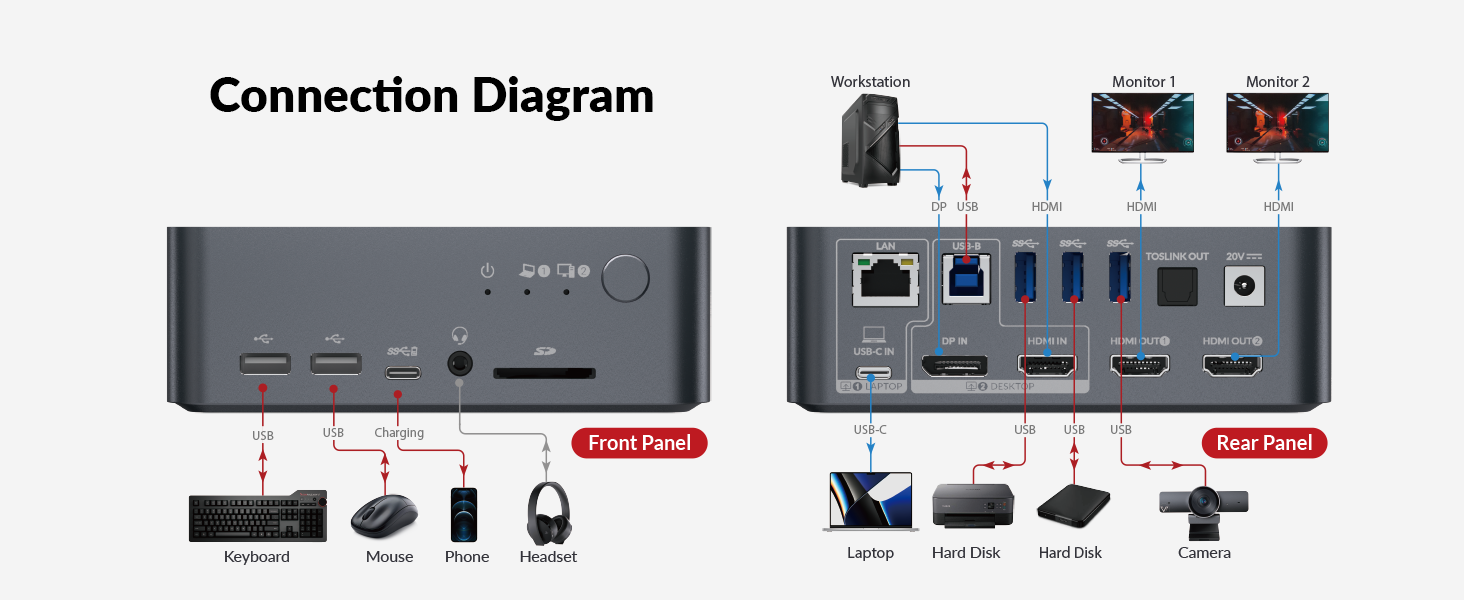

Yes, the â??DP INâ?� port of the KVM switch only corresponds to HDMI Output 1 while the â??HDMI INâ?� port corresponds to HDMI Output 2, so correct input port needs to be connected accordingly for single-monitor display.
My USB device doesnâ??t work when switching to desktop input, but it works fine with the laptop. What should I do?
Ensure that the included USB-A to USB-B cable is securely connected to both your desktop and the device. For stable transmission, we recommend using the USB ports on the back of your computer.
Sometimes no video output or no USB signal after I switch to another pc. What should I do?
This situation doesnâ??t happen very often, but if you are having this problem, try disconnecting and reconnecting the cables or restarting the dock.
Docking Station Dual Monitor for Laptop & Desktop
Merchant Video
AV Access KVM Switch with Docking Station
iDock C10 | iDock C20 | iDock P10 | iDock B10 (8K KVM) | iDock M10 (for MacBook) | iDock D23 | iDock B30 |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Computers | ||||||
| 1 Laptop + 1 Desktop | 2 Laptops | 1 Laptop + 1 Desktop | 1 Laptop + 1 Desktop | 1 MacBook + 1 Desktop | 2 Desktop (NOT for laptop) | 1 Laptop + 2 Desktops |
| Monitors | ||||||
| Dual Monitor | Dual Monitor | Dual Monitor | Dual Monitor | Dual Monitor | Triple Monitor | Dual Monitor |
| Video Interface | ||||||
| Type-C, DP, HDMI | Type-C, HDMI | Type-C, DP, HDMI | Type-C, DP, HDMI | Type-C, DP, HDMI | DP | Type-C, HDMI |
| Control | ||||||
| Panel Button | Panel Button/Remote Button | Panel Button/Remote Button | Panel Button/Remote Controller | Panel Button/Remote Controller | Panel Button/Hotkey | Panel Button/IR Remote/Hotkey |
| Remote Switch Button | ||||||
| × | v(not included) | v(included) | v(included) | v(included) | v(not included) | × |
| Video Resolution | ||||||
| 4K@60Hz 2K@144Hz 1080P@240Hz | 4K@60Hz 2K@144Hz 1080P@240Hz | 4K@60Hz 3440x1440@60Hz | 8K@60Hz, 4K@165Hz | 4K@60Hz 2K@144Hz 1080P@240Hz | 8K@60Hz 4K@165Hz 1080P@144Hz | 4K@60Hz 2K@144Hz 1080P@240Hz |
| Power Delivery | ||||||
| v | v | v | v | v | × | v (Laptop only) |
| EDID Emulation | ||||||
| v | v | v | × | v | × | v |
| Ethernet Connection | ||||||
| v (Laptop only) | v | v (Laptop only) | v (for Laptop and Desktop) | v (for Mac and Desktop) | v | v (Laptop only) |
| USB Peripherals | ||||||
| 1*USB-C3.0,2*USB2.0,3*USB3.0 | 1*USB-C 3.0,4*USB 2.0,2*USB3.0 | 1*USB-C3.0,2*USB2.0,2*USB3.0 | 1*USB-C3.2,2*USB 3.0,3*USB 3.2 | 1*USB-C3.2, 2*USB3.0, 2*USB3.2 | 1*USB1.1,1*USB2.0,4*USB3.0 | 1*USB 1.1,1*USB 2.0,3*USB 3.0 |
| SD Card | ||||||
| v | v | v | v | v | v | × |
| Cables included | ||||||
| 1*USB B-A,1*DP,1*HDMI,1* USB-C | 2*USB-C | USB-A to C, USB-C | USB-A,USB-C 3.2,HDMI 2.1,DP1.4 | USB-A to C,Dual-USB-C ,HDMI,DP | 2*USB B-A,6*DP | 2*USB B-A,2*HDMI,1* Type-C |
My MacBook only outputs mirrored dual screens but can't output extended dual screens. Why is that?
MacBook's USB-C port itself only supports single stream transport (SST), not multi stream transport (MST). Thus, the dual screens can only display in mirror copy mode. If you need extended dual screen output with your MacBook, please let us know.
My laptop source can not display 4k on both monitors. What should I do?
A: 1. Use the USB-C cable included in the package (do not use thunderbolt cable), and try connecting it to different USB-C ports on your laptop. 2. Try lowering the resolution and refresh rate.
Can the device work with single monitor?
Yes, the “DP IN” port of the KVM switch only corresponds to HDMI Output 1 while the “HDMI IN” port corresponds to HDMI Output 2, so correct input port needs to be connected accordingly for single-monitor display.
My USB device doesn’t work when switching to desktop input, but it works fine with the laptop. What should I do?
Ensure that the included USB-A to USB-B cable is securely connected to both your desktop and the device. For stable transmission, we recommend using the USB ports on the back of your computer.
Sometimes no video output or no USB signal after I switch to another pc. What should I do?
This situation doesn’t happen very often, but if you are having this problem, try disconnecting and reconnecting the cables or restarting the dock.
