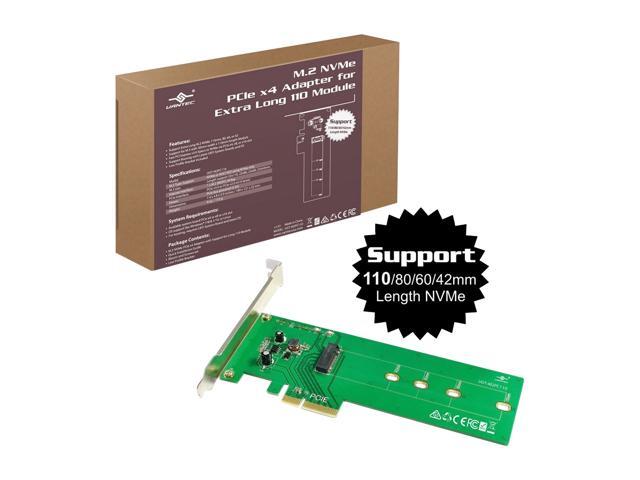

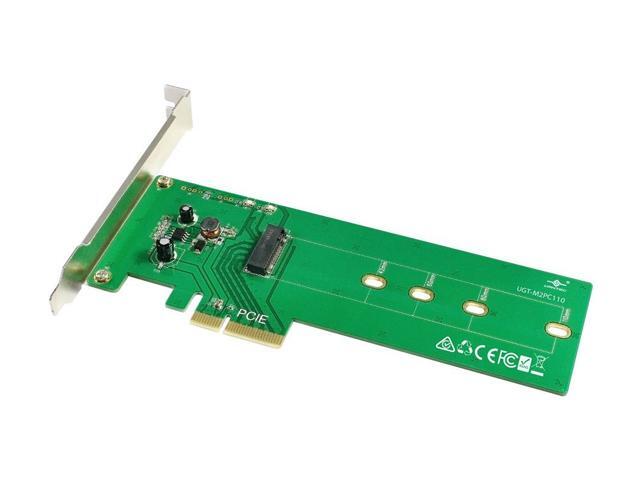

VANTEC UGT-M2PC110 M.2 NVMe PCIe X4 Adapter For Extra Long 110mm Module

In stock.
Ships from United States.

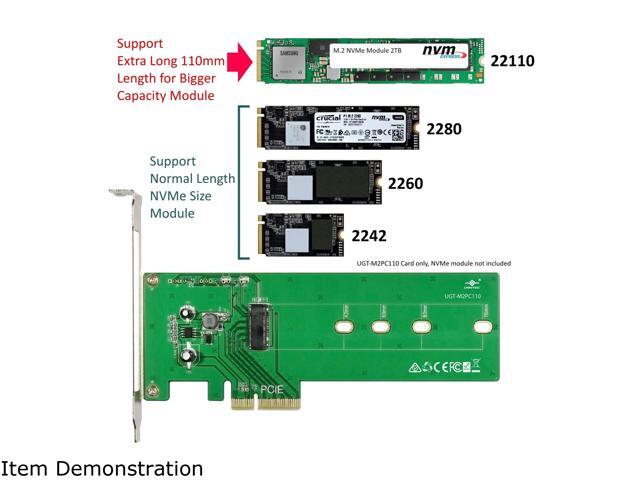

  • Support Extra Long M.2 NVMe Module like 110mm, 80, 60, or 42
  • Support for M.2 with 30mm width x 110mm length Module

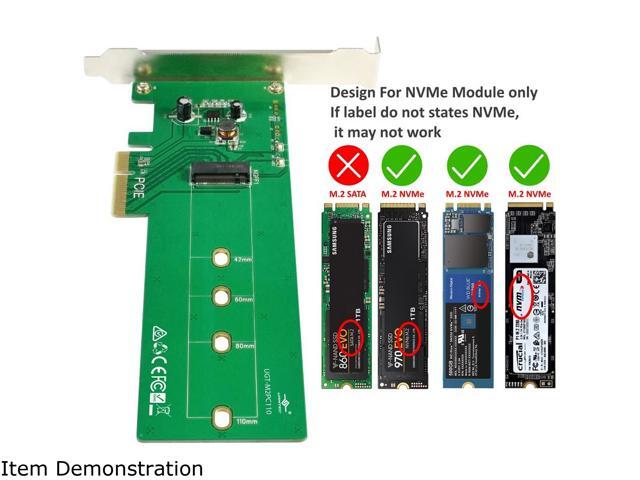

  • Support M.2 (NGFF) PCIe based (NVMe or AHCI) SSD to PCIe x4 slot
  • Support M.2 interface with M key only, do not support M+B key
  • Adapter supports PCI Express v3.0 Specs and compatible with v2.0 / v1.0
  • Supports system boards with PCIe x4,x8,x16 slots
  • Uses minimum power from PCIe 3.3V for better power management

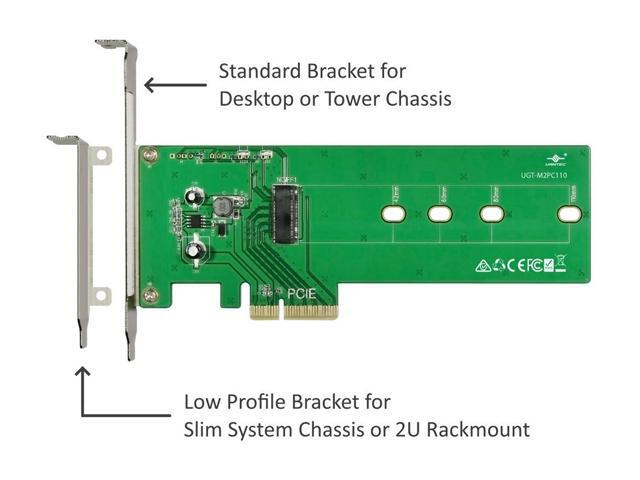

  • Low Profile Bracket included
Specs
Reviews

Learn more about the Vantec UGT-M2PC110

Model
Brand VANTEC
Model UGT-M2PC110
Details
Type PCI Express to M.2 Card
External Ports 1 x M.2 (NGFF), M Key
Internal Ports 1 x PCIe x4
Operating Systems Supported Available system board PCIe x4 or x8 or x16 slot
OS support like Windows 7/8/8.1/10 (Windows 10 preferred), or Linux (Latest Kernel)
For booting, requires System UEFI BIOS with booting Support and latest OS
Compatibility M.2 Type Support: NVMe or AHCI SSD using M Key only
M.2 size: Length support 22x110, 22x80, 22x60, 22x42mm
Internal Interface: 1 x M.2 (NGFF), M Key
PCIe Interface: PCIe v3.0 or PCIe v2.0 x4 (4 lanes)
Specifications This M.2 NVMe SSD PCIe x4 Adapter can support module of different size from 42mm to the Extra Long 110mm. It offers the fastest boot or data access possible via the PCIe interface using 4 lanes of data path straight to the NVMe SSD resulting in super-fast data transfer. This adapter allows for flexible installation of an M.2 (NGFF) NVMe or PCIe AHCI SSD of different size like 42, 60, 80, or 110mm in length with varying and ever growing capacity. This M.2 adapter will give you the best performance possible for your system.
Features
Features Support Extra Long M.2 NVMe Module like 110mm, 80, 60, or 42

Support for M.2 with 30mm width x 110mm length Module

Support M.2 (NGFF) PCIe based (NVMe or AHCI) SSD to PCIe x4 slot

Support M.2 interface with M key only, do not support M+B key

Adapter supports PCI Express v3.0 Specs and compatible with v2.0 / v1.0

Supports system boards with PCIe x4,x8,x16 slots

Uses minimum power from PCIe 3.3V for better power management

Low Profile Bracket included
Dimensions & Weight
Dimensions 7.4" x 4.8" x 0.9"
Weight 4 oz.
Packaging
Package Contents M.2 NVMe PCIe x4 Adapter with Support for Long 110 Module
Quick Installation Guide
Mount and Screws set
Low Profile Bracket
Additional Information
Date First Available June 22, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
