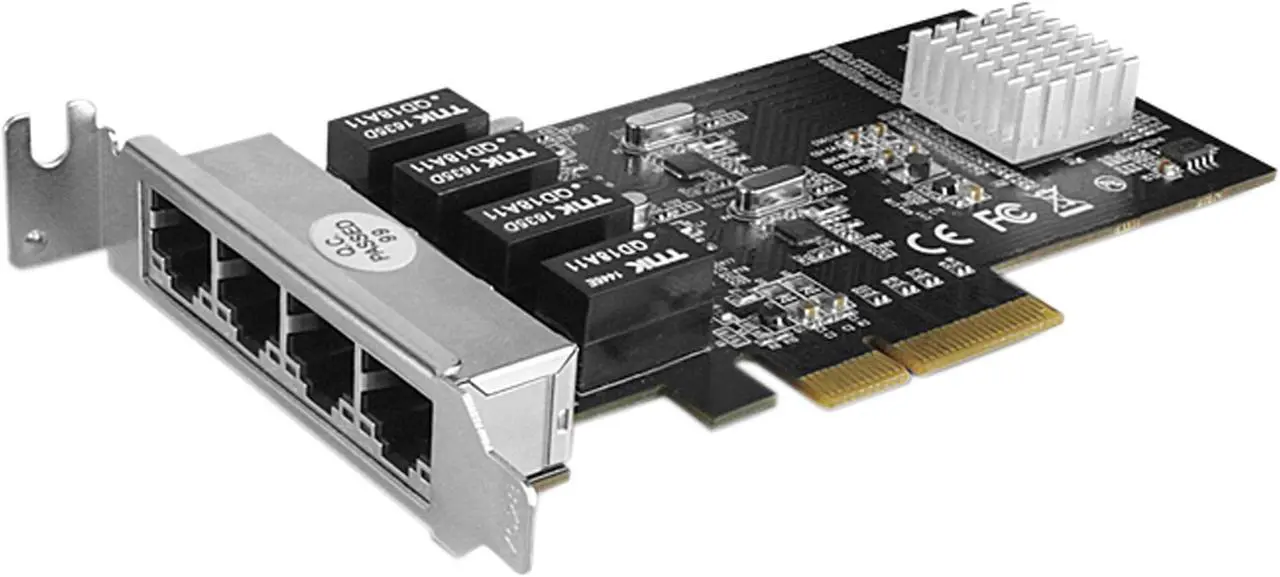

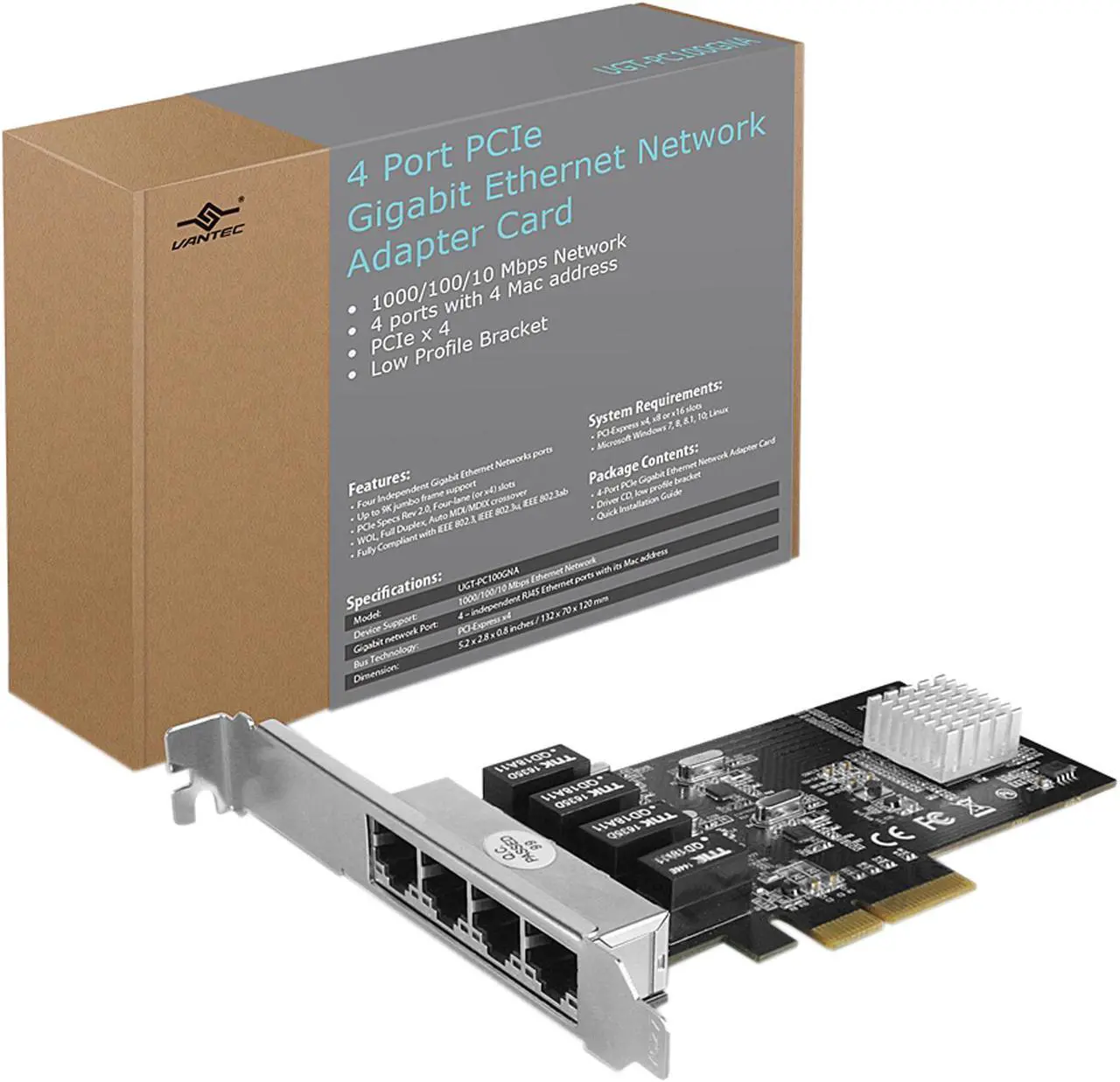

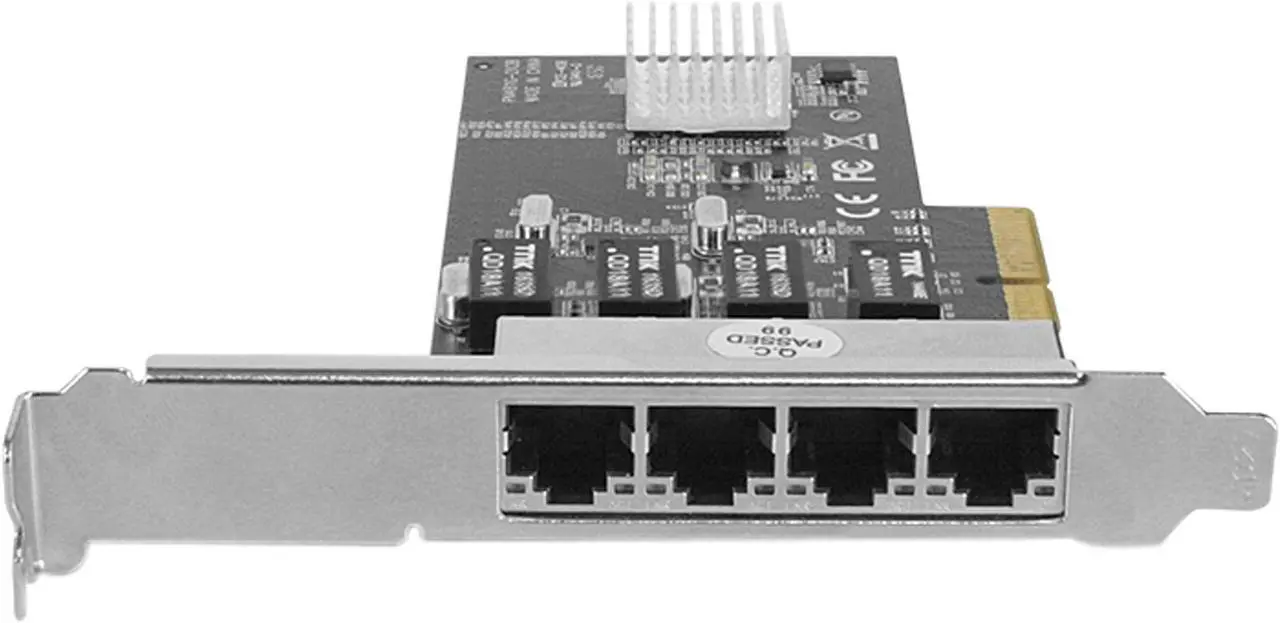

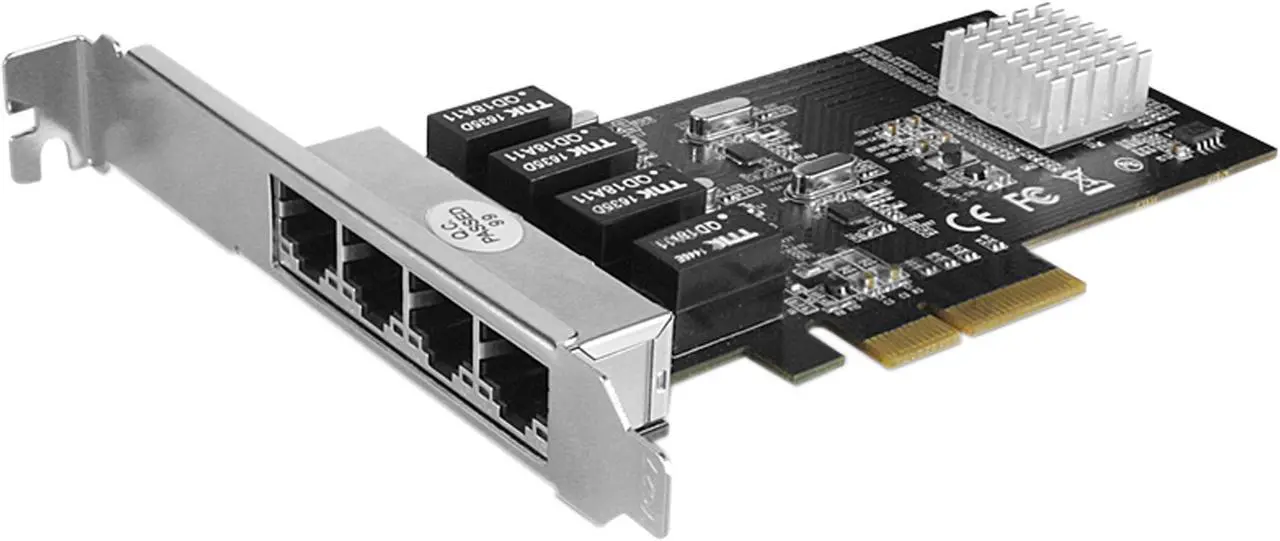

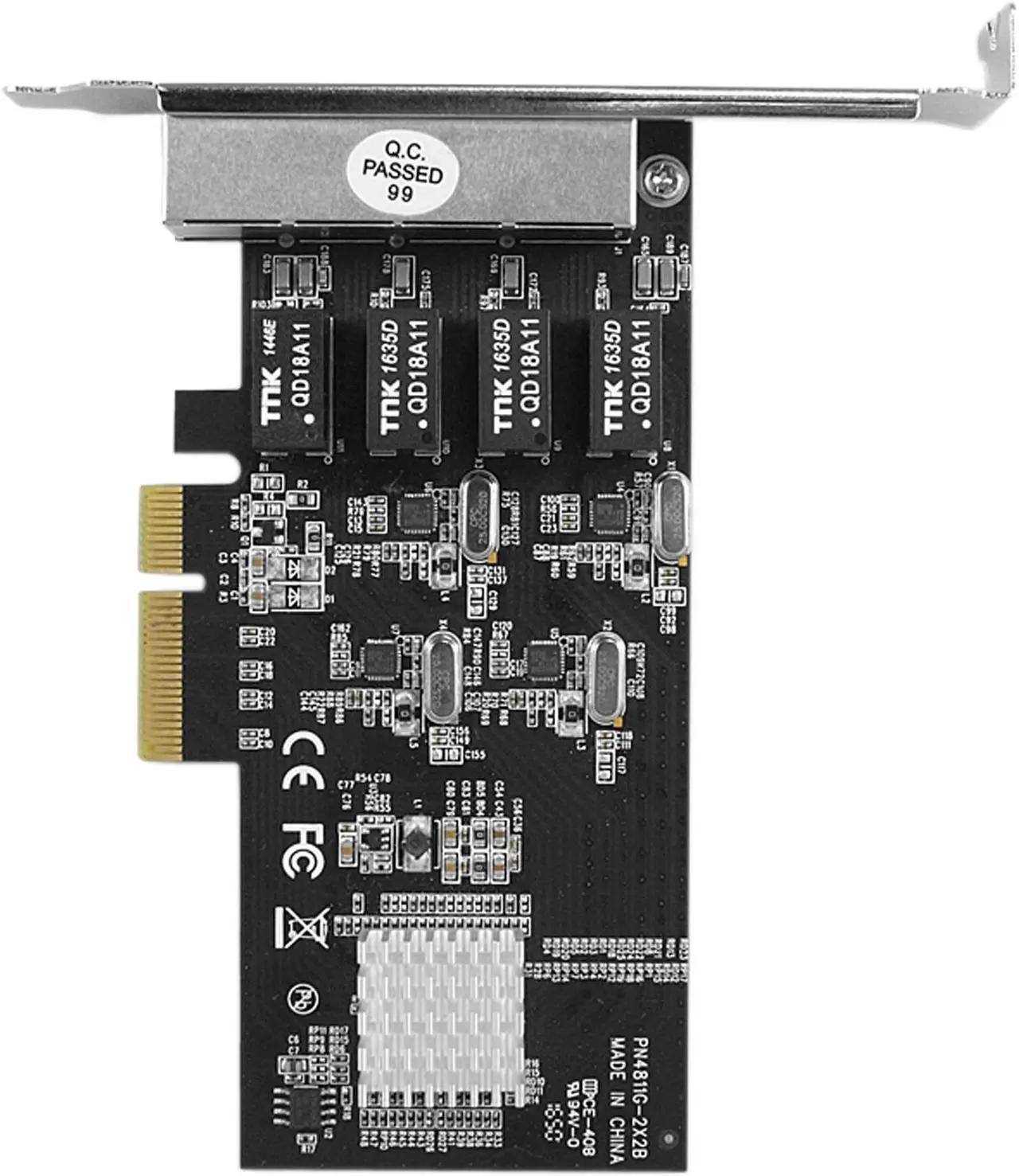

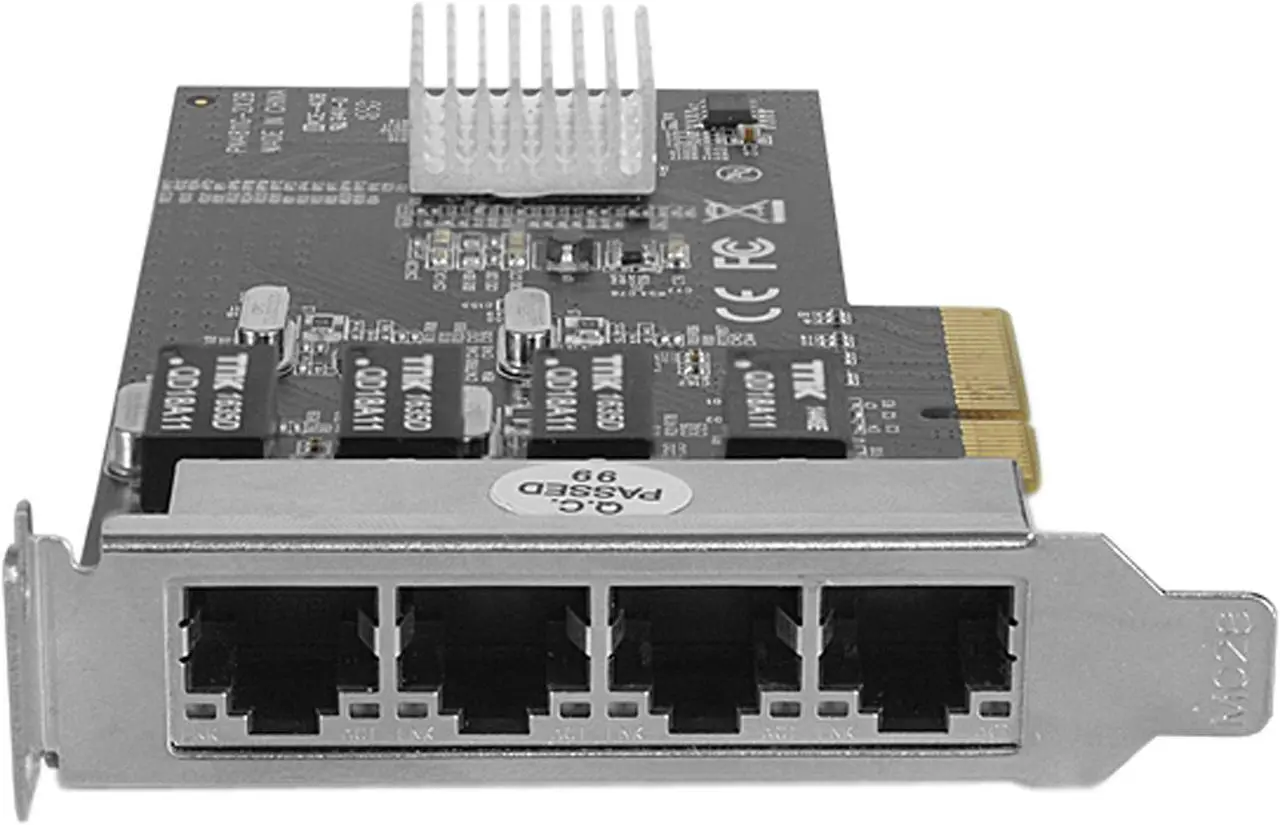

VANTEC UGT-PC100GNA 4-Port PCIe Gigabit Ethernet Network Adapter Card

  • PCI Express to Ethernet Port Card
Specs
Reviews

Learn more about the Vantec UGT-PC100GNA

Model
Brand VANTEC
Model UGT-PC100GNA
Details
Type PCI Express to Ethernet Port Card
External Ports 4 x independent RJ45 Ethernet ports with its Mac address
Internal Ports PCI-Express x4
Operating Systems Supported PCI-Express x4, x8 or x16 slots
Microsoft Windows 7,8, 8.1, 10; Linux
Compatibility Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Features
Features Add four 10Mbps/100Mbps/1G compatible RJ-45 Ethernet ports

Designed to meet PCI Express Specification Revision 2.0

Four-lane (or x4) PCI Express compatible with x4, x8 and x16 PCI Express slots

Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Supports 10/100/1000M data auto-negotiation

Automatic MDI/MDIX crossover at all speeds

Up to 9K jumbo frame support

Support Wake On Lan (WOL) power management

Feature full duplex mode that doubles the network connections speed
Dimensions & Weight
Dimensions 5.20" x 2.80" x 0.80"
Additional Information
Date First Available September 26, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
