The articulating TV wall mount ML531BE fits most 22-50 inch LED LCD plasma, some LED up to 55 inch with VESA mounting hole patterns 400/ 300/ 200/ 100mm. Heavy duty steel construction supports screen weight up to 88lbs. Multi-directional adjustable tilt 15 degrees forward or 5 degrees backward, swivel up to 180 degrees and smooth long extension up to 20" provide optimum viewing angle in different positions. Heavy duty steel construction offers a smooth surface and high tech look while providing strength and stability. Nesting arm design allows display to be folded parallel to the wall only 2.2" for low profile application.

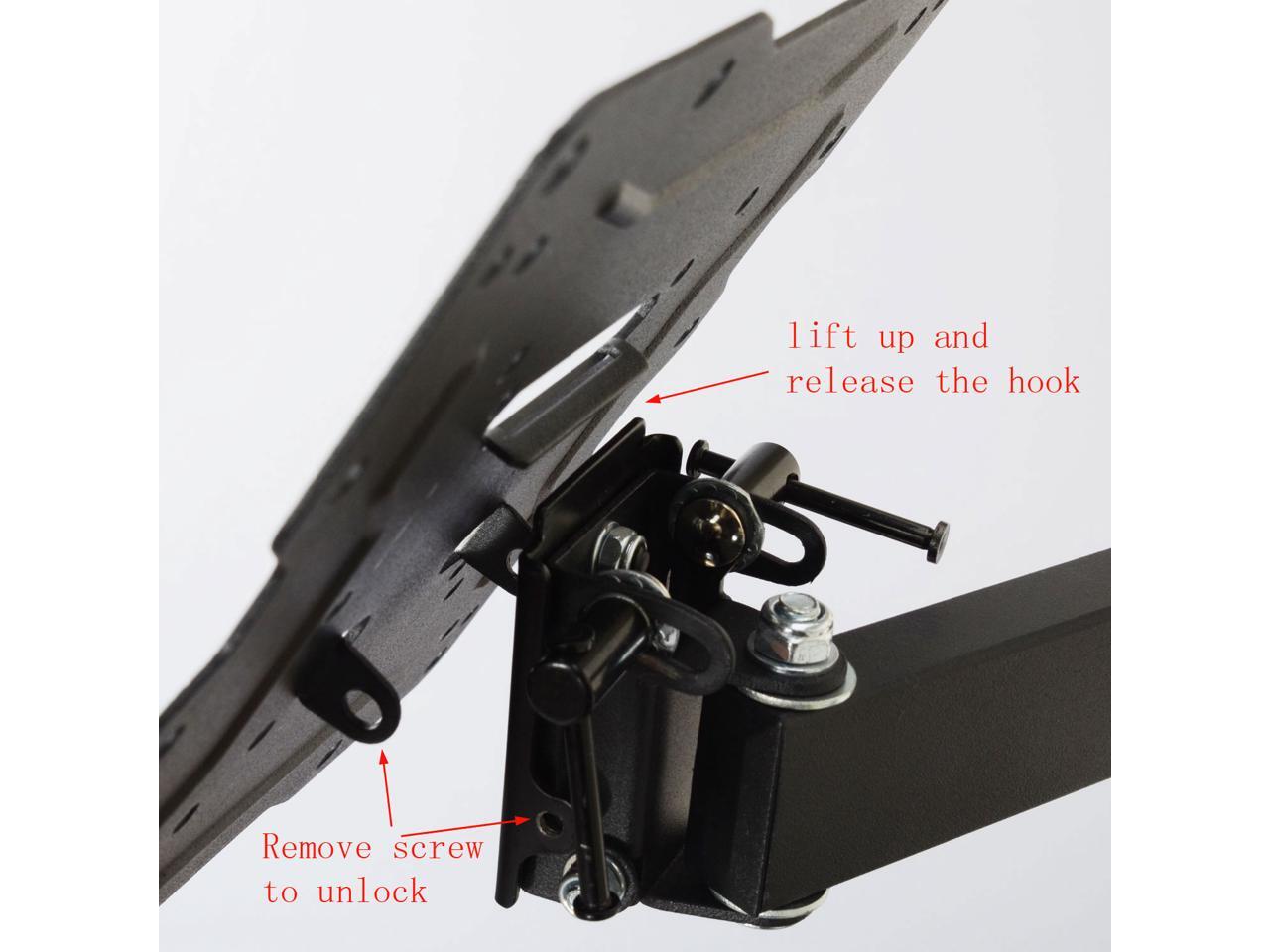

The removable VESA plate can be taken off for quick and easy installation. Absolutely your best choice!
*Warning: This mount does not fit 42" or above TVs which were manufactured before 2013
*Fits most 22 - 50" TV, some LED up to 55" (please check VESA and weight)

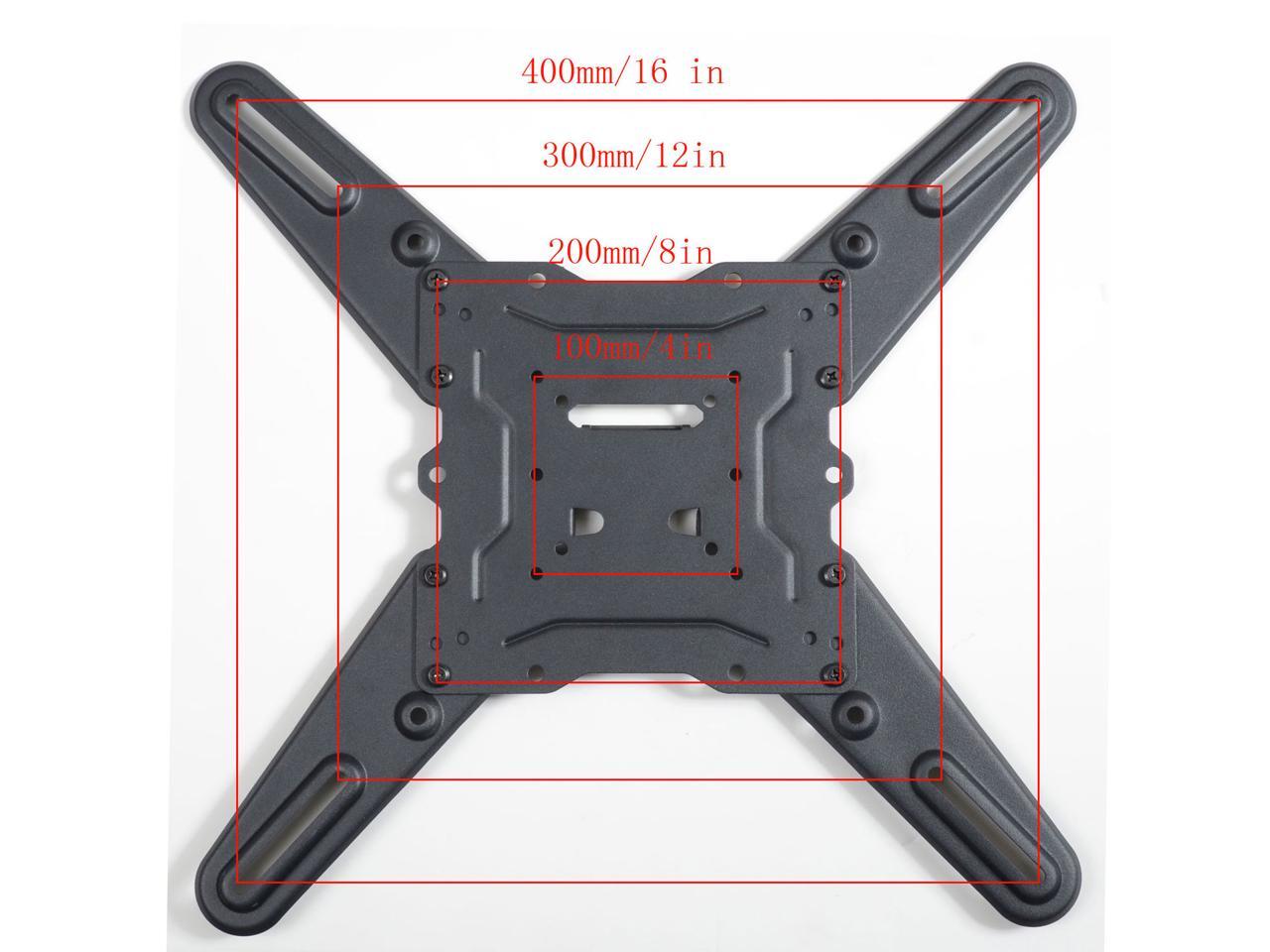

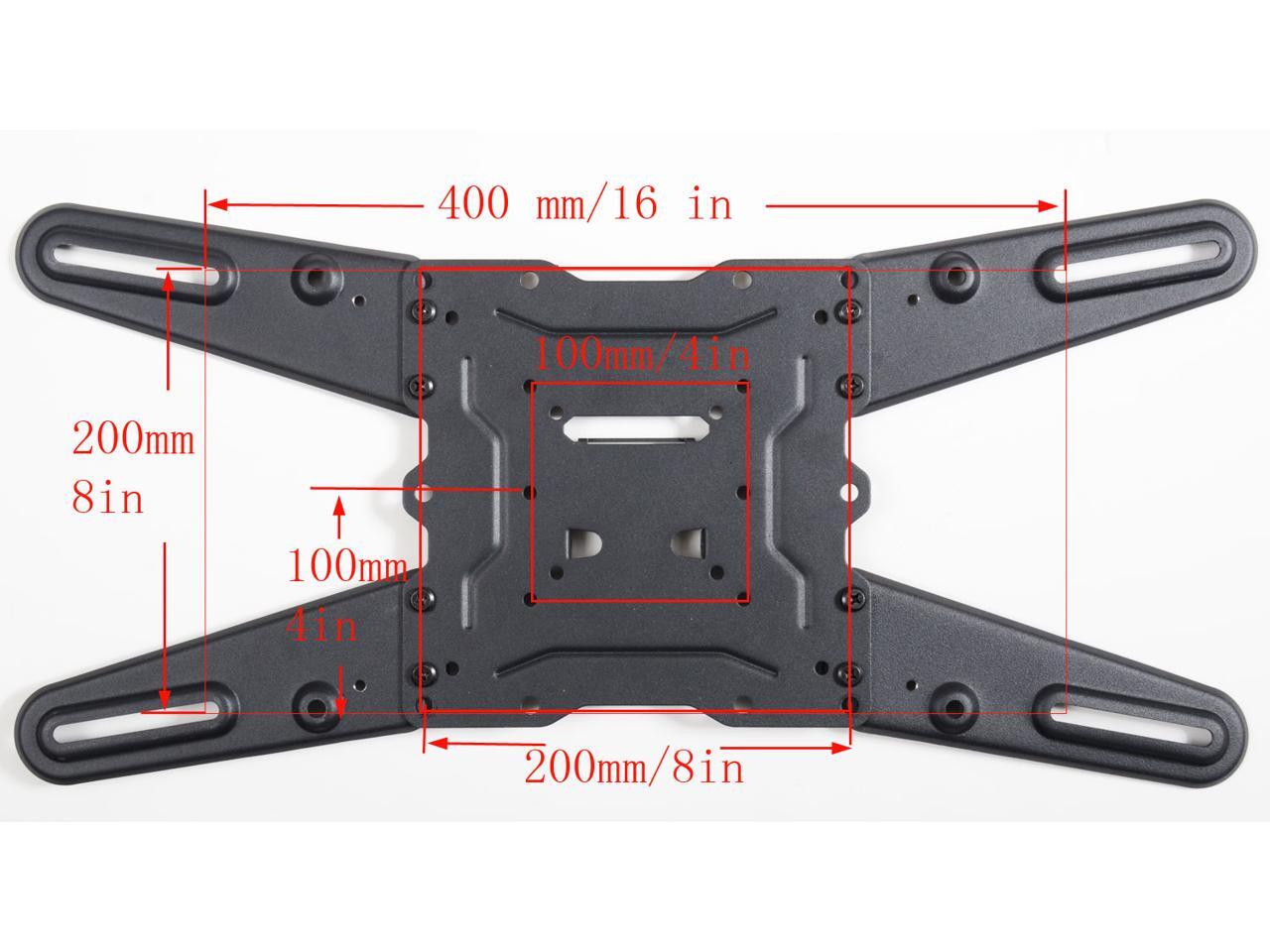

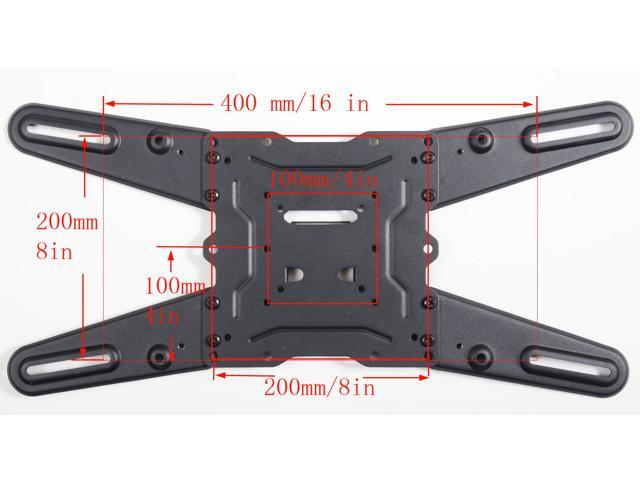

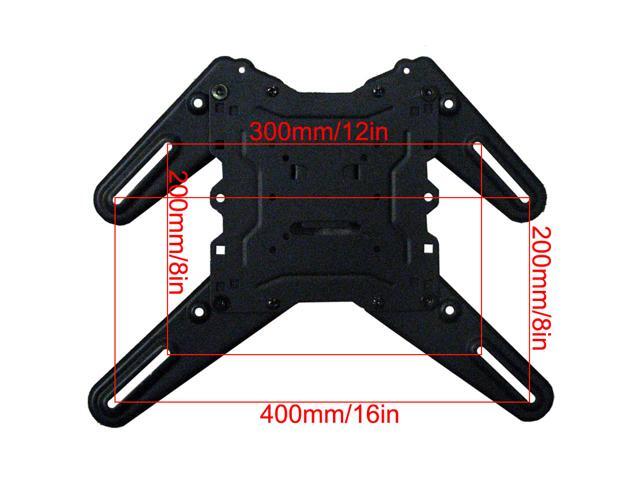

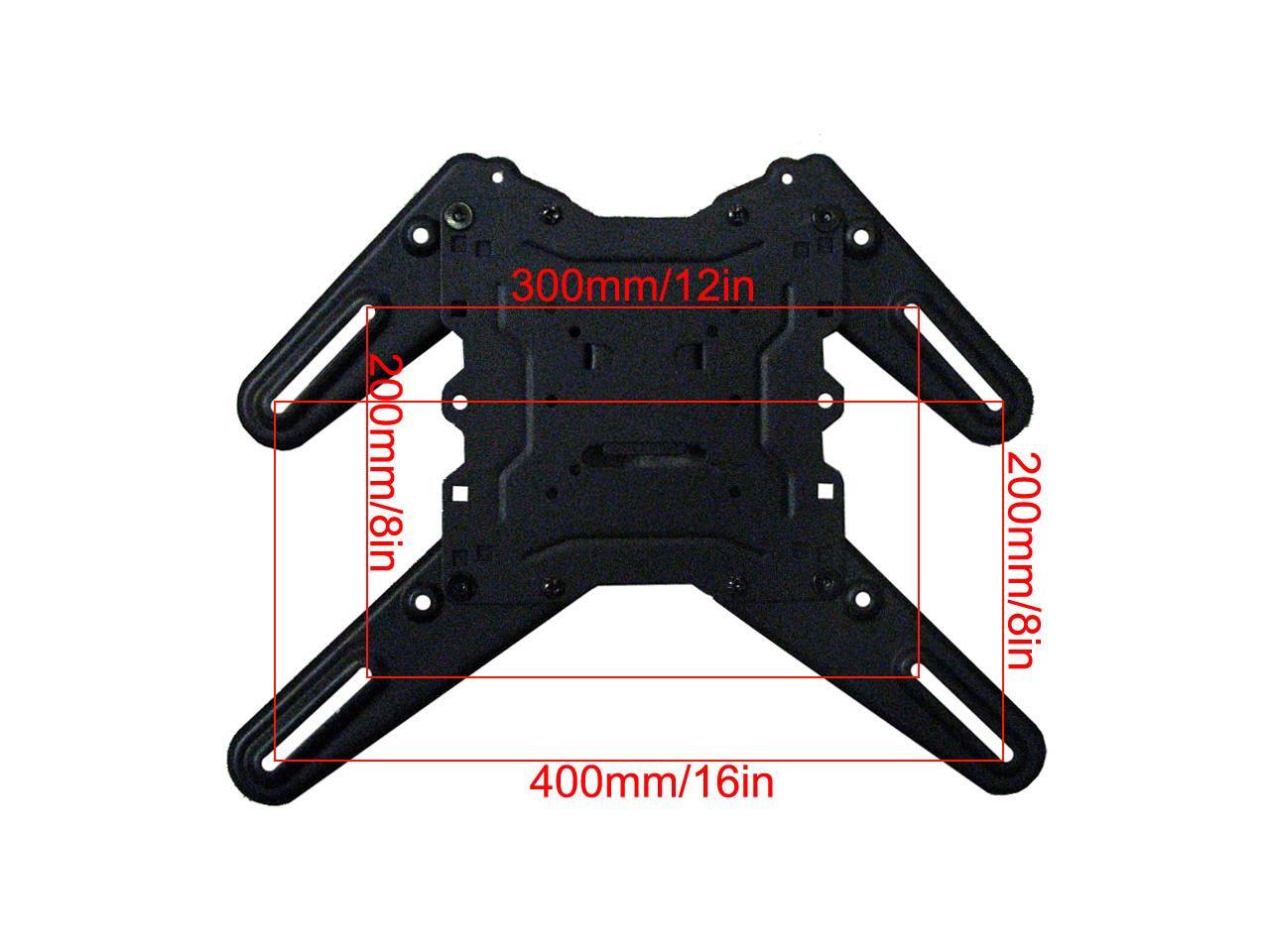

*Fits VESA mounting holes patterns: 400x400/ 400x300/ 400x200/ 300x300/ 300x200/ 200x200/ 200x100/ 100x100mm
*Loading capacity to 88lbs/40kg
* Tilt +5° or -15º for perfect viewing angle
*Swivel up to 180 degrees (depending on TV size)

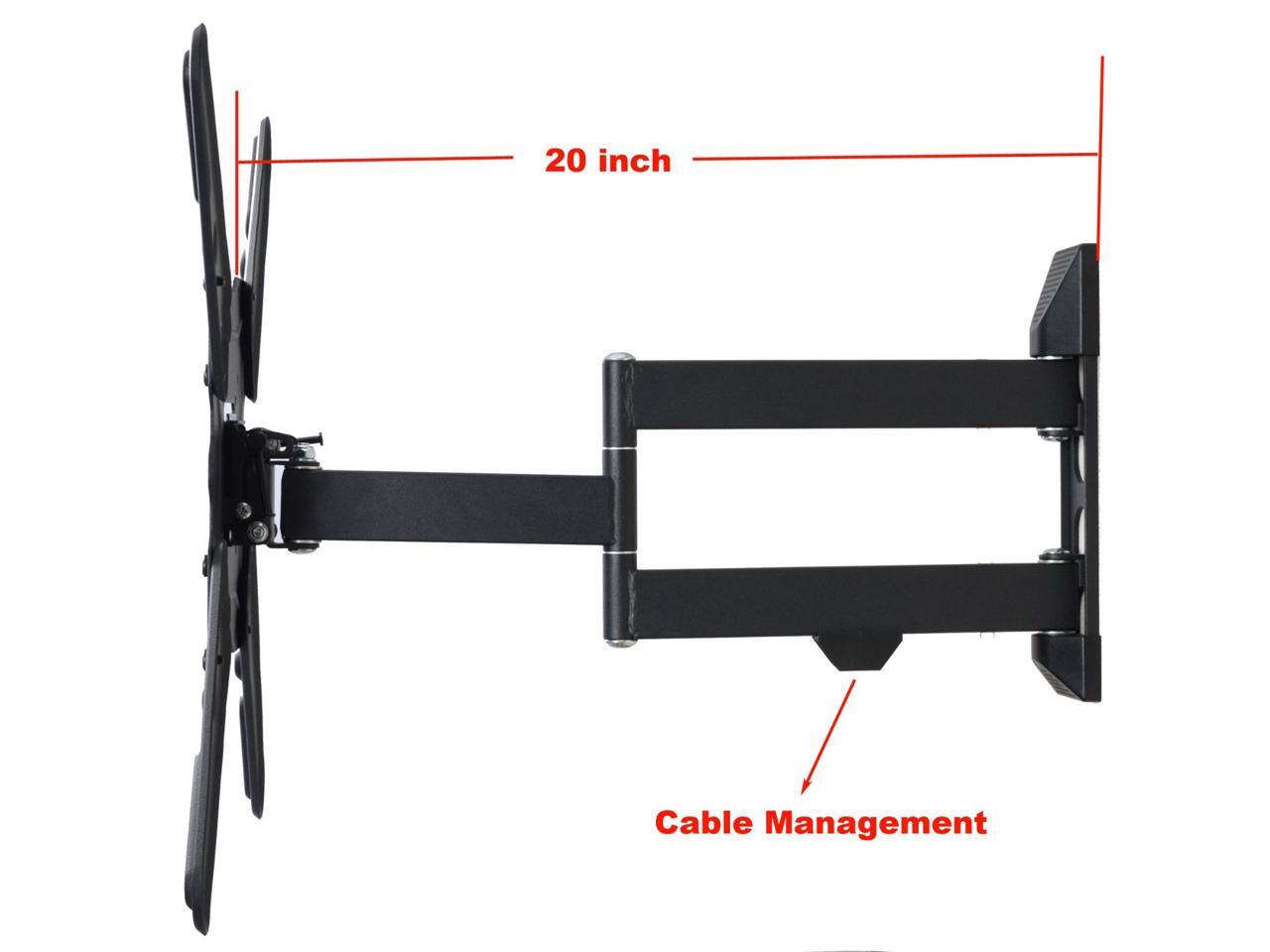

*Smooth long extension up to 20" with maximum flexibility

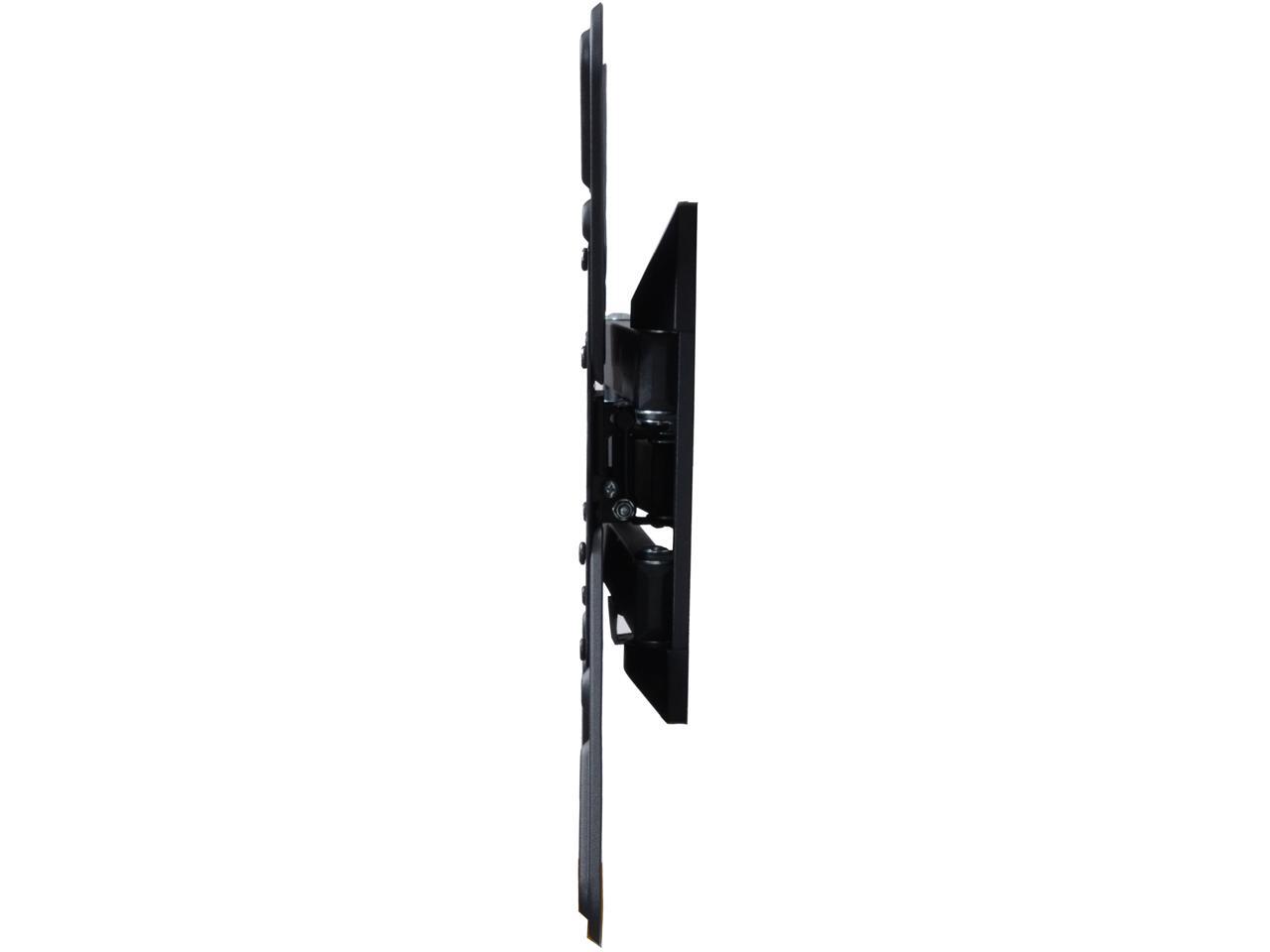

*Depth: the mount retracts to the wall about 2.2" for low profile application
*Multi-directional adjustment tilt, swivel and extend for perfect viewing angle
*Integrated cable management design on articulating arm keeps wire out of the way
*Premium quality: constructed with thick, heavy duty durable steel with powder-coated black finish
*Post-installation level adjustment allows the TV to perfectly level
*Nesting arm design allows display to be folded parallel to the wall to save space
*With 4 VESA adapters VESA mounting hole patterns up to 400x400mm/16"x16"
*Free 6" 3-axis magnetic bubble level ensures easy and accurate install
*Single stud mounting
*Note: For some LG and SONY TVs, please check the area inside the 4 mounting holes to make sure there are not any plugs. Otherwise, the plate may block the plugs
TV wall mount, 4 VESA adapters, free 10ft high speed HDMI cable, 6" 3-Axis magnetic bubble level, standard mounting hardware, user manual
Please check whether the mount is suitable for your TV:
1. Do not use size of your TV to determine if the wall mount will fit.
2. Please check the weight of your TV displays, it must be less than 88 lbs.
3. Please look at the back of your TV, find the mounting hole and measure width and height, if the pitch-row is one of the following data, then the mount will work perfect for you, 400x400/ 400x300/ 400x200/ 300x300/ 300x200/ 200x200/ 200x100/ 100x100mm
It is compatible with the following displays as well as other TV brands, some models may not be listed:
SCEPTRE 32 inch TVs: X322BV-HDR+ E320BV-FHDD E320GV-FHD E325BD-HD E325BV-FHDD E325BV-FMD E325BV-FMDU E325BV-HDR E325BV-HDU E325GD-MQR E325LD-HDR E325PD-HDR E325PV-HDR E325UD-HDR E325UV-HDR E325W-1920 E325WD-HDR E325WV-HDR H322BV-HDR P322BV-HDR X322BV-HDR X322PV-HDR X322UV-HDR X322WV-HDR X325BV-FMDR X325BV-FMQR X328BV-HDR E325BD-HDC E325BV-HDC E328BV-MDC H322BV-HD X320BV-ECO X320BV-HD X322BV-HD X322BV-HD+ X325BV-FHD X325BV-FHDU E325BV-HDH E325BV-HDH+
SCEPTRE 40 inch TVs: X409BV-FHDR H409BV-FHD X409BV-FHD X409BV-FHDU E405W-1920 H405BV-FHDR P405BV-FHDR X405BV-FHDR X405BV-FMQR X415BV-FMQR X402BV-FHD X405BV-FHD X405BV-FHD3 X405BV-FMD X405BV-FMDU
SCEPTRE 42 inch TVs: E420BV-F120 H420BV-F120 H425BV-FHD X420BV-F120 X425BV-FHD X425BV-FHD3 E425BV-FHDD X460BV-FHD E465BV-FHDD X460BV-F120 X460PV-F120 E475BV-FMDU E478BV-FMDU HDTV E485BV-FMQR
SCEPTRE 50 inch TVs: E505BV-FMQR E505W-1920 H505BV-FMDR P505BV-FMDR X505BV-FMDR X505BV-FMQR X505BV-FHDU X508BV-FHDU H505BV-FHD X505BV-FHD X508BV-FHD E555BV-FMQR E555W-1920
