Wavlink USB 3.0 Universal Laptop Docking Station, Dual Video Display HDMI & DVI/VGA to 2048x1152, Gigabit Ethernet, Audio, 6 USB Ports, Laptop, Ultrabook, Macbook, Windows 10, 8, 7, XP, Mac, Android
- Built-in HDMI and DVI outputs each resolution up to 1920x1200 @ 60Hz, HDMI port supports resolutions up to 2560x1440@ 50Hz with a single HDMI display only. DVI to VGA adapters are supplied for added flexibility, great for different home and office workspace applications.
- Gigabit Ethernet RJ-45 port 10/100 / 1000Mbps Ethernet, provides you with fast wired network connection. 4x USB 2.0 ports fulfill all USB 2.0 devices such as keyboard, mouse, printer, etc.. 2x USB 3.0 ports for super transfer speed up to 5Gbps and 900mA of power, you can connect your usb peripherals or usb stick to solve external USB devices and high-speed file transfer for home office workers.
- Docking station is suggested for use with web and productivity software; not recommended for gaming, cannot be mixed with non-DisplayLink USB adapters.
- Build in USB 3.0 GPU certified by DisplayLink. Compact size, LED display status, easy setup, multi-function operation performance.
Wavlink High Performance USB 3.0 Dual Video Docking Station
Share Stream video, Surf the web, Watch video clips, Data delivery All in one!
A dock turns the USB port of a computer into a docking station connector. With one simple cable connection to your computer, you can have access to large screen displays, stereo speakers, external hard drive, optical disk drive, printers, USB keyboard, mouse and other USB devices.

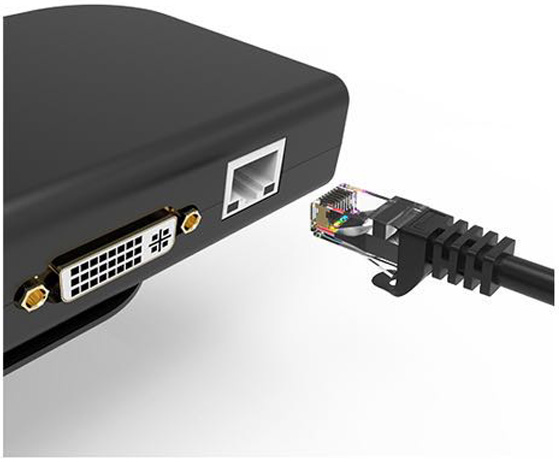

Gigabit Ethernet coming with a RJ-45 port over 10/100/1000Mbps speed, you can quickly download large files, stream movies, and more. Faster and more reliable than most wireless connections. Perfect for laptops without Ethernet sockets when wireless network fails.
With two USB3.0 and four USB2.0 connection, you can easily achieve 5Gbps transmission speed, and don't need to worry wireless 2.4G devices affecting your wifi signal at all, in addition, one of the USB 3.0 ports supports Smart Sleep Mode of Fast Charging to 1.5A which allows you charge your smart phone.

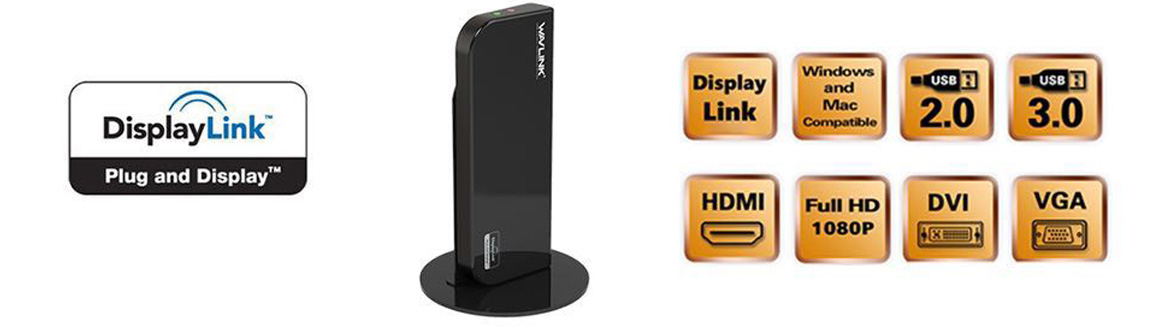

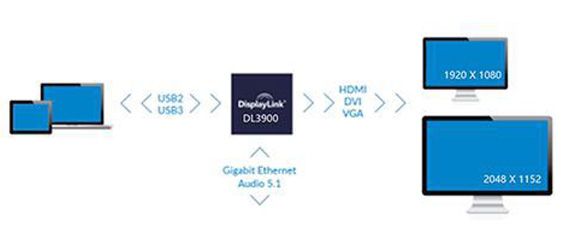

As the world leader in USB virtual graphices, DisplayLink brings you the highly integrated DL-3900 chipset. Taking advantage of SuperSpeed USB 3.0's bi-directional throughput, it can simultaneously drive up to two Full HD displays, as well as Gigabit Ethernet network data, and multi-channel audio.
Vertical design provides relatively more space for a limited desk.

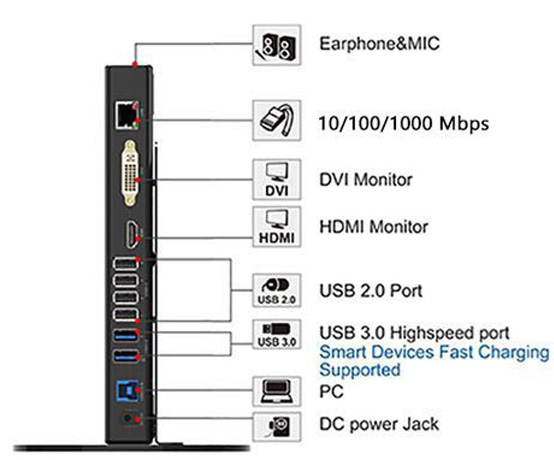

DVI, HDMI, DVI to VGA adapter, RJ-45 Gigabit Ethernet Port, DC Power Jack, USB 2.0 Ports x4, USB 3.0 Ports x2, USB 3.0 B Female, 3.5 mm Lineout/Mic input get all the benefit from this multi-port docking station, create the "home base workstation".

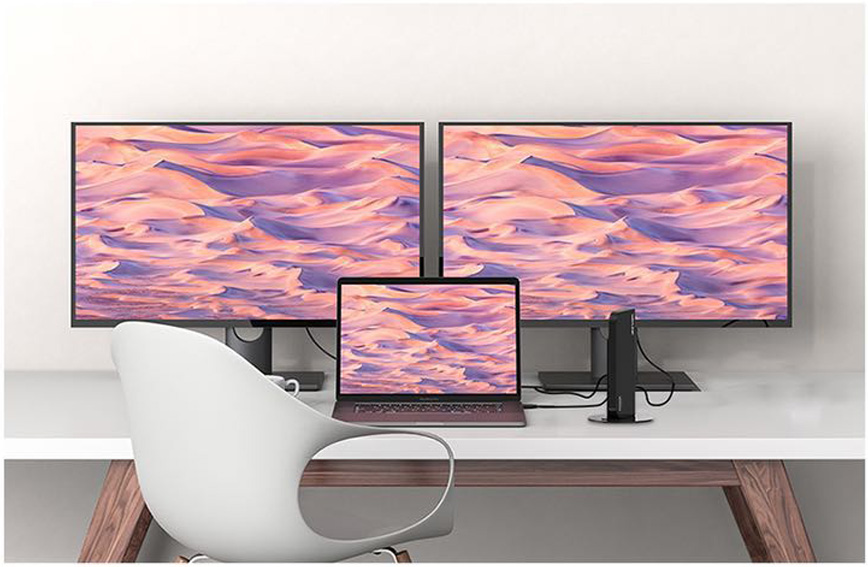

Dock supports HDMI and DVI/VGA (DVI to VGA adapters are supplied for added flexibility); provides the ultimate multi-monitor productivity and hot desk expansion.
- HDMI Output: up to 2048x1152@60Hz or 2560x1440p@50Hz
- DVI Output: up to 2048x1152
- VGA Output (through DVI to VGA converter) up to 1920x1080@60Hz.
Attention: 2560x1440@50Hz output only available when using a single HDMI display. If dual displays are connected, each will be limited to a maximum resolution of 1920x1200@60Hz.

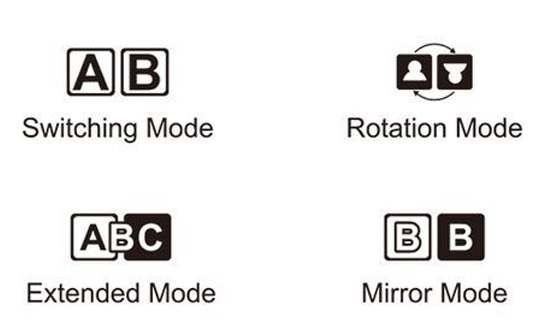

1. Expand Mode: The external display is treated as a separate screen so that you can have a different windows open on the projector and desktop.
2. Mirror Mode: The computer monitor duplicates the monitor on the external display so that you see the same picture on both the desktop and projector.
3. Rotation Video Mode (rotate to 90/180/270 degree)
Processor: 1.2 gigahertz (GHz) or faster with support SSE2
RAM: 2 gigabyte (GB) for 1 DisplayLink display. 4 GB or more recommended for 2 or more DisplayLink displays
USB: At least one USB 2.0 or USB 3.0 port.
30 megabytes (MB) of free disk space.
Computer screen for use with the DisplayLink device, if it is not integrated.
Network access for software downloads
Windows: Windows 10, Windows 8, 8.1, Windows 7, Windows Vista 7.7, Windows XP 7.6
MAC OS X:
Big Sur 11.0 Public Beta
MacOS 10.14-Catalina 10.15
MacOS 10.13 up to 10.13.3 (10.13.4 - 10.13.6 has single extended display support with AirPlay)
OS X 10.6- 10.12
Tips (On macOS 10.15):
Some users updating to 10.15 have found their DisplayLink devices have stopped working. 5.2 software is designed to run on Mac OS 10.15, but the OS can disable our kernel extension during the update. Please check the kernel extension is enabled and screen recording is also enable, to ensure DisplayLink enabled devices continue to work when migrating to 10.15.
Android: Available on the Google Play Store. For Android v5.0 (Lollipop) or Later
Chrome: DisplayLink USB devices are supported on Chromebooks.
Ubuntu: The latest download from DisplayLink can be for Ubuntu distributions. Please refer DisplayLink website for more info.
Not Compatible With:
Windows 2000 (SP1 to SP4) or earlier Windows OSes, Windows 2003 Server, Windows XP 64 bit, Windows RT platforms, Windows Embedded 7, Windows POSReady 2009, Windows 10 loT Core, Windows 10 Mobile
Mac OS X 10.5 or earlier
Android v4.4 or earlier
iOS

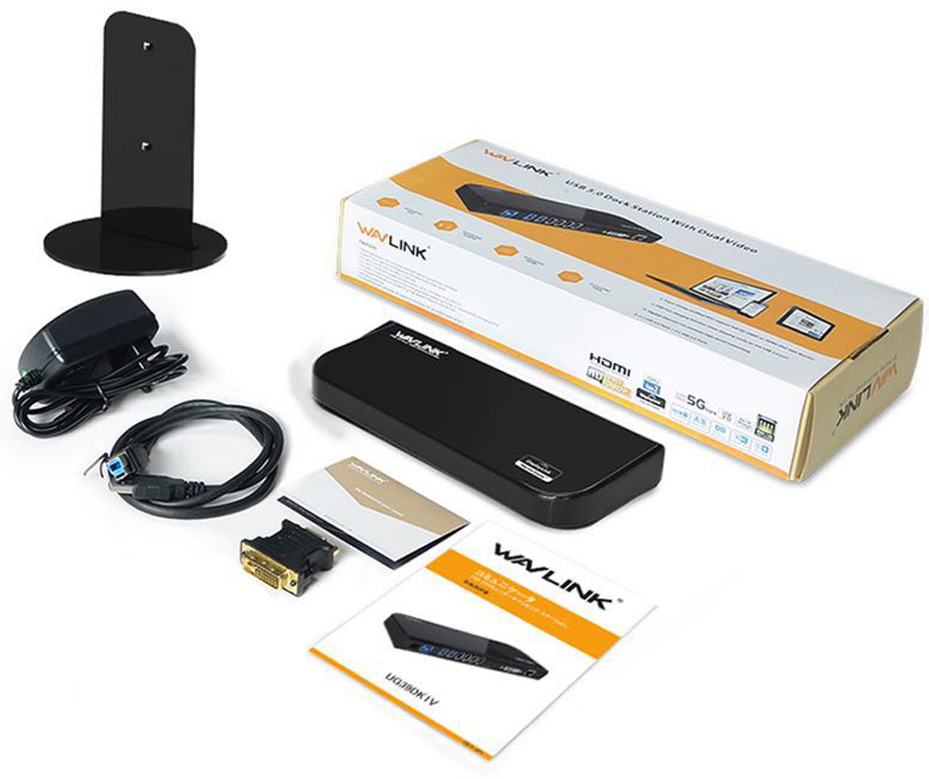

1 x USB 3.0 Universal Docking Station
1 x DVI to VGA Adapter
1 x USB 3.0 Cable
1 x Horizontal Base Mount
1 x Vertical Aluminum Alloy Stand
1 x DC12V/2A Certified Power Adapter
1 x Quick Start Guide
-2.4Ghz wireless devices such as wireless keyboard/mouse receivers, Bluetooth and WiFi adapter do not work in the USB3.0 ports, please try to connect the USB2.0 ports.
-Does not provide power attached to host laptop or tablet; the host system will still require its power cable/charger.
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 90 days
- This item is covered by Wavlink Technology Return Policy
Pros: I just recently purchased a HP Spectre X360 15T. Like everyone else that is moving from a Desktop to a Laptop I needed a docking station to handle all the peripherals. I have 2 external Hard Drives (Western Digital 4TB drive and an old Seagate 500GB drive), an external Dell DVD, B&W MM-1 speakers, an old ASUS monitor and a budget Logitech wireless mouse and keyboard. I also attached the Verizon Router to docking station. The docking station took nothing to set up - plug it in and it is ready to go. It comes supplied with 2 cables to choose from to connect to the laptop which is noted in their description. This was perfect for my setup. Attaching the peripherals to the docking station is easy, and for the most part everything worked right away - the monitor, Hard Drives and DVD player were immediately recognized by the Spectre and were ready to go. The keyboard and mouse were recognized. Right now I have it plugged into the USB 3 port in laptop. This works fine for me since the docking station has handled everything else. The MM-1 speakers were not recognized when they were connected to the docking station initially. I then plugged them straight into the laptop which set them up immediately. After that, I reconnected them to the docking station and they have worked fine ever since. I have also used flash drives with the docking station with no problem. I have not had the need to set up two monitors, but will soon be buying a new 4K monitor and will use the docking station for that. The quality of the docking station is excellent. It takes up very little space on my desk and I am very pleased with the purchase. Depending on where you want to locate it, you will probably have to buy some new cables for some of your peripherals. One of my Hard Drive cables was too short. Also, I needed to buy a new cable for the old monitor so it could go into the HDMI port of the docking station. The display of the Laptop is so beautiful that I have not used the old monitor since, but most people will have a monitor they want to keep and may need a different cable.
Cons: None
Overall Review: This is the best Dula 4k docking station with power delivery, Docking Station compatible with my New Spectre X360 15T, and could offer the power to my computer ! I particularly love the power feature as this saves me from dragging out the AC adapter. One USB C cable does it all; power and USB 3.1 level connection from laptop to the dock. If your laptop or tablet are compatible with this dock, buy it !
