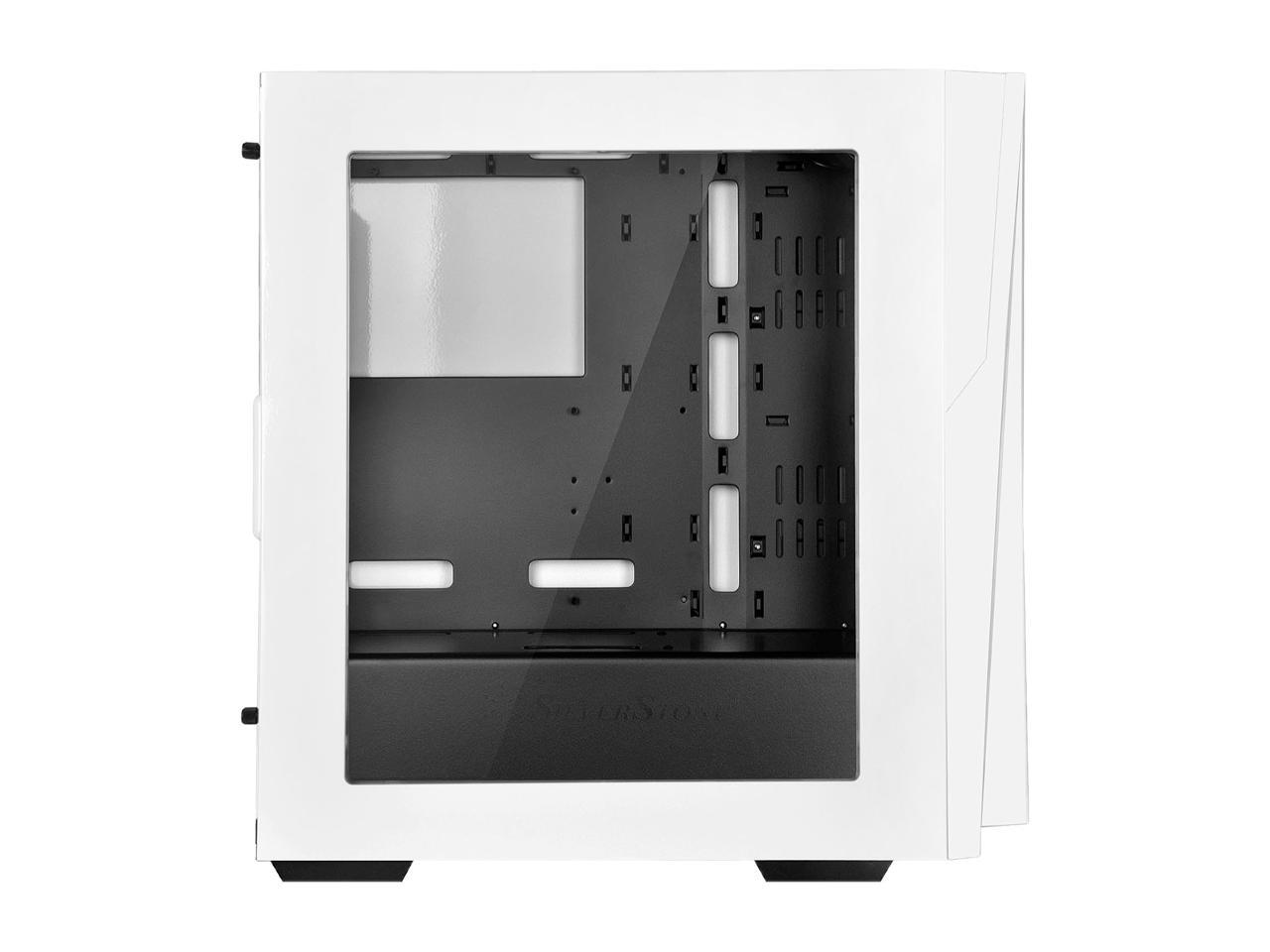

Material Plastic panel, steel body, tempered glass side panel (G & GP versions only)

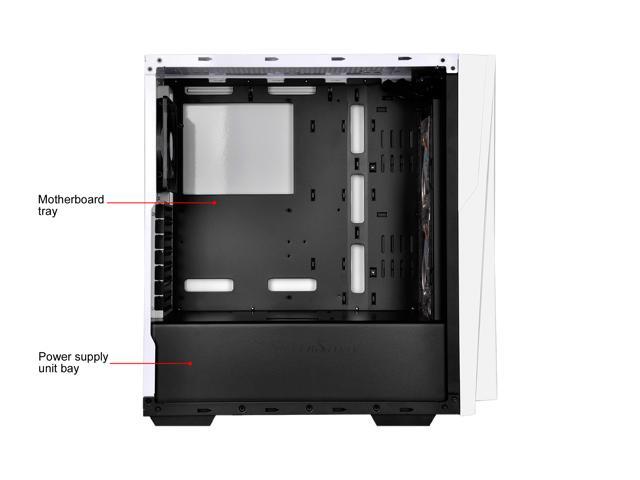

Motherboard ATX (up to 12"" x 10.2""), Micro-ATX
Drive bay External None

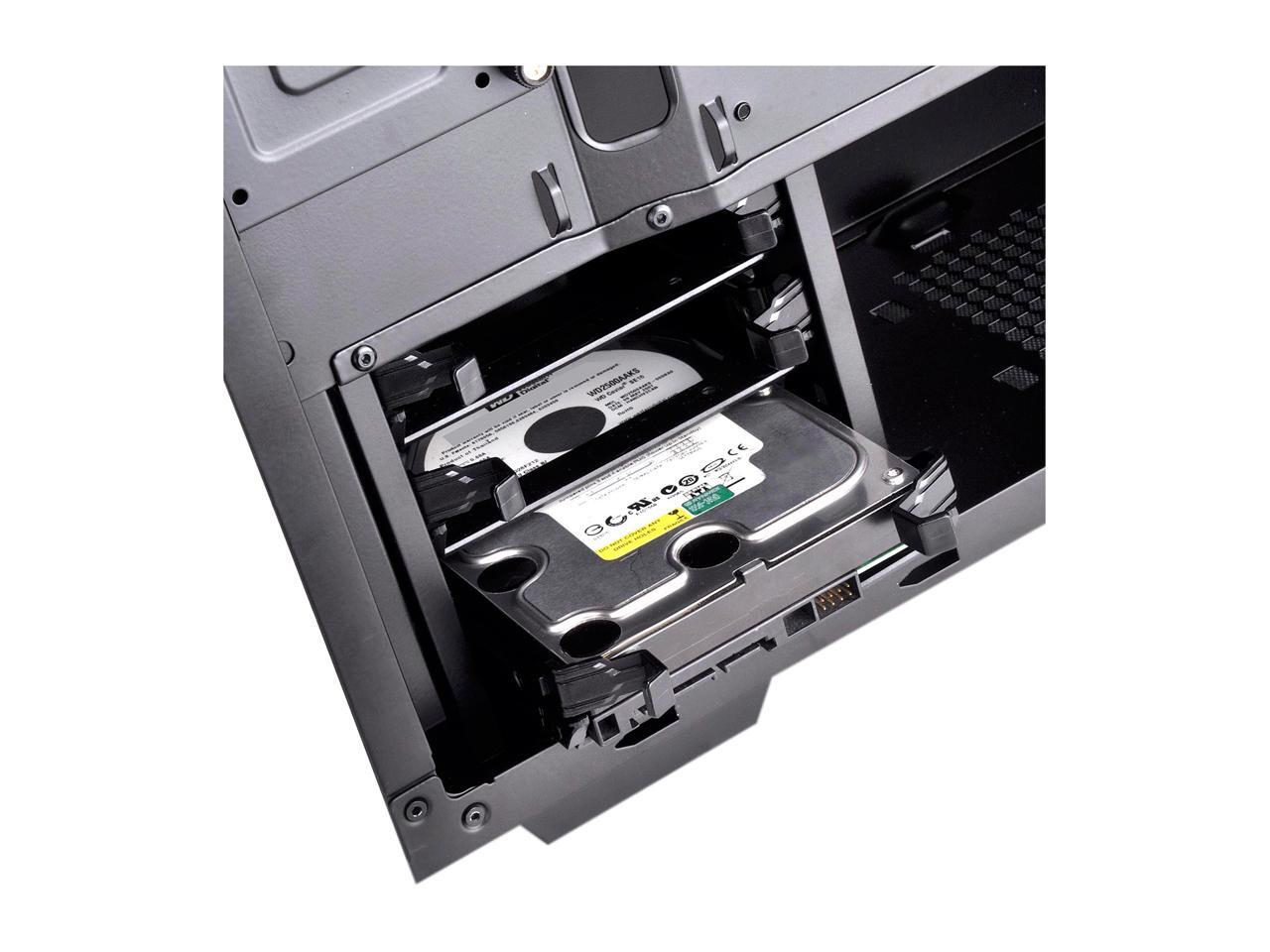

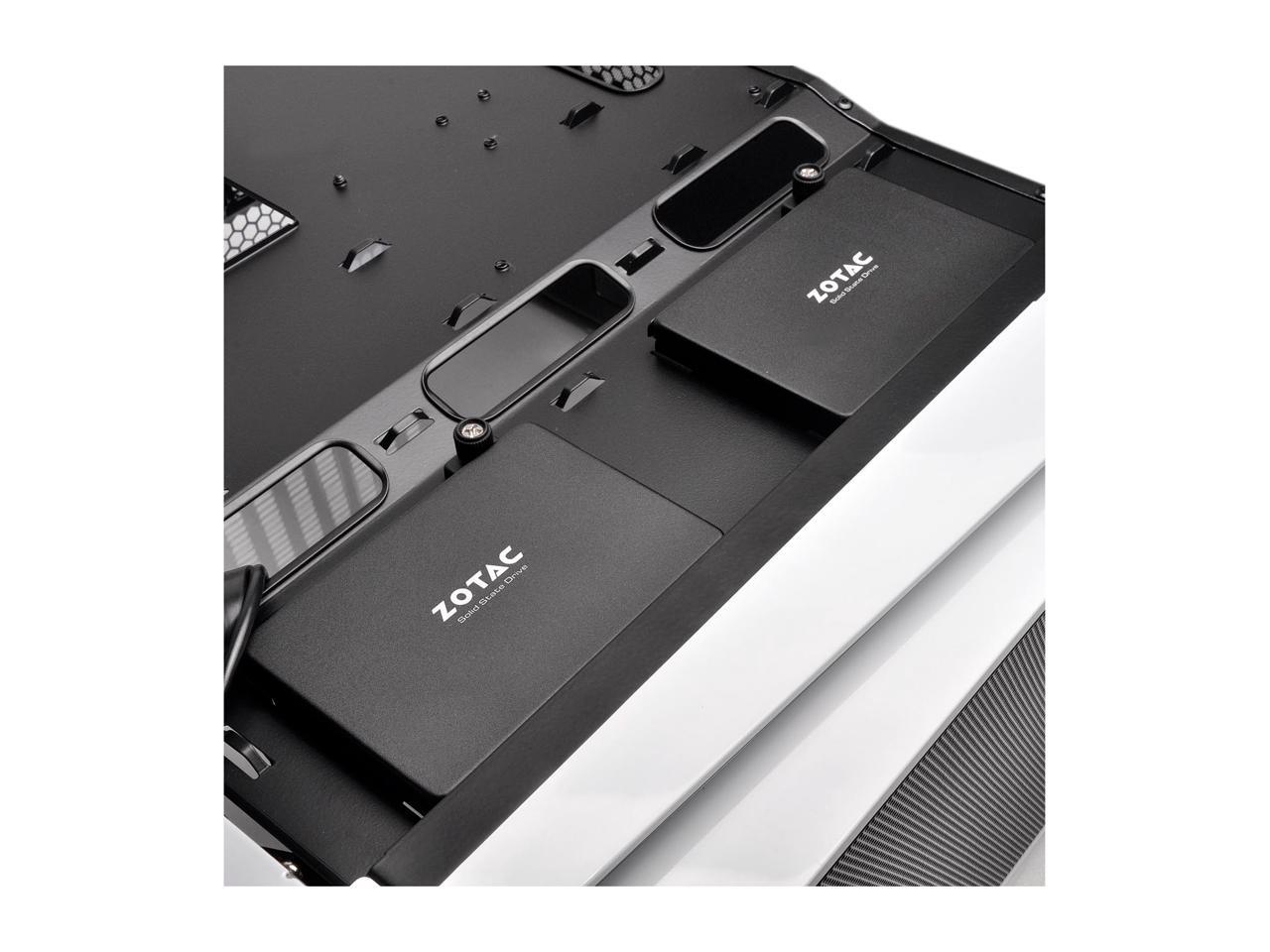

Internal 3.5"" x 3 (compatible with 2.5""), 2.5"" x 2

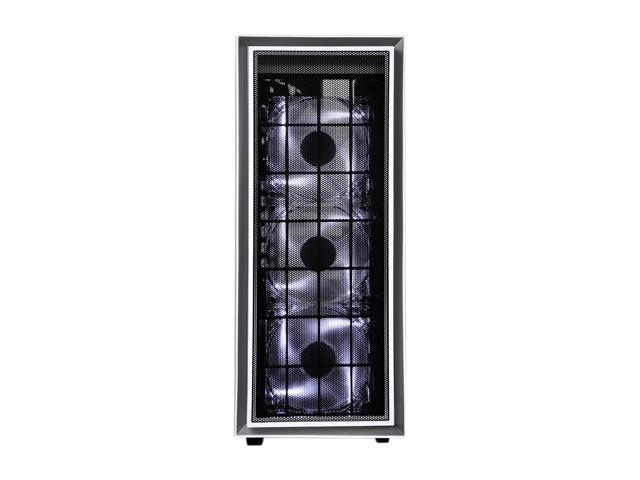

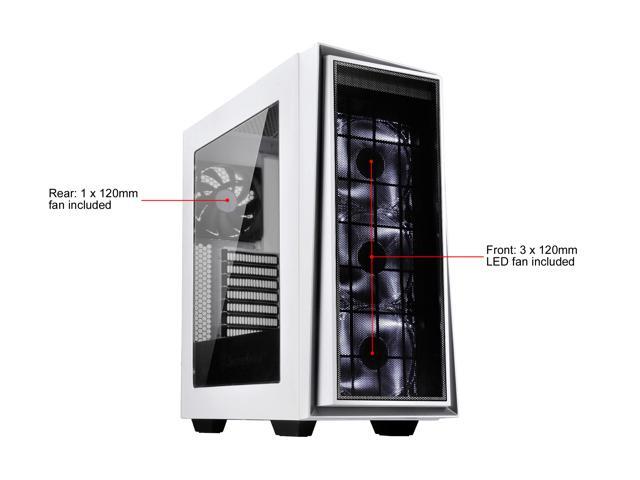

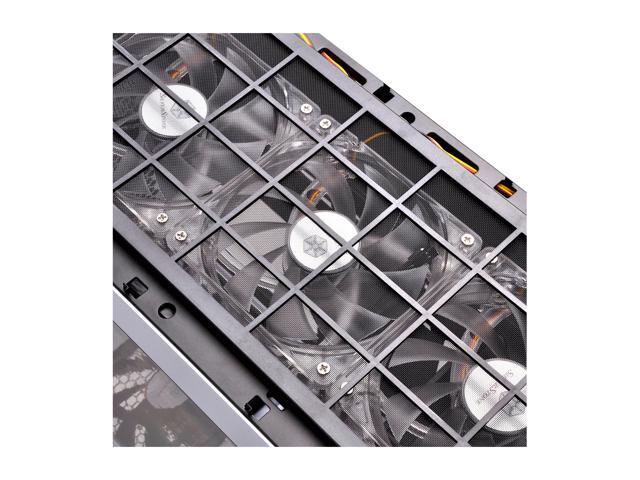

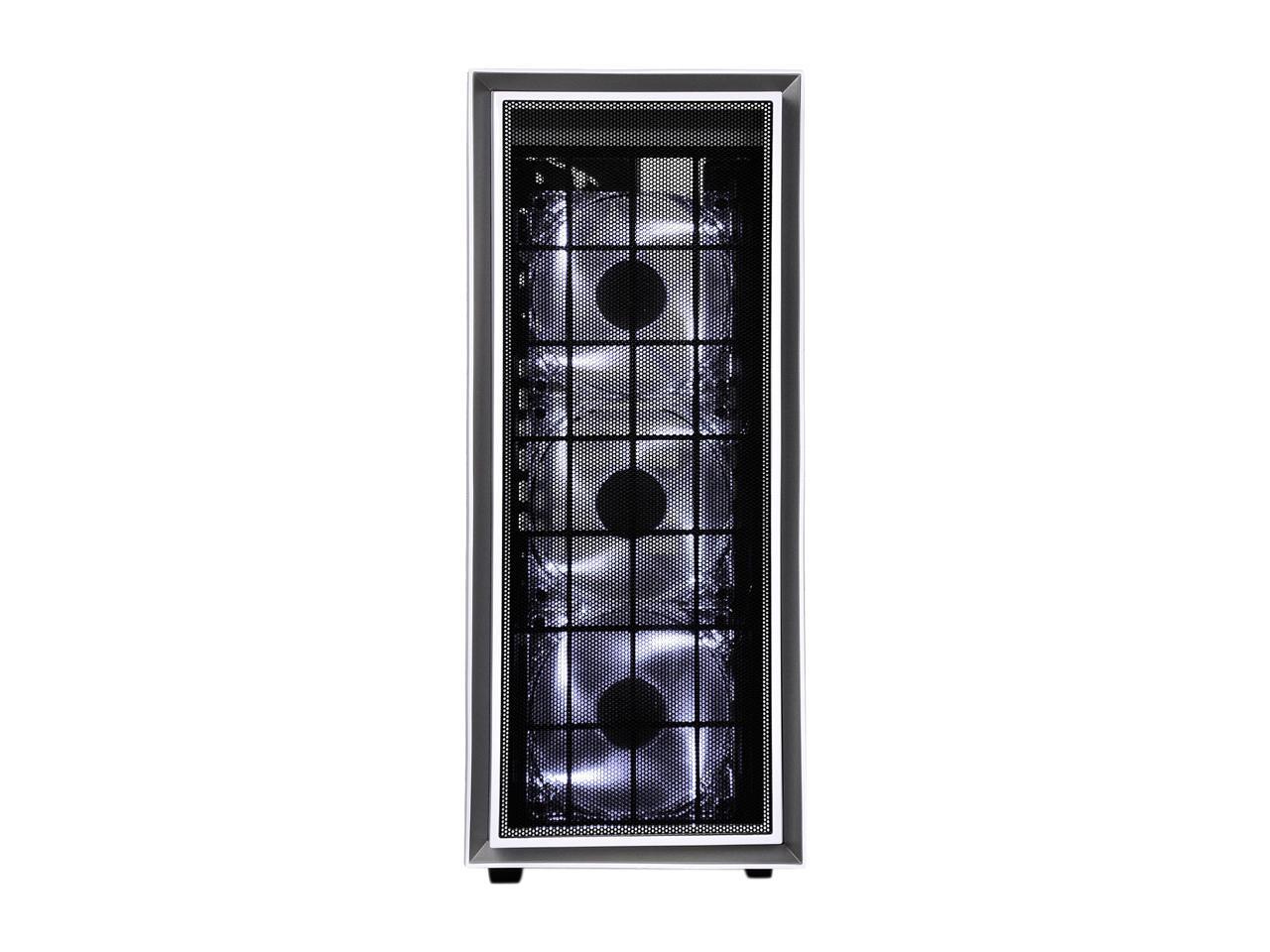

Cooling system Front 120mm LED fan x 3 (PRO & GP versions only) or 140mm fan slot x 2
Rear 120mm fan x 1
Side --
Top 120 / 140mm fan slot x 2
Bottom --
Internal --
Radiator support Front 120mm / 140mm / 240mm x 1
Rear 120mm x 1
Top 120mm / 240mm x 1 (1<30mm)
Bottom N/A

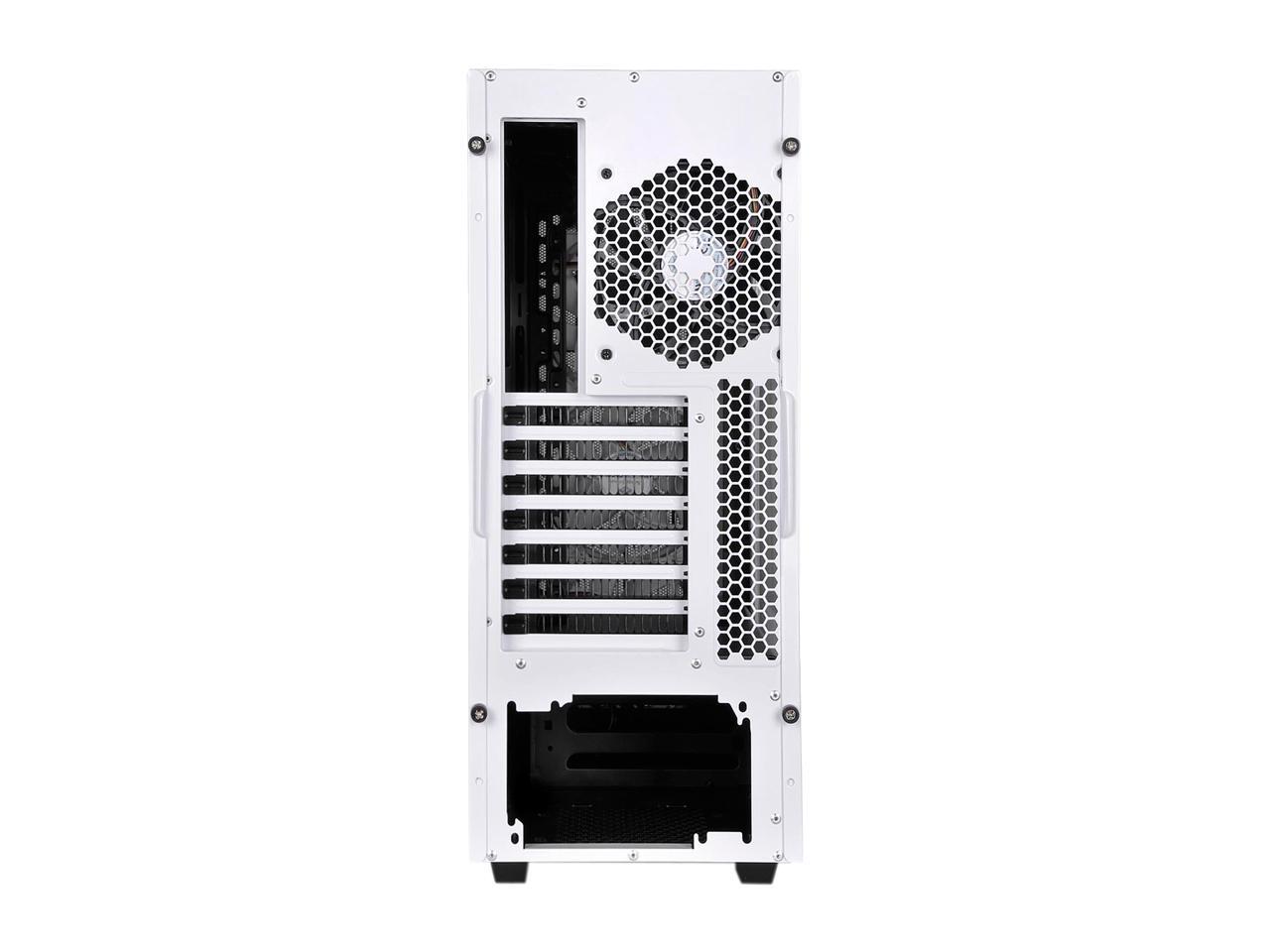

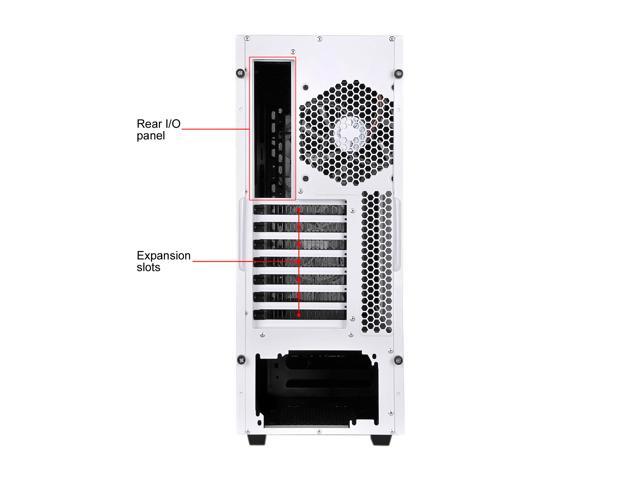

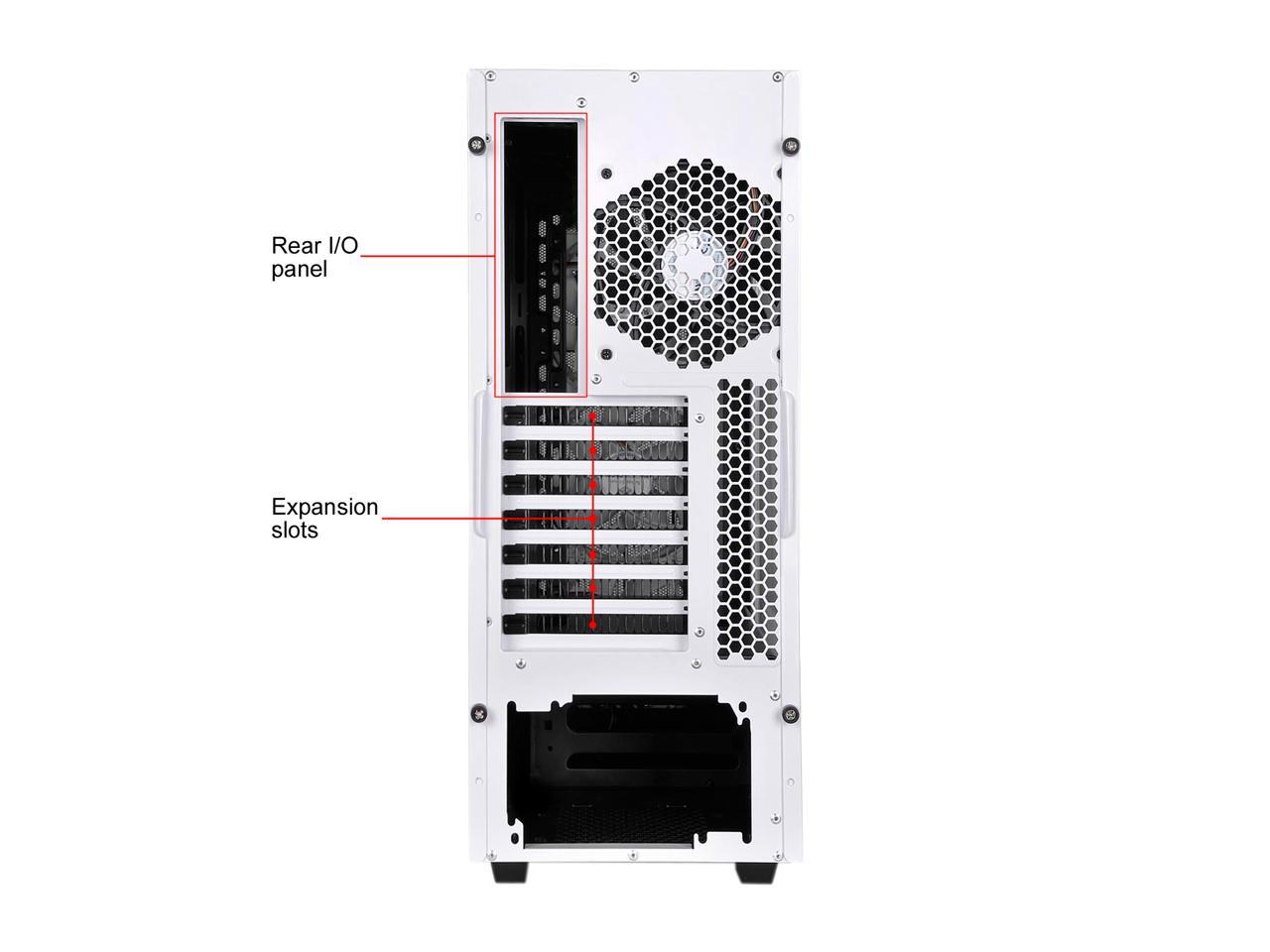

Expansion slot 7
Front I/O port USB 2.0 x 2
USB 3.0 x 2
Audio x 1
MIC x 1
Power supply Standard PS2(ATX)
Expansion card Support graphics card up to 13.7"" (348mm), width restriction - 6"" (152mm)
Limitation of CPU cooler 158mm
Limitation of PSU 200mm
Net weight 6 kg (standard version)
6.3 kg (PRO version)
6.87 kg (G version)
7.17 kg (GP version)

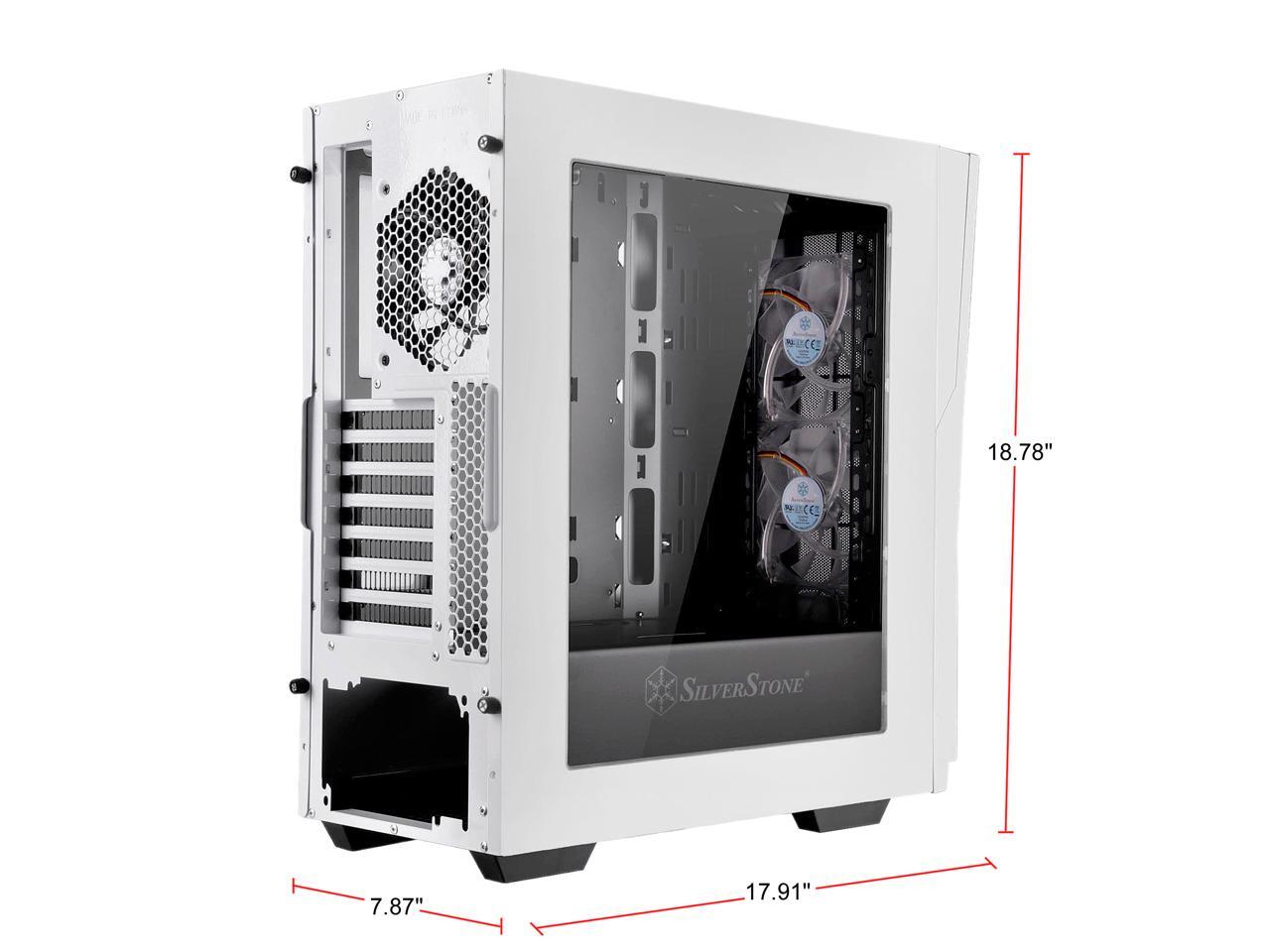

Dimension 200mm (W) x 477mm (H) x 455mm (D), 43.4 Liters
7.87"" (W) x 18.78"" (H) x 17.91"" (D), 43.4 Liters
Remark
When removing tempered glass panel, please do so by placing the case horizontally on a flat surface to avoid accidentally drop. When reinstalling tempered glass, make sure it is aligned to mounting posts before securing with screws. Do not over tighten screws during installation
For 120mm / 240mm radiators and fans, total thickness may not exceed 30mm depending on motherboard component clearance
