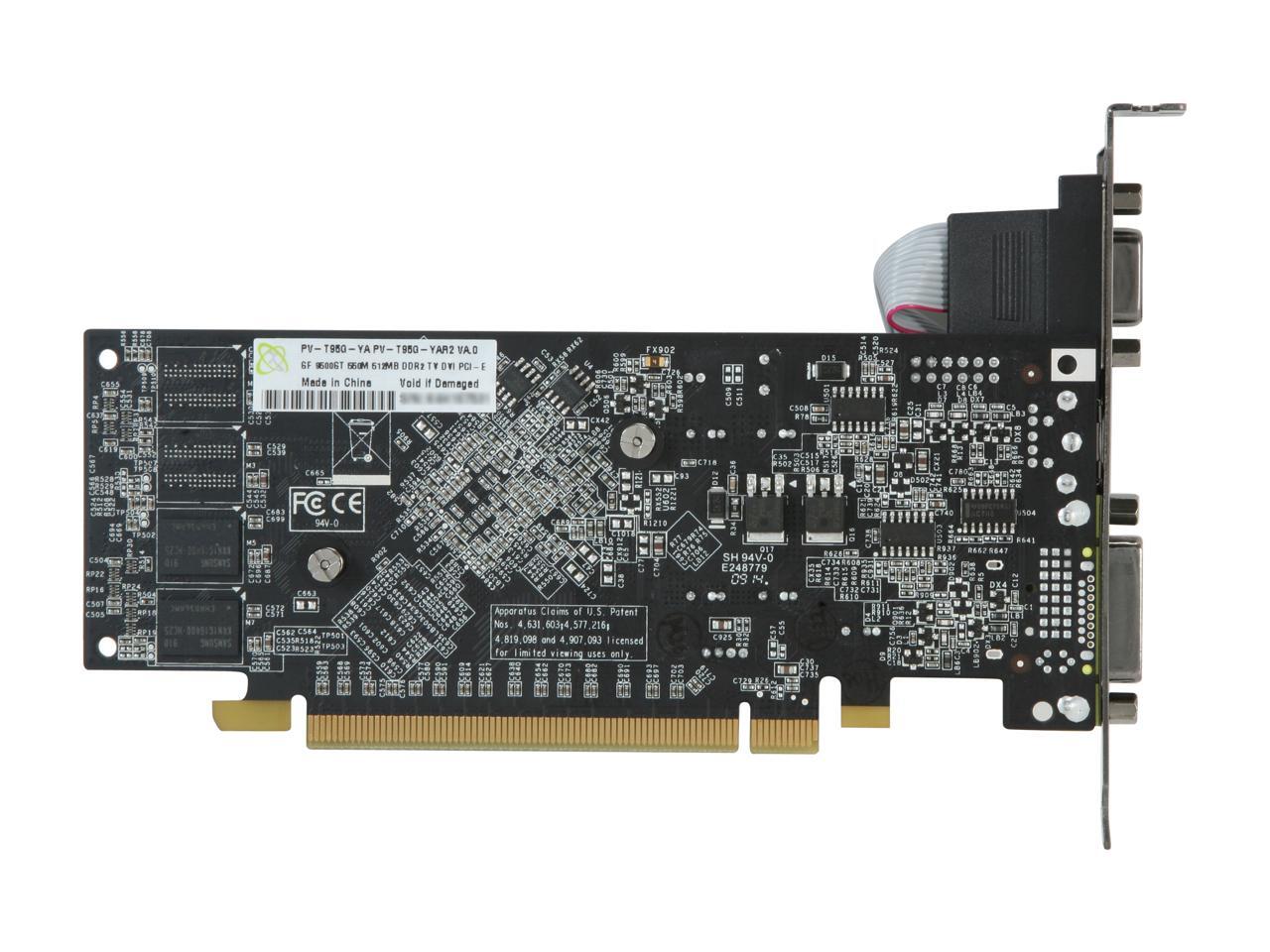

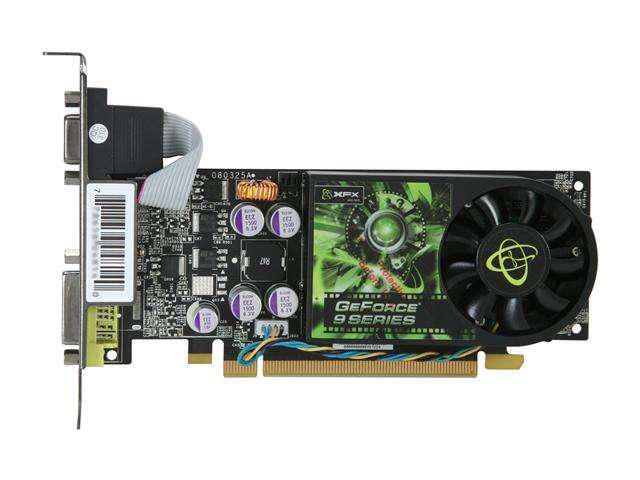

XFX GeForce 9500 GT DirectX 10 PVT95GYAR2 512MB 64-Bit DDR2 PCI Express 2.0 x16 HDCP Ready Low Profile Ready Video Card
OUT OF STOCK.
- 512MB 64-Bit DDR2
- Core Clock 550 MHz
- 1 x DVI
- 32 CUDA Cores
- PCI Express 2.0 x16
Specs
Reviews
Learn more about the XFX PVT95GYAR2
| Brand | XFX |
|---|---|
| Model | PVT95GYAR2 |
| Interface | PCI Express 2.0 x16 |
|---|
| Chipset Manufacturer | NVIDIA |
|---|---|
| GPU | GeForce 9500 GT |
| Core Clock | 550 MHz |
| Shader Clock | 1375 MHz |
| CUDA Cores | 32 |
| Effective Memory Clock | 800 MHz |
|---|---|
| Memory Size | 512MB |
| Memory Interface | 64-Bit |
| Memory Type | DDR2 |
| DirectX | DirectX 10 |
|---|

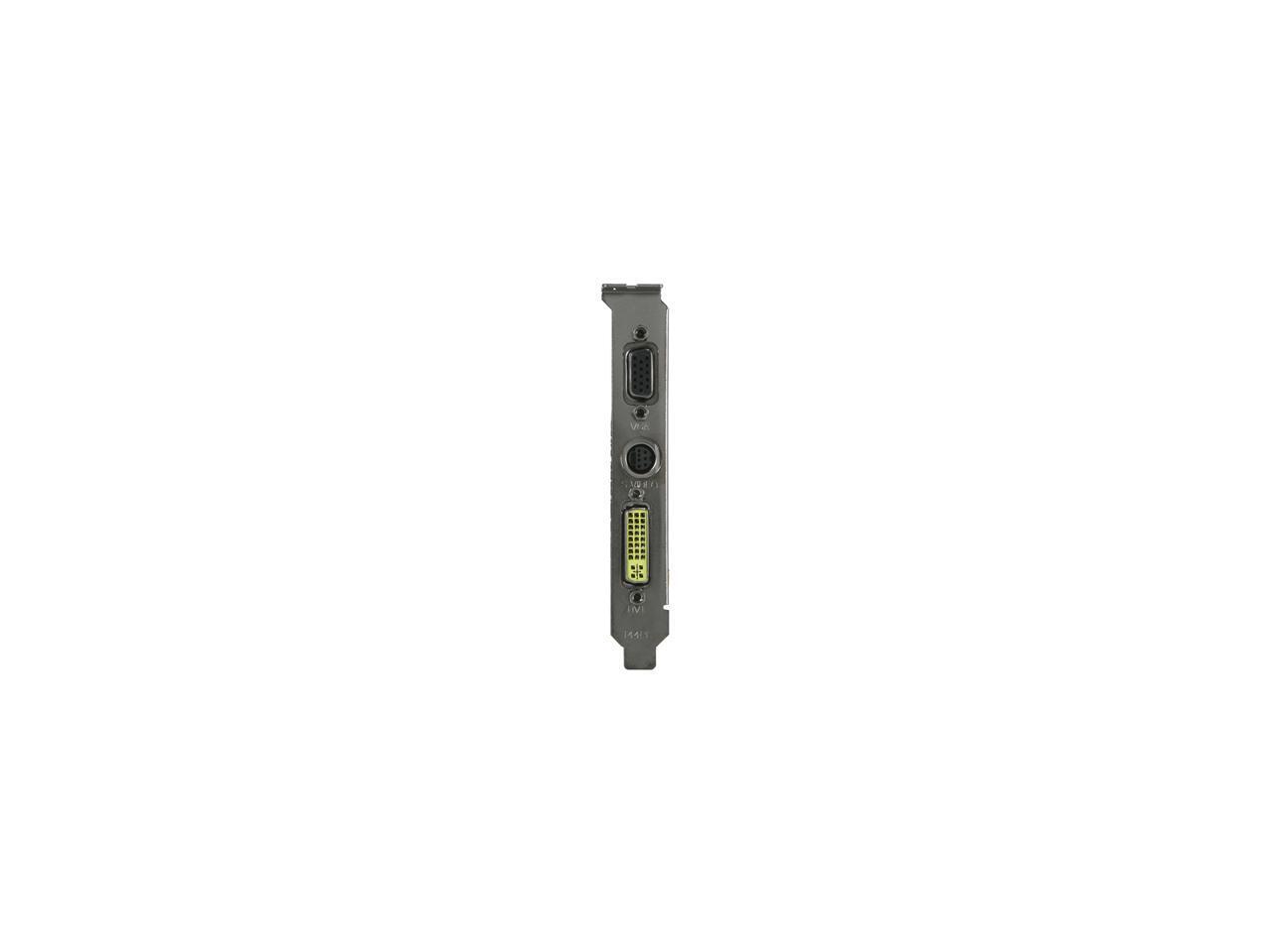

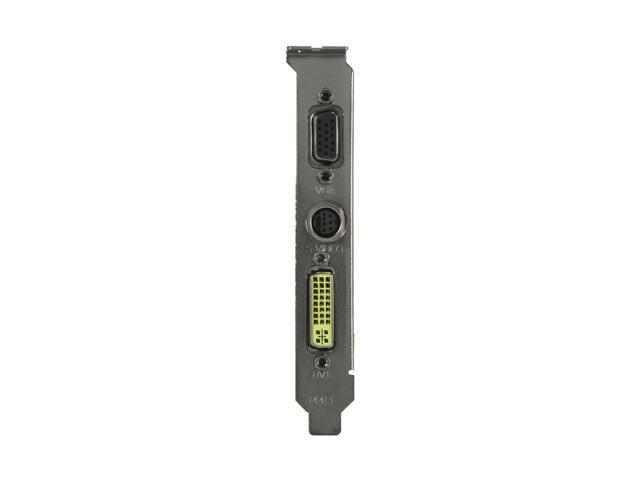

| D-SUB | 1 x D-SUB |
|---|---|
| DVI | 1 x DVI |
| TV-Out | HDTV / S-Video Out |
| RAMDAC | 400MHz |
|---|---|
| Max Resolution | 2560 x 1600 |
| RoHS Compliant | Yes |
| SLI Support | No |
| Cooler | Single Fan |
| System Requirements | Minimum 350W Power Supply Requirement |
| Dual-Link DVI Supported | Yes |
| HDCP Ready | Yes |
| Form Factor | Low Profile Ready |
|---|---|
| Low Profile Bracket Included | No |
| Card Dimensions (L x H) | 6.6" x 2.73" |
| Package Contents | PVT95GYAR2 Installation CD Users' Guide S-Video Cable |
|---|
| Date First Available | June 02, 2009 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): Lifetime
- Limited Warranty period (labor): Lifetime
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-880-3225
- Support Website
- View other products from XFX
LOADING...
Pros: Low profile design allows air to flow around my CPU and HD5830. I have this in a x16 to x1 bracket, so going with a low profile card was a must. I ordered the low profile kit, but the adapter bracket was still too low so I had to make the bracket work. I see the new version of the x16 to x1 bracket on newegg is a bit higher which I think fixes that issue. So I ran the mod for the Nvidia driver 257 and it will pull about 20 FPS physx. Overclocking the NB by about 100mhz was necessary to get it up to 20 FBS, otherwise it was running at about 12 FBS.
Cons: Drawing power from the motherboard makes me worry about overclocking it.
Overall Review: Draws power from the motherboard which is draining power from the Lan and sometimes the ethernet has to be reset. Also I worry that it worry that the extra power will burn out the motherboard faster Some say runing this set up is not necessary, however I see that the 12-20 Phys FPS I save from the main GPU adds to the Overall FPS, so basically if $30-40 is worth 5-10 overall FPS to you then go for it. I also ran this using a 9800GT and had similar Phys FPS Performance.
