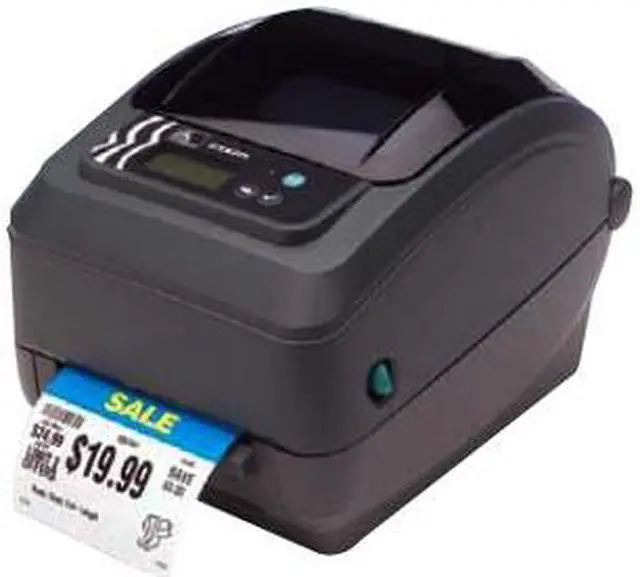

Zebra GX42-101810-000 GX420t Desktop Thermal Printer

Be the first to review this product...

Direct Thermal and Thermal Transfer
203 DPI
Tear Edge
Standard 4MB Flash, 8MB SDRAM, No Real Time Clock
USB, Serial, and Bluetooth with LCD

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Always a Perfect Fit

Zebra's G-Series Compact Desktop Printers - for print widths up to four inches - deliver best-in-class speed and performance. From the basic GK™ model to the feature-rich GX™ model, the G-Series printers are reliable, durable, and flexible to fit almost any low- to mid-volume printing application and budget.

Fitting Choices

Built with Zebra durability and reliability, the G-Series GK model provides the best value of all basic desktop thermal printers, while the premier GX model supports a variety of industries and applications with the widest range of features.

Choose the space-saving direct thermal version of either model for the smallest footprint of any 4-inch desktop printer, or the direct thermal/thermal transfer version to save users time with the easiest ribbon-loading system available.

With both EPL™and ZPL® programming languages native on all models, G-Series printers fit in perfectly with other Zebra printers. And a variety of connectivity options makes them easy to integrate into existing local or networked systems. Zebra's G-Series printers are a smart investment, and always a perfect fit.

Ideal for These Applications

Great for anyone who needs an easy-to-use, reliable printer for space-constrained areas, the 2824 Plus can be used in a variety of printing applications, including:

Manufacturing – Light-industrial work-in-process and product labeling
Healthcare – Specimen labeling, Patient tracking
Travel & Hospitality – Boarding passes, Bag tags, Ski lift tickets
Retail – Price marking, Gift registry, coupon and receipt printing, Pharmacy prescription labeling
Security – Visitor ID, Evidence tracking, Parking passes

Used For:

Asset Management
Bag Tag
Document & Records Management
Inventory Management
Lab Sample Tracking
Receiving/Shipping
Reverse Logistics
Work-in-Process Tracking
Person ID & Access Control
Security
Invoices & Receipts

Prescription Writing
Compliance Labeling
Dietary
Information Labels
Medical Record Labeling
Order Labeling
Photo Processing Labels
Prescription Labeling
Price Labeling
Quality Control
Radiology

GX420t Desktop Printer

Well suited for a number of applications, this desktop label printer boasts an easy ribbon loading system and is perfect for low- to medium-volume printing.

Features:

Print speed: up to 6" (152mm) per second
Print method: direct thermal/thermal transfer
EPL and ZPL programming languages standard
OpenACCESS design for easy media loading
Quick and easy ribbon loading system
Dual-wall reinforced plastic construction
32-Bit RISC processor
XML-Enabled printing

General
Brand	Zebra
Series	GX420t
Model	GX42-101810-000

Printer
Print Technology	Direct Thermal/Thermal Transfer Printer
Print Speed	6"/152 mm per second
Max Resolution(B&W)	203 dpi/8dots per mm
Memory	Standard: 4 MB Flash; 8 MB SDRAM
Fonts Included	16 resident expandable ZPL II bitmap fonts One resident scalable ZPL font Five resident expandable EPL2 bitmap fonts Supports user-defined fonts and graphics - including customer logos
Barcode Type	Linear Codabar Code 11 Code 128 Code 128 with subsets A/B/C Code 39 Code 93 EAN-13 EAN-14 EAN-8 and EAN-13 with 2 or 5 digit extensions EAN-8 German Post Code Industrial 2-of-5 Interleaved 2-of-5 Japanese Postnet Logmars MSI MSI-3 Plessey Postnet RSS (reduced space symbology) Standard 2-of-5 UCC/EAN-128 UPC and EAN 2 or 5 digit extensions UPC-A UPC-A and UPC-E with 2 or 5 digit extensions UPC-A and UPC-E with EAN 2 or 5 digit extensions UPC-E 2-dimensional Aztec Codablock Code 49 Data Matrix MacroPDF417 MaxiCode MicroPDF417 PDF417 QR Code RSS / GS1 DataBar family (12 barcodes)
Cutter	Cutter for various media types

Media Handling
Media Type	black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock
Media sizes supported	Maximum label and liner width: 4.25" (108 mm) Minimum label and liner width: 0.75" (19 mm) Maximum label and liner length: 0.38" (9.7 mm) to 39" (991 mm) Maximum roll diameter: 5" (127 mm) Core diameter: 0.5" (12.7), 1.0" (25.4 mm), 1.5" (37.1 mm) Media thickness: 0.003" (0.08 mm) to 0.0075" (0.20 mm)

Connections
Interface	Auto Sensing Serial RS-232 (DB-9) USB V1.1, bi-directional Centrontics Parallel Optional: 10/100 internal Ethrnet (replaces Parallel port) Optional: 802.11 b/g wireless radio connectivity with LCD display (replaces Parellel port) Optional: Bluetooth wireless connectivity with LCD display (replaces Parellel port)

Features
Features	EPL and ZPL programming languages standard OpenACCESS design for easy media loading Quick and easy ribbon loading system Dual-wall reinforced plastic construction 32 bit RISC processor XML-enabled printing Print width: 4.09" (104 mm) Print length: 39" (991 mm) Media sensors: Reflective, Transmissive

Dimensions & Weight
Dimensions	7.60" x 7.50" x 10.00"
Weight	4.60 lbs.
