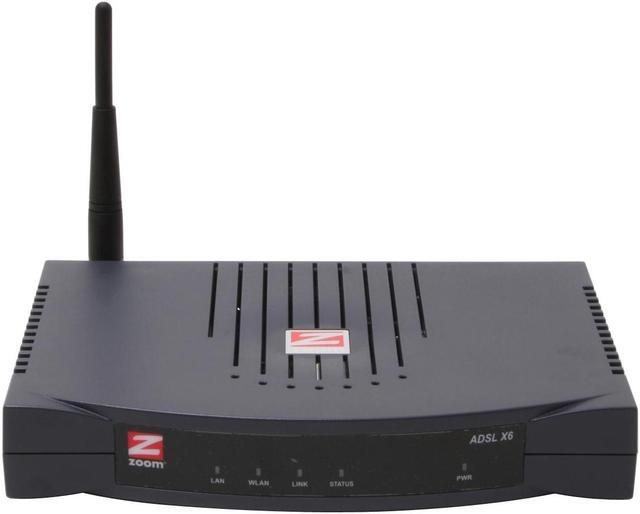

Zoom 5590 X6 ADSL 2/2+Modem+Wireless AP+Router+Firewall+4p Switch Maximum downstream rate of 8 Mbps (ADSL), or 24 Mbps (ADSL 2+) Maximum upstream rate of 896 Kbps (ADSL), or 1024 Kbps (ADSL 2+) Wireless 802.11: Up to 54 Mbps wireless data r
- Maximum downstream rate of 8 Mbps (ADSL), or 24 Mbps (ADSL 2+) Maximum upstream rate of 896 Kbps (ADSL), or 1024 Kbps (ADSL 2+) Wireless 802.11: Up to 54 Mbps wireless data rate; Zoom 125 Speed Booster for up to 125 Mbps effective rate Ethernet Interface: 10/100 Mbps
- Ethernet Port
- Full-rate ANSI T1.413 Issue 2, ITU G.dmt (G.992.1) standards Splitterless G.lite (G.992.2) specification G.dmt.bis (ITU G.992.3) G.992.5 ADSL2 Annex L (Reach extended ADSL)
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Zoom Technologies Inc. 5590
| Brand | Zoom |
|---|---|
| Model | 5590 |
| Type | DSL Modem |
|---|---|
| Interface | Ethernet Port |
| Standards | Full-rate ANSI T1.413 Issue 2, ITU G.dmt (G.992.1) standards Splitterless G.lite (G.992.2) specification G.dmt.bis (ITU G.992.3) G.992.5 ADSL2 Annex L (Reach extended ADSL) |
| Max Transmission Rate | Maximum downstream rate of 8 Mbps (ADSL), or 24 Mbps (ADSL 2+) Maximum upstream rate of 896 Kbps (ADSL), or 1024 Kbps (ADSL 2+) Wireless 802.11: Up to 54 Mbps wireless data rate; Zoom 125 Speed Booster for up to 125 Mbps effective rate Ethernet Interface: 10/100 Mbps |
| Features | ATM Protocols: WAN mode support: PPP over ATM (RFC 2364) and PPP over Ethernet (RFC 2516) LAN mode support: Bridged/Routed IP over ATM (RFC 1483) and Classical IP over ATM (RFC 1577) ATM Forum UNI 3.1/4.0 PVC Up to eight virtual circuits ATM segmentation and re-assembly ATM AAL5 (adaption layer type 5) OAM F4/F5 Bridge Mode: Ethernet to ADSL self learning - Transparent Bridging (IEEE 802.1D) Supports up to 128 MAC learning addresses Router Mode: Static routing DNS Server DHCP (Dynamic Host Configuration Protocol) server and client and Relay NAT (Network Address Translation) NAPT (Network Address and Port Translation) RIP V1 and V2 PPP Half Bridge Virtual Server/DMZ Support Wireless 802.11: Compliant with IEEE 802.11g and 802.11b standards 2.4 GHz - 2.484 GHz frequency range Up to 54 Mbps wireless data rate Zoom 125 Speed Booster for up to 125 Mbps effective rate* 64/128 bit Wired Equivalency Protection (WEP) with Pass Phrase Wi-Fi Protected Access (WPA) with Pass Phrase 802.1X Authentication Security: Stateful Packet Inspection (SPI) User authentication for PPP PAP (Password Authentication Protocol) CHAP (Challenge Authentication Protocol) Password protected system management VPN passthrough: PPTP, L2TP, IPsec tunnel Advanced Firewall Ports Filtering Black Lists Attack Protection Denial of Service Protection Port Scan Detection and Prevention Ethernet Interface: IEEE 802.3 compliant Four 10/100 Mbps auto-sensing RJ-45 ports Wireless Interface: Two antennas, one internal and one swivel external Management: Password protected access Universal Plug and Play (UPnP) SNMP Version 2 Remote and local command line or HTTP interface configuration Software upgradeable firmware through HTTP interface Loads setup from a file for easy input of a service provider’s configuration ATM traffic management functions support UBR, CBR, rt-VBR, nrt-VBR in accordance with ATM forum TM 4.1 |
|---|
| Date First Available | October 31, 2005 |
|---|
