Has anyone installed Linux on this machine? Did you have any driver compatibility issues? It looks like Zotac only publishes Windows drivers for their HW.

Linux works fine, as do commonly used OpenElec.

What is the maximum clock speed on the CPU and GPU with the CA320NANO-U? Can you lock in the max clock (Turbo) of 1.38 GHz simply by sleeping then waking the PC? Can you overclock the GPU using MSI Afterburner? Will it accept any RAM faster than 1066? My A6-1450 in my Acer Aspire V5-122P max CPU overclock is 1.38 GHz after a sleep and wake. The max GPU overclock is 497 MHz using MSI Afterburner.

The max clock speed is 1.4 Ghz (or 1.38 whatever). I have not tried to overclock, but it regularly jumps to 1.4 whenever the CPU is taxed.

Zotac lists this device as coming with Windows 8.1 with Bing. Does this version come with it or not?

The CI320-W2 sku comes with Windows 8.1 with Bing. Check that one out.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

More Resources

Manufacturer Brochure

User Manual

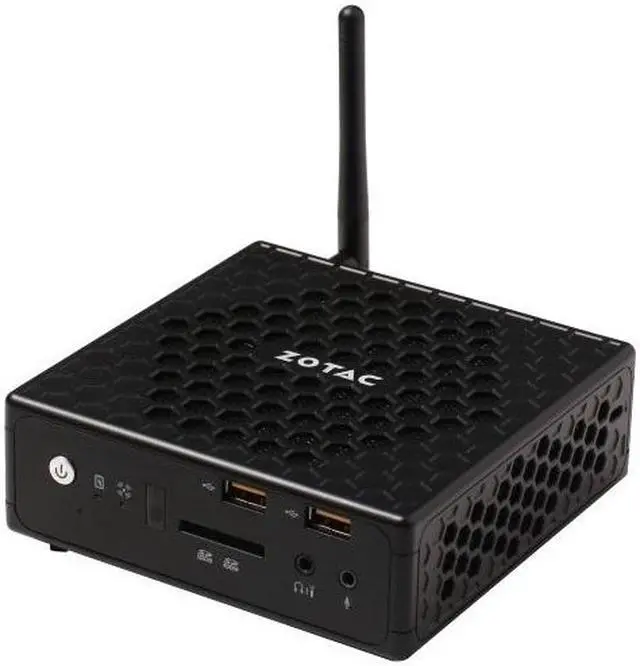

Main image of Zotac ZBOX-CA320NANO-U Barebone Systems - Mini / Booksize

Shop All ZOTAC Products

Zotac ZBOX-CA320NANO-U Barebone Systems - Mini / Booksize

(5) Write a Review

AMD A6-1450 1.0GHz
1 x 204Pin SO-DIMM DDR3L 1066

Overview

Specs

Reviews (5)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Enjoy quiet computing in a palm-sized form factor with the ZOTAC ZBOX CA320 nano series mini-PC. The ZOTAC ZBOX CA320 nano series mini-PC features a special passive-cooled chassis that eliminates cooling fans to create zero noise for a peaceful silent computing experience.

OS, Memory, and Solid State Drive sold separately

General
Brand	Zotac
Model	ZBOX-CA320NANO-U

CPU Supported
CPU Type	AMD A6-1450 1.0GHz

Memory Supported
Memory installed	No Memory
Memory slot	1 x 204Pin SO-DIMM
Memory Type Supported	DDR3L 1066
Max Memory Supported	8GB

Storage
Hard Drive Installed	No Hard Drive
Serial ATA	1 x SATA 3.0Gb/s

Graphics
Integrated Graphics	AMD Radeon HD 8250

Audio
Channel	8 Channel

Communications
Max LAN Speed	10/100/1000Mbps
Wireless LAN	802.11ac
Bluetooth	Bluetooth 4.0

Extension Bays
2.5" Internal Bays	1

Front Panel Ports
Front USB	2 x USB 2.0
Card Reader	3-in-1 (SD/SDHC/SDXC)

Back Panel Ports
HDMI	1
DisplayPort	1 x DisplayPort
Rear USB	2 x USB 3.0 3 x USB 2.0

Physical SPEC
Weight	3.25

Features
Features	Memory and Solid State Drive sold separately. No Operating System

Additional Information
First Listed on Newegg	July 09, 2014
