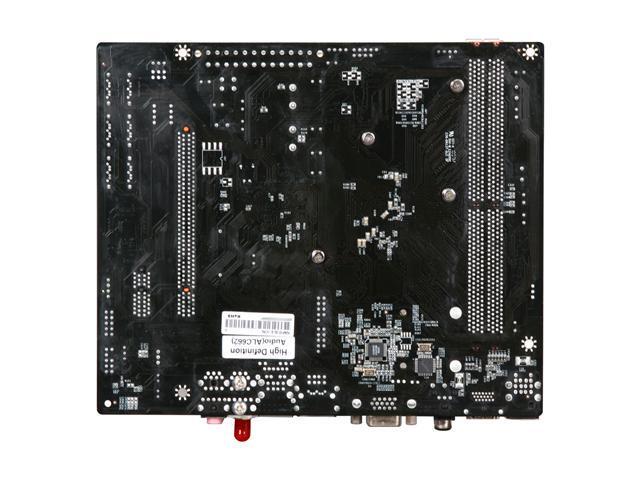

ZOTAC NM10-B-E-ION Intel Atom D510 (1.66GHz, dual-core) BGA559 Intel NM10 Mini DTX Motherboard / CPU / VGA Combo

OUT OF STOCK.
  • Intel Atom
  • DDR2 800/667
  • NVIDIA ION
Specs
Reviews

Learn more about the ZOTAC NM10-B-E-ION

Model
Brand ZOTAC
Model NM10-B-E-ION
Combo Type Motherboard / CPU / VGA Combo

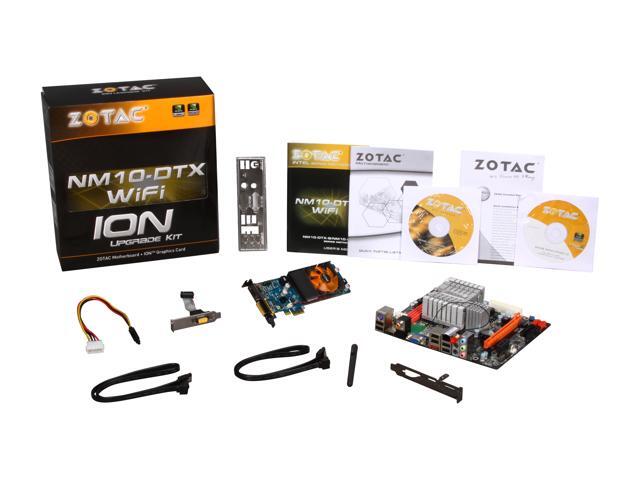

Bundle
Motherboard NM10-B-E
CPU Intel Atom D510 (1.66GHz, dual-core)
With Cooler Zero-noise passive cooling
Supported CPU
CPU Socket Type BGA559
CPU Type Intel Atom
Chipsets
North Bridge Intel NM10
Memory
Number of Memory Slots 2×240pin
Memory Standard DDR2 800/667
Maximum Memory Supported 4GB
Expansion Slots
PCI Express x16 1 x PCI Express x16 (single lane)
PCI Express x1 1 x PCI Express x1 (occupied by ION GPU)
Mini Card Slots 1 x Mini PCI Express (occupied by WiFi module)
Storage Devices
SATA 6 x SATA 3.0Gb/s
Onboard Video
Onboard Video Chipset NVIDIA ION
Onboard Audio
Audio Channels 6 Channels
Onboard LAN
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1
Video Ports D-Sub
HDMI 1 x HDMI
USB 1.1/2.0 6 x USB 2.0
eSATA 1 x eSATA II
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0
Features
Features Onboard 802.11n WiFi

5.1-channel High Definition Audio

ION Graphics Card
- NVIDIA ION graphics processor
- Engine Clock: 589 MHz
- Unified Shaders: 16
- Shader Clock: 1402 MHz
- 512MB DDR3 memory
- Memory Clock: 790 MHz
- Low-profile form factor
Physical Spec
Form Factor Mini DTX
Dimensions (W x L) 8" x 6.7"
Additional Information
Date First Available June 09, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
