Learn more about the ZOTAC ZT-A30820J-10PLHR
Model| Brand | ZOTAC |
|---|
| Series | Trinity OC |
|---|
| Model | ZT-A30820J-10PLHR |
|---|
Interface| Interface | PCI Express 4.0 |
|---|
Chipset| Chipset Manufacturer | NVIDIA |
|---|
| GPU Series | NVIDIA GeForce RTX 30 Series |
|---|
| GPU | GeForce RTX 3080 |
|---|
| Architecture | Ampere |
|---|
| Boost Clock | 1725 MHz |
|---|
| CUDA Cores | 8960 Cores |
|---|
Memory| Effective Memory Clock | 19.0 Gbps |
|---|
| Memory Size | 12GB |
|---|
| Memory Interface | 384-Bit |
|---|
| Memory Type | GDDR6X |
|---|
3D API| DirectX | DirectX 12 Ultimate |
|---|
| OpenGL | OpenGL 4.6 |
|---|
Ports| Multi-Monitor Support | 4 |
|---|
| HDMI | 1 x HDMI 2.1 |
|---|
| DisplayPort | 3 x DisplayPort 1.4a |
|---|
Details| Max Resolution | 7680 x 4320 |
|---|
| SLI Support | No |
|---|
| Virtual Reality Ready | Yes |
|---|
| Cooler | Triple Fans |
|---|
| Thermal Design Power | 350W |
|---|
| Recommended PSU Wattage | 750W |
|---|
| Power Connector | 2 x 8-Pin |
|---|
| HDCP Ready | 2.3 |
|---|
Form Factor & Dimensions| Form Factor | ATX |
|---|
| Max GPU Length | 318 mm |
|---|
| Card Dimensions (L x H) | 12.50" x 4.80" |
|---|
| Slot Width | 3 Slots |
|---|

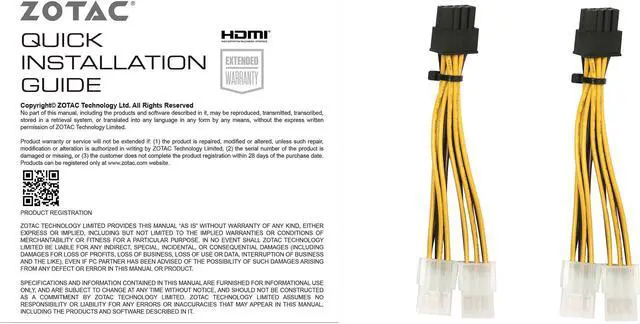

Packaging| Package Contents | ZOTAC GAMING GeForce RTX 3080 Trinity OC LHR 12GB 2 x Dual 6-pin to 8-pin cable User Manual |
|---|
Additional Information| First Listed on Newegg | October 11, 2024 |
|---|
