Item#: N82E16812220030

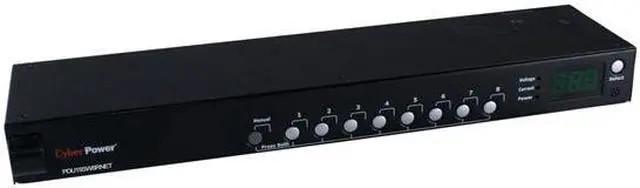

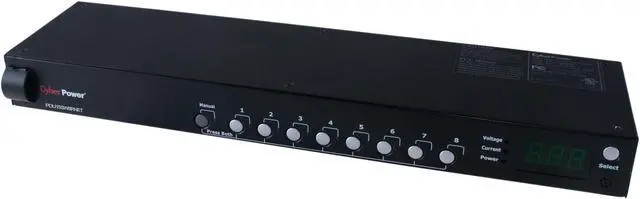

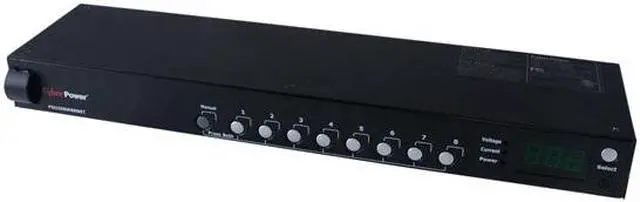

CyberPower PDU20SW8RNET Switched 120V 20A 10 ft Power Distribution Units

  • 120V
  • 20A
  • 10 ft
  • Pin It
  • Email this page
ICON Loading...

The CyberPower PDU20SW8RNET power distribution unit (PDU) features 8 outlets (8 Rear) to distribute power to 8 NEMA 5-20R receptacles with unfiltered electrical pass-through from a single NEMA 5-20P input. With 120V 20A output, this unit can handle the electrically demanding applications like server rooms, datacenters and more. This model features an LCD for displaying current draw for real-time load monitoring.  It offers unbeatable placement flexibility with support for horizontal rackmount, vertical rackmount and under-counter installation. A 10-foot AC power cord with cord retention allows easy application. Plus, the rugged, industrial-grade metal housing is extremely strong and durable, as well as thermally conductive to dissipate heat more efficiently. ETL/RoHS certified.

An RJ45 Ethernet port at the rear allows local network connection, and also allows this switched PDU to be monitored and controlled remotely using CyberPower Management Console

  • newegg Flexible Installation Supports 1U rackmount, 0U vertical rackmount, and under counter installations.
  • newegg LCD for Current Draw The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
  • newegg Remote Control The unit includes an RJ45 Ethernet port for local network connection. And with the CyberPower Management Console, you can remotely manage the unit, monitor PDU vitals as well as control outlets and networked clients.
  • newegg Tough Build This unit has a rugged, industrial-grade metal housing for durability and strength, as well as better heat dissipation.

Learn more about the CyberPower PDU20SW8RNET

Model

Brand
CyberPower
Model
PDU20SW8RNET

Details

Type
Switched
Style
Rackmount, Vertical Rackmount, Under-Counter
Certifications
UL1419 certified by ETL (USA), FCC Class B
ROHS
ROHS Compliant

Input

Input Voltage
120V
Maximum Input Current
20A
Input Connector(s)
NEMA 5-20P
Cord Length
10 ft

Output

Output Voltage
120V
Output Connector(s)
8 NEMA 5-20R
Overload Protection
20A

Dimensions & Weight

Dimensions
17.5" x 1.75" x 4"
Weight
7 lbs.

Manufacturer Warranty

Parts
Lifetime limited
Labor
Lifetime limited

Quick Info

Warranty

  • Limited Warranty period (parts): Lifetime
  • Limited Warranty period (labor): Lifetime


Customer Reviews of the CyberPower PDU20SW8RNET

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • GARY M.
  • 2/23/2012 4:26:09 PM
  • Tech Level: High
  • Ownership: more than 1 year

4 out of 5 eggsIt works

Pros: I have had two of these running for years, no issues. I do keep it behind a firewall and on a UPS. I like the built-in thermometer and hygrometer. When the co-lo humidity gets down to 2% I start losing disk drives.

Cons: No way to upgrade the firmware and my old units no longer work with recent Firefox or Opera. Still good with Chrome. Auto log out is very short. No IPv6.
The outlet control page does not show outlet labels. That has lead to more than one accident turning off the wrong port. Just 1, 2, 3.

Other Thoughts: I do keep it behind a firewall and on a UPS so not totally battle tested. It does what I need doing, which is remote power control in an emergency. Nwere firmware may be better.

Did you find this review helpful? Yes No
