CyberPower PDU20SWVHVT24FNET Switched 0U 200V - 240V 20A 10 ft Power Distribution Unit

Shop All CyberPower Products

CyberPower PDU20SWVHVT24FNET Switched 0U 200V - 240V 20A 10 ft Power Distribution Unit

Be the first to review this product...

200V - 240V
20A
10 ft

Overview

Specs

Reviews

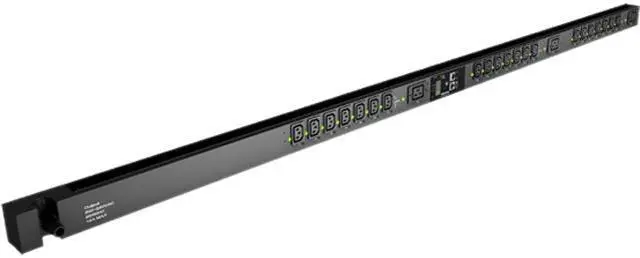

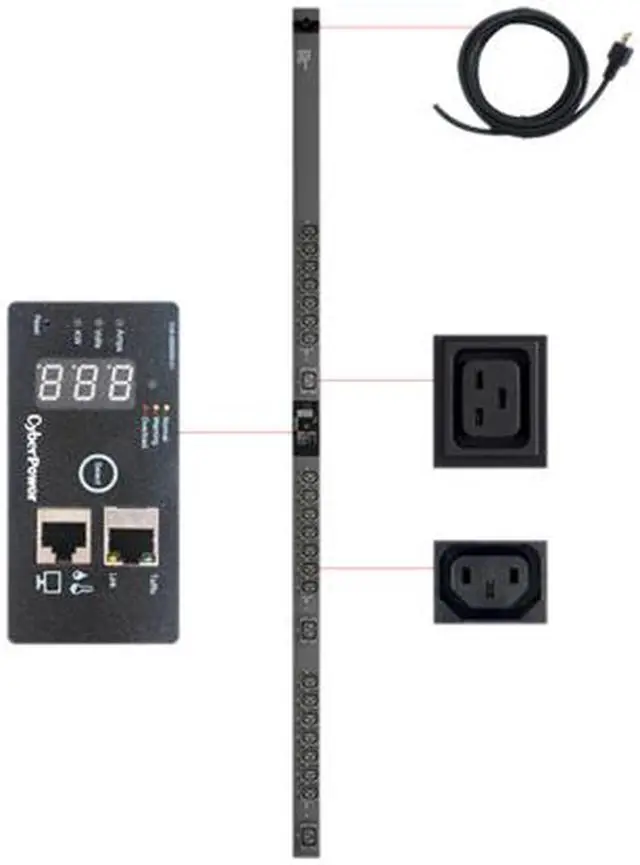

The CyberPower (PDU20SWVHVT24FNET) 24-outlet 0U rack mount switched power distribution unit (PDU) provides 200-240V 20A output. It distributes power to 24 IEC-320 (19-C13 and 3-C19) receptacles from a single NEMA L6-20 plug, with unfiltered electrical pass-through. Outlets can be managed individually over the network, using CyberPower Management Console and the RJ45 Ethernet port for local network connection, or locally using the LCD.

The LCD displays the electrical current used by connected equipment in amps and can be toggled to display input voltage, power being consumed in watts, and the IP address of the PDU. The CyberPower Management Console offers remote management of the unit: monitoring PDU vitals as well as controlling outlets and networked clients.

The unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted vertically, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

Model
Brand	CyberPower
Model	PDU20SWVHVT24FNET

Details
Type	Switched
Rack Size	0U
Style	Vertical Rackmount, Wallmount
Remote Management Protocol	TCP/IP, UDP, DHCP, SNMP, HTTP
Front Panel LEDs	Load Tx/Rx LINK Outlets
Certifications	UL60950_1, CSA C22.2, FCC Class A
ROHS	Yes

Input
Input Voltage	200V - 240V
Input Frequency	50/60 Hz
Maximum Input Current	20A
Regulatory Derated Input Current	16A
Input Connector(s)	Straight, Twist Lock
Cord Length	10 ft

Output
Output Voltage	200V - 240V
Output Connector(s)	21 x IEC-320 C13 3 x C19
Overload Protection	20A (derated 16A)

Environmental
Operating Environment	32 to 113 degrees Fahrenheit / 0 to 45 degrees Celsius
Operating Relative Humidity	0 - 95% non-condensing
Operating Elevation	0 - 14,760 ft / 4,500 m
Storage Temperature	5 to 113 degrees Fahrenheit / -15 to 45 degrees Celsius
Storage Elevation	0 - 50,000 ft / 15,000 m

Feature
Features	Switched Power Distribution Unit (PDU) with 200-240V AC, 20A maximum capacity (derated to 16 amps), built-in Web/network interface, and 1U horizontal form factor. NEMA L6-20 plug and (24) IEC-320 C13 (21) / C19 (3) controllable outlets are standard on the PDU20SWVHVT24FNET PDU. The LCD provides users with real-time metering for current (amperes), input voltage, power consumptions (kilowatts), and the IP address to make setup easy. Output receptacles can be controlled individually at the PDU or remotely (via Web/network connection) to turn on, turn off or reset frozen equipment. Using the CyberPower Management Console, you can program outlets to turn on, turn off, or recycle at specified times collectively or individually to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. Event logging is available via a web browser/network connection to review history on power conditions, such as input voltages, load levels, and outlet status. Switched and Monitored PDUs include a RJ45 network port to connect to an Ethernet network for monitoring or controlling PDU outlets and vitals. A RJ-45 port enables the connection of the optional ENVIROSENSOR environmental sensor for monitoring the heat and humidity in an IT center. Fast and easy network setup can be done automatically with DHCP or manually by assigning a user defined IP address. Administrator and User rights can be established to provide IT personnel with access to the Management Console via a web browser to monitor and/or manage the PDU settings. Automatic event notifications, via email or SNMP traps, provide IT personnel immediate updates on power events including user defined thresholds. CyberPower Switched PDU includes protocol support for PowerPanel Business Edition, HTTP, TCP/IP, UDP, DHCP, and SNMP.

Dimensions & Weight
Dimensions	66.50" x 2.20" x 1.75"
Weight	12.8 lbs.

Additional Information
Date First Available	June 25, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
